Side 1/4

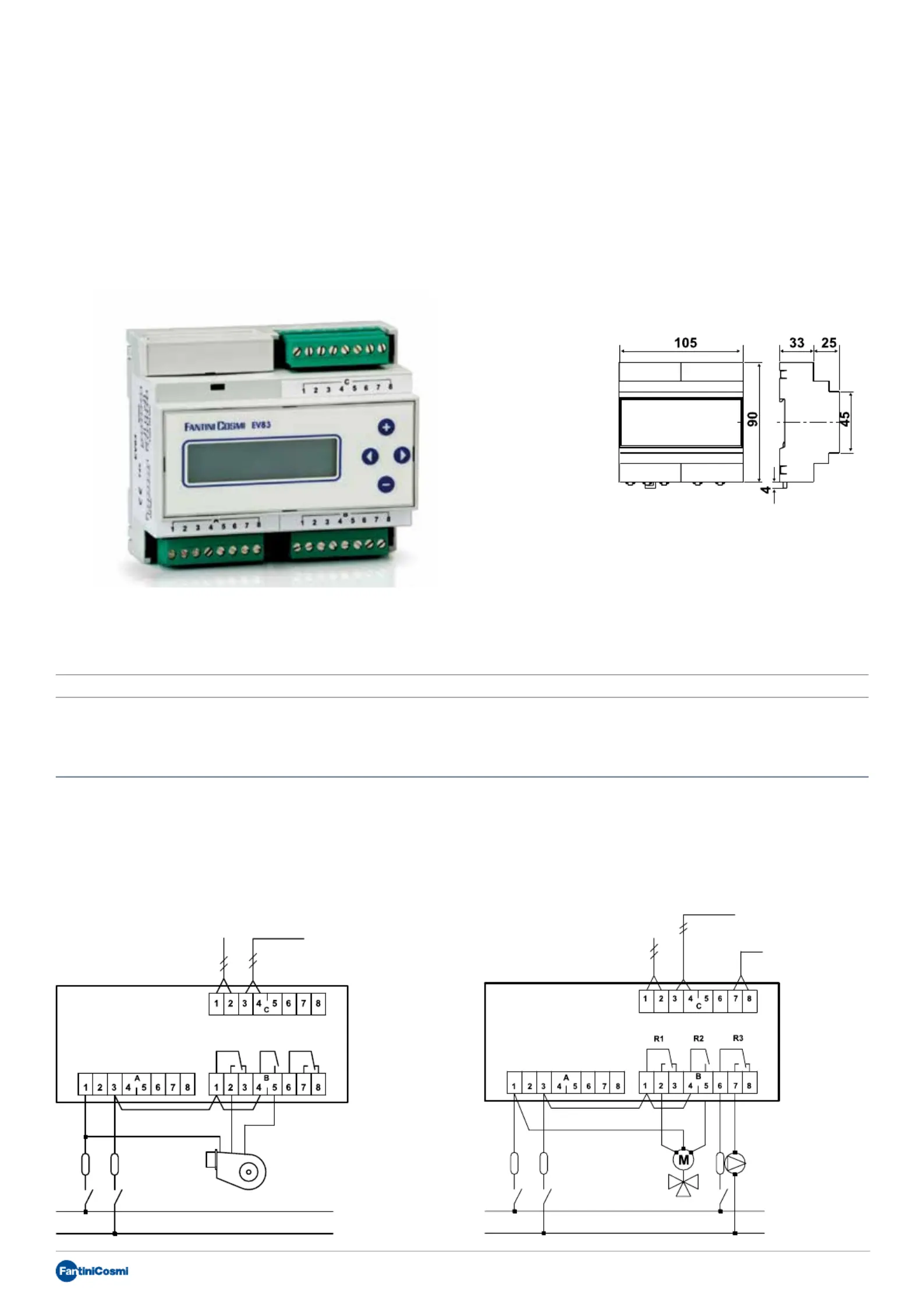

Suitable for all central heating systems, such as those related to residential buildings, schools, hospitals, factories etc. EV83 controller

allows complete control of the mixing valve, or alternatively, the two-stage burner and the corresponding circulation pump.

EV83

Regulation control unit for heating systems, DIN-rail

mounting (6 modules)

ELECTRICAL FEATURES

Power supply: 230Vac 50Hz.

Consumption: 3 VA.

3 output relays.

Contacts rating: 5A-230Vac (resistive load).

ELECTRICAL WIRING OF 2-STAGE BURNER CONTROL

SYSTEM ELECTRICAL WIRING

Dimensions (mm)

common

open

closed

Pump

Power supply Contacts

rating

Operation

admissible

temperature

Protection

degree

EV83 230Vac 50 Hz 5A - 250Vac 0 ÷ 50 °C IP40 (back panel)

External probe

code: EC14

External probe

code: EC14

Power supply 230V 50Hz Power supply 230V 50Hz

stage 2

stage 1

Delivery probe

codes: EC15 - EC16

Delivery probe

codes: EC15 - EC16

Ambient probe

code: EC10

LANGUAGE SELECTION

During installation is possible to choose the language, used to

view the menu.

REGULATION BROKEN CURVE

This curve represents the values of the delivery temperature

as a function of the external temperature control for obtaining

an ambient temperature of 20°C. Curve calibration is done

by setting four significant points of the curve related to four

external temperature values. Possible curve corrections allow

to modify only the points related to the external temperature

for which are not verified comfort optimum conditions, without

changing other already checked points.

OUTPUT RELAYS

The three output relays have the following functions:

circulation pump control;

valve opening command or stage 1 command;

valve closing command or stage 2 command.

MIXING VALVE

The mixing valve is going to open/close by means of two relays

allowing the delivery temperature to reach the temperature

value calculated by the controller.

BURNER CONTROL

As an alternative to the mixing valve control is possible to

control in on-off mode the burner with one or two stages.

CIRCULATION PUMP (if present)

It is activated for allowing the water circulation in the heating

system and it is turned off when the delivery temperature

calculated by the controller drops below a minimum value.

Pump turning off can be delayed with a time set by the user

(with “----” or “0” if the delay is not necessary).

TIME PROGRAMMING

Is possible to have a weekly time programming with three ON

schedules and three OFF schedules for each day of the week.

A backup battery allows to have a charge reserve for more than

five years.

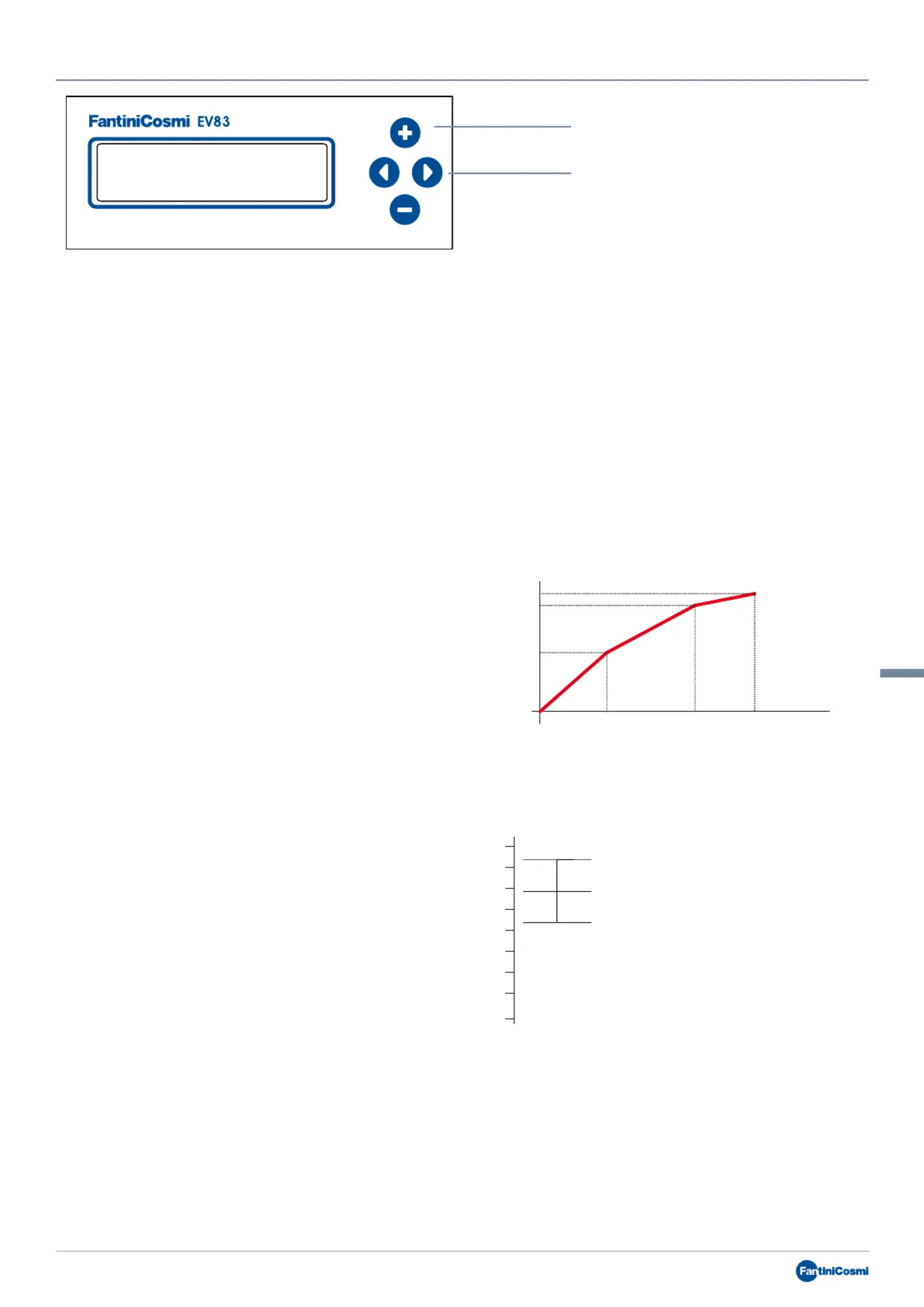

Using the 2 keys ( ) can be scrolled various + and -

menus and can be modified the parameters.

The 2 keys (< and >) are used to enter in the menu

and to pass from one page to another.

EV83 purpose is to obtain a certain ambient temperature, starting from delivery temperature and external temperature reading.

The ambient temperature is set by the user through the configuration menu shown on the display and can take different values

depending on the selected program.

In the moment when it has been recognized a program type the device calculates the delivery temperature required to obtain the

ambient temperature associated with the same program; this is going to be calculated by interpolation using the preset delivery

temperature values for four external temperature values ( -10°C, 0°C, 10°C, 20°C). It is possible to optimize the temperature control

using the temperature probe EC10.

OPERATION

REGULATION BROKEN CURVE

Delivery Temp.

External Temp.

-10

10 -100

2-STAGE OUTPUT

Boiler T

Calculated T

100

Diff.

Stage 1 ON

Stage 2 ON
