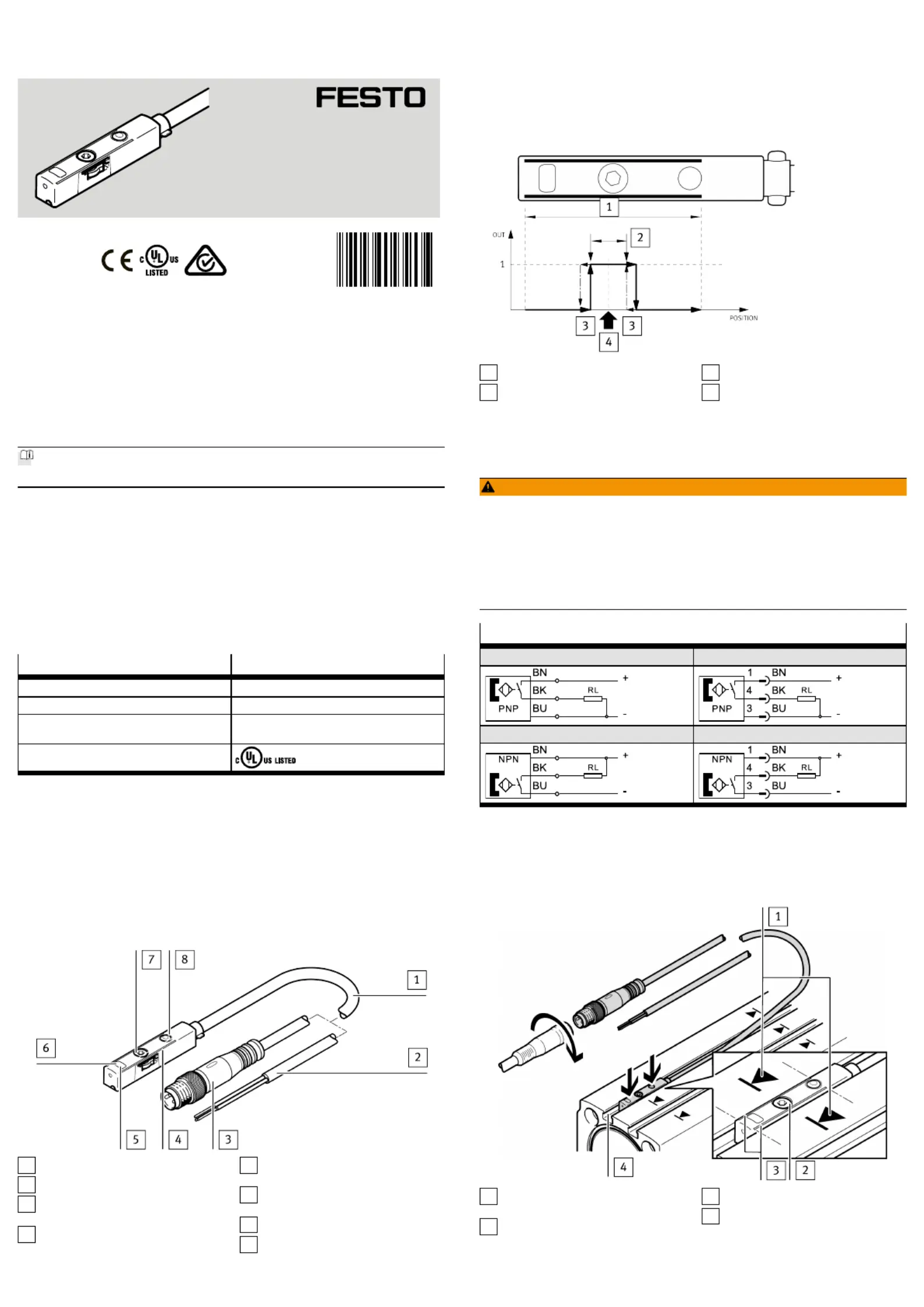

Translation of the original instructions

1 Further applicable documents

All available documents for the product www.festo.com/pk.è

2 Safety

2.1 Intended use

This product is intended for sensing the position of magnets (e.g. the piston posi

tion) in Festo products. The device is intended for use in an industrial environ

ment.

2.1.1 Area of application and approval

In combination with the UL inspection mark on the product, the information in this

section must also be observed in order to comply with the certification conditions

of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL approval information

Product category code NRKH, NRKH7

File number E232949

Considered standards UL 609471, UL 6094752

C22.2 No. 609471, C22.2 No. 6094752

UL mark

Tab. 1

Only use power sources which guarantee reliable electrical isolation of the oper

ating voltage in accordance with IEC/EN 602041. Observe also the general

requirements for PELV power circuits in accordance with IEC/EN 602041. Only for

connection to a NEC/CEC Class 2 supply. The device shall be supplied from an

isolating transformer having a secondary listed fuse rated 1 A.

3 Product overview

3.1 Structure

Connecting cable

Open cable end (SDBTMSX...LE)

Plug connector M8

(SDBTMSX...M8)

Marking of sensing range

Green LED: display of sensing

range; only in teachin mode

Yellow LED: switching status dis

play

Retaining screw

Capacitive operating key

Fig. 1

3.2 Function

The proximity sensor SDBTMSX detects the magnetic field of the piston magnet.

In the sensing range of the proximity switch, a switching point can be pro

grammed. To set a switching point in the sensing range of the proximity sensor,

there are two options:

– Auto teachin

– Capacitive operating key

Sensing range

Switching window

Hysteresis

Teachin point

Fig. 2

4 Installation

4.1 Electrical

WARNING!

Risk of injury due to electric shock.

• For the electrical power supply, use only PELV circuits in accordance with IEC

602041/EN 602041 (Protective ExtraLow Voltage, PELV).

• Observe the general requirements of IEC 602041/EN602041 for PELV cir

cuits.

• Only use voltage sources that ensure a reliable electric separation from the

mains network in accordance with IEC 602041/EN 602041.

Circuit diagrams

SDBT…PU…LE SDBT…PU…M8

SDBT…NU…LE SDBT…NU…M8

Tab. 2

4.2 Mechanical

• Mount the proximity sensor in the end position of the piston so that the end

position is in the sensing range of the sensor. If available, the orientation aid

provides the marking of the piston end position on the drive.

Marking of the piston end position

on the drive (if available)

Retaining screw

Marking of sensing range

Tslot

Fig. 3

8125856

SDBT-MSX

Proximity Sensor

8125856

201911a

[8125858]

Instructions|Operating

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 3470

www.festo.com

5 Commissioning

5.1 Automatic switching point setting: auto teach-in

Prerequisite: proximity sensor is in delivery status.

1. Mount the proximity sensor roughly in the end position 4.2 Mechanical.è

2. Connect the proximity sensor 4.1 Electrical.è

Proximity sensor is automatically taught in during operation, e.g. upon

initial commissioning of the complete system.

Application notes on auto teach-in

During auto teachin, each 100ms stop of the piston within the sensing range is>

output as a switching point. If the piston at this position reverses its direction of

movement and leaves the sensing range without further stops, this switching

point is saved temporarily.

If the piston stops 4x consecutively at the same position, reverses its direction of

movement and leaves the sensing range without further stops, this position is

saved as a final switching point. Auto teachin is complete.

The process described corresponds with the classic use case: proximity sensor

query at the end stop of the piston stroke or at the end stop of the customer

application.

If the piston stroke is smaller than the sensing range of the SDBTMSX, ensure

that the second reversal point of the piston is outside the sensing range during

auto teachin  Tab. 3.è

Application notes on auto teach-in

Auto teachin possible:

End position A

Auto teachin possible:

End position B

Auto teachin not possible. The

switching point must be set

using the capacitive operating

key.

Tab. 3

5.2 Manual operation using capacitive operating key

The proximity sensor is parameterised once it is installed.

• Be mindful of the surface temperature of the capacitive operating key and of

the drive.

• Avoid contamination and moisture on the proximity sensor.

5.2.1 Setting the switching point

1. Move the piston into the sensing range of the proximity sensor.

2. Actuate the capacitive operating key 3 times to activate setup mode.

3. Actuate the capacitive operating key once to switch to the menu item "Set

switching point".

4. Actuate the capacitive operating key once.

The current piston position is taught in as the switching point.

5.2.2 Setting the switching point with variable switching window width

1. Move the piston into the sensing range of the proximity sensor.

2. Actuate the capacitive operating key 3 times to activate setup mode.

3. Actuate the capacitive operating key twice to switch to the menu item "Set

switching point with variable switching window width".

4. Actuate the capacitive operating key once.

The current piston position is taught in as a switching point with approx.

2mm switching window width.

Every other keystroke increases the switching window width by approx.

1mm. A max. switching window width of 15mm is possible.

5.2.3 PNP/NPN switch-over

1. Actuate the capacitive operating key 3 times to activate setup mode.

2. Actuate the capacitive operating key 3 times to switch to the menu item

"Switch over between PNP / NPN".

3. Actuate the capacitive operating key once to switch between PNP> NPN or

NPN> PNP.

5.2.4 NO/NC switch-over

1. Actuate the capacitive operating key 3 times to activate setup mode.

2. Actuate the capacitive operating key 4 times to switch to the menu item

"Switch over between NO / NC".

3. Actuate the capacitive operating key once to switch between NO> NC or

NC> NO.

5.3 Menu structure

Green LED on & yellow LED off:

piston magnet in sensing range; no switching point

Set-up mode

Flashes yellow and

green in the form of

moving lights

Set switching point

Green ON: teach-in possible

Flashes yellow once, then 2 s

pause

Set switching point with variable width

of switching window

Flashes yellow 2 times, then 2 s

pause

Switch: PNP ß

ßß

àà NPN

Flashes yellow 3 times, then 2 s

pause

Current status: Green ON: PNP

green OFF: NPN

Reset to factory settings

Yellow + green flash

simultaneously at 2.5 Hz

3 x

Number of actuations invalid

1 x

2 x

3 x

10 x

Switching point set

Width of switching window 2 mm

1 x

N x

1 x

No switching point set

PNP (SDBT-…-PU)

NPN (SDBT-…-NU)

1 x

Termination

Yellow lights up

for 0.5 s

3 s

t > 60 s

Error

Green flashes at

3 Hz for 1 s

N x = press capacitive operating key (e.g.: 3 x);

Max. 1 second pause between two consecutive presses. After a 1 second pause, entry is copied.

= LED ON / LED flashes / LED OFF (e.g.: yellow LED)

1) A switching point can only be set when the green LED is ON.

When the green LED is flashing at 1.5Hz, the magnet is located in the region of the function reserve. It is not possible to set a

switching point. The function reserve is required for the safe setting of switching points in the edge region.

When the green LED is OFF, the magnet is outside the sensing range. It is not possible to set a switching point.

Switch:

PNP NPN or:à

NPN à PNP

3 s = hold the capacitive operating key pressed for at least 3 seconds

Menu: (green LED flashes when the capacitive operating key is pressed)

Both LEDs off:

Outside the sensing range; no switching point

Both LEDs on:

Piston magnet in sensing range; switching point

Green LED off & yellow LED on: cylinder switch operation:

switching point finally programmed as a teach-in value

Green ON: teach-in possible

Switching point set & width of switching

window + 1 mm:

N=1: 2 mm

N=2: 3 mm

…

N=14: 15 mm (max. width of switching

window)

Display: PNP / NPN

Flashes yellow 5 times, then 2 s

pause

Current status: Green ON: PNP

green OFF: NPN

5 x

1 x

Exit

Switch: NO ß

ßß

àà NC

Flashes yellow 4 times, then 2 s

pause

Current status: Green ON: NO

Green OFF: NC

4 x

1 x

Switch:

NO à NC or:

NC NOà

Display with factory settings [NO]

Fig. 4

6 Reset to factory settings.

Parameter Factory setting

Operating mode Auto teachin

Switching output No switching point programmed

Configuration of the switching output:

– SDBT…PU: PNP

– SDBT…NU: NPN

Switching element function: NO

Variable switching window width Not programmed

Tab. 4

1. Actuate the capacitive operating key 3 times to activate setup mode.

2. Actuate the capacitive operating key 10 times to switch to the menu item

"Reset to factory settings".

3. Actuate the capacitive operating key once.

Proximity switch is reset to factory settings.
