PathFindIR II

QuickStart Guide

Ready

Set

Go...

FLIR document number: 421-0053-00-QS, Rev. 100

Quick Start Guide

Installation of the PathFindIR II is quick and easy. Just mount the camera and

ECU, connect to a 12v power source and a video monitor and you’re done.

For the complete user manual and install video please go to our website at the

following link: http://www.ir.com/pf2docs

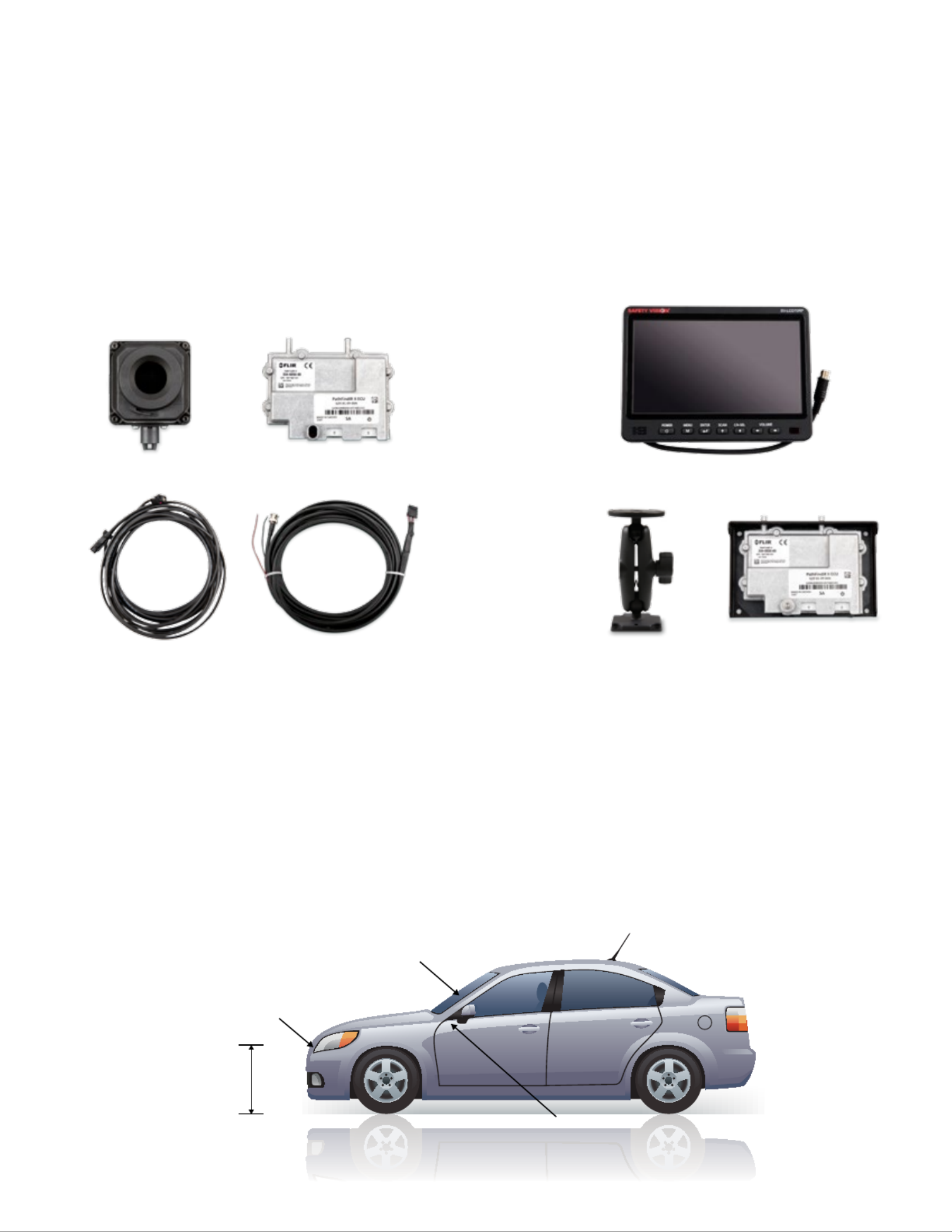

Before you begin, make sure you’ve got all

of the parts you’ll need. Your PathFindIR II kit

should include the following items:

(along with 4 screws for mounting the camera)

If you purchased the optional

Installation Kit, you will also have:

First, you need to select an acceptable mounting location for the camera head.

1. 2.

PathFindIR Camera Video Monitor

PathFindIR To ECU Cable

PathFindIR

Mounting Bracket

ECU Bracket

(with ECU Installed)

Power/Video Cable

ECU

• Mount the camera in the front of the car behind

the grille, but make sure it has no obstructions

in its view.

• Don’t mount the camera inside the passenger

compartment, because it can’t see through glass.

• To get the best performance out of the camera

and its onboard pedestrian and animal detection

algorithms, you need to make sure the camera

is mounted according to factory specications

(see user guide for details).

• The camera should be mounted between 19 and 31

inches high, with the optimal height above the ground

being 25 and a half inches high (65cm ±15cm). Also

keep in mind that if you can mount the camera higher,

you’ll cut down the chances of the camera getting

damaged by rocks or other road debris.

• Make sure that the camera won’t be exposed to fast

temperature changes, so keep it as far from the

engine as possible.

25.5”+_ 6”

(65cm +_ 15cm)

PathFindIR II

Camera

Display (inside passenger compartment)

ECU (inside passenger compartment

FLIR document number: 421-0053-00-QS, Rev. 100
