Side 1/28

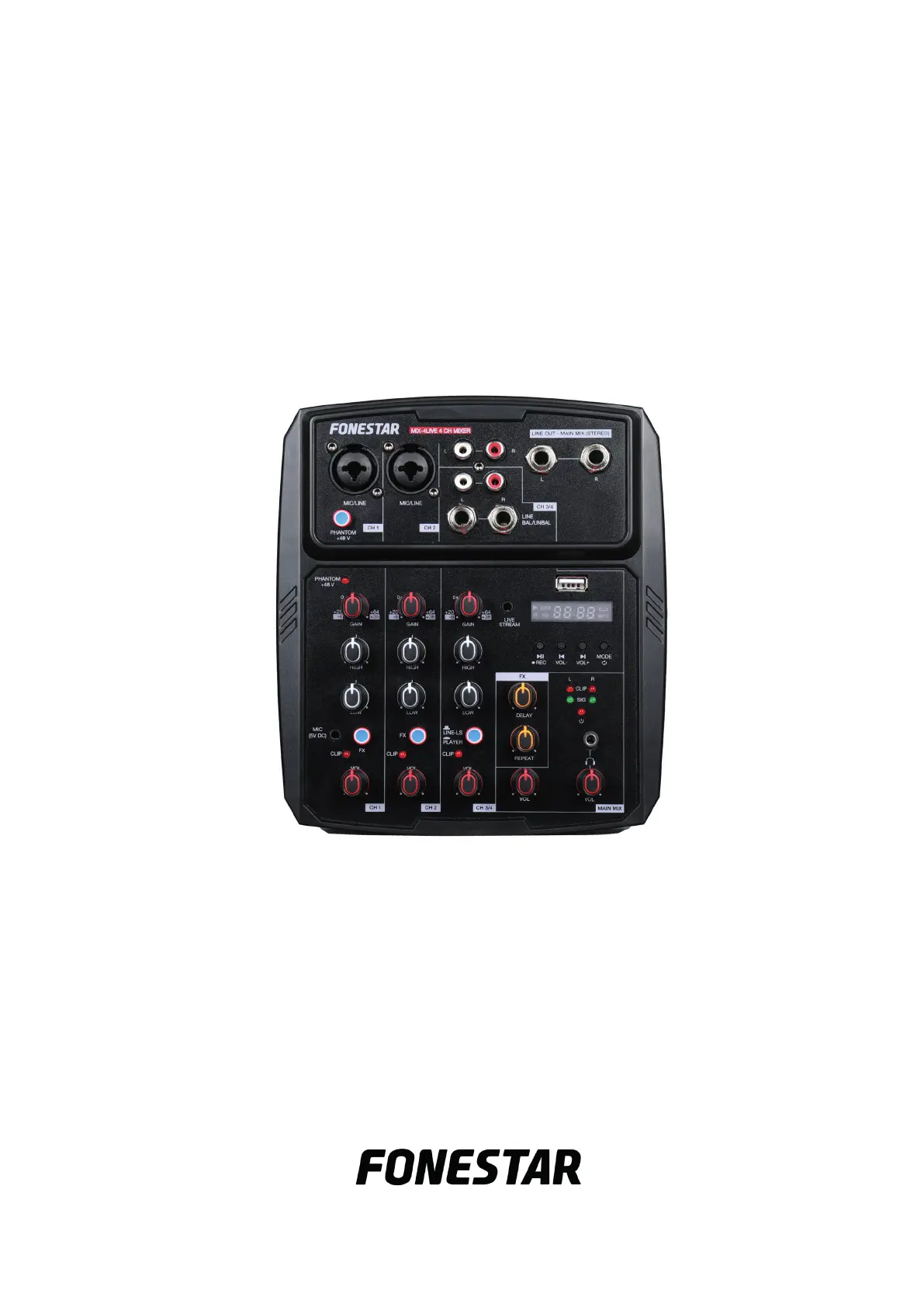

INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

MIX-4LIVE

BLUETOOTH

/USB/PC 4-CHANNEL MIXER

MEZCLADOR 4 CANALES BLUETOOTH

/USB/PC

TABLE DE MIXAGE 4 CANAUX BLUETOOTH

/USB/PC

MISTURADOR 4 CANAIS BLUETOOTH

® /

USB/PC

- 2 -

DESCRIPTION

- 4-channel stereo mixer with live streaming function, PC audio card and USB recorder/player.

- Live streaming function, you can connect your smartphone or tablet and stream your live performance on

your favourite platform, with no need for anything else.

- Connect the mixer to your PC as an audio card. You can play audio content from the PC and record audio

on the PC simultaneously.

- USB recorder and player, play music or record the performance without a PC.

- It includes effects (delay and repeat) with level control, which will give an extra touch to your performances.

CONTROLS

FRONT PANEL

MIC/LINE

BAL/UNBAL

LINE

MIC/LINE

PHANTOM

+48 V

PHANTOM

+48 V

CH 1 CH 2 CH 3/4

CH 1 CH 2

CH 3/4

MAIN MIX

LINE OUT - MAIN MIX (STEREO)

HIGH

LOW

MIC

(5V DC)

CLIP CLIP

MIX-4LIVE 4 CH MIXER

MODE

VOL

REC

+20

-6

+64

+38

+20

-6

+64

+38

+20

-6

+64

+38

GAIN

HIGH

LOW

VOL VOL

HIGH

LOW

GAINGAIN

VOL

CLIP

SIG

VOL

DELAY

REPEAT

CLIP

LINE-LS

PLAYER

VOL

LIVE

STREAM

0 0

19/20

11 12 1415

MP3

5 V DC

Using computer DC

USB AUDIO

1.- MIC/LINE CH 1-CH 2: microphone or line inputs, use the channel GAIN control to change the input

sensitivity, 6.3 mm combo jack and balanced XLR connector. It is possible to connect a condenser

microphone only on channel 1. To do this, you must switch on the phantom power of this input with the

PHANTOM +48 V button.

2.- LINE CH 3/4: channel 3/4 line level inputs, 2 x RCA and 2 x 6.3 mm jack balanced connectors.

3.- PHANTOM +48 V CH 1: phantom power of the XLR connector on input channel 1. Must be activated

when the microphone to be connected is a condenser microphone.

4.- PHANTOM +48 V : channel 1 phantom power supply activation indicator light.
