Online UPS 1K/2K/3K

FSP Manual Guide

 SAFETY CAUTION

Please comply with all warnings and operating instructions in this

manual strictly. Save this manual properly and read carefully the

following instructions before installing the unit. Do not operate this unit

before reading through all safety information and operating instructions

carefully.

1-1. Transportation

• Please transport the UPS system only in the original package to

protect against shock and impact.

1-2. Preparation

• Condensation may occur if the UPS system is moved directly from

cold to warm environment. The UPS system must be absolutely

dry before being installed. Please allow at least two hours for the

UPS system to acclimate the environment.

• Do not install the UPS system near water or in moist

environments.

• Do not install the UPS system where it would be exposed to direct

sunlight or near heater.

• Do not block ventilation holes in the UPS housing.

1-3. Installation

• Do not connect appliances or devices which would overload the

UPS system (e.g. laser printers) to the UPS output sockets.

• Place cables in such a way that no one can step on or trip over

them.

• Do not connect domestic appliances such as hair dryers to UPS

output sockets.

• The UPS can be operated by any individuals with no previous

experience.

• Connect the UPS system only to an earthed shockproof outlet

which must be easily accessible and close to the UPS system.

• Please use only VDE-tested, CE-marked mains cable (e.g. the

mains cable of your computer) to connect the UPS system to the

building wiring outlet (shockproof outlet).

• Please use only VDE-tested, CE-marked power cables to connect

the loads to the UPS system.

• When installing the equipment, it should ensure that the sum of

the leakage current of the UPS and the connected devices does

not exceed 3.5mA.

1-4. Operation

• Do not disconnect the mains cable on the UPS system or the

building wiring outlet (shockproof socket outlet) during operations

since this would cancel the protective earthing of the UPS system

and of all connected loads.

• The UPS system features its own, internal current source

(batteries). The UPS output sockets or output terminals block may

be electrically live even if the UPS system is not connected to the

building wiring outlet.

• In order to fully disconnect the UPS system, first press the

OFF/Enter button to disconnect the mains.

• Prevent no fluids or other foreign objects from inside of the UPS

system.

1-5. Maintenance, service and faults

• The UPS system operates with hazardous voltages. Repairs may

be carried out only by qualified maintenance personnel.

• Caution - risk of electric shock. Even after the unit is

disconnected from the mains (building wiring outlet), components

inside the UPS system are still connected to the battery and

electrically live and dangerous.

• Before carrying out any kind of service and/or maintenance,

disconnect the batteries and verify that no current is present and

no hazardous voltage exists in the terminals of high capability

capacitor such as BUS-capacitors.

• Only persons are adequately familiar with batteries and with the

required precautionary measures may replace batteries and

supervise operations. Unauthorized persons must be kept well

away from the batteries.

• Caution - risk of electric shock. The battery circuit is not isolated

from the input voltage. Hazardous voltages may occur between

the battery terminals and the ground. Before touching, please

verify that no voltage is present!

• Batteries may cause electric shock and have a high short-circuit

current. Please take the precautionary measures specified below

and any other measures necessary when working with batteries:

○

remove wristwatches, rings and other metal objects

○

use only tools with insulated grips and handles.

• When changing batteries, install the same number and same type

of batteries.

• Do not attempt to dispose of batteries by burning them. This could

cause battery explosion.

• Do not open or destroy batteries. Escaping electrolyte can cause

injury to the skin and eyes. It may be toxic.

• Please replace the fuse only with the same type and amperage in

order to avoid fire hazards.

• Do not dismantle the UPS system.

 Installation and setup

NOTE: Before installation, please inspect the unit. Be sure that nothing

inside the package is damaged. Please keep the original package in a

safe place for future use.

NOTE: There are two different types of online UPS: standard and long-

run models. Please refer to the following model table. More detail about

the Rear panel view, please see user manual.

Setup the UPS

Step 1: The cables of the batteries of the UPS Rack type and the Long

Run model are not connected. Please connect them first before usage.

Step 2: UPS input connection

Plug the UPS into a two-pole, three-wire, grounded receptacle only.

Avoid using extension cords.

Step 3: UPS output connection

For socket-type outputs, simply connect devices to the outlets.

For terminal-type input or outputs, please follow below steps for the

wiring configuration:

1. Remove the small cover of the terminal block

2. Suggest using AWG14 or 2.1mm

power cords for 3KVA

(208/220/230/240VAC models). Suggest using AWG12-10 or

3.3mm

-5.3mm

power cords for 3KVA (110/115/120/127VAC

models). Please also install a circuit breaker (40A) between

the mains and AC input of UPS in 3KVA (110/115/120127VAC

models) for safety operation.

3. Upon completion of the wiring configuration, please check

whether the wires are securely affixed.

4. Put the small cover back to the rear panel.

Step 4: Communication connection Communication port:

The UPS is equipped with intelligent slot perfect for either SNMP or

AS400 card. When installing either SNMP or AS400 card in the UPS, it

will provide advanced communication and monitoring options.PS. USB

port and RS-232 port can’t work at the same time.

Step 5: Turn on the UPS

Press the ON/Mute button on the front panel for two seconds to

power on the UPS. Note: The battery charges fully during the first five

hours of normal operation. Do not expect full battery run capability

during this initial charge period.

Step 6: Install software

For optimal computer system protection, install UPS monitoring

software to fully configure UPS shutdown. You may insert provided CD

into CD-ROM to install the monitoring software.

Online UPS 1K/2K/3K

FSP Manual Guide

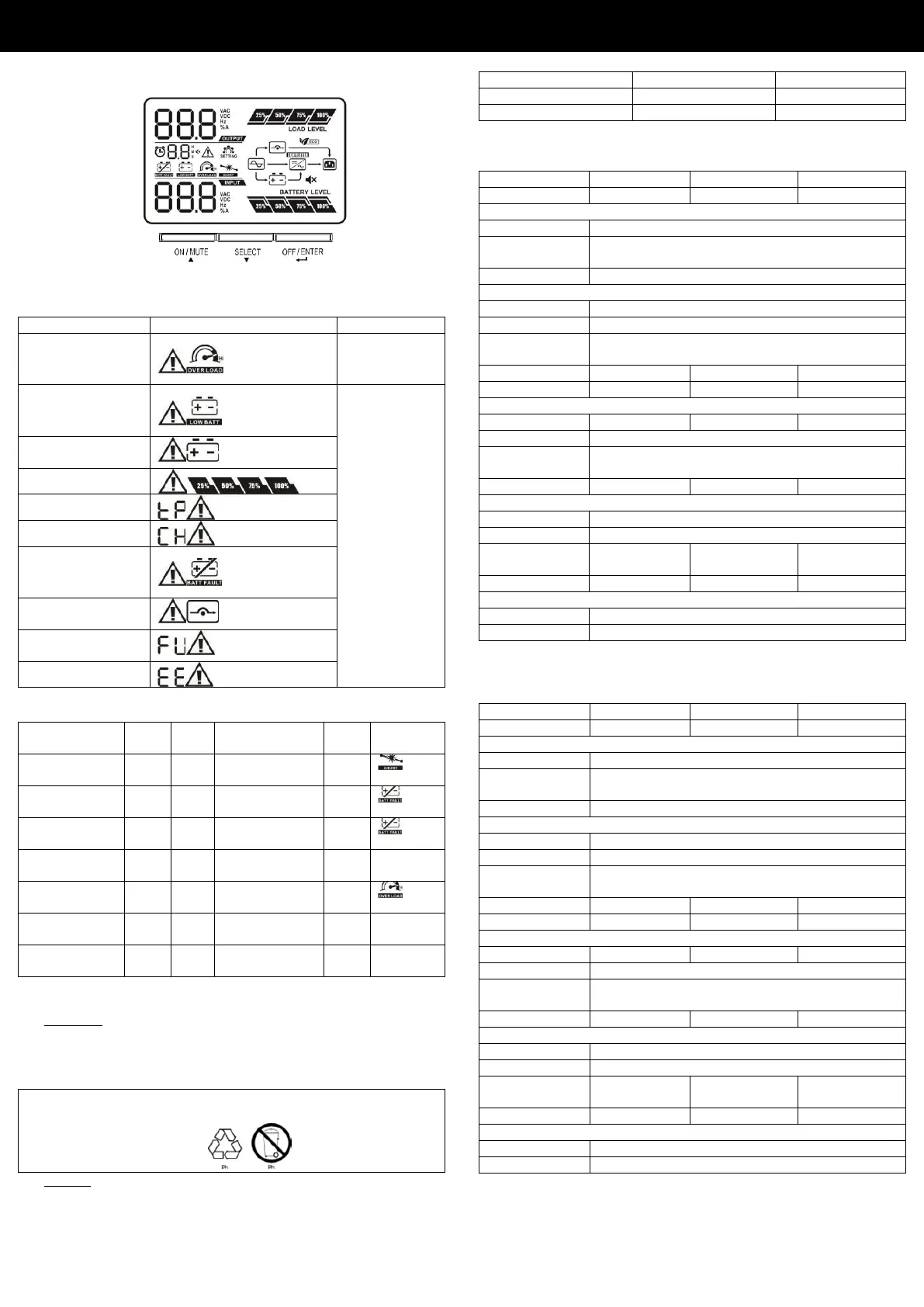

 LCD Panel & Button operation

Detail function/setting and LCD icon indicators. Please see user manual.

 Warning indicator

Warning

Icon (flashing)

Alarm

Overload

Sounding twice

every second

Low Battery

Sounding

every second

Battery is not

connected

Over Charge

Over temperature

Charger failure

Battery fault

Out of bypass

voltage range

Bypass frequency

unstable

EEPROM error

 Faults Reference Code

Fault event

Fault

code

Icon

Fault event

Fault

code

Icon

Bus start fail

Inverter output

short

Bus over

Battery voltage

too high

Bus under

Battery voltage

too low

Bus unbalance

Over

temperature

Inverter soft

start fail

Overload

Inverter

voltage high

Charger failure

Inverter

voltage Low

 Storage and Maintenance

Operation

The UPS system contains no user-serviceable parts. If the battery

service life (3~5 years at 25°C ambient temperature) has been

exceeded, the batteries must be replaced. In this case, please contact

your dealer.

Be sure to deliver the spent battery to a recycling facility or ship it to

your dealer in the replacement battery packing material.

Storage

Before storing, charge the UPS 5 hours. Store the UPS covered

and upright in a cool, dry location. During storage, recharge the battery

in accordance with the following table:

Storage Temperature

Recharge Frequency

Charging Duration

-25°C - 40°C

Every 3 months

1-2 hours

40°C - 45°C

Every 3 months

1-2 hours

 Specifications

Champ Tower 1~3K

MODEL

1K(L)*

2K(L)*

3K(L)*

CAPACITY*

1000VA/900W

2000VA/1800W

3000VA/2700W

INPUT

Voltage

208 / 220 / 230 / 240Vac

Voltage Range

120-300Vac (Based on load at 50%)

160-280Vac (Based on load at 100%)

Frequency

40~70Hz

OUTPUT

Voltage

208 / 220 / 230 / 240Vac

Regulation

± 1%

Frequency

47~53Hz or 57~63Hz (Synchronized Range)

50Hz ± 0.25Hz or 60Hz ± 0.3Hz (Batt. Mode)

Eff.(AC Mode)

88%

90%

Eff.(Bat mode)

83%

87%

88%

Battery

Type/ Numbers

12V/9Ah *2

12V/9Ah *4

12V/9Ah *6

Charge Time

4 hours recover to 90% capacity

Capacity

1.0A for Standard model

1A / 2A / 4A / 6A (Adjustable) for long-run model

Charge Vol.

27.4Vdc± 1%

54.7Vdc ±1%

82.1Vdc ±1%

PHYSICAL&ENVIRONMENT

Humidity

20-90% RH @ 0-40°C (non-condensing)

Noise Level

Less than 50dBA @ 1 Meter

DxWxH (mm)

282x145x220

*282x145x220

379x145x220

*379x145x220

421x190x318

*397x145x220

Net weight(kg)

9.8/*4.1

17/*6.8

27.6/*7.4

MANAGEMENT

RS-232 / USB

Supports Windows, Linux and MAC system

Optional SNMP

management from SNMP manager/web browser

*Long-run model power factor: 0.8

**Product specifications are subject to change without further notice

Champ Rack 1~3K

MODEL

1K(L)*

2K(L)*

3K(L)*

CAPACITY*

1000VA/900W

2000VA/1800W

3000VA/2700W

INPUT

Voltage

208 / 220 / 230 / 240Vac

Voltage Range

120-300Vac (Based on load at 50%)

160-280Vac (Based on load at 100%)

Frequency

40~70Hz

OUTPUT

Voltage

208 / 220 / 230 / 240Vac

Regulation

± 1%

Frequency

47~53Hz or 57~63Hz (Synchronized Range)

50Hz ± 0.25Hz or 60Hz ± 0.3Hz (Batt. Mode)

Eff.(AC Mode)

88%

89%

90%

Eff.(Bat mode)

83%

87%

88%

Battery

Type/ Numbers

12V/9Ah *2

12V/9Ah *4

12V/9Ah *6

Charge Time

4 hours recover to 90% capacity

Capacity

1.0A for Standard model

1A / 2A / 4A / 6A (Adjustable) for long-run model

Charge Vol.

27.4Vdc± 1%

54.7Vdc ±1%

82.1Vdc ±1%

PHYSICAL&ENVIRONMENT

Humidity

20-90% RH @ 0-40°C (non-condensing)

Noise Level

Less than 50dBA @ 1 Meter

DxWxH (mm)

310x438x88

*310x438x88

410x438x88

*410x438x88

630x438x88

*410x438x88

Net weight(kg)

12/*9

19/*12

29.3/*14.2

MANAGEMENT

RS-232 / USB

Supports Windows, Linux and MAC system

Optional SNMP

management from SNMP manager/web browser

*Long-run model power factor: 0.8

**Product specifications are subject to change without further notice

Produkt Specifikationer

Mærke:	FSP
Kategori:	Uafbrydelig strømforsyning (UPS)
Model:	Champ Rack 3k 3000VA

Har du brug for hjælp?

Hvis du har brug for hjælp til FSP Champ Rack 3k 3000VA stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Uafbrydelig strømforsyning (UPS) FSP Manualer

19 August 2025

18 August 2025

18 August 2025

17 August 2025

FSP Champ Rack 3k 3000VA Manual

17 August 2025

Uafbrydelig strømforsyning (UPS) Manualer

Nyeste Uafbrydelig strømforsyning (UPS) Manualer

CyberPower RB1290X2D Manual

2 Oktober 2025

ATen EC1000 Manual

28 September 2025

Riello SEP 1500 Manual

20 September 2025

Riello Dialog Vision Manual

20 September 2025

Panamax MB1000 Manual

4 September 2025

Panamax MB1500 Manual

4 September 2025

Akyga AK-ND-41 Manual

30 August 2025

CyberPower HSTP3T30KEBCWOB Manual

20 August 2025

Vorago UPS-400 Manual

20 August 2025

CyberPower RT33020KE Manual

20 August 2025
