Signature Series CRGBW 12in.

Subwoofer Installation Instructions

Important Safety Information

WARNING

See the guide in the Important Safety and Product Information

product box for product warnings and other important

information.

This device must be installed according to these instructions.

Disconnect the vehicle's or vessel's power supply before

beginning to install this device.

CAUTION

Continuous exposure to sound pressure levels over 100 dBA

may cause permanent hearing loss. The volume is typically too

loud if you cannot hear people speaking around you. Limit the

amount of time you listen at high volume. If you experience

ringing in your ears or muffled speech, stop listening and have

your hearing checked.

To avoid possible personal injury, always wear safety goggles,

ear protection, and a dust mask when drilling, cutting, or

sanding.

NOTICE

When drilling or cutting, always check what is on the opposite

side of the surface to avoid damaging the vessel.

It is strongly recommended that you have your audio system

installed by a professional installer to ensure optimum

performance.

You must read all installation instructions before beginning the

installation. If you experience difficulty during the installation, go

to for product support.www.fusionentertainment.com

After installing the subwoofer, you should run the subwoofer at

low to medium volumes for the first few hours of use. This helps

to improve the overall sound by gradually loosening up the

moving components of the subwoofer, such as the cone, spider,

and surround

Tools Needed

• Electric drill

• Drill bit (size varies based on surface material)

• Phillips screwdriver

• Appropriate saw or utility knife to cut surface material

• 12 AWG (3.31 mm²) or larger speaker wire

• 22 AWG (0.33 mm²) or larger wire for the LEDs

• Wire strippers (optional)

• Electrical tape (optional)

• Marine sealant (optional)

NOTE: For customized installations, additional tools and

materials may be needed.

Mounting Considerations

NOTICE

When mounting the subwoofer in an area exposed to weather or

water, you must mount the subwoofer on a vertical surface. If

you mount the subwoofer on a horizontal surface facing up,

water can gather in and around the subwoofer, causing damage

over time.

If you intend to mount the subwoofer outside the boat, you must

mount it in a location well above the waterline, where it is not

submerged or damaged by docks, pilings, or other pieces of

equipment. When mounted correctly, this subwoofer is rated for

protection from the front of the speaker. Water exposure and

damage to the rear of the subwoofer voids the warranty. This

includes situations when the subwoofer is mounted in a sealed

enclosure, especially if it is exposed to wash down. Using an

enclosure with a port or vent exposed to the outside

environment may allow water to collect and damage the

subwoofer.

You must turn off the audio system before making any

connections to the source unit, amplifier, or speakers. Failure to

do so could result in permanent damage to the audio system.

You should protect all terminals and connections from grounding

and from each other. Failure to do so could result in permanent

damage to the audio system and void the product warranty.

When selecting a mounting location for the subwoofer, observe

these considerations:

• You must select mounting locations that provide sufficient

clearance for the mounting depth of the subwoofer as

specified in the product specifications.

• You should select a flat mounting surface for the best seal.

• You should select a location where the surface material is

thick enough to support the weight of the subwoofer. It's

important to note that when in use, the subwoofer exerts a

pushing and pulling effect on the surface, so if the material is

thin, it can result in excess vibration and negatively affect the

sound quality.

• You should protect the speaker wires from sharp objects and

always use rubber grommets when wiring through panels.

• To avoid interference with a magnetic compass, you should

not mount the subwoofer closer to a compass than the

compass-safe distance value listed in the product

specifications.

Selecting the correct mounting location optimizes the

performance of the subwoofer. Fusion

® speakers are designed

to perform in the widest possible range of mounting locations,

but the more you plan the installation, the better the speakers'

sound will be. For more information on subwoofer placement

and specifications, go to .www.fusionentertainment.com

Mounting the Subwoofer

Before mounting the subwoofer, you must choose a location

following the guidelines above.

1Route the speaker wires (and LED wires, if applicable) from

the source to the speaker location.

2Trim the template and make sure it fits in the selected

location.

3Orient the template so the Fusion logo is level.

4Secure the template to the selected location.

5Using a jigsaw or rotary tool, cut the mounting surface along

the inside of the line on the template.

6Place the subwoofer in the cutout to test the fit.

7If necessary, use a file and sandpaper to refine the size of

the cutout.

8After the subwoofer fits correctly in the cutout, ensure the

mounting holes on the subwoofer line up with the pilot holes

on the template.

GUID-D5444697-CFDC-4F43-AEA4-6835F0527D82 v1October 2020

9If the mounting holes do not line up, mark the new hole

locations.

10 Using an appropriately sized drill bit for the mounting surface

and screw type, drill the holes.

11 Remove the template from the mounting surface.

12 Connect the subwoofer wires while observing polarity

( ).Speaker Wiring, page 2

13 If necessary, connect the LED wires ( ).LED Wiring, page 2

14 Place the subwoofer in the cutout.

15 Secure the subwoofer to the mounting surface using the

included screws.

NOTE: Do not over tighten the screws, especially if the

mounting surface is not flat.

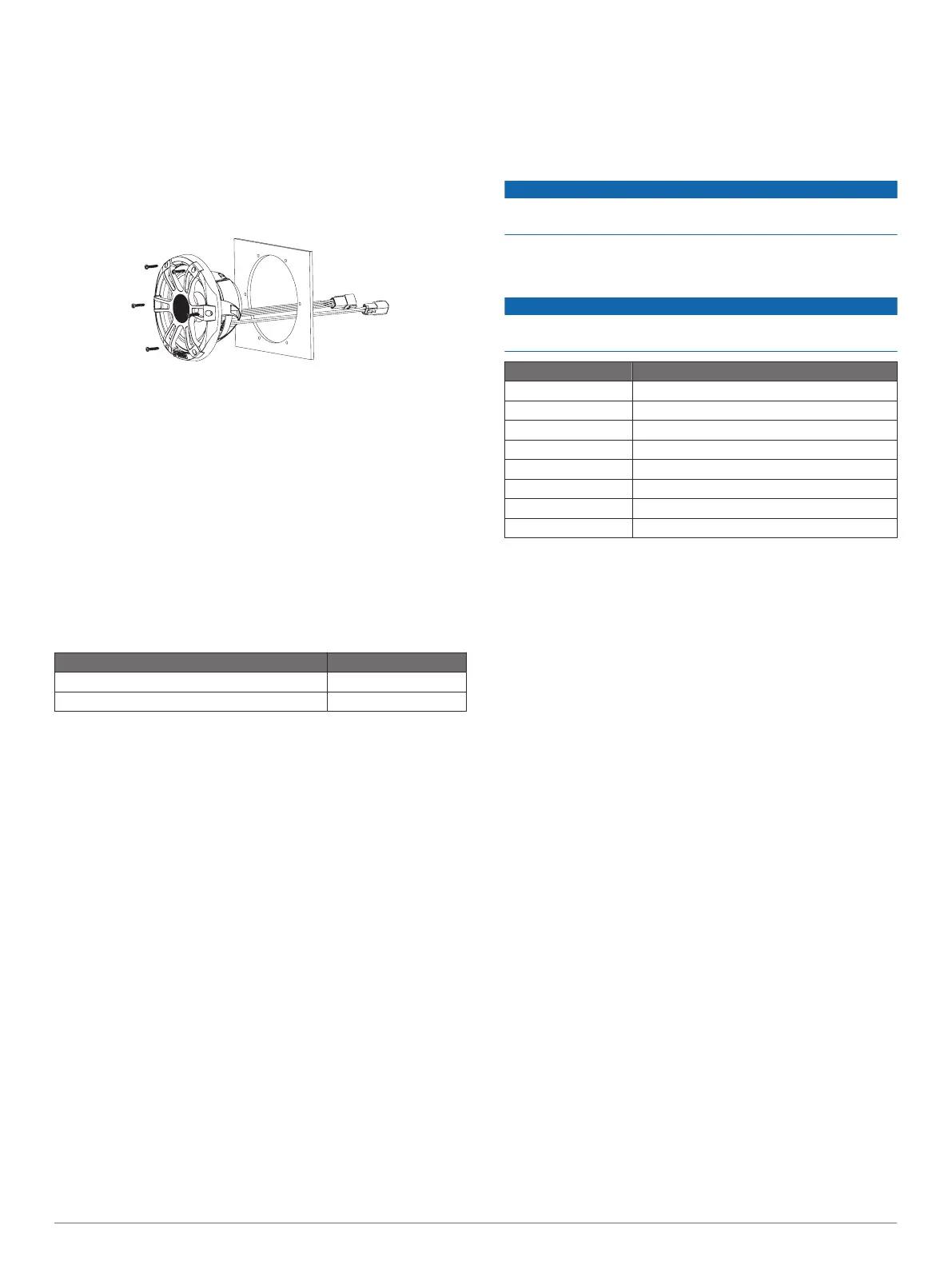

Speaker Wiring

When connecting the subwoofer to your amplifier, observe these

considerations.

• The wires on the speaker are terminated with connectors,

and you should use the provided harness when connecting

the speaker wires to the amplifier.

• Speaker wire is not included with subwoofer. You should use

12 AWG (3.31 mm²) or larger speaker wire to connect the

wiring harness to the amplifier.

You can use these tables to identify the polarity of the wires on

the provided harness.

Lead color Polarity

White Positive (+)

White with a black stripe Negative (-)

LED Wiring

It is recommended to install a Fusion CRGBW Wireless Remote

Control with these speakers to turn the LEDs on and off, change

the colors, and create lighting effects. See your Fusion dealer or

www.fusionentertainment.com for more information.

You should follow the instructions provided with the remote

control to connect the LED wires from the speakers to the

remote control receiver module and to connect the receiver

module to power.

If you choose not to install the remote control, you can set the

static color of the LEDs by connecting the colored LED wires

directly to the power source (Connecting the LED Wires,

page 2).

Connecting the LED Wires

If you do not install the recommended remote control, you can

set the static color of the LEDs by connecting the colored LED

wires from the harness to the negative (-) terminal of a 12 Vdc

power source. You can splice the negative (-) wire to multiple

LED wires to customize the LED color and tone. You must

connect the black LED wire from the harness to the positive (+)

terminal of the same power source to complete the circuit.

The LED wires on the speaker are terminated with connectors,

and you should use the provided harness when connecting the

LED wires to the speaker.

You should use 22 AWG (0.33 mm²) or thicker wire to connect

the LED wires from the harness to the battery.

You must connect the positive (+) wire for all of the speaker

LEDs through a 3 A fuse near the power-source. You should

also connect the positive (+) power wire to the power source

through an isolator switch or circuit breaker to turn the LEDs on

and off. You can use the same isolator or circuit breaker

controlling the power supply to your stereo, which allows you to

turn the LEDs and the stereo on and off at the same time.

1Connect the black wire on the LED harness to the positive (+)

terminal of the power source .

NOTICE

To avoid damage to the speakers or the vessel, you must

connect this wire through a 3 A fuse near the power source.

2Connect the negative (-) wire from the same power source to

one or more colored wires on the LED harness according to

the preferred LED color.

NOTICE

You must insulate any unused LED wires on the harness to

avoid causing a short circuit.

LED Color LED Harness Wire Color

Red Red

Green Green

Blue Blue

Yellow Red and green

Magenta Red and blue

Cyan Blue and green

Cool white Turquoise

Warm white Yellow

NOTE: You can connect the cool white or warm white wire to

change the tone of any LED color combination.

3Connect the harness to the speaker.

Speaker Information

True-Marine™ Products

True-Marine products are subjected to rigorous environmental

testing under harsh marine conditions to surpass industry

guidelines for marine products.

Any product that bears the True-Marine stamp of assurance has

been designed for simplicity of use and combines advanced

marine technologies to deliver an industry leading entertainment

experience. All True-Marine products are supported by the

Fusion 3-year worldwide limited consumer warranty.

Registering Your Subwoofer

Help us better support you by completing our online registration

today.

• Go to .www.fusionentertainment.com/marine/register

• Keep the original sales receipt, or a photocopy, in a safe

place.

2 Signature Series CRGBW Subwoofer Installation Instructions
