7160-0318-00 THROUGH 7160-0318-12

INSTALLATION INSTRUCTIONS

Form Product Revision

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

Printing Spec:

PS-001

PANASONIC TOUGHBOOK CF-31 DOCKING STATION

Item No. 7160-0318-06 (-P)

Item No. 7160-0318-12 (-P)

(Auto lock, Dual RF)

Item No. 7160-0318-09 (-P)

(Button lock, Dual RF, Int power)

dual integrated high gain antenna pass-thru cable.

(Button lock, Dual RF)

Item No. 7160-0318-02 (-P)

(Auto lock, Dual RF, Int. power)

shielded interface cables when connecting a peripheral to the docking station.

This instruction sheet is for the following products:

Panasonic Toughbook CF-31 docking station with NO integrated

high gain antenna pass-thru cables.

Item No. 7160-0318-00 (-P)

(button lock, No RF)

Item No. 7160-0318-04 (-P)

(button lock, No RF, Int. power)

Item No. 7160-0318-07 (-P)

(Auto lock, No RF)

Item No. 7160-0318-10 (-P)

(Auto lock, No RF, Int power)

Panasonic Toughbook CF-31 docking station with single

integrated high gain antenna pass-thru cable.

Item No. 7160-0318-01 (-P)

(Button lock, Single RF)

Item No. 7160-0318-05 (-P)

(Button lock, Single RF, Int power)

Item No. 7160-0318-08 (-P)

(Auto lock, Single RF)

Item No. 7160-0318-11 (-P)

(Auto lock, Single RF, Int. power)

Panasonic Toughbook CF-31 docking station with

* These instructions are for the docking station only. For instructions on features, set-up

and operation of the Toughbook CF-31 computer, please refer to the manuals provided by

Panasonic with the computer.

** This docking station is designed to be used with a variety of Gamber Johnson mounting

systems. Installation for other Gamber Johnson products are provided with each

individual product.

*** This device is Class B verified to comply with Part 15 of FCC Rules when used with a

Panasonic Toughbook CF-31 computer. To assure continued compliance, use only

Pg 1

REV. K INST-509

opyright 20

Gamber

Johnson, LLC

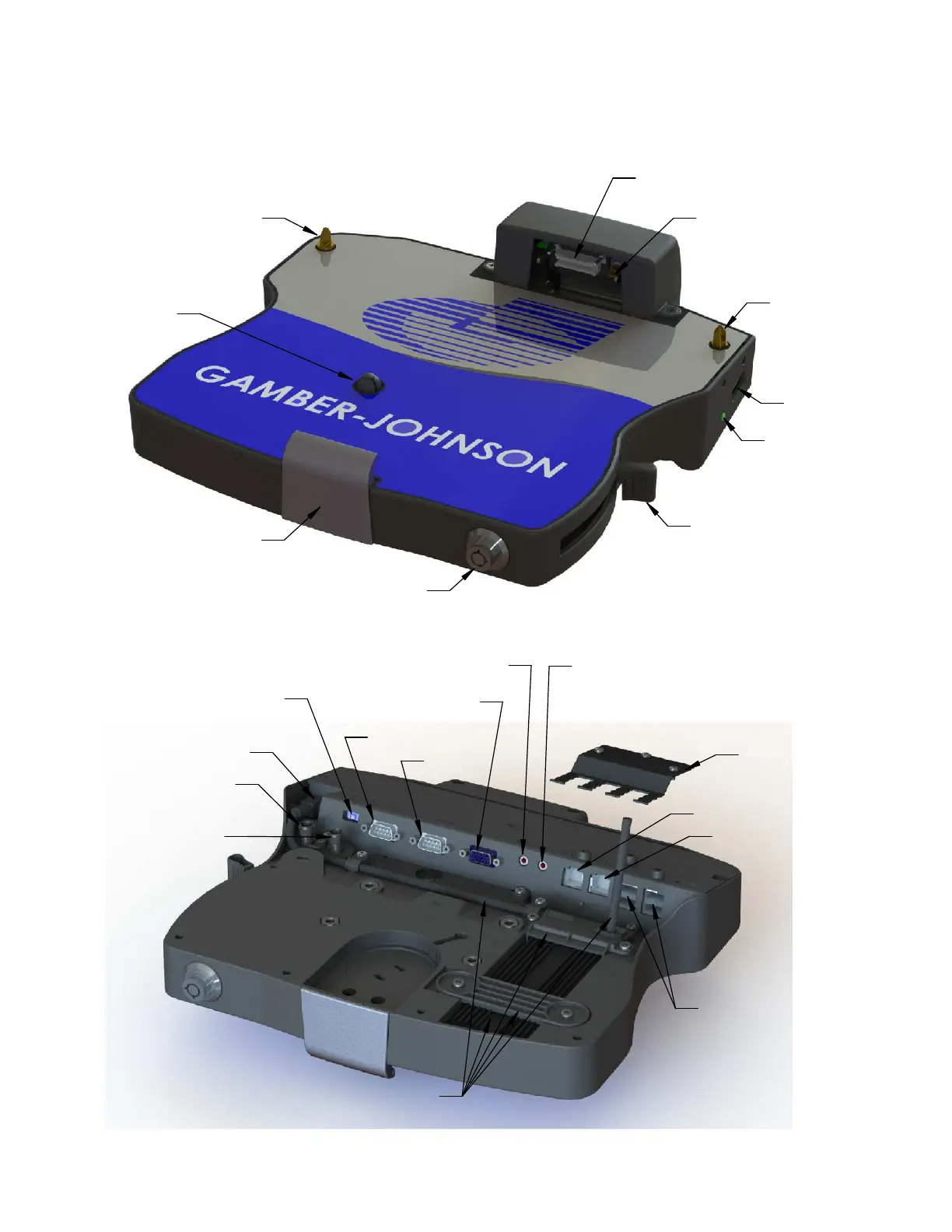

CF-31 DOCKING STATION FEATURE IDENTIFICATION

Alignment Pin

Interlock Pin

Front Retainer

Docking Connector

External Antenna

Connectors

Alignment Pin

USB Port

Docking Indicator

LED

Docking Handle

Push Button / Auto Lock

Wireless Antenna Switch

(WWAN Antenna)

Serial 2

Serial 1

Video Connection

External Microphone

External Speaker

or Headphones

Ethernet 2

Ethernet 1

USB Ports

Cable Restraint

Bracket

WLAN/GPS Antenna

Connector

WWAN Antenna

Connector

DC IN

Pg 2

Power Supply, Cables &Covers

Internal Power Models Only

Produkt Specifikationer

Mærke:	Gamber-Johnson
Kategori:	Andet computertilbehør
Model:	7160-0318-04
Bredde:	315 mm
Dybde:	312 mm
Højde:	99 mm
Vægt:	2500 g
Produktfarve:	Sort
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	5
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Husmateriale:	Composite, Steel
Forbindelsesteknologi:	Docking
Certificering:	MIL-STD 810G, CE, FCC
LED-indikatorer:	Ja
Bæredygtighedscertifikater:	RoHS
Mikrofonindgang:	Ja
Antal VGA-porte (D-sub):	3
Kapabilitet:	Toughbook 30/31
Mærke kompatibilitet:	Panasonic
