7160-0166 / 7160-0358

INSTALLATION INSTRUCTIONS

Product Revision Form

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

Panasonic CF-H1 / CFH2 Docking Stations

Rev. E

INST-443

Product Mounting Disclaimer

Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage

of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson

products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

Product Mounting Disclaimer

Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage

of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson

products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

1 of 6

This instruction sheet is for the Gamber-Johnson Panasonic

Toughbook CF-H1 Docking Station

Gamber-Johnson Part Number: 7160-0166

*These instructions are for the docking station only. For

instructions on features, set-up and operation of the

Toughbook CF-H1 computer, please refer to the manuals

provided by Panasonic with the computer.

IMPORTANT SAFETY INFORMATION for

NSTALLERS

Safety is dependent on the proper installation and servicing of this docking station. It is

important to read and follow all instructions before installing this product.

To properly install a Gamber-Johnson docking station you must have a good understanding

of electrical procedures and systems, along with proficiency in the installation and service of

electrical and/or computer equipment.

There are no adjustments required at any time of the electrical components within the

docking station.

Opening the docking station housing will void the product warranty.

Only use the AC adapter supplied with the Toughbook CF-H1 computer or one specified by

Panasonic that is compatible with the Toughbook CF-H1 computer.

Keep foreign objects away from the Expansion Bus on docking station.

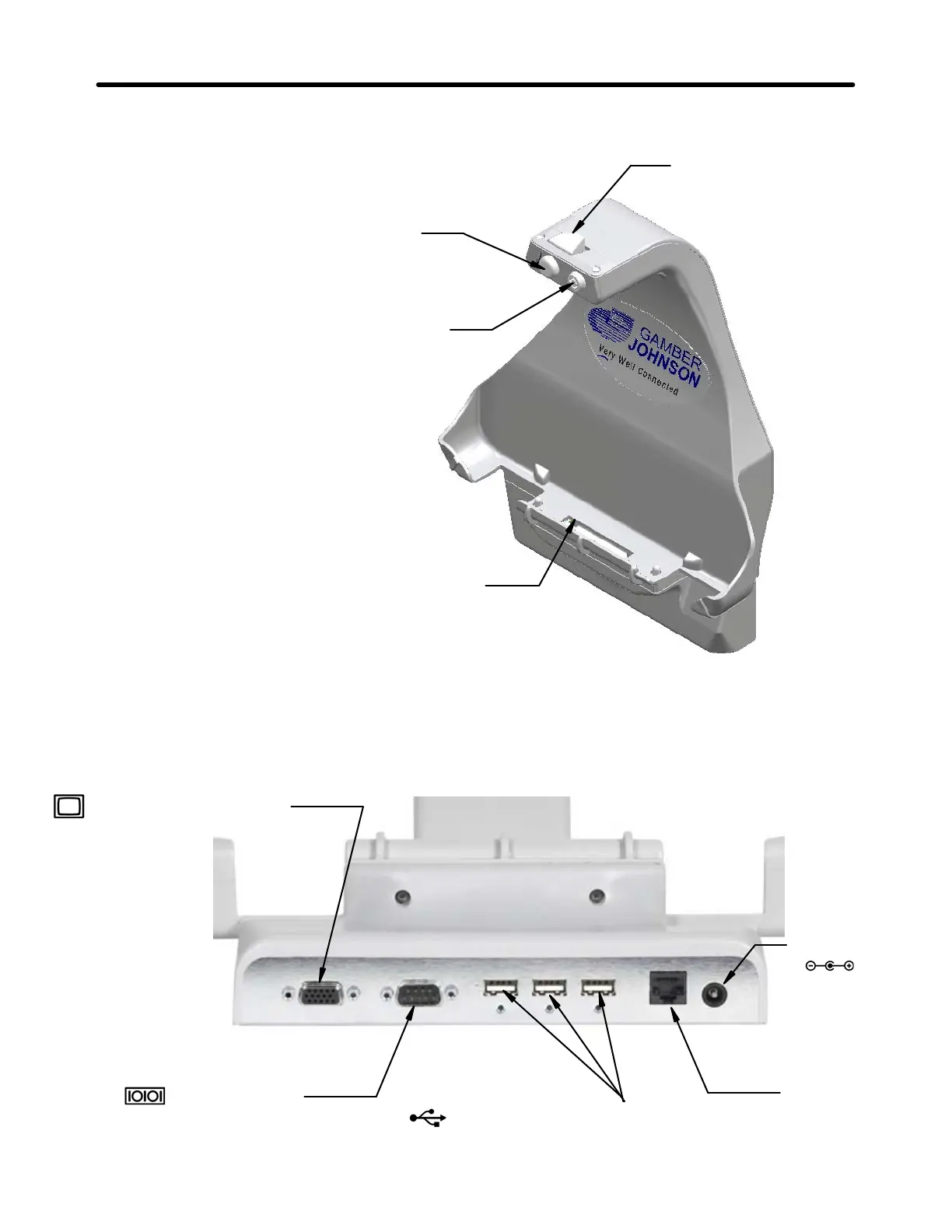

Components

Bottom View

DC IN 16V

Expansion Bus

DSUB 9-PIN Male

Will not support serial mouse.

Latching

Mechanism

Front View

2 of 6

Release Lever

Lock (Optional)

IEEE 802.3 10Base-T / IEEE 802.3u

100Base-TX

(4 PIN, USB2.0)

FIG. A

FIG. B

LAN Port

USB Ports (3 ports)

DC-IN Jack

Serial Port

External Display Port

MINI DSUB 15-PIN Female

Use Panasonic AC

adaptor: CF-AA1633A

Produkt Specifikationer

Mærke:	Gamber-Johnson
Kategori:	Andet computertilbehør
Model:	7160-0358-P
Bredde:	271 mm
Dybde:	109.2 mm
Højde:	321.3 mm
Vægt:	907.2 g
Produktfarve:	Sort
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	3
Ethernet LAN:	Ja
Husmateriale:	Plast
Forbindelsesteknologi:	Docking
Certificering:	FCC
DC-in-stik:	Ja
Indbygget kortlæser:	Ingen
Bæredygtighedscertifikater:	RoHS
Mikrofonindgang:	Ingen
Antal VGA-porte (D-sub):	1
Kapabilitet:	Toughbook H1 / H2
Mærke kompatibilitet:	Panasonic
Antal serielle porte:	1
