INSTALLATION INSTRUCTIONS

adapter allows the end user to mount the cradle or dock higher in the vehicle

Product Revision

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

Printing Spec:

PS-001

OFFSET ADAPTER ASSEMBLY

7160-0872

Form

which is used on the Gamber-Johnson Close-To-Dash vehicle mounts. The

docking stations and cradles to the Gamber-Johnson custom clevis 7110-1205

The Offset Adapter Assembly is an adapter designed to mount Gamber-Johnson

Installing the adatper:

1. Attach the adapter plate to the back side of the cradle using the 1/4-20 x .50

long flat head under cut machine screws that were provided in the hardware

bag. Depending on the cradle being mounted the adapter has 2" of adjustment

for the 75mm hole pattern and 3" of adjustment for the legacy Gamber-Johnson

hole pattern.

2. Attach the adapter plate to the 7110-1205 clevis with the 1/4-20 nuts and

washers provided in the hardware bag.

3. Attach entire assembly to the Close-To-Dash mount. See the instruction sheet

that was supplied with the (Close-To-Dash) model number that was purchased.

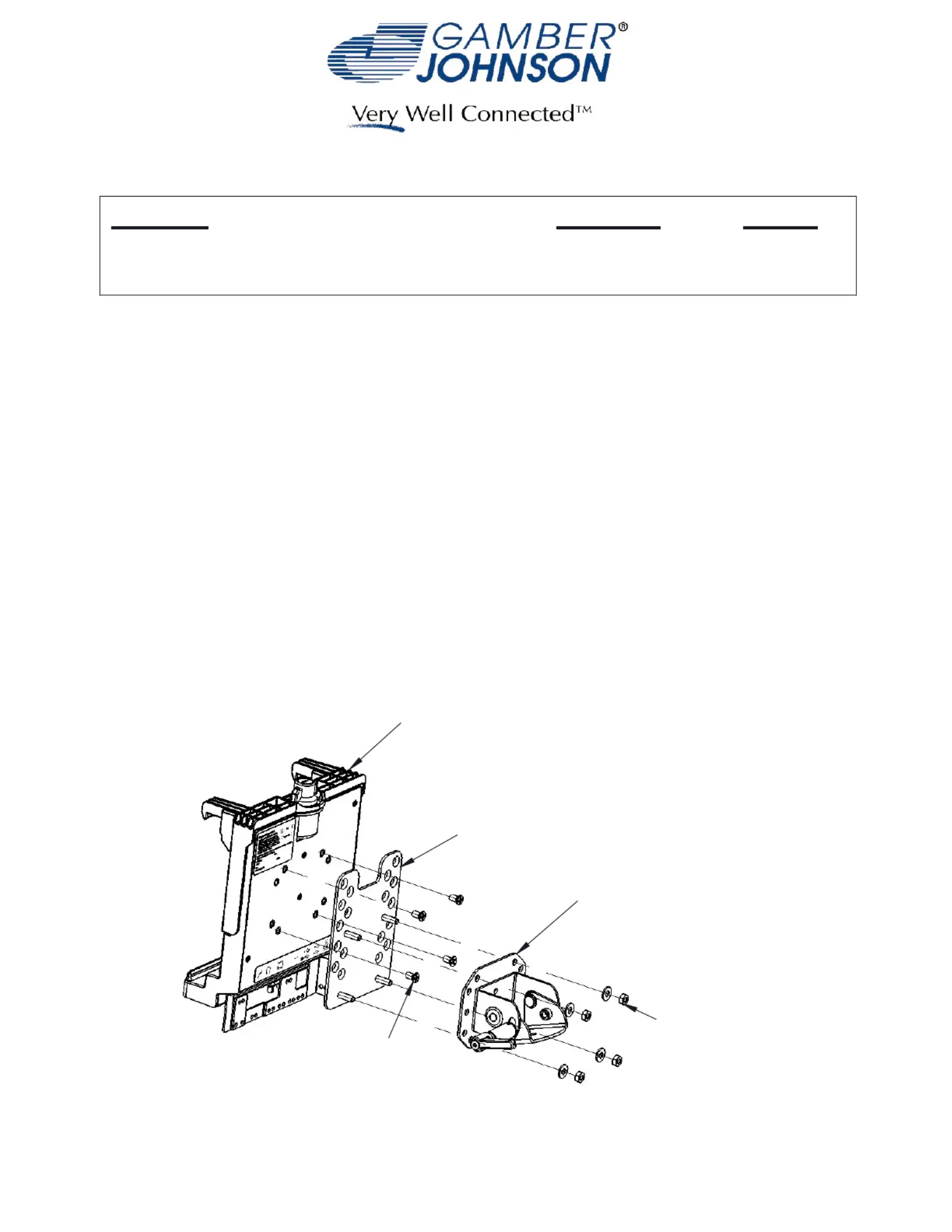

1/4-20 flat head

under cut screws

(Various options apply)

Offset Adapter Plate

Dock or Cradle

Custom Clevis

7110-1205

Gamber-Johnson

1/4-20 nuts

and washers
