PANOPTIX™LIVESCOPE™

INSTALLATION INSTRUCTIONS

Important Safety Information

Important Safety InformationImportant Safety Information

WARNING

See the guide in the chartplotter product box for product warnings Important Safety and Product Information

and other important information.

You are responsible for the safe and prudent operation of your vessel. Sonar is a tool that enhances your

awareness of the water beneath your boat. It does not relieve you of the responsibility of observing the water

around your boat as you navigate.

CAUTION

Failure to install and maintain this equipment in accordance with these instructions could result in damage or

injury.

To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,

cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.

To obtain the best performance and to avoid damage to your boat, you must install the Garmin® device

according to these instructions.

Read all installation instructions before proceeding with the installation. If you experience difficulty during the

installation, go to for more information.support.garmin.com

Software

SoftwareSoftware Update

Update

Update Update

You must update the Garmin chartplotter software when you install this device. For instructions on updating

the software, see your chartplotter owner's manual at .support.garmin.com

Tools Needed

Tools NeededTools Needed

• Drill

• 4 mm (5/32 in.) and 3.2 mm (1/8 in.) drill bits

• Masking tape

• #2 Phillips screwdriver

• Marine sealant

• 32 mm (1 1/4 in.) hole saw (optional)

• Cable ties (optional)

GUID-8ABE5659-3192-4519-8A48-66421E004620 v5March 2021

Mounting Considerations

Mounting ConsiderationsMounting Considerations

• You must angle the transducer correctly for your selected mode to work properly.

• You must install the sonar module in a location with adequate ventilation where it will not be exposed to

extreme temperatures.

• You should mount the transducer in a location where it will not be jarred when launching, hauling, or storing.

• You should mount the transducer in a location where it is not behind strakes, struts, fittings, water intake or

discharge ports, thru-hull transducers, or anything that creates air bubbles or causes the water to become

turbulent. Turbulent water may interfere with the sonar beam.

• You should mount the transducer as close to the center line of the boat as possible.

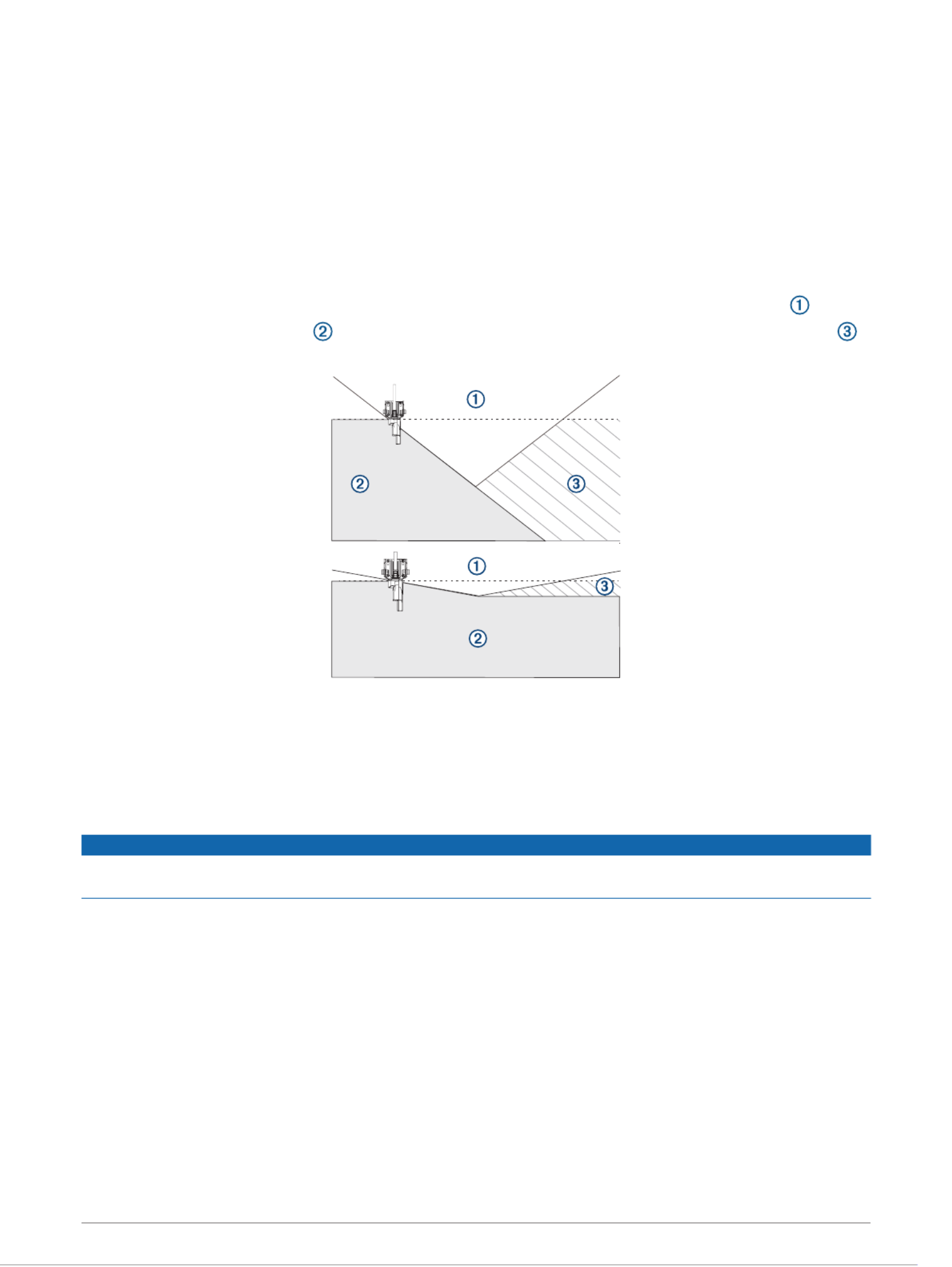

• When mounted farther from the center of the transom, a greater deadrise can cause the boat hull to

interfere with the sonar beam , and can cause inconsistent detection on the opposite side of the boat .

The transducer is shown from behind.

• On single-drive vessels, you must not mount the transducer in the path of the propeller.

• On twin-drive vessels, you should mount the transducer between the drives, if possible.

• You should mount the sonar module in a location where the LEDs are visible, where the cables can be

connected, and where the device will not be submerged.

Cable Considerations

Cable ConsiderationsCable Considerations

NOTICE

Zip ties and cable clamps can over-tighten and damage or break the cable, or cause cable fatigue due to

repeated rotation of the motor.

You should use black electrical tape to secure the cable above and below the rotating joint. If you secure the

cable with zip ties, do not over-tighten the zip ties.

You should secure the cable above and below the pivot joint of your trolling motor.

You should create a service loop at least 25 cm (10 in.) long in the cable, with the rotating joint centered on the

loop.

Produkt Specifikationer

Mærke:	Garmin
Kategori:	Ekkolod
Model:	Panoptix LiveScope
Kode for international beskyttelse (IP):	IPX7
Udgangseffekt (RMS):	500 W
Skærm:	TFT LCD
Vandfast:	Ja
Baggrundslys:	Ja
Maksimal dybde:	61 m
