Side 1/8
Part Quantity
Trim Frame 1
Screw Covers 4
Base Pan 1
Upper Bracket 1
Rail 2
Bottom
Bracket 2
Phillips Round-
Head Screws
24
(19 required
for installation)
Phillips Round-
Head Flat-
tipped Screws
6
(4 required for
installation)
PARTS INCLUDED
Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at:
www.GEAppliances.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Installation Built-In Trim Kits
Instructions
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these
instructions for local inspector’s use.
• IMPORTANT – Observe all
governing codes and ordinances.
• Be sure to leave these Note to Installer –
instructions with the Consumer.
• Keep these instructions Note to Consumer –
for future reference.
• For easier installation and personal safety, we
recommend that two people install this microwave oven.
• Unplug the microwave oven before attempting
installation of this kit.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time – 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• This kit and microwave are approved for installation
alone or above any single electric wall oven. Do not
mount adjacent (within 2 feet) to any range, cooktop,
gas oven, or other microwave.
TOOLS YOU WILL NEED
#2 Phillips
screwdriver
Pencil
Tape measure
Level Small flathead
screwdriver
Drill with 7»64” bit or #35
1
FOR YOUR SAFETY
WARNING Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
WARNING This oven must be plugged into a
properly grounded 3-hole, 120 volt receptacle as
required by the National Electric Code.
MODELS
30” Profile Kit: JX7230DLWW, JX7230DLBB,
JX7230ELES, JX7230SLSS, JX7230BLTS
27” Profile Kit: JX7227DLWW, JX7227DLBB,
JX7227ELES, JX7227SLSS, JX7227BLTS
Monogram Kit: ZX2130SLSS, ZX2127SLSS
2

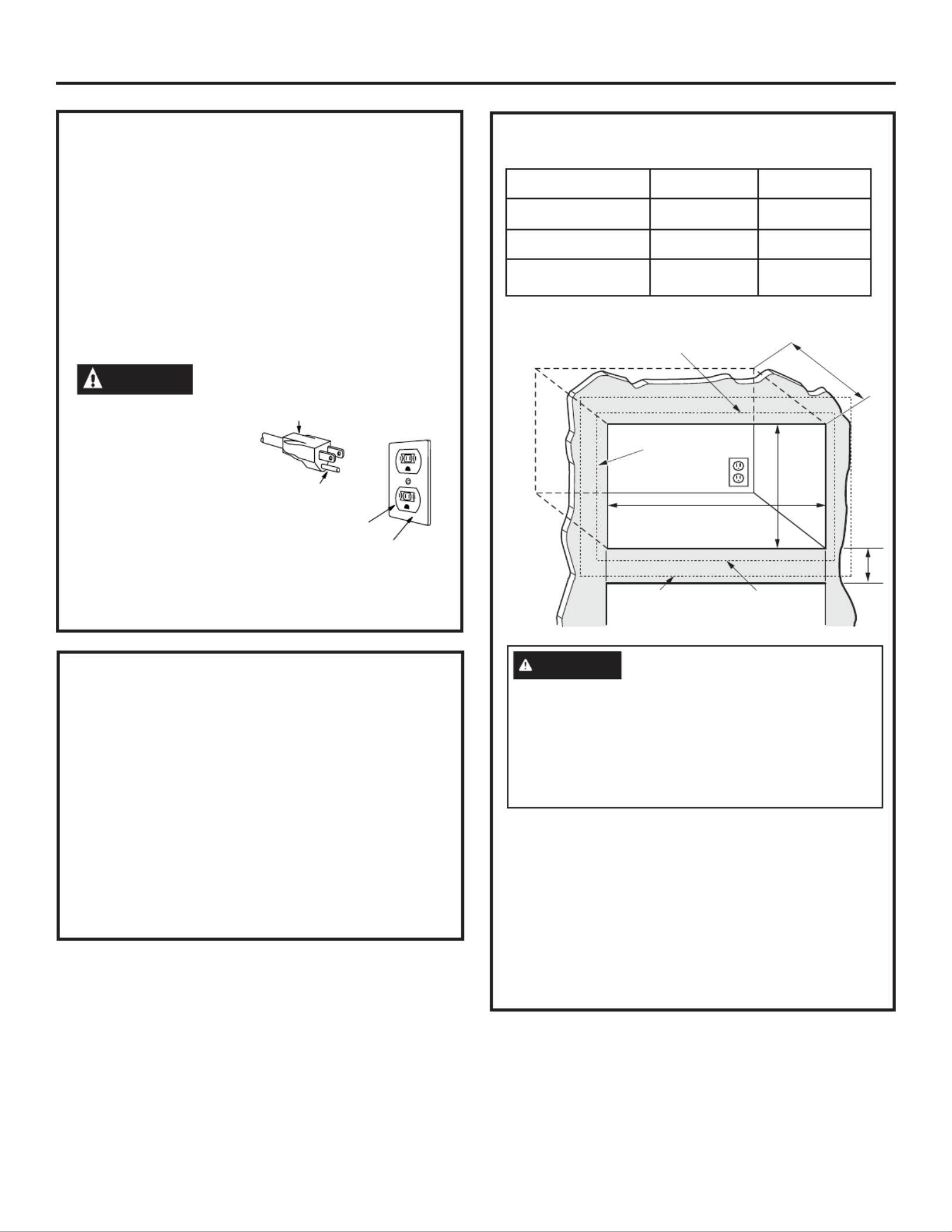

CUTOUT DIMENSIONS
* Min. depth with receptacle outside cabinet 191»2”
Min. depth with receptacle inside cabinet 22”
Installation Instructions
Models 27” 30”
Height 163»4” 163»4”
Width 251»2” 251»2”
Depth (min.)* 191»2” or 22” 191»2” or 22”
On 27” models, allow 11»4” at the top, 9»16” on the sides
and 1” at the bottom for overlap of the Trim Frame
over the edges of the cutout.
On 30” models, allow 11»4”at the top, 21
»8” on the sides
and 1”at the bottom for overlap of the Trim Frame
over the edges of the cutout.
For ADA Compliance, the microwave must be
installed no higher than 361»4”.
Depth
Height
1”overlap
Width
11»4” overlap
1” Clearance
beyond Trim Frame
(on all sides)
27” Models: 9»16”overlap
30” Models: 21
»8” overlap
3” min.
CAUTION
This trim kit uses air flow from the top, bottom and
sides of the trim frame. Blocking the air flow can
cause the microwave to function improperly and
may cause damage to the microwave.
Allow a 1” clearance beyond the edge of the Trim
Frame to provide proper air flow.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for
the electric current. This appliance is equipped with
a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.Consult a qualified
electrician or serviceman if the grounding instructions
are not completely understood, or if doubt exists as to
whether the appliance is properly grounded.
Improper use of
the grounding plug
can result in a risk of
electric shock.
Do not use an
extension cord. If the
power supply cord
is too short, have a
qualified electrician
or serviceman install
an outlet near the
appliance.
Permanent and Correct
Installation
3-Prong plug
Grounding pin
3-Prong receptacle
Grounded receptacle box
WARNING
ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 14.5 amps
and 1.70 kilowatts. This product must be connected to
a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating. The power supply cord and
plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box
should be located in the cabinet above the oven. The
outlet box and supply circuit should be installed by
a qualified electrician and conform to the National
Electrical Code or the prevailing local code.
