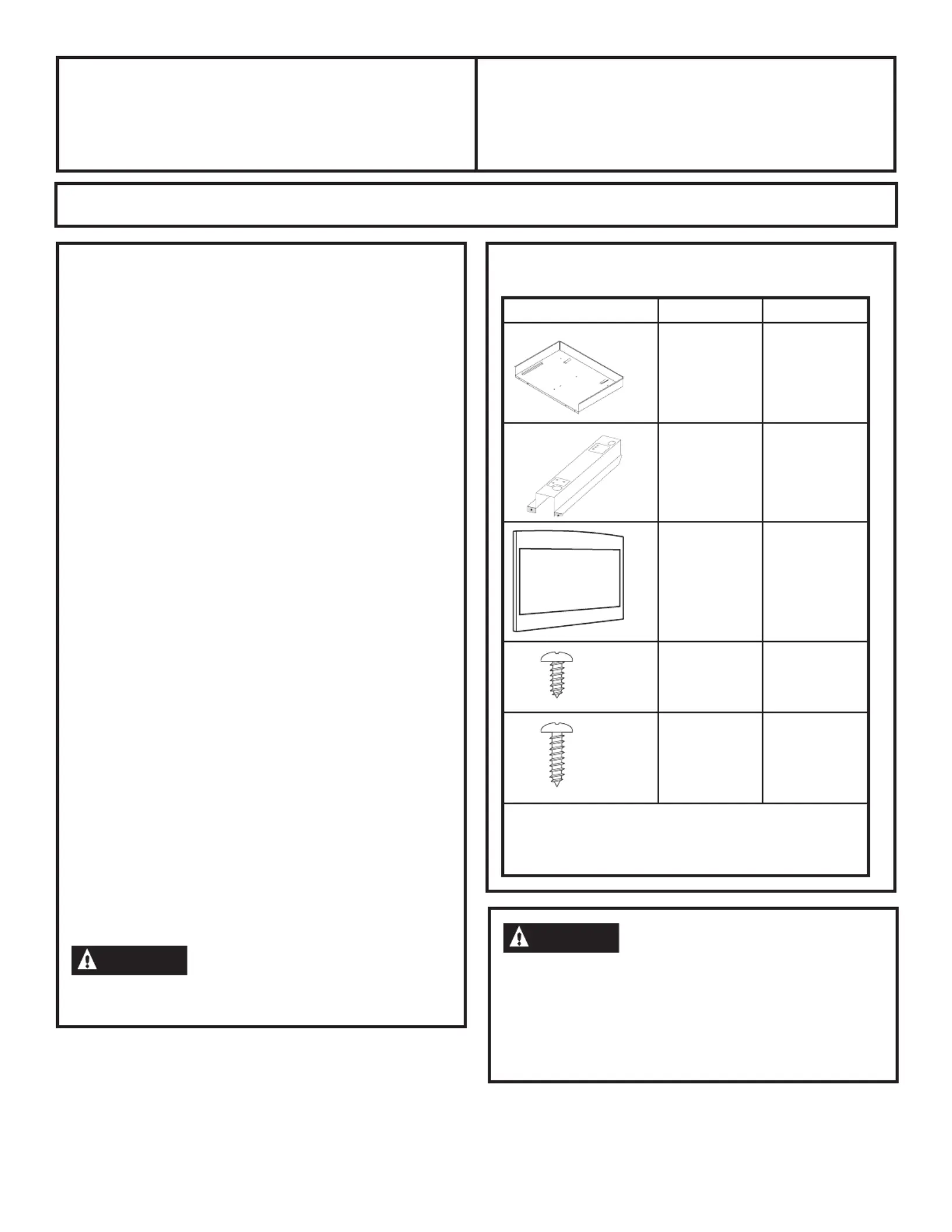

Side 1/8
Installation
Instructions
Microwave Oven
Built-In Trim Kits
JX827 and JX830
Questions? Call GE Appliances Answer Center at 800.626.2000 or Visit our Website at: GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT — Save these instructions for local
• IMPORTANT — Observe all governing codes
and ordinances.
• Note to Installer – Be sure to leave these instructions
with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time – 1 to 3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• This kit is for use on models: PEM31, ZEM115,
PCHK11S1
• This kit is UL listed for installation alone or over any
GE/GE Profile single electric wall oven”- See UL
caution label.
• This kit and microwave are approved for installation
alone or above any single electric wall oven. Do not
mount adjacent (within 2 feet) to any range, cooktop,
gas oven, or other microwave.
• This product is to be installed 3 feet above floor
level.
• Do not alter or modify any part of this kit or the oven.
• For easier installation and personal safety, we
recommend that two people install this microwave
oven.
• Unplug the microwave oven before attempting
installation of this kit.
WARNING
This oven must be plugged into a
properly grounded 3-hole, 120 volt receptacle as
required by the National Electrical Code.
WARNING
Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
READ CAREFULLY. KEEP THESE INSTRUCTIONS.
31-7000307 Rev. 0 09-24
PARTS INCLUDED
PART QUANITY
Base Pan 1
Rail 2
Trim Kit 1
4 mm x 10 mm
Screw A
11 required
3 extra
4 mm x 16 mm
Screw B
4 required
2 extra
NOTE: This kit has extra screws to prevent the
technician from spending extra time locating a
replacement in case they lose one during installation.
31-7000307 Rev. 0
2

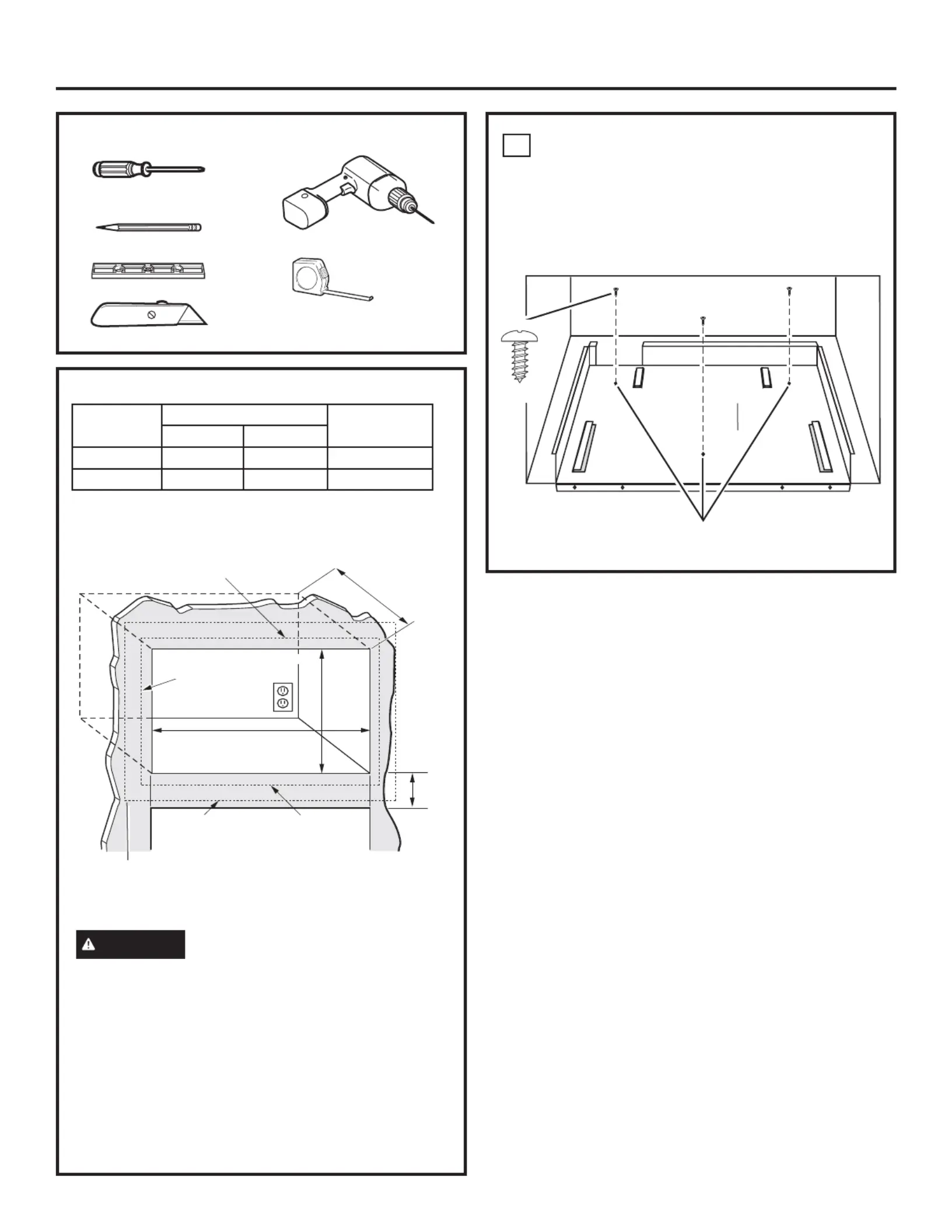

TOOLS YOU WILL NEED
CUTOUT DIMENSIONS
Dimension
Trim Kit
Cutout
27”30”
Height 16
1
/2”16
1
/2”15 ±
1
/”16
Width 26
7
/8”29
7
/8”24
7
/8 ±
1
/”16
• Min. depth with receptacle outside cutout – 16”
• Min. depth with receptacle inside cutout – 18”
• 120 volt – 60 Hertz grounded power receptacle.
WARNING
— This trim kit uses air flow from
the top, bottom and sides of the trim frame. Blocking
the air flow can cause the microwave to function
improperly and may cause damage to the microwave.
• Allow a 1” clearance beyond the edge of the trim
frame to provide proper air flow.
FOR INSTALLATION ABOVE A BUILT-IN OVEN:
Microwave oven should be installed on a 3/8” plywood
base and supported by 2x4 or 1x2 equivalent runners
on all sides. Base must be capable of supporting a
minimum of 100 lbs.
Installation Instructions
Knife
Depth
Height
5/8” Overlap
Width
7/8” Overlap
1” Clearance beyond
trim frame
(on all sides)
3” Min.
27”models: 1” overlap
30”models: 2
1
/2” overlap
Bottom of trim kit must be
minimum of 36” from floor
1
LOCATE AND INSTALL THE
BASE PAN
Set Base Pan into the front cabinet microwave oven
cutout and center it right and left. Push back until the
front flange is against the cabinet front wall. Mount
the Base Pan using 3 short screws (A).
Base Pan
Mounting Holes
Screw A
2 Phillips Screwdrivers
(#1 & #2)
Drill with 3/32” Drill Bit
Pencil
Level
Tape Measure
