Portable

TV Speaker

with

voice

enhancement

USER’S MANUAL

!!! Please refer to our website: www.geemarc.com for an

up-to-date user guide, as there may be important updates

and changes you need to be aware of !!!

Important safety instructions

Normal operating temperature for the product (e.g. 0 oC~40oC).

Use only the adapters and battery listed below.

Power adapter information: output: 5V DC 2A, 10W.

VTPL Model: VT07EEU05200 (EU), VT07EUK05200 (UK).

Rechargeable Battery: Great Power, Model:

INR21700-5000. 3.6V, 5000mAh Li-ion, 18Wh.

Note on rechargeable Lithium-Ion batteries

This device uses a rechargeable lithium-ion battery. Misuse or

improper use can result in battery damage! In extreme cases,

there is a risk of or explosion, fire, the development of heat, smoke

or gases.

z Rechargeable batteries must not be exposed to excessive

heat such as sunlight, fire or the like.

z Do not touch the battery with your bare hands if it leaks or

has been damaged. Leaking liquid can cause skin irritation

and other injuries.

z If you do not use the device for a longer period of time, charge

it every six months to maintain the integrated rechargeable

battery in good condition.

z Do not remove the rechargeable battery in the charged state

from the device. Donot short-circuit it, dismantle it ordeform it.

z If the device is obviously faulty, do not recharge the battery.

Terminate the charging process if the device becomes

excessively hot.

z Observe the warranty and disposal instructions.

Safe Removal and Disposal of rechargeable

battery from TV speaker

This device uses a lithium-ion battery that has to be disconnected

from the obsoleteproduct to ensure proper recycling of materials.

Warning: Only remove the rechargeable battery for disposal of

the device. Make sure that the battery is completely discharged

before removing it. We strongly recommend you get help from

a qualified electrician to removing the battery.

z You need a Phillips screwdriver and a flathead screwdriver

to remove the rechargeable battery. Observe the basic safety

procedures when performing the steps listed below.

z Protect your eyes, hands and fingers and the surface on

which you are working. Pay attention to breaking or flying

parts when removing the battery - risk of injury.

z Wear protective goggles.

1.To completely discharge the battery, remove the TV speaker

from the base. Switch the TV Speaker on and let it run until

it enters standby. Repeat this process until you can no longer

switch the TV Speaker back on.

2.Take a Flathead screwdriver and remove the speaker

cover on the back by pushing the screwdriver between the

surrounding rubber covering and the fabric-covered speaker

cover.

3.Undo the eight screws of the battery compartment with a

screwdriver. Then push the screwdriver away from the

housing to detach the speaker cover. You might have to

repeat this process on several sides to detach the cover.

4. Disconnect plug connections of the electronic card.

5. Carefully pull the battery out of the housing by the plug

connection cable.

6.The rechargeable battery and the remainder of the product

can now be recycled and properly disposed of.

Disposing of used disposable and rechargeable

battery

Make sure that disposable and rechargeable battery is properly

disposed of. Dispose of the product by taking it to a suitable

collection sitefor the recycling of electrical and electronic devices.

What’s in the box

A. TV speaker (Note: You can register up to 3 TV speakers to

the base.)

B. Base station (transmitting / charging station)

C. USB type C power adapter

D. Optical audio cable (Toslink 48 kHz 16 bit PCM)

E. 3.5mm audio cable

F. User’s manual

Overview - TV speaker and base

TV speaker overview

1. NOISE CANCELLATION key with indicator

z Press to reduce background noises. The blue indicator light

will turn on.

z Press again to turn off. The indicator light will go out.

z Press the key for 5 seconds to pair the TV speaker on his

base.

2. 1 / 2 / 3 (Voice enhancement indicator)

z On when voice enhancement level 1, 2 or 3 is selected.

3. (Battery level indicator)

z Amber during charging.

z Green when the battery is fully charged.

z Red when battery level is low and needs charging.

z Off when battery is empty or when the TV speaker is not

connected to power supply.

4. VOICE ENHANCEMENT key

z Press to toggle among the 3 levels of voice enhancement

or turn it off.

5. (Power and connection indicator)

z On when the TV speaker is powered on.

z Flashes green rapidly when pairing to the base.

z Flashes green slowly when out of range from the base.

6. OFF / MAX knob (On / Off / Volume knob)

z Turn clockwise to turn on the TV speaker and to increase

the TV speaker volume.

z Turn anticlockwise to turn down the volume or turn off the

TV speaker.

7. DC IN (USB-C power jack)

z Connect to power with the supplied USB-C cable.

8. AUX OUT (3.5mm audio output jack)

z Connect to headphones.

Base overview

9. Power and connection indicator

z Steady white when the base is paired to the TV speaker.

z Flashes white rapidly when pairing.

z Flashes white slowly when the TV speaker is not paired

to the base.

z Dims when the base is in power saving mode.

10. RESET key

z Reset the TV speaker to its factory default settings.

11. AUX IN (3.5mm audio input jack)

z Connect the supplied audio cable to AUX IN on the base

and your TV 3.5mm audio out.

12. OPTICAL IN

z Connect the supplied optical cable to the OPTICAL IN on

the base and your TV optical audio out.

13. DC IN (USB-C power jack)

z Connect to the supplied power adaptor with the supplied

USB-C cable.

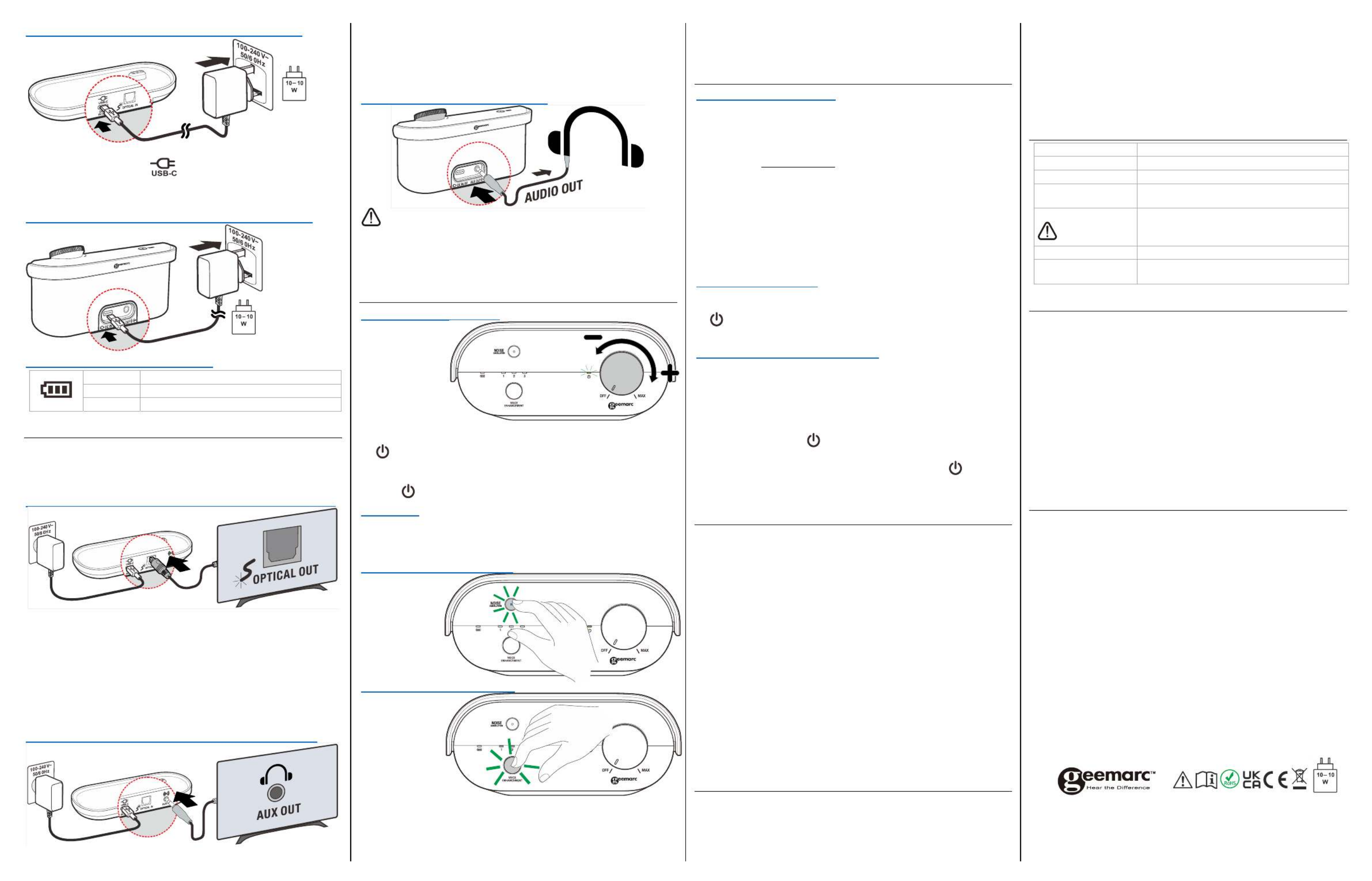

Installation and battery charging

Place the base on a flat, stable surface near your TV. Fully charge

your TV speaker before using it for the first time.

NOTE: The battery is fully charged after 4 hours of continuous

charging.

1 2 3 4  

CONNECT THE BASE TO POWER SUPPLY

1.Connect the supplied USB-C charging cable to supplied power

adaptor and the DC-IN jack on the base. Plug the power

adapter in to a nearby switched electrical main outlet socket.

2.Place the TV speaker onto the base to charge the battery.

CONNECT TV SPEAKER TO POWER SUPPLY

You can also

connect the

TV speaker to

the supplied

power adapter

to charge the

battery.

BATTERY LEVEL INDICATOR

Ambe

Charging

Green Fully charged

Red Low battery (less than 20%)

Setup

The SONARYA TV speaker with noise cancellation to reduce

ambient background sounds on TV programs and voice

enhancement for clearer speech. There are two ways to connect

the speaker to your TV: Optical Audio and 3.5mm Audio cable.

CONNECT TO TV WITH OPTICAL AUDIO CABLE

1.Carefully remove the protective covers at each end of the

OPTICAL audio cable.

2.Plug one end of the cable to the base and the other to the

OPTICAL OUT on your TV. Firmly plug in the connectors

until they lock into place.

3.Change your TV digital audio setting to PCM output. If the

audio is not set to PCM, you may not hear any sound. For

information on how to set the digital audio output to PCM,

refer to the operation manual of your TV.

CONNECT TO TV WITH 3.5MM AUDIO CABLE

Connect one end of the 3.5mm audio cable to AUX IN on the

base and to the other to your TV’s audio output (AUX OUT or

headphones jack). Firmly plug in the connector.

Note: Refer to the operation manual of your TV for more

information on audio output connection and the necessary

changes to the TV audio settings.

LISTEN WITH HEADPHPNES

HEARING SAFETY CAUTION:

z Before you use headphones, decrease the TV speaker

volume to protect your hearing from sudden loud sound.

z Loud sound may damage your hearing. If the speaker is

too loud, set the volume to a lower level.

Operation

LISTEN TO TV AUDIO

Remove TV

speaker from

the base before

turning it on.

z To turn on TV speaker, rotate the On / Off / Volume knob

clockwise from the OFF position until you hear a click. The

indicator lights up.

z To turn off TV speaker, rotate the On / Off / Volume knob

anticlockwise toward the OFF position until you hear a click.

The indicator goes out.

VOLUME

To increase the volume, rotate the On / Off / Volume knob

clockwise. To reduce the volume turn it anticlockwise.

z MAX position is the highest volume setting.

NOISE CANCELLATION

Press the NOISE

CANCELLATION

key to reduce

background

noise on TV

programs.

VOICE ENHANCEMENT

You can select

from 3 levels of

voice

enhancement to

improved clarity

of speech on TV

programs.

z Press the VOICE ENHANCEMENT key to toggle between

the 3 levels or to turn it off. The respective indicator lights 1,

2 3 or turns on when selected.

TIP: We recommend that you sample each level and select

the one that is clearest.

NOTE: The TV speaker issuitable for people with mild to moderate

hearing loss. The general audio quality may change when the

voice enhancement feature is on.

Pairing / Reset

Unpair all TV speakers

You can reset the TV speaker system if it has some abnormal

behavior, like no sound at all. All TV speaker paired to the base

will be unpaired.

1. Make sure the base is unplugged from the power outlet.

2. While you press and hold the RESET key on the base, plug

the base back to the power outlet.

z The power and connection indicator turns on and flashes slowly.

3. After about 10 seconds when the power and connection

indicator flashes quickly, release the RESET key.

4. After 10 seconds, reset the power of the base.

z The power and connection indicatorturns on and starts flashing

slowly when all TV speakers are unpaired successfully from

the base.

Reset a TV speaker

z If your TV speaker does not have a connection to the base,

press NOISE CANCELLATION key for 5 seconds until the

indicator on the TV speaker turns off. After some seconds,

all the LEDS (1-2-3 and ON/OFF) start to blink.

Pair a TV speaker to the base

Your TV speaker is already paired to the base. If you have

unpaired the TV speaker or have purchased additional TV

speaker, pair it to the base as below. You can pair up to 3 TV

speaker to the base.

Turns on then place the TV speaker onto the base to pair it

with the base.

z When pairing, the indicator on the TV speaker flashes

green rapidly.

z When paired, you hear a beep sound and both indicator

and the power and connection indicator on the TV speaker

become steady on.

Troubleshooting

If you have difficulty with your TV speaker, please try the

suggestions below.

TV speaker does not play the audio.

z The battery level may be low Fully charge the battery.

z Make sure that 3.5mm audio cable or the optical cable is

firmly connected to then base and the TV.

z Male sure the TV speaker is paired to the base. If necessary,

reset the TV speaker following the steps in “RESET TV

SPEAKER” section.

z The TV speaker may be too far from the base (out of range).

Move the TV speaker closer to the base.

The TV audio fails frequently.

z Devices, such as smart phones, Wi-Fi and microwave ovens

may cause interference to your TV speaker. Try placing

your TV speaker as far away as possible from these devices.

There is interference when listening to TV audio.

z The 3.5 mm audio cable may not be connected correctly.

Firmly connect the audio cable to the TV and the base.

General product care

To keep your TV speaker working well and looking good, follow

these guidelines:

z Avoid putting it near heating appliances and devices that

generate electrical noise (for example, motors or fluorescent

lamps).

z Do not expose it to direct sunlight or moisture.

z Avoid dropping the product or treating it roughly.

z Clean with a soft cloth.

z Never use a strong cleaning agent or abrasive powder as

this may damage the finish.

z Retain the original packaging in case you need to ship it at

a later date.

Technical Specifications

Frequency control Crystal controlled PLL synthesizer

Transmit frequency 1.88 GHz to 1.9 GHz

Channels 10

Nominal effective

range

Actual operating range may vary according

to environment conditions at the time of use.

Power requirement

3.7V Rechargeable Li-ion battery.

Input 100-240V AC 50/60Hz

Output 5V DC 2.0A, 10.0W

RF power < 250 mW

Power

consumption

Base power consumption: Off mode:<1.5 W /

Network standby mode:<2 W

GUARANTEE

From the moment your Geemarc SONARYA is purchased,

Geemarc guarantee is for the period of two years. During this

time, all repairs or replacements (at our discretion) are free of

charge. Should you experience a problem then contact our help

line or visit our website at www.geemarc.com.

The guarantee does not cover accidents, negligence or

breakages to any parts. The product must not be tampered

with or taken apart by anyone who is not an authorized Geemarc

representative.

The Geemarc guarantee in no way limits your legal rights.

IMPORTANT: YOUR RECEIPT IS PART OF YOUR GUARANTEE

AND MUST BE RETAINED AND PRODUCED IN THE EVENT OF A

WARRANTY CLAIM.

Please note:The guarantee applies to the United Kingdom only.

DECLARATIONS:

CE & UKCA Directives

Geemarc Telecom SA hereby declares that this SONARYA is in

compliance with the essential requirements and other relevant

provisions of the Radio Equipment Directive 2014/53/UE.

The CE & UKCA declaration of conformity may be consulted

at www.geemarc.com

Recycling Directives

The WEEE(Waste Electrical and Electronic Equipment) has been

put in place for the products at the end of their useful life are

recycled in the best way.

When this product is finished with, please do not put it in your

domestic waste bin. Please use one of the following disposal

options:

- Remove the batteries and deposit them in an appropriate

WEEE skip.

Deposit the product in an appropriate WEEE skip.

- Or, hand the old product to the retailer. If you purchase a new

one, they should accept it.

Thus if you respect these instructions you ensure human health

and environmental protection.

For product support and help visit our website at www.geemarc.com

E-mail : help@geemarc.com telephone 01707 387602

lines are open from 10:00-12:00 then 13:00-14:30 from Mon. to Fri.

Parc de l’Etoile, 2 Rue Galilée, 59760 Grande-Synthe, France

Made for Geemarc Telecom S.A. in China

QUGSONARYA_En_A3_V0.6

5 6 7 8  
