Side 1/3
YELLOW
+30
Ignition Key
Direction Indicator Ligths
RED
BLUE
Self-Powered Sirene
GREEN-BROWN
Door Pin Switch
GREEN
Boot/Bonnet Pin Switch
EARTH
Positive allarm ON
YELLOW-BROWN
RED-BROWN
YELLOW-GREY
RED-GREY
Refer to central door locking diagrams
YELLOW-BLUE
RED-BLUE
BLACK
Supplementary Siren
WHITE
GREY
Engine immobilisation
8A
MAX !
10A
12 VOLT
+
-
Battery
BROWN
PINK
ORANGE
ORANGE
5A
5A
Art. 4008GE
1160

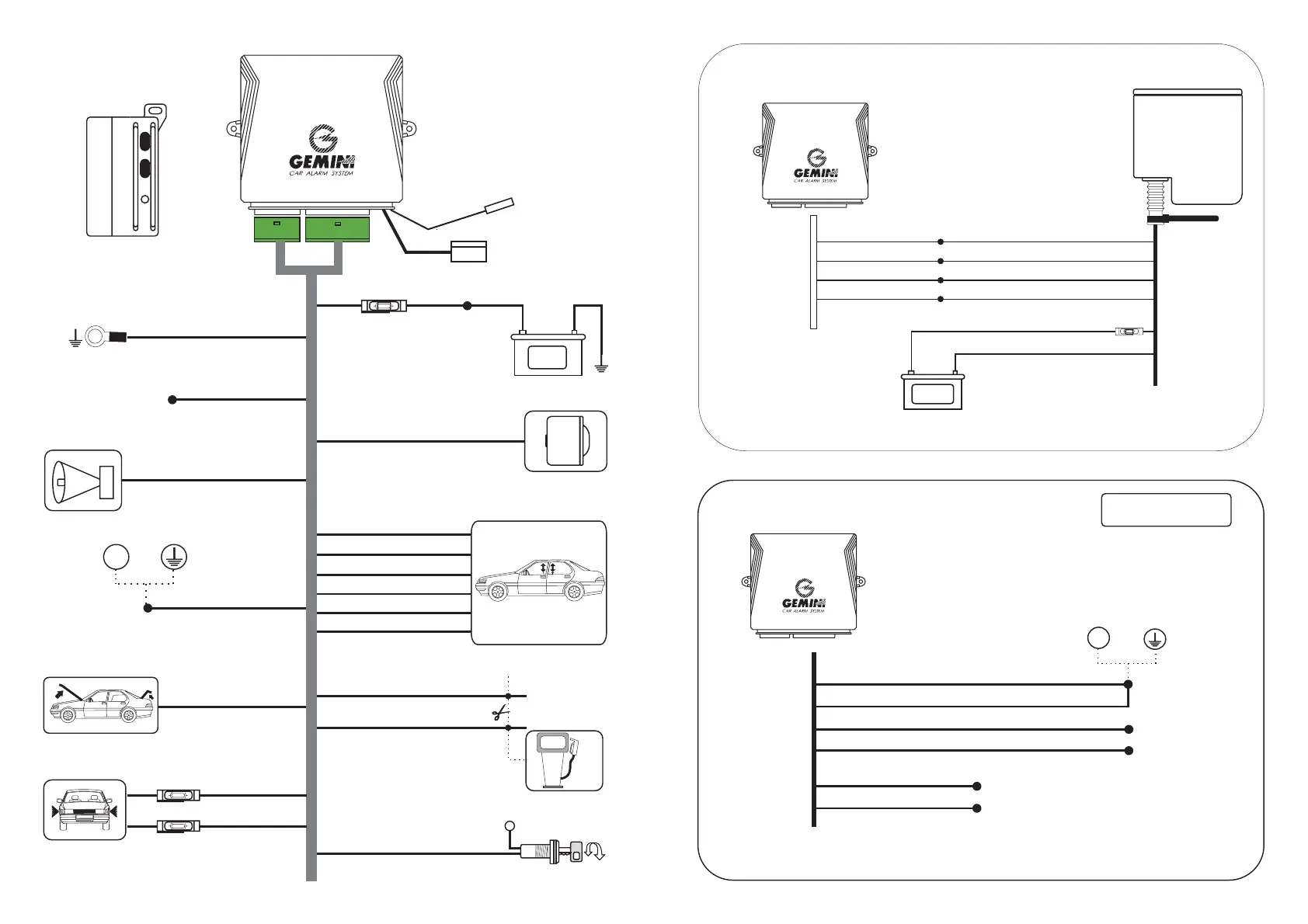

FITTING DIAGRAM
ART. 1160RSD
1160
1160
3 way connector for
ultrasonic sensor
YELLOW-BLACK
Common for
Supplementary Siren
Fitting diagram 1160 central unit with 5025 siren.
BLACK marked RB or Red-White
BLACK marked MB or White-Brown
15A
BLACK marked R or Red
BLACK marked L or Blue
BLACK marked Z or Violet
BLACK marked Z or Violet
NOTE :
The black wires has the identification
mark in the end.
CLAMP
+_
BATTERY
12VOLT
GREY
WHITE
RED
BLUE
EX : ALFA,FIAT,FORD,LANCIA,OPEL,PEUGEOT,SAAB,VW POLO(95>).
YELLOW-BLUE
RED-BLUE
YELLOW-GREY
RED-GREY
YELLOW-BROWN
RED-BROWN
+30
+30
Diagram N° 2
Common
Open
Close
Do not connect
Do not connect
GEMINI 1160RSD
Gemini 1160RSD is a remote control unit. Supplied with two coded transmitters it
has the ability to operate central locking, as well as offering panic switch, passive
arming and outlets for control sirens, vehicle's own horns and hazard lights.
It offers the following protections:
- the passenger compartment by pin switches and also voltage drop sensor.
- engine immobilisation obtained by the interruption of an electric circuit that
controls the engine.
It has also the following abilities:
- it controls all types of sirens or vehicle horns which are positive or negatively
switched.
- it can be connected to volumetric, vibration and anti-lifting sensors.
- it can be interfaced with automatic windows or roof closing units.
OPERATION: (For End User)
Pushing the BLACK button on the hand held transmitter will switch on the alarm
and operate the central locking.
The receiver is mounted inside the passenger compartment. The arming signal is
acknowledged by a single 3-seconds pulse on the hazard lights circuit.
Pushing the RED button on the hand held transmitter twice will switch the alarm
on with the Remote Sensor Disconnection (for example ultrasonic sensor). In
this case the alarm connection is acknowledged bu two pulses of the direction
indicator lights.
In both cases at the same time the engine immobilisation circuit will be activated.
There are different exit delay periods for each type of activation (see Table A)
before the alarm becomes armed.
After the arming periods have elapsed, any attempt to enter the vehicle will
instantly trigger the alarm. The siren will sound and the hazard lights will also
flash. This will continue for a period of 30 seconds and then the unit will switch off
and automatically re-set after a further 10 seconds. In case of continuous
triggering, the alarm condition will occur as shown in Table A.
The alarm can be de-activated at any time by operating the BLACK button of the
transmitter. The hazard lights will signal 3 off 1 second pulses if no alarm
conditions have occurred. If the alarm has been triggered, the hazard lights will
signal 5 off 1 second pulses (alarm has memory of an atempted "break-in").
If the passive arming has been activated, the alarm unit will arm itself after 15
seconds from the engine stopping and the last door or bonnet/boot/tailgate
closing, also the arming visual signal will operate. To obtain the central locking
closing, you must push the BLACK transmitter button within 20 seconds.
When the system is armed you can activate the panic alarm by
pressing the RED transmitter button. The siren and the hazard lights circuit will be
activated for 10 seconds. The emergency de-activator can be either a key switch
or a toggle switch. If a GEMINI 5025 electronic self-powered siren is used, its key
switch must be turned OFF to obtain the emergency alarm de-activation (it acts as
an over-ride switch).
TABLE A
EXIT DELAY TIME ENTRY SENSOR NO. OF ALARM
CYCLES
40 sec. Door pin switches 3
5 sec. Bonnet/boot/tailgate switches 3
5 sec. Ignition line unlimited
40 sec.
Volumetric, vibration and anti-
lifting sensors
3
40 sec. Voltage drop sensor unlimited
PRE-INSTALLATION CHECKS: (For the Installer)
- Disconnect the negative terminal of the battery and only re- connect after the
installation is complete.
- Remove the cover from the rear of the unit, these allow access to the SW2-
SW3. SW1 is located next to the connectors.
Arrange the central unit as follows:
a. SW1 in position A. Voltage drop sensor activated.
SW1 in position B. Voltage drop sensor isolated.
This sensor must be isolated if on the vehicle there are loads that can operate
once the ignition has been switched off (i.e. cooling fan).
b. SW2 in position A o B as shown in central locking diagrams.
c. SW3 in position A. Continous signal.
SW3 in position B. Intermittent signal. For connecting vehicle's own horn select
position B (intermittent signal).
d. To de-activate the passive arming function, cut the YELLOW- GREEN wire
loop.
WIRING INSTRUCTIONS -
Check that all wires of the harnesses are fitted in the correct positions on
the connectors (checking against alarm wiring diagrams).
1. POSITIVE POWER FEED. With the voltage drop sensor activated, the
RED wire must be connected to the interior light circuit at the fuse box.
If the voltage sensing is de-activated, the RED wire CAN be connected
to the main fuse box feed or directly to the positive terminal of the
battery. If a self-powered electronic siren (GEMINI 5025) is used the
RED wire of the remote unit must be connected to the RED wire of the
siren. DO NOT CONNECT THE RED WIRE OF THE SIREN TO
POSITIVE.
Use the 15 Amp fuse supplied in the kit.
2. NEGATIVE POWER FEED. Connect the BROWN wire to a stable body
earth. If possible use existing body earth points or battery negative
terminal.
3. IGNITION LIVE. Connect the YELLOW wire to a positive ignition feed.
This wire must be fed also whilst starting the engine.
