This manual should remain with the unit.

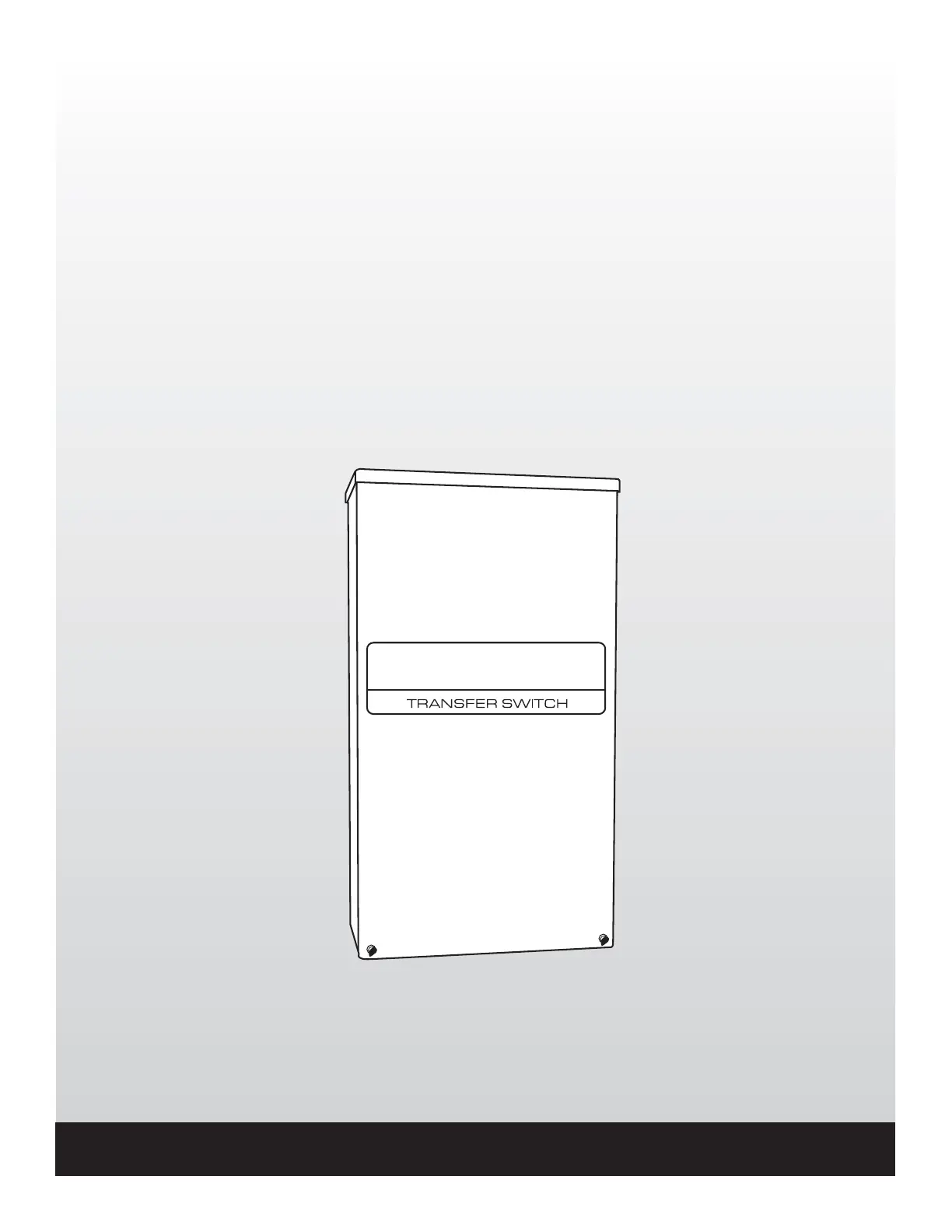

Technical Manual

RTS Automatic Transfer Switch

Safety Rules .................................................Inside Front Cover

General Information .................................................................2

1.1 Introduction ................................................................................2

1.2 Equipment Description ................................................................2

1.3 Transfer Switch Data Decal .........................................................2

1.4 Transfer Switch Enclosure ...........................................................2

1.5 Safe Use Of Transfer Switch........................................................2

Installation ............................................................................... 3

2.1 Introduction to Installation ...........................................................3

2.2 Unpacking .................................................................................. 3

2.3 Mounting .................................................................................... 3

2.4 Connecting Power Source and Load Lines ..................................3

2.5 Connecting Start Circuit Wires ....................................................4

2.6 Auxiliary Contacts .......................................................................4

Operation .................................................................................4

3.1 Functional Tests & Adjustments .................................................. 4

3.2 Manual Operation ........................................................................5

3.3 Voltage Checks ........................................................................... 6

3.4 Generator Tests Under Load ........................................................7

Mounting Dimensions ..............................................................8

Interconnection Diagram .......................................................11

Notes .....................................................................................12

Warranty ................................................................................ 13



SAVE THESE INSTRUCTIONS! Read the fol-

lowing information carefully before attempt-

ing to install, operate or service this equip-

ment. Also read the instructions and infor-

mation on tags, decals, and labels that may

be affixed to the transfer switch. Replace

any decal or label that is no longer legible.



DANGER! Connection of a generator to an

electrical system normally supplied by an

electric utility shall be by means of suitable

transfer equipment so as to isolate the elec-

tric system from utility distribution system

when the generator is operating (Article 701

Legally Required Standby Systems or Article

702 Optional Standby Systems, as appli-

cable). Failure to isolate electric system by

these means may result in damage to gen-

erator and may result in injury or death to

utility workers due to backfeed of electrical

energy.

The manufacturer cannot anticipate every possible circumstance

that might involve a hazard. The warnings in this manual, and on

tags and decals affixed to the unit are, therefore, not all-inclusive. If

using a procedure, work method or operating technique the manu-

facturer does not specifically recommend, ensure that it is safe for

others. Also make sure the procedure, work method or operating

technique chosen does not render the transfer switch unsafe.

Throughout this publication, and on tags and decals affixed to the

generator, DANGER, WARNING, CAUTION and NOTE blocks are

used to alert personnel to special instructions about a particular

operation that may be hazardous if performed incorrectly or care-

lessly. Observe them carefully. Their definitions are as follows:

After this heading, read instructions that, if not

strictly complied with, will result in serious

personal injury, including death.

Table of Contents

WARNING!

California Proposition 65

Engine exhaust and some of its constituents are known to the state of California to cause cancer,

birth defects, and other reproductive harm.

WARNING!

California Proposition 65

This product contains or emits chemicals known to the state of California to cause cancer,

birth defects, and other reproductive harm.
