GIRA
Info Electronic Time witch
Installation Instructions
Electronic time switch 06/97 Page 1 of 2
Electronic time switch Order No. 1319 ..
Electronic time switch SM with
earthed socket and child protection Order No. 1399 ..
Function
Electronic time switch for 2-pole switching of electrical appliances.
For increased safety, the electronic time switch switches off the electrical appliances connected to it
after a selected time period. The practical application area is the connection of heat-producing
appliances, for example coffee machines, heating blanket, etc.
The switch-off time is set to suit the usage time of the specific connected appliance (‘time’ rotary
switch on the unit).
• On /off switching: Press operating button.
• For switching off sooner, press operating button again.
•
A red control signal on operating butt
on indicates the switched-on condition.
Attention!
Fitting and installation of electrical equipment may only be carried out by qualified electricians.
Fire or other dangers may be caused by not observing the installation guide.
Attention: Neutral conductor must always be connected.
N
L
NL
L
N
230 V AC
Setting the
on-time
Time

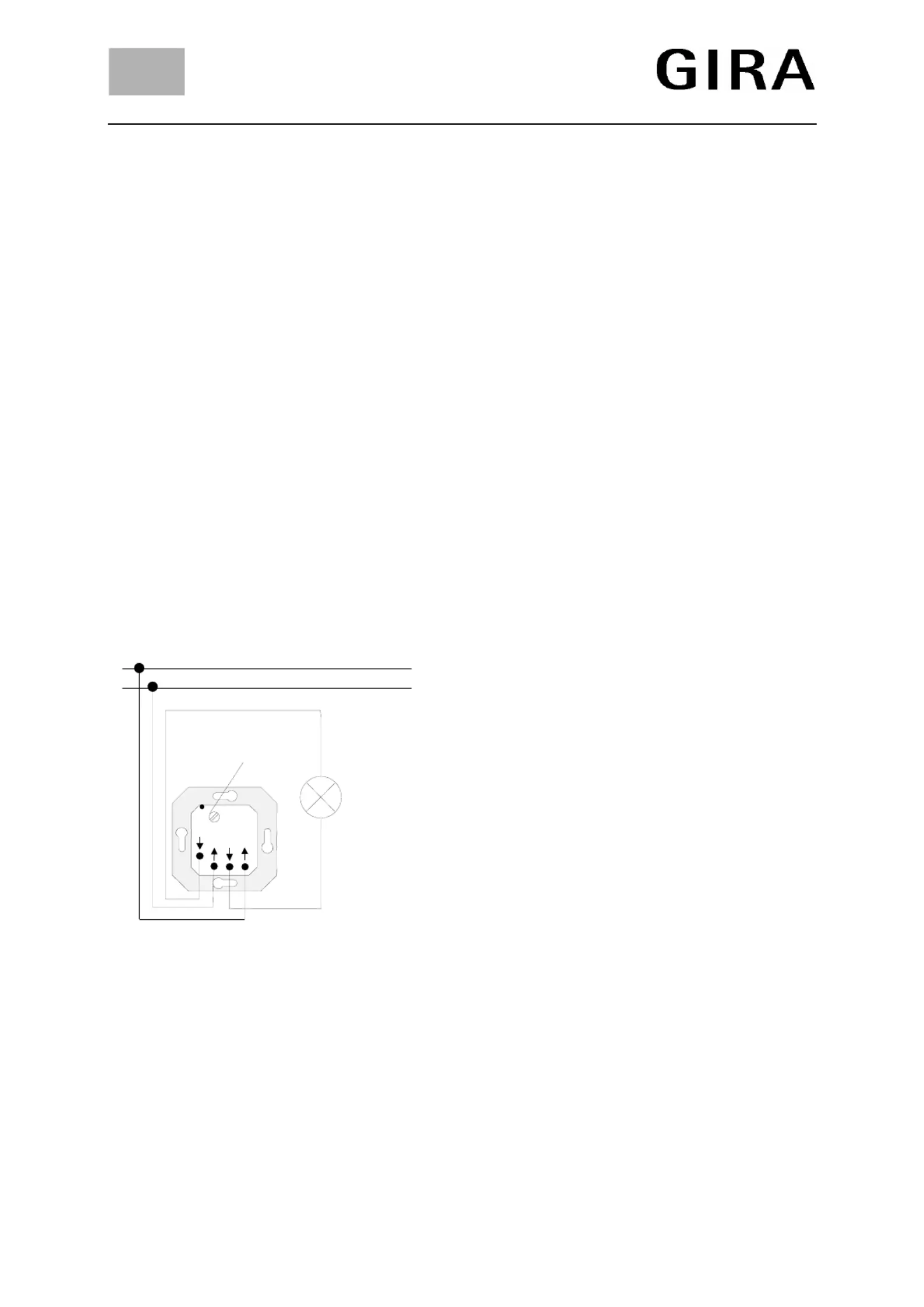

Connection diagram
Setting the switch-off time
Press operating button to switch on (time is
started).
The time duration is altered with the ‘time’ rotary
switch.
Step-setting of time duration: 1/8, 1/4, 1/2, 1, 2, 4,
8, 16 hours.
Installation guide
Scope of supplies:
Electronic time switch UP
Inset incl. cover-plate Order No. 1319 ..
Electronic time switch WG AP
Inset in water-protected surface-mounting housing Order No. 1319 ..
Electronic time switch AP with
earthed socket and child protection Order No. 1399 ..
Inset in double AP housing incl. cover plate,
earthed socket with child protection (pre-wired),
double frame and slide for conduit installation.
GIRA
Info Electronic Time witch
Installation Instructions
Electronic time switch 06/97 Page 2 of 2
Safety information
Never leave heat-producing appliances (e.g. heating radiator etc.) unattended.
A mains failure results in switching off of the unit. The time must be restarted.
The maximum switching current is 10A. Sockets are in most cases fused for 16A. Attention must
however be given to ensuring that the current circuits in which the electronic time switch is used are
fused for only 10A or that the socket is appropriately marked.
Not suitable for use with appliances which may only be operated by their own switch.
Technical data
Rated voltage: 230 V AC, 50 Hz
Rated current: max. 10 (3) A
Switching capacity: 2300 W resistive appliance
550 W filament lamps
Time duration in hours: 1/8; 1/4; 1/2; 1; 2; 4; 8; 16 (adjustable)
Ambient temperature: -25 °C to +50 °C
Protection: IP 20 (Order No. 1319 .. and 1399 ..)
IP 44 (Order No. 1319 ..)
Minimum load: approx. 10W
The relay contacts (μ-contact) of the electronic time switch contain a small amount of cadmium.
Faulty units should therefore be disposed of in the appropriate manner.
Acceptance of guarantee
We accept the guarantee in accordance with the corresponding legal provisions.
Please return the unit postage paid to our central service department giving a brief description
of the fault:
Gira
Giersiepen GmbH & Co. KG
Service Center
Dahlienstrasse 12
D-42477 Radevormwald
The CE sign is a free trade sign addressed exclusively to the authorities and does not include
any warranty of any properties.
Gira
Giersiepen GmbH & Co. KG
Postfach 1220
D-42461 Radevormwald
Telefon: +49 / 21 95 / 602 - 0
Telefax: +49 / 21 95 / 602 - 339
Internet: www.gira.de
