Side 1/3
GIRA
Info
System 2000 Relay-Insert
Installation Instructions
System 2000 Relay-Insert 3/04 Page 1 of 3
Function
Relay insert for switching extensive light sources and
electrical consumers up to a maximum of 10 A/230 V:
230 V halogen lamps.
Halogen LV lamps in conjunction with conventional
transformers.
Halogen LV lamps in conjunction with Tronic trans-
formers.
Fluorescent lamps.
Switching commands are given by actuating the
covers of the relay insert, the extension or of the radio
transmitter. This Operating Instructions leaflet des-
cribes the functionality in combination with the manu-
al attachment.
For the exact functionality when other attachments or
the remote control facility, respectively, are used,
please refer to the corresponding Operating Instruc-
tions.
TOP, BOTTOM control surface,
full control surface: Switching on,
switching off (toggling).
Installation Instructions

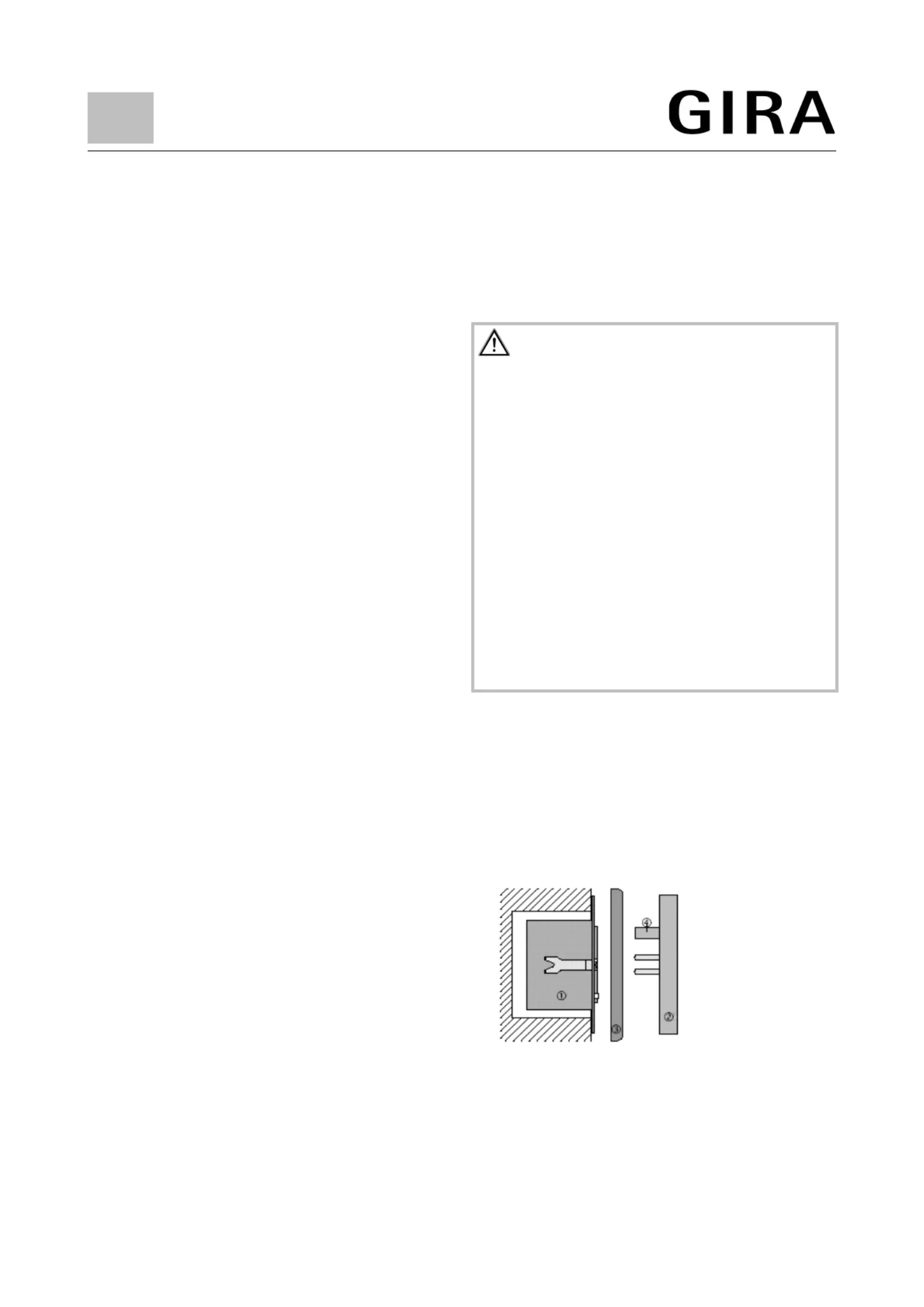

Install relay insert c in a box as per DIN 49073
(Figure A).
The connecting terminals of the insert must be down.
Do not use the relay insert when not in combination
with an attachment.
Plug attachment d onto the insert together with frame
e.
Electrical contacting is established through plug f.
Plug on the cover prior to switching on the mains volt-
age.
Mains failures of more than 1 sec. will lead to switch-
ing off the relay insert.
A
System 2000 Relay-Insert Order no.: 0853 00
Warning
Caution: The installation and assembly of electrical
equipment may only be performed by a skilled elec-
trician.
Not suitable for disconnecting.
To prevent electric shocks, always shut off the mains
supply (by cutting out the circuit-breaker) before
working on the device or before replacing the lamp.
For operation with conventional transformers, pro-
tect the primary side of each transformer by a fuse,
according to the manufacturer’s information. Do not
use any devices other than safety transformers as
per DIN VDE 0551.
Non-observance of the installation instructions may
cause fire or other hazards.
GIRA
Info
System 2000 Relay-Insert
Installation Instructions
System 2000 Relay-Insert 3/04 Page 2 of 3
Short-Circuit Protection
For device protection, connect in series a 10 A auto-
matic cut-out.

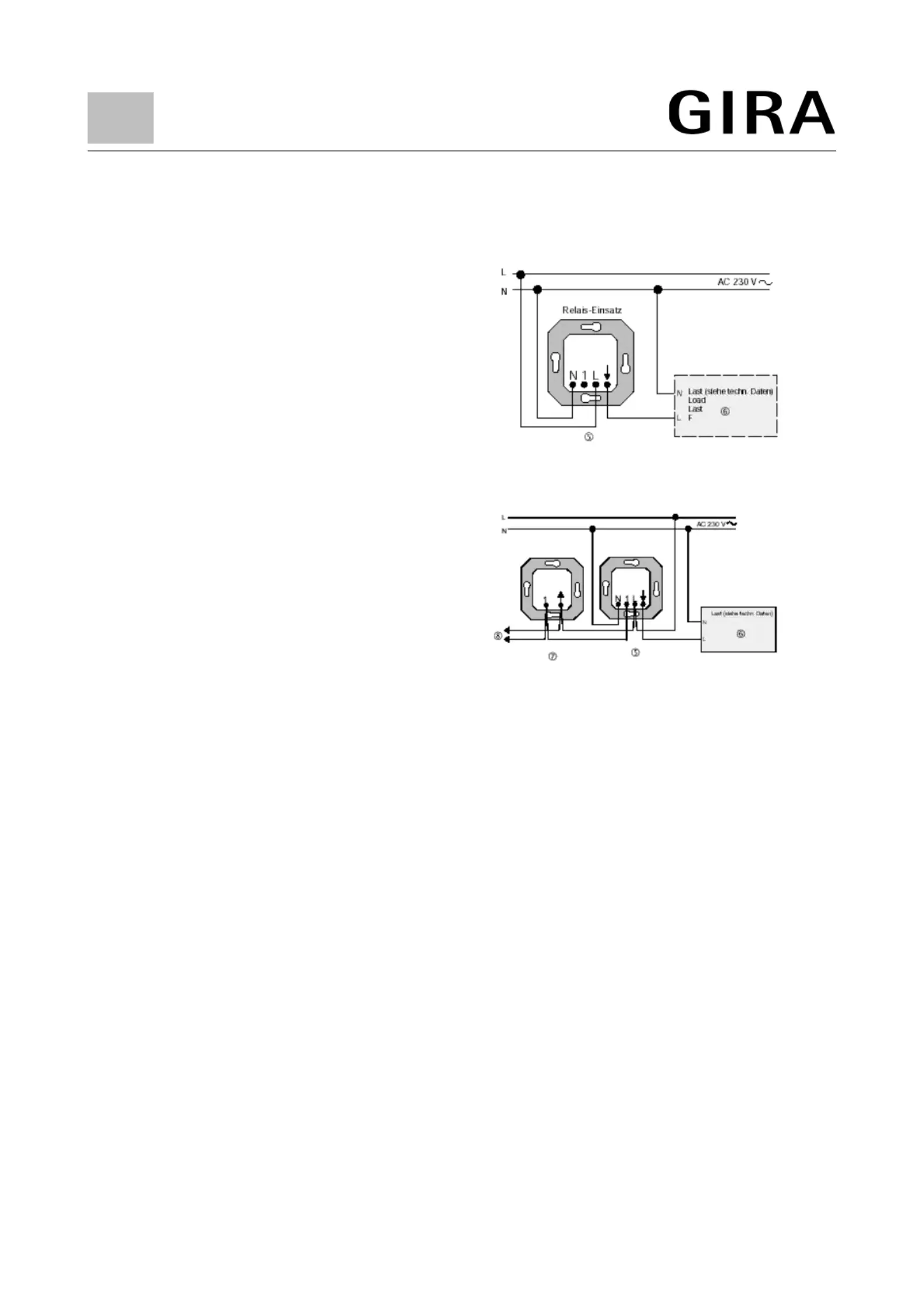

Connect the relay insert as shown in Fig. B.
Relay insert g, Load h
Observe the maximum connected load and the speci-
fied load as per Specifications.
Depending upon the type of installation, reduce the
maximum connected load by:
10 % per 5 °C exceeding of the ambient tempera-
ture of 25°C.
15 % for installation in wooden, gypsum plaster or
hollow walls.
20 % for installation in multiple combinations.
For switching several points, please refer to Fig. C.
Relay insert g, Load h, extension unit i, to futher
extension units j
Note the technical connection conditions of the power
stations.
B
C
Using Extensions
Control from an extension unit is possible only if the
attachment on the main unit is in place.
Extension insert: Same functionality with
attachment as on the relay
insert
Mechanical key
(normally open): ON / OFF (toggling)
Illuminated mechanical pushbuttons must have a
separate N terminal.


Produkt Specifikationer

Mærke: Gira
Kategori: Bevægelsesdetektorer
Model: System 2000
Vekselstrømsindgangsspænding: 230 V
Vekselstrømsindgangsfrekvens: 50 - 60 Hz
Produktfarve: Metallic
Strøm: 10 A
Driftstemperatur (T-T): -20 - 45 °C
Certificering: CE
Antal kontakter: 3
