Notice

This manual provides general information, preparation for use, installation and operating instructions for the Golden Age Audio FC1 mkIII. The infor-

mation contained in this manual is subject to change without notice. Golden Age Audio makes no warranties of any kind with regard to this manual,

including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Golden Age Audio shall not be liable for errors

contained herein or direct, indirect, special, incidental, or consequential damages in connection with the furnishing, performance, or use of this material.

This manual and any associated intellectual property are subject to copyright protection. No part of this docu-

ment may be reproduced in any form without explicit written consent from Golden Age Audio.

RAD Distribution | 180 Carpenter Ave. Middletown, NY 10940

Revised 03-21-25

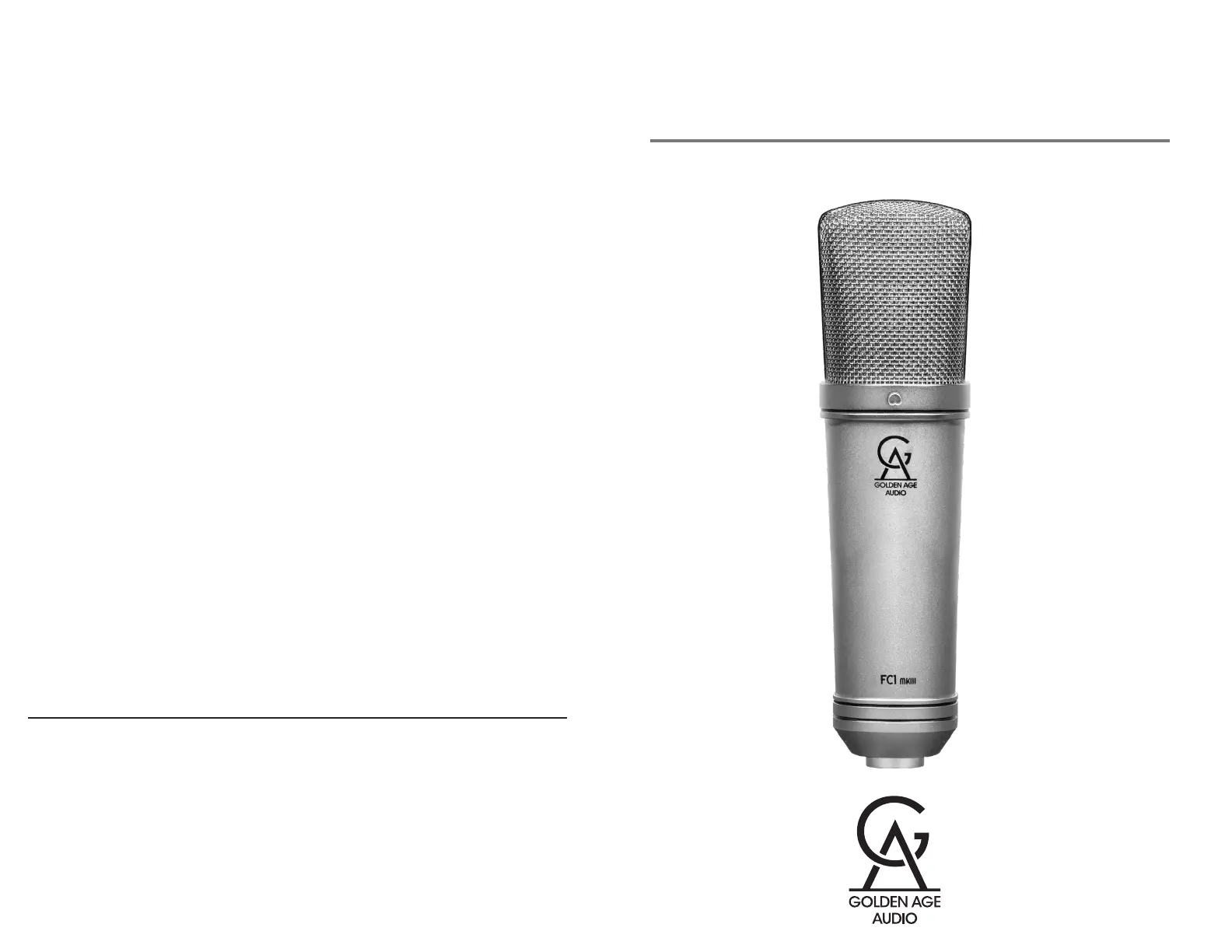

Large capsule condenser microphone

FC1 MKIII

SPECIFICATIONS

DIAPHRAGM 32 mm pressure-gradient capsule

POLAR PATTERN Cardioid

FREQUENCY RANGE 20 Hz to 20 kHz

EQUIVALENT NOISE

LEVEL (A-WEIGHTED

PER IEC 268-4)

18 dB

MAXIMUM SPL

(<1% THD @1KHZ)

130 dB

TOTAL HARMONIC

DISTORTION (THD)

0.5%

LOAD IMPEDANCE 250 Ω

OPERATING

CURRENT

CONSUMPTION

3 mA

SENSITIVITY -36.5 dB at 1 kHz

DIMENSIONS 50x190 mm

WEIGHT 470 g

OPERATING

VOLTAGE

48V phantom power

INTRODUCTION

Congratulations on choosing the Golden Age Project FC1 mkIII micro-

phone!

The FC1 mkIII is a high quality large capsule condenser microphone, in-

spired by classical microphone models.

The FC1 mkIII is a very versatile microphone with a wide frequency re-

sponse and a large dynamic range. It will perform great in the studio or in

live sound and broadcast applications.

It has a sound character similar to vintage microphones and it is well

suited to be used with most instruments and voices.

Use it on vocals and choirs; acoustic and electric guitars and other fretted

instruments; as drum overheads or room microphones; and in any other

application where you would use a large-capsule condenser microphone.

The FC1 mkIII is, in spite of its low cost, suitable for critical recording

applications.

USING THE FC1 MKIII

The FC1 mkIII can be used with any standard mixer or preamp. Use either

a XLR to XLR or XLR to 1/4” plug standard balanced micro phone cable.

Please note that the FC1 mkIII requires +48 V phan tom power. For opti-

mum performance, let the FC1 mkIII warm up for 5-10 minutes before use.

Be aware of the proximity effect (an increase in bass response) when the

microphone is close to the sound source. This can be a good or a bad

thing. You can adjust the bass response by changing the distance from the

microphone to the sound source for an optimum result in different situa-

tions. You can also use the high pass filter by engaging the internal switch.

As always, experiment! This is the best way to get the sound you want.

Microphone place ment is an art and you will learn a lot by trying different

methods.

HIGH-PASS FILTER

The FC1 mkIII contains an internal switch for a 100 Hz high-pass filter. To

engage the switch, unscrew the bottom cup from the microphone and

slide off the main body shell. Engage the blue switch in the center of

the circuit board to activate the high-pass filter. Reassemble the mic and

you’re good to go!

PRECAUTIONS



Be careful not to drop the FC1 mkIII or subject it to shock since this

can destroy the sensitive capsule.



Always pack the FC1 mkIII care fully when transporting it.



The heart of the FC1 mkIII is its capsule. It must be protected from

dirt and moisture.



Always use a pop filter for close- up vocals to protect the capsule

from mouth spray.



Always store the FC1 mkIII in its vinyl pouch when it is not in use.



Protect the FC1 mkIII from strong wind blasts. Never put it inside

or close to the front of a kick drum. Use a pop-filter and place it at

least 0.5 m away.



Always connect the FC1 mkIII to the preamp or mixing console BE-

FORE phantom power is applied and unplug the microphone cable

AFTER you have turned off the phantom power and waited 10 sec-

onds or more. This is to avoid possible damage to the electronic

circuits in the FC1 mkIII.



Avoid exposing the FC1 mkIII to direct sunlight or extremes in humid-

ity for extended periods of time.



Never try to service the FC1 mkIII yourself since this will void the

warranty. Should your FC1 mkIII ever need service, please contact

your dealer.

WARRANTY

Please check the FC1 mkIII carefully immediately when you receive it and

make sure that there are no problems with the microphone. The warranty

period is one year and apply to defects in materials and workmanship. It

does not cover misuse of the microphone.

If you ever experience any problem, contact your dealer.

REGISTRATION

You are welcome to register your unit at our website:

www.GoldenAgeAudio.com
