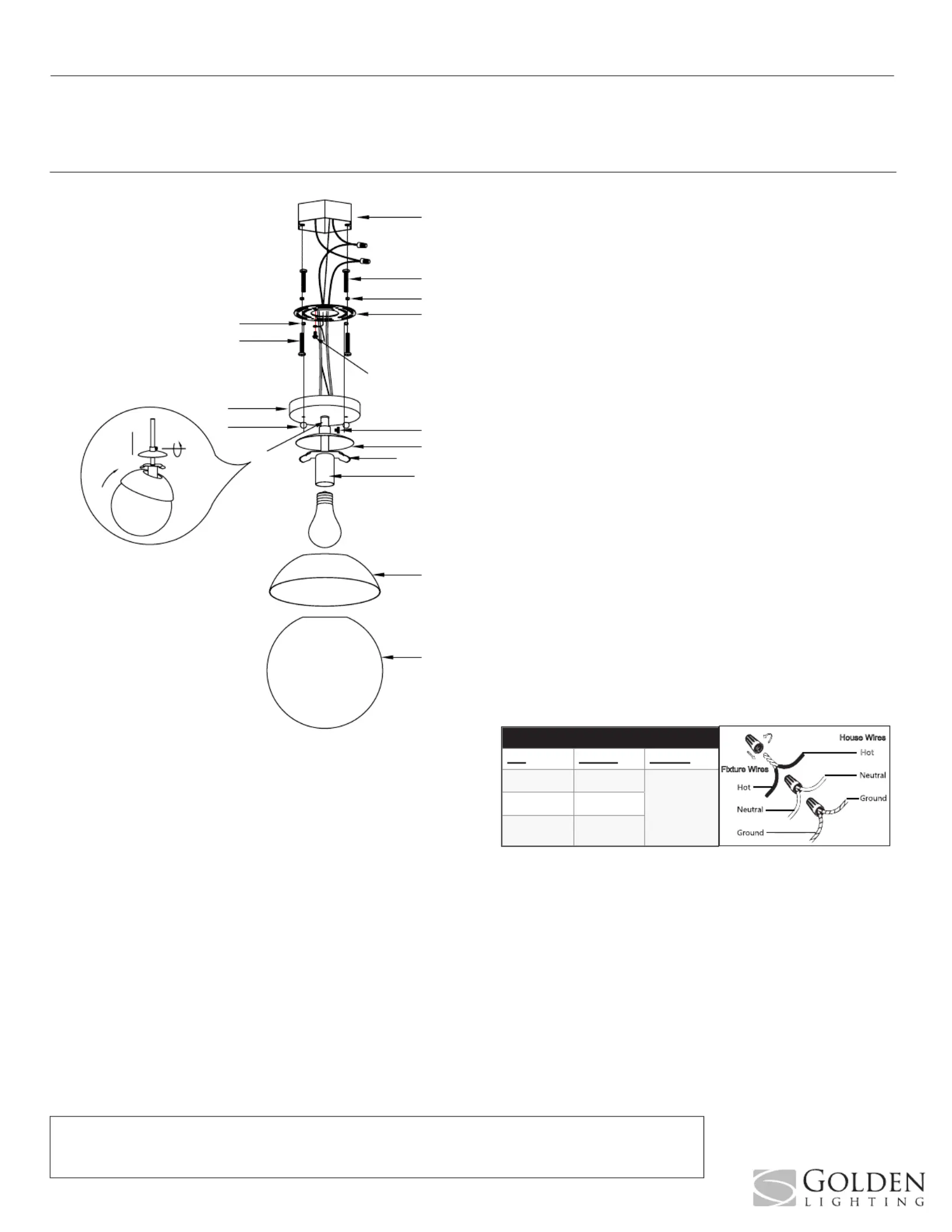

Assembly Instructions: (Dixon)3218-SF & 3219-SF
• ALL INSTALLATION WORK SHOULD BE DONE BY ACCREDITED PROFESSIONAL.
• SHUT OFF POWER SUPPLY AT FUSE OR CIRCUIT BREAKER!
• USE ONLY THE SPECIFIED BULBS. DO NOT EXCEED THE MAXIMUM WATTAGE!
PREPARING FOR INSTALLATION
Remove all of the contents from the carton. See the
important notes above. Shut off the power at the circuit
breaker and completely remove the old xture from the
ceiling, including the old mounting strap.
1. Take the mounting strap assembly from the parts bag.
Mounting strap (B) should have mounting screws (D)
attached. You may need to tighten hex nuts (C) that hold the
2. Use mounting screws (A) and a screw driver to attach
mounting strap (A) to the junction box.
Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light and wipe down the
xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.
For Customer Service, please
contact the place of purchase.
3.Haveanassistantsupporttheweightofthexturewhile
completing the wiring. Cut away excess wire. Thread the
xture’swiresthroughcanopyloop(H)andnipple(F).Attach
thexture’swirestothepowersupplywiresfromthejunction
box. Connect black to black (or smooth); white to white (or
ribbed); ground to ground (green or copper). Twist the ends
of the wire pairs together, and then twist on a wire connector.
Make sure all twists are in the same direction. If there is no
ground wire (green or copper) coming from the junction box,
locate ground screw (E) on mounting strap (B) and wrap the
xture’sgroundwirearoundthegreengroundscrew(E).Use
a screwdriver to secure ground screw (E) onto the mounting
bracket. Tuck all wires neatly into the junction box.
FINISHING THE INSTALLATION
4. Raise canopy (F) to the ceiling. Position mounting screws (D) so that they protrude through the openings of canopy (F). Secure
canopy (F) to mounting strap (B) with decorative nuts (H).
Installalightbulb(notprovided)inaccordancewiththexture’sspecications.Donotexceedthemaximumrecommended
Loosen bolt (M) and raise lid (N) to the highest position. Tilt the lamp and rods slightly, and then pass the lamp through
decorative cap (O) and into glass shade (P). Then, place decorative cap (O) and lid (N) on top of glass shade (P). Move the lamp
and rods into a vertical position. Check that everything is level and secure the assembly by tightening bolt (M).
Yourinstallationiscomplete.Turnonthepowerandtestthexture.
How to Identify the Fixture’s Wires
