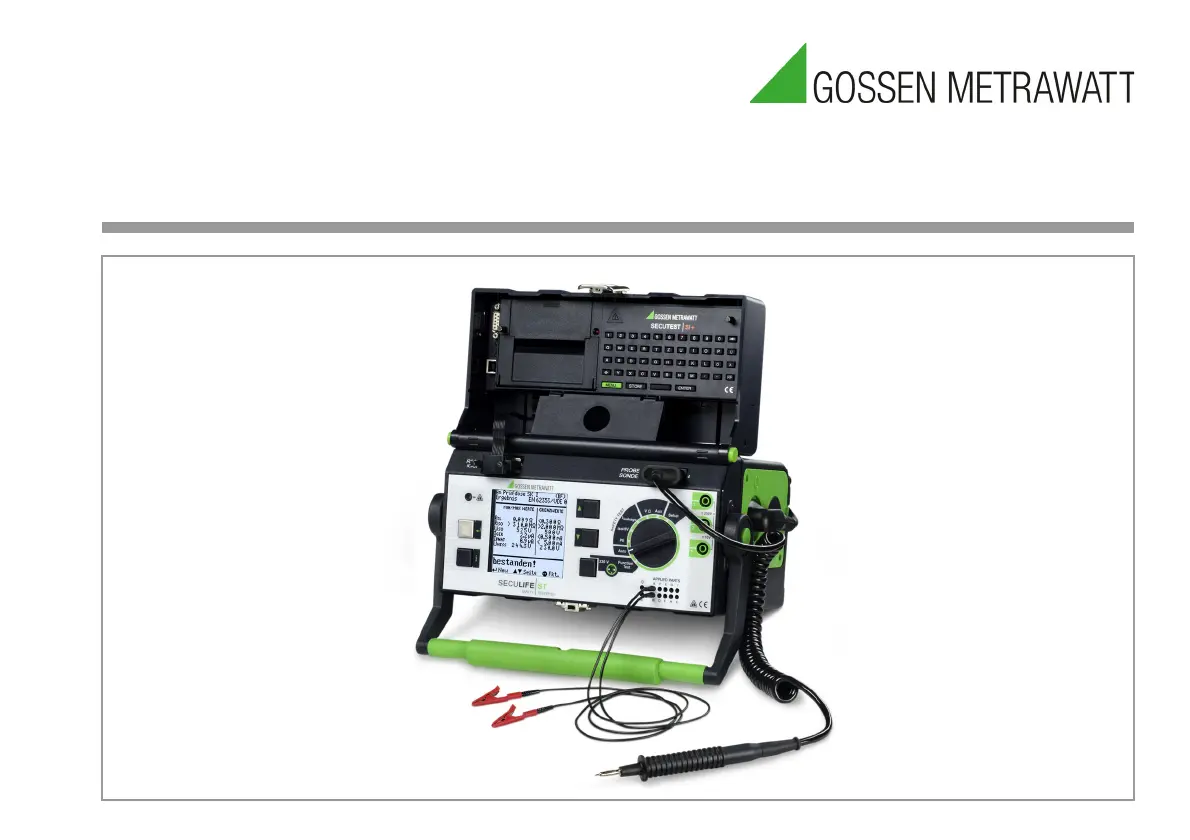

SECU SECULIFEST and LIFEST HV

Test Instruments for Portable Appliance Testing according to Health and Safety Policy

and in Accordance with the Medical Product Law as well as for Routine Testing

3-349-448-03

27/2.21

Operating Instructions

2 Gossen Metrawatt GmbH

PROBE 5 4

SONDE

Auto

Function

Test

VAux Setup

Iso/

I leakage

B D F H K

A C E G I

Applied Parts

45678910

14 15 1816 17

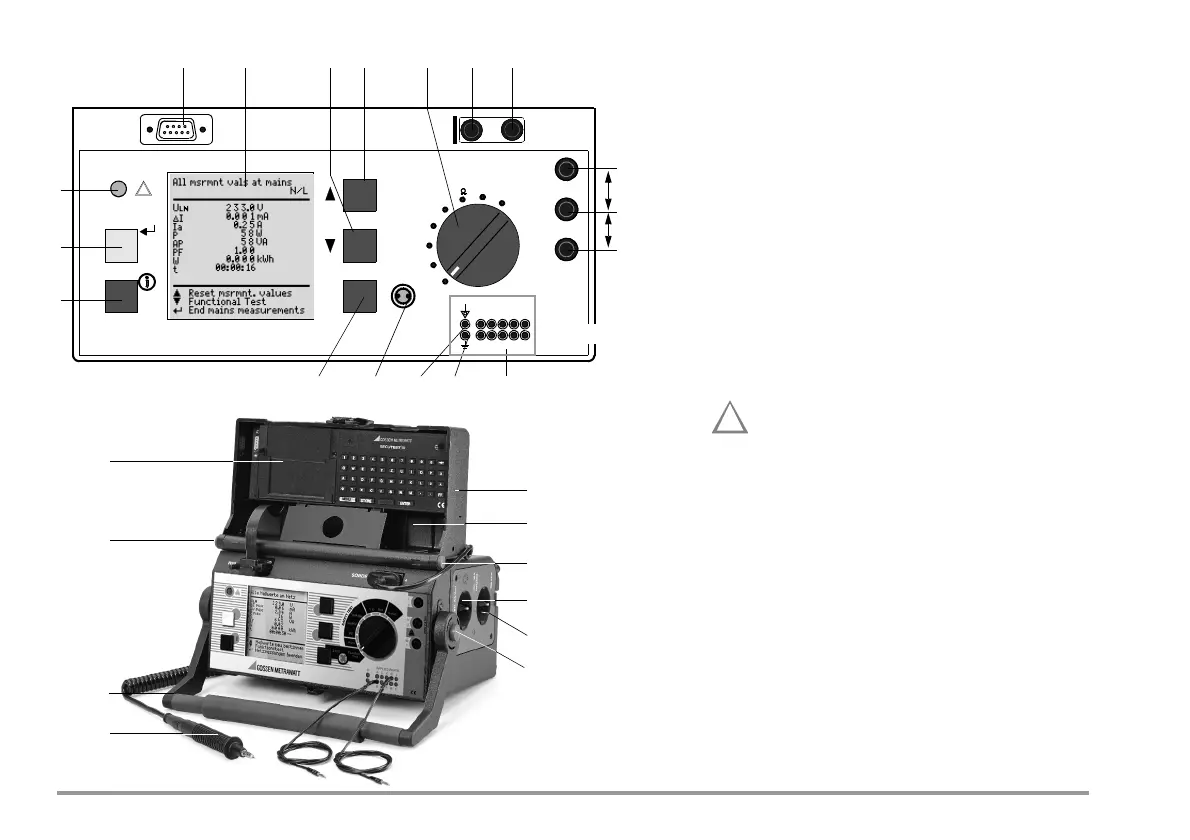

Probe connection

Insert the double plug of the probe into sockets 4 and

5 such that the plug with the white ring contacts

socket 5 (vertical bar).

Note: Contact problems with exposed conductive parts

when using the standard probe with test tip

In order to assure good contact, surface coatings must be

removed from devices under test with special tools at a suit-

able location so that the surface has a metallic shine. The tip

of the test probe is not suitable for scratching away paint, be-

cause this may impair its coating and/or mechanical

strength. The brush probe (Z745G) may be more suitable

than the test probe in certain individual cases.

Measurements at jacks 1 – 2 – 3

Always start with the measurement before contacting

the measuring point. Between jacks 1 and 2, a maxi-

mum of 10 V may be applied. Between jacks 2 and 3,

up to 253 V may be applied.

Attention: Jacks (2) and (3) are short-circuited

during all measurements at the test socket!

(Exception: see chapter 12.2)

Standard equipment

Test instrument with 10 + 2 connectors for application parts

1 Probe cable with test probe

1 Clip-on alligator clip for test probes

3 Clip-on quick-clamp terminals

10 conductor patient connection cable 2 mm

10 Clip-on alligator clip 2 mm

1 Calibration certificate per DAkkS

1 Operating instructions

1 Carrying strap

Up-to-date PC software (free start-up programs or

demo software for data management, report and list

generation) is available on our website for download.

An up-to-date version of the operating instructions

covering the latest firmware update is available for

download on the internet.

RS232

IOIOI

max. 10 V

max. 253 V
