Side 1/4

Read instruction manual 334784 for complete

instructions and warnings. This Quick Guide is not

a substitute for reading and understanding all

instructions manuals and warnings labels

supplied with the equipment.

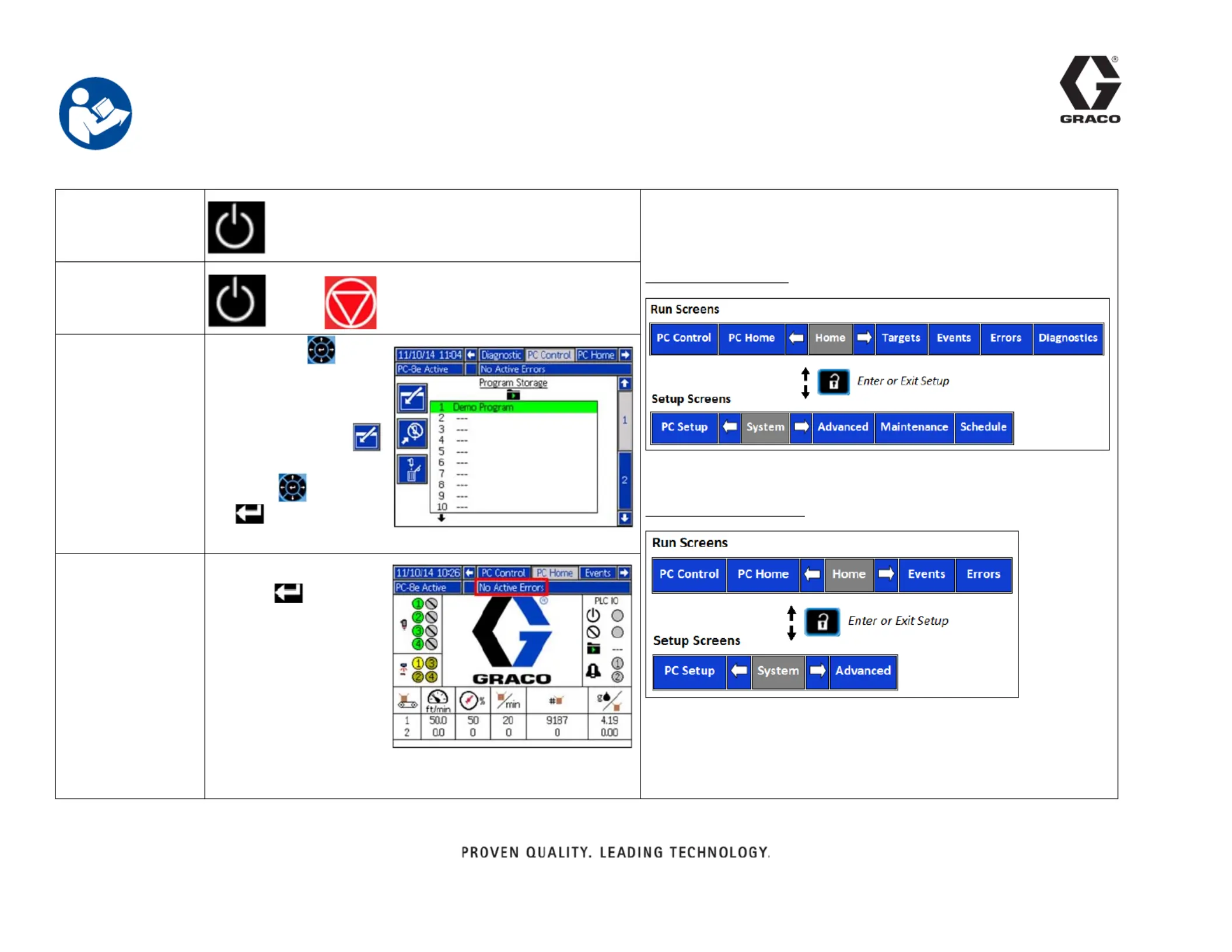

Turn System

Screen Navigation

Turn System

Off

Integrated Systems

Stand-Alone Systems

Select

Program

1. Arrow left _to

navigate to the “PC

Control” screen.

2. Enter the screen

and arrow up or

down _. Press

to select a pro-

gram.

Clear

Errors

Acknowledge errors by

pressing _ once for

each error.

Display will show “No

Active Errors” unless

error was unable to

clear. Seek technical

support if any error

persists.

- or -

335007B

Quick Guide

InvisiPac

Pattern Controller

335007

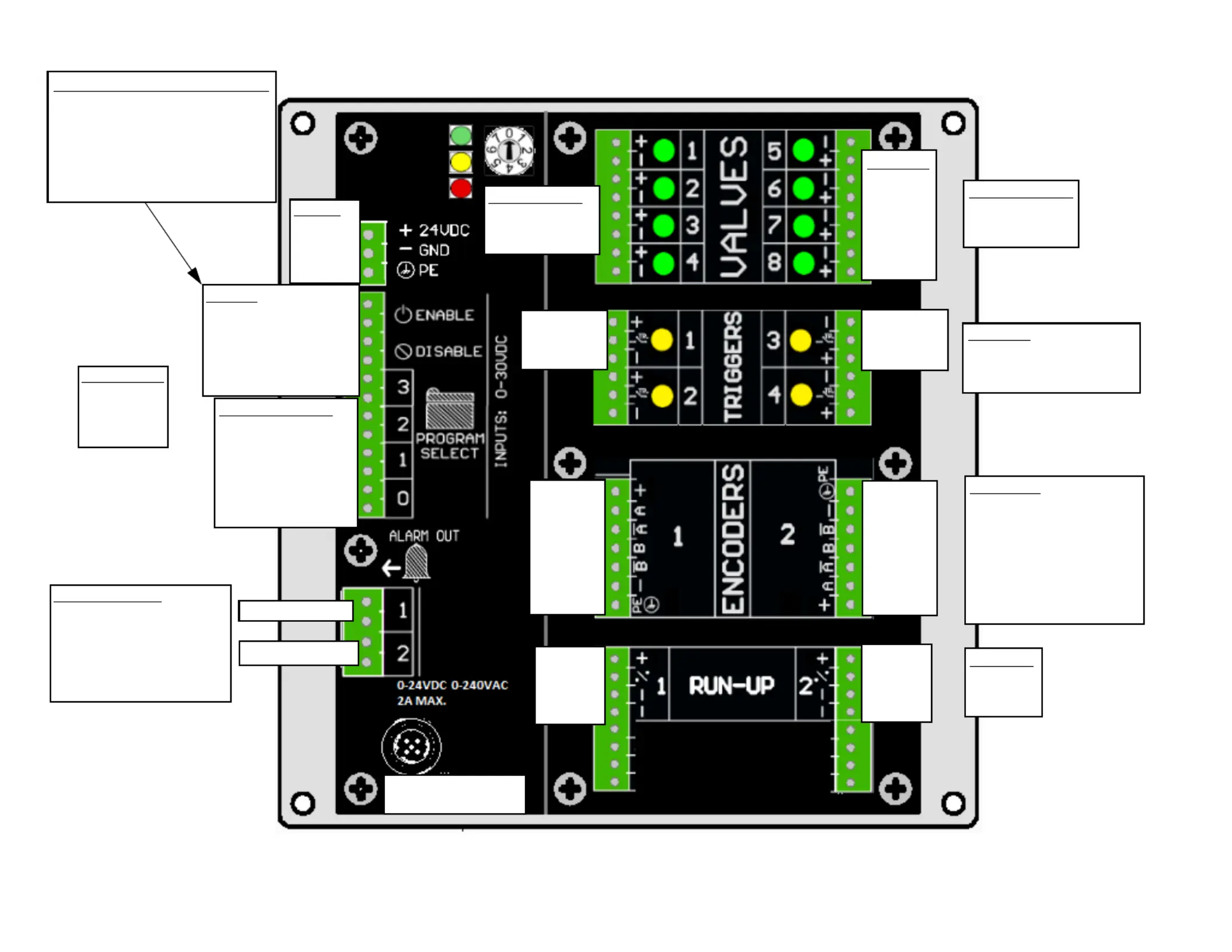

Wiring Installation

Integrated InvisiPac Systems

• Use melter System Enable

instead of this one

• Use this Disable to hold

guns from dispensing with-

out shutting off the heat.

Power

RED

BLACK

GRN/YL

PLC Inputs

0-30 VDC

Bi-polar

Isolated

Alarm Outputs

0-30 VDC or 0-240 VAC

Dry contact output

No alarm: closed

Alarm: open

Valves (Guns)

24 VDC

1A max each

Triggers

24 VDC

NPN, PNP, Dry Contact

Encoders

15 VDC

Line driver (RS422)

Differential A/B signals

(Z is not used)

NOTE: Swap A with B to

reverse direction

Run Ups

24 VDC

I/P or V/P

Enable

Rising edge enables

Falling edge disables

Disable

Pull high to disable

Program Select

4 bits, 15 programs

(0000 is unused)

EXAMPLE:

1010 into 3,2,1,0

Selects program 10

LINE 1 ALARM

LINE 2 ALARM

CAN

COMMUNICATION

BROWN

BLACK

BLUE

WHITE

BROWN

BLACK

BLUE

WHITE

RED

BROWN

WHITE

YELLOW

GREEN

BLUE

BARE

BLUE

GREEN

YELLOW

WHITE

BROWN

RED

BROWN

BLK or WH

BLUE

BLK or WH

BROWN

Dial Settings

0 - Integrated

1 - Stand-alone

Mini DIN

BLUE

BROWN

DIN “I”

BLACK

335007
