Quick Guide
RTX1400 Texture
Sprayers
For Water-Based Materials Only. 3A3479A - EN

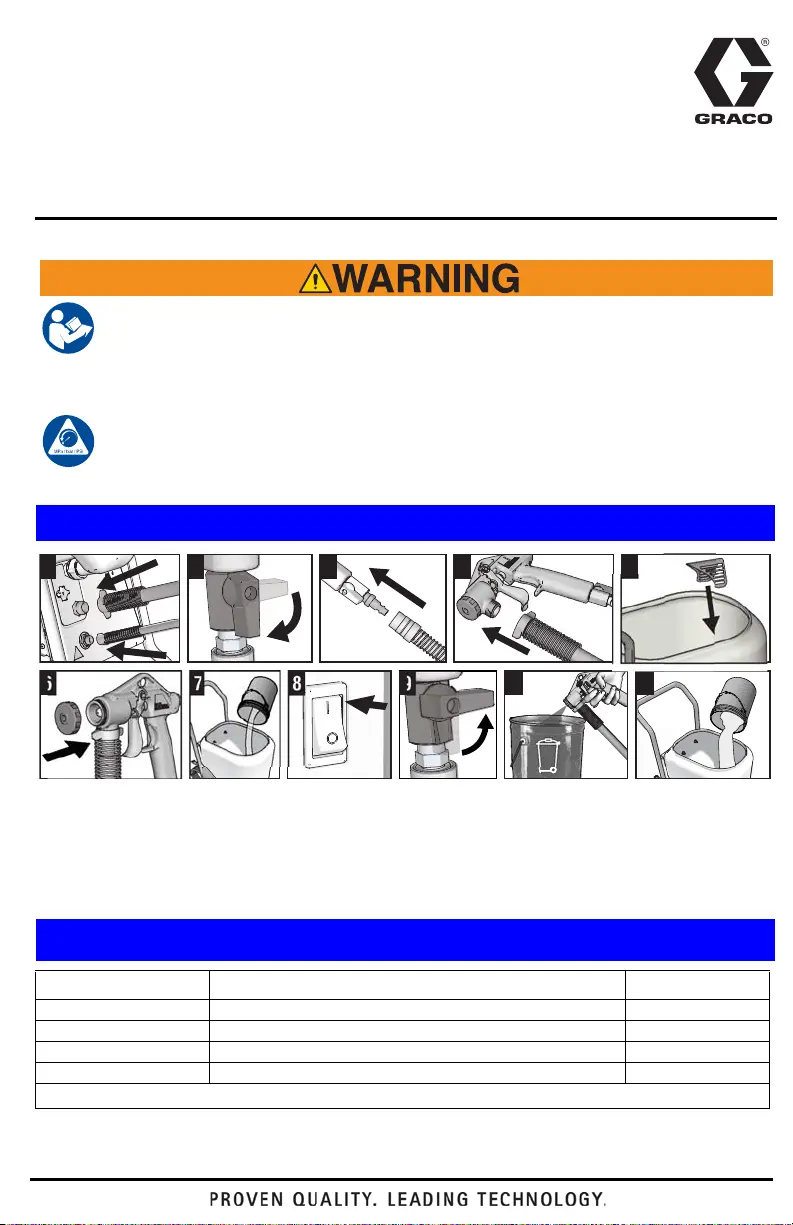

Step 1: Connect air hose and material hose to sprayer air and material hose outlets. Step 2: Open air
valve. Step 3: Connect air hose to gun. Step 4: Connect material hose to gun. Step 5: Install burp
guard. Step 6: Install spray nozzle. Step 7: Pour one gallon of water into material hopper. Step 8: Turn
ON/OFF switch to
ON
position. Step 9: Close gun air control valve. Step 10: Point gun into waste
bucket and pull trigger to pump water through the system until material hopper is empty. Step 11: See
Mixing Material. Add premixed texture mix to material hopper. Step 12: Trigger gun into a waste
bucket until a steady stream of material sprays out of the gun. Release trigger.
Read Operation manual 3A3258 for complete instructions and warnings.
Manuals are available by calling Graco at 1-800-690-2894, or at
www.graco.com.
For Technical Assistance call 1.800.543.0339
This Quick Guide is not a substitute for reading and understanding all operation manuals
and warning labels supplied with the equipment. It is important that you read and
understand all warnings and instructions before operating this equipment.
Follow the pressure relief procedure and wear protective equipment including but not
limited to protective eye wear.
FAILURE TO FOLLOW ALL WARNINGS CAN RESULT IN SERIOUS INJURY.
SETUP
NOZZLE SELECTION CHART
Application Nozzle Size
2
(mm) Air Volume
1
Simulated Acoustic 6 mm, white (fine to medium)/8 mm, gray (coarse) medium to high
Orange peel 4 mm, beige/6 mm white medium to high
Splatter coat 6 mm, white/8 mm gray low to medium
Knockdown 8 mm, gray/6 mm, white/12 mm, black low
1
Control air volume with gun air valve.
2
For more material volume try a larger nozzle.
1 2 3 4 5
6 7 8 9 10 11
ti28563a
2
Adjusting the System
Sufficient fluid output (volume and pressure) and good atomization is a balance of atomizing air,
material thickness/material flow and nozzle selection. Achieving the correct balance for your
application requires experimentation to achieve desired results. Keep in mind these important points
when adjusting gun:
• To select correct nozzle for your applications, consider size of aggregate in material and
coarseness of spray pattern. Remember the larger the nozzle, the larger the pattern.
• Start sprayer with gun air control valve completely open. If needed, slowly close gun air con-
trol valve until you get a good spray pattern. Use minimum amount of air at spray gun to
achieve proper spray pattern and to minimize bounce back.
+ Test spray pattern on cardboard. Hold gun 18 to 30 in. (45.7 to 76.2 cm) from surface. Use
this spraying distance for most applications.
+ When spraying with a nozzle only overlap each stroke 50% in a circular motion.
+ When spraying with a nozzle and disc overlap each stroke 50% in a linear motion.
•
Material flow is controlled with the fluid flow regulator knob and displayed on the gauge. Gun air
flow is regulated using air control valve located on the gun handle.
For Less Material Flow
Try one or a combination of these methods:
• Open air control valve.
• Turn gun flow adjustment nut to decrease flow, counter-clockwise.
• Use smaller nozzle.
For More Material Flow
Try any one or a combination of these methods:
• Close air control valve.
• Turn gun flow adjustment nut clockwise to increase flow.
• Use thinner material mixture.
• Use a larger nozzle.
Check Material Consistency Periodically
Check and thin material as needed to maintain proper consistency. The material may thicken as it
sits and slow down production. Agitate periodically.
PRESSURE RELIEF PROCEDURE
OPERATION

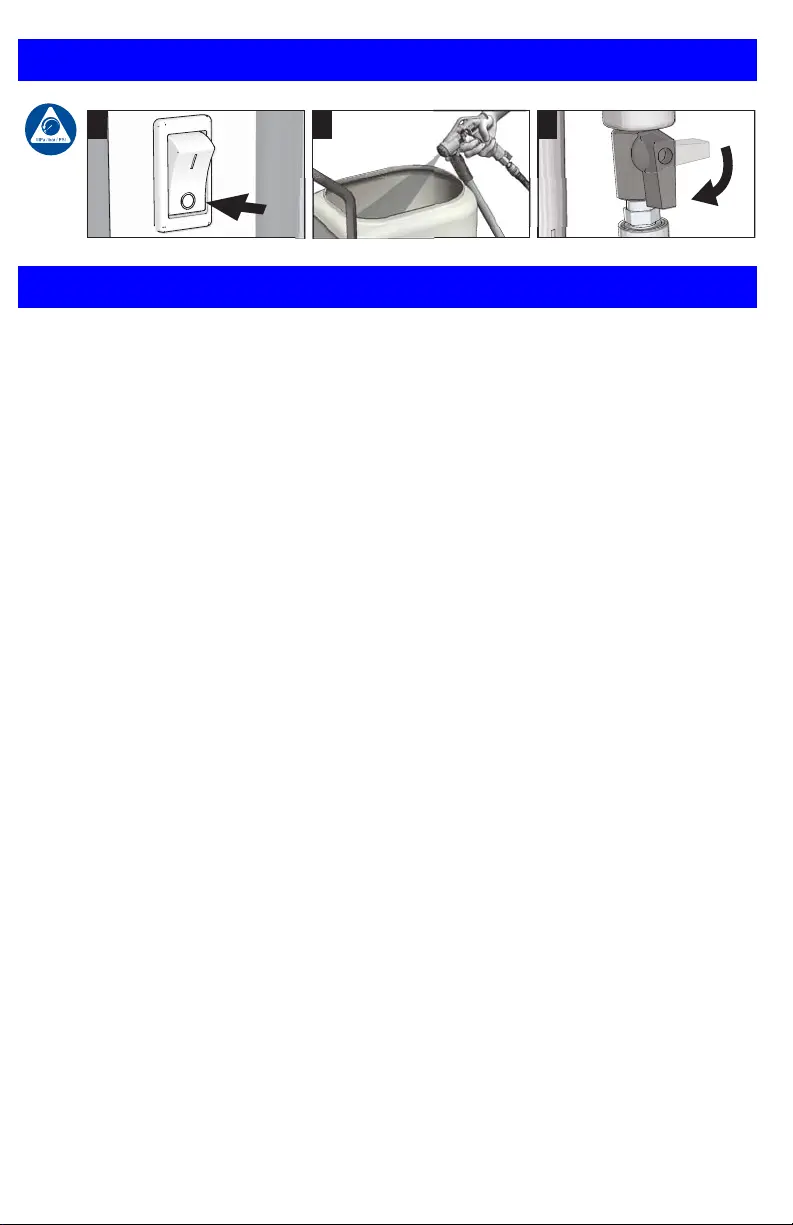

ti28562a
1 2 3
