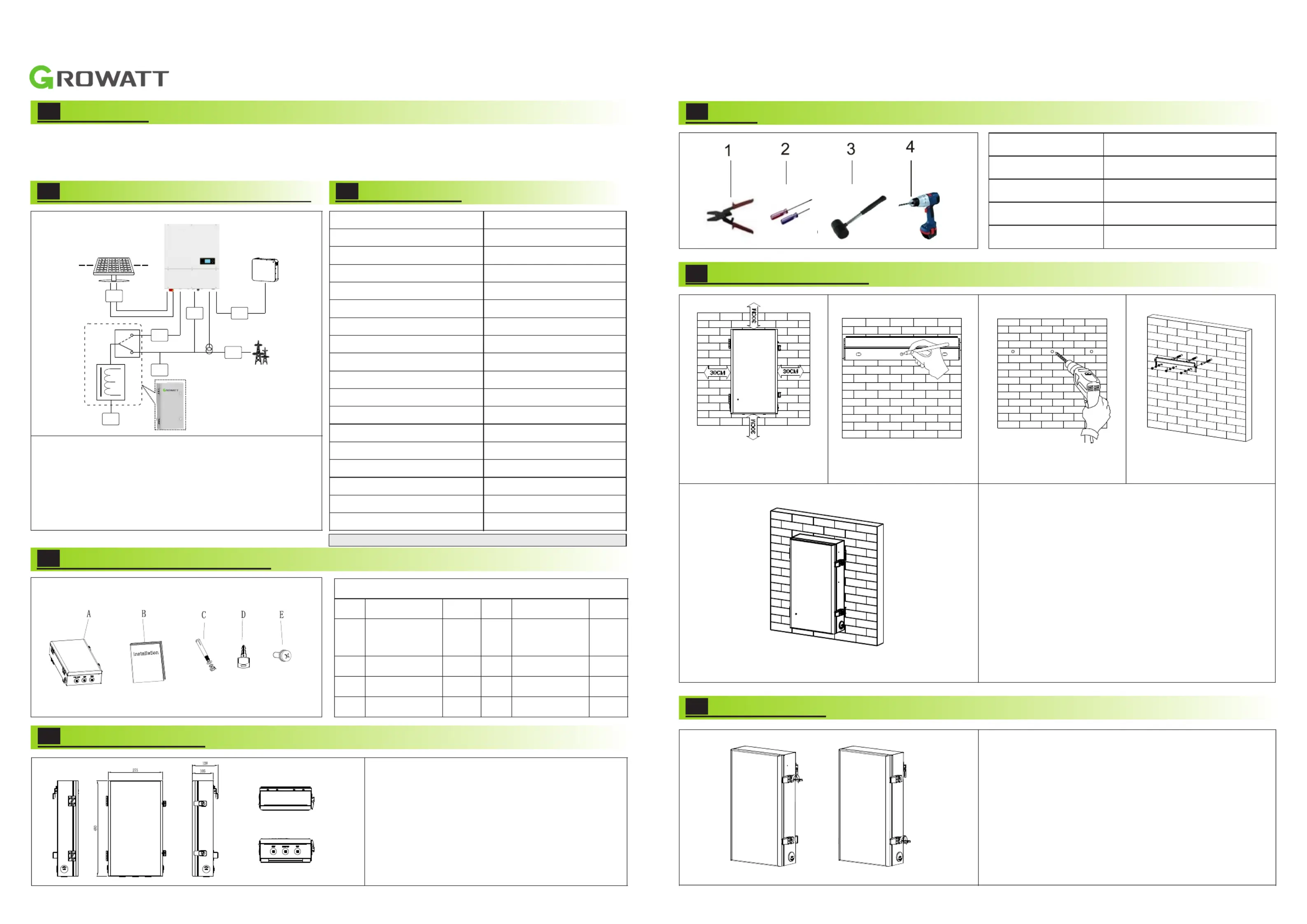

Side 1/2

Introduction

11.

The location of ATS-US in the system

22.

The Auto Transfer Transformer (ATS-US) controls the switch of the contactors to provide power to the critical load stated as EPS Emergency

Power Supply load in both grid-tied and off-grid conditions. There is a contactor in ATS-US to provide user a simple connection. ATS-US is

operating with PCS inverter for the purpose of providing the split phase power when grid accidentally or unexpectedly goes off. This

approach allows the home critical contunously to be supplied.

Configuration

33.

As shown in chart 2.1, the input side of ATS-US is connected with

EPS output of hybrid inverter and grid, the output side is

connected with critical load stated as EPS load. EPS Load is set

default to connect with Grid power.If Grid is lost, EPS Load will

turn the switch to EPS output of hybrid inverter. And there is a

transformer in ATS-US, it can transform 240V to 120/240V split

phase to provide the power to critical load.

Breaker

Hybrid Inverter

Breaker

Sensor

Load

PV Array

Battery

EPS Grid

Electrical Grid

ATSE

Load

EPS

Auto transformer

RSD1

Model name

ATS-US

Grid Rated Voltage

240V

Grid Rated Frequency

50 /60Hz

Grid Rated Current

21 a.c.A ,48 a.c.A

EPS Rated Voltage

240V

EPS Rated Frequency

50 /60Hz

EPS Rated Current

21 a.c.A,48 a.c.A

Load Rated Voltage

120/240V

Load Rated Current

21 a.c.A,48 a.c.A

Load Rated power(L-L)

5000VA,11400VA

Load Rated balanced power(L-N)

5000VA,11400VA

Load Rated unbalanced power(L-N)

3000W

Cooling Concept

Natural

Ingress Protection

IP65/NEMA type 4X

Installation

Wall Mountable

Operation Ambient Temperature

- ℃~ ℃(25 +50 -13 to+122°F)

Weight

15.6kg/34.3lb

Size

480*275*105mm/18.9*10.8*4.1in

General Information - Parts List

44.

Part List

Item

Item Name

Qty

Item

Item Name

Qty

ATS-US (Auto

Transfer

Transformer）

Fixing screws

User Manual

Anchor Bolt

Key

Dimension & Weight

55.

Dimension (L x W x H): 480*275*105mm/18.9*10.8*4.1in

Weight: 15.6KG/34.3lb

Tools

66.

NO.

Description

Press terminal connector

Screw driver

Knock explosion bolt

Drill holes on the wall

Wall Mount Installation

77.

a. Please reserve the space of 300mm (11.81in) from ATS-US.

b. Place the wall bracket horizontally on the wall and mark the

position of 3 holes for screws.

c. Remove the wall mount and drill 3 holes were marked, Drill

holes with φ10 drill Depth: at least 40mm (1.575in).

d. First knock expansion pipe into the hole with Rubber

hammer and then place the wall bracket align with the marked 

position on the wall. Last, screw the self-tapping screwing into

the expansion pipe.

e. Tighten the screws on both sides of the wall bracket.

Open the ATS-US

88.

As shown above, please put the key into the Keyhole on the ATS-

US top right and bottom right and clockwise rotation to 90°.The

cover can be opended. Rotate 90 ° counterclockwise to remove the

key. The cover can be pressed directly to close the cover.

(E)

(D)

(A)

(C)

(B)

Above a ATS 5000T-US,b:ATS 11400T-US :

ATS -US Series Quick Guide
