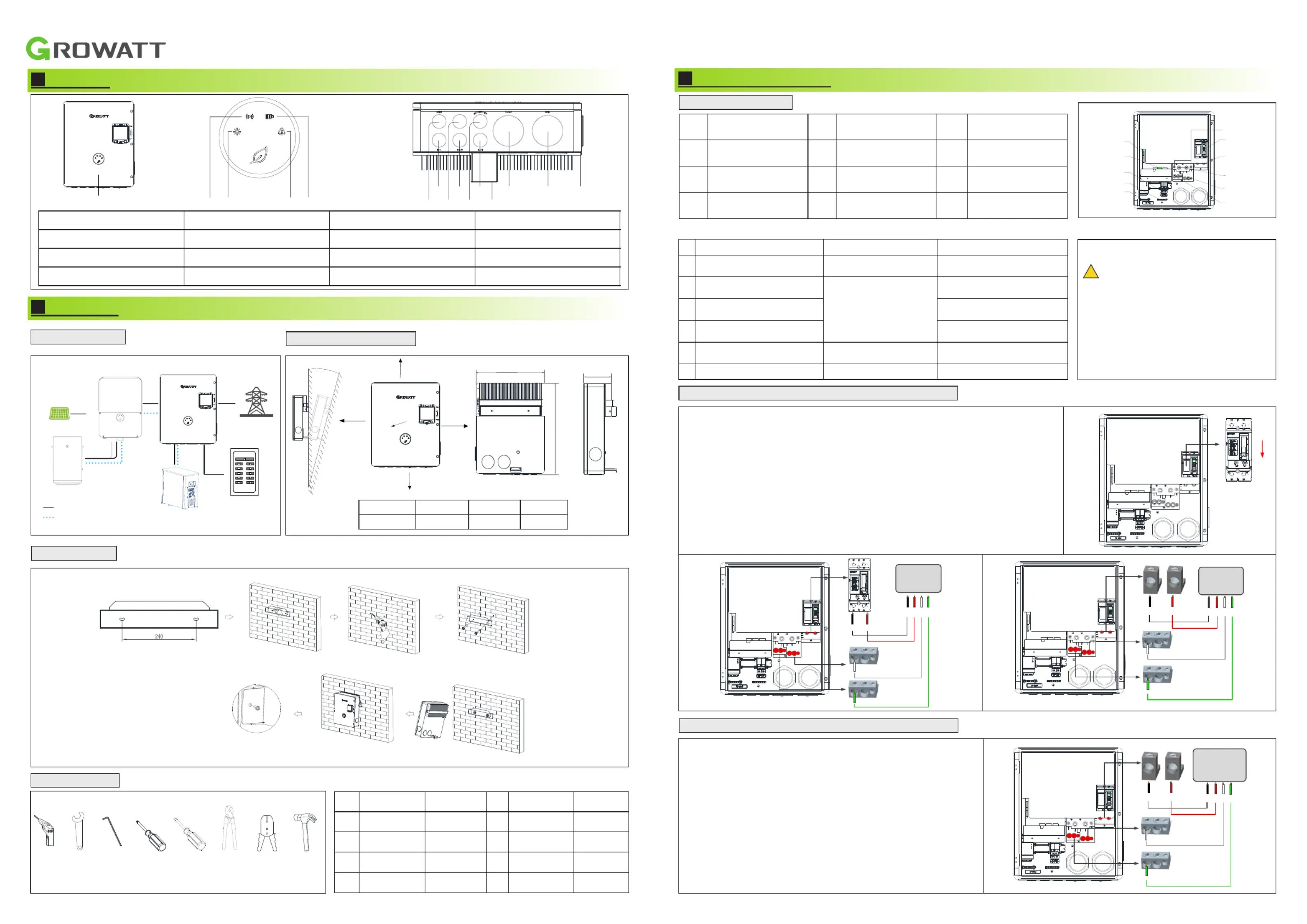

SYN 200-XH-US Quick Guide
Overview
Installation
2.1 System overview
2.2 Installation requirements
2.3 Wall mounting
1
3
2
3
4
5
2:Grid indicator
3:Communication indicator
4:Status Indicator
5:Fault indicator
6:Inverter wiring port
7:Load wiring port
8:Grid wiring port
9:Heat sink
10:COM wiring port
11: Reserved wiring port
12:Generator wiring port
13:Wall mount bracket
No.
Name
Size
No.
Name
Size
1
Electric drill
Φ6mm
2
wrench
Φ3/8"
3
Allen wrench
4
Cross rise
Φ5mm
5
From flat
Φ1mm
6
Wire cutter
/
7
Wire stripper
/
8
hammer
/
3
3
3
33.
.
.
..
Electrical connection
3.1Electrical connection
2.4 Required tools
1 2 3 6
7 8
3 2. Connecting the SYN 200-XH-US to the Grid panel
≤ °15
≥300mm
≥300mm
≥500mm
≥300mm
Inverter
SYN 200-XH-US
Grid
Generator
Batery
PV
4 5
A
Inverter
communication port
B
Generator control
port
C
Inverter wiring port
D
Inverter Ground
Terminals
E
Inverter Neutral
Termin als
F
Generator wiring port
G
Grid switch
H
Grid wiring port
I
Load Panel wiring
prot
J
Main Neutral
Terminals
K
Main Ground
Terminals
Use
Type
Size
1
Grounding Conductors
(Load/Generator/Inverters)
Yellow-green jacketed or
solid bare copper
6~1/0 AWG(Load/Generator)
10~8 AWG(Inverters)
2
AC output conductors
(Load/Grid)
Multi-color jacket,
copper
0-4/0AWG
3
Generator Input
conductors
4~0 AWG
4
Inverter Input
conductors
10~6 AWG
5
12V power
output conductors
Red and black multi-
color copper
16~14 AWG
6
Communication cable
CAT5E suggested
/
Cables prepared by the customer:
!
Note:
It is recommended to use two or three
polychromatic multi-core copper cables
cables for Grid/Load/ Generator/ Inverter
connection. Recommended using yellow-
green single multi-core cables for PE
connection. Recommended using shielded
twisted pair cable for RS485 connection.
≥300mm
D
H
Grid_L1 Grid_L2
Grid
N
PE
L1L2
N
PE
W
Load P anel
10 11 12 13
6 6 6 7 8 9
1
Grid
L1L2N
PE
L1
L2
3
Power wire
Communication wire
SYN 200-XH-US 447.5/17.62
Dimsesion W(mm/inch) H(mm/inch)
555.5/21.87 180.8/7.12
D(mm/inch)
3 3. Connecting the SYN 200-XH-US to the Load panel
1.Release the Allen screws of the upper cover and open the upper cover.
2.Install a conduit of the required diameter into the Grid conduit entry. Use the conduit
holder to support the conduit.
3.For versions with circuit breaker. Pull down the main breaker until it shows OFF.
Ensure that the main breaker is OFF, as shown in Figure 1.
4.Pass the cable from the grid through the grid conduit to the terminals of the circuit
breaker Tighten the terminal screws with a torque of 310 in*lbs / 35N*m, as shown in .
Figure 2.
5.For version without circuit breaker. Pass the cable from the grid through the grid
conduit to the GridL1 and GridL2 terminals of the SYN 200-XH-US Tighten the terminal .
screws with a torque of 310in*lbs / 35N*m, as shown in Figure 3.
6.Connect the neutral and grounding wires to the neutral and grounding terminals.
Tighten the terminal screws with a torque of 310in*lbs / 35N*m.
1.Install a conduit of the required diameter into the Loads conduit
entry. Use the conduit holder to support the conduit.
2.Pass the cable from the AC Loads panel through the Loads conduit
to the Load_L1 and Load_L2 terminals of the SYN 200-XH-US.
Tighten the terminal screws with a torque of 310in*lbs / 35N*m.
3.Connect the neutral and grounding wires to the neutral and
grounding terminals. Tighten the terminal screws with a torque of
310in*lbs / 35N*m, as shown on the right.
2
N
PE
OFF
ON
m m
Φ /7 32"
Φ /5 16"
A
B
C
D
E
F
G
H
I
J
K
ON
ON
ON
ON
Grid_L1 Grid_L2
N
PE
L1L2
N
PE
ON
AC Loads Panel
4
4
4
44.
.
.
..
LED Indication

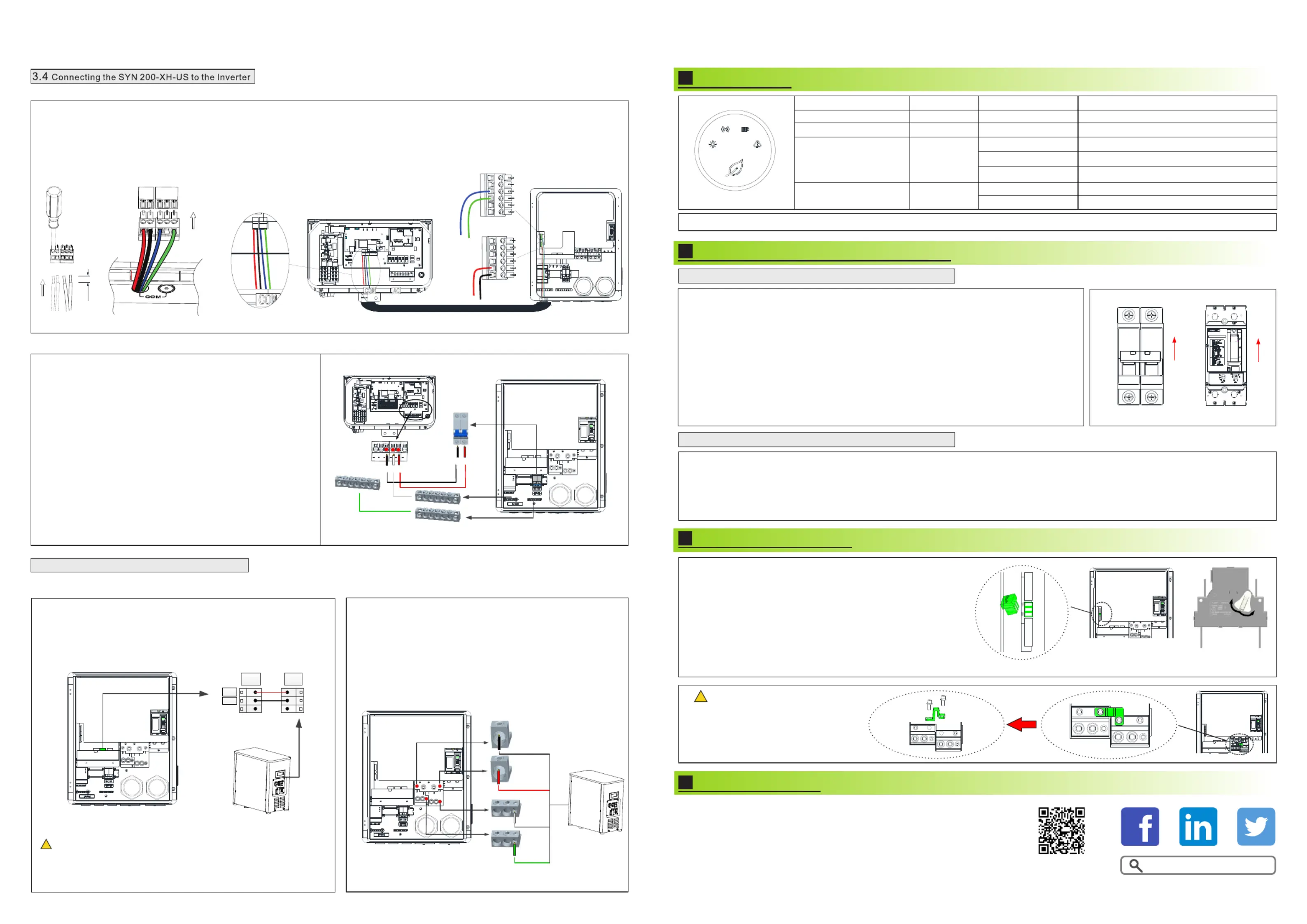

3.4.2 Installation inverter AC power cables:
1.Install a conduit of the required diameter into the INV conduit
entry. Use the conduit holder to support the conduit.
2.Pass the cable through the INV conduit.
3.Connect the neutral and grounding cables to the corresponding
neutral and grounding terminals. Tighten the terminal screws
with a torque of 18 in*lbs / 2 N*m.
4.Connect the GRID L1 and GRID L2 terminal of the MIN TL-XH-
US inverter to the INV Breaker terminal of SYN 200-XH-US.
Tighten the terminal screws with a torque of 18 in*lbs / 2 N*m.
3 5. Connecting the SYN 200-XH-US to Generator
You must install the communication cable with the Generator first, and then install the power cables.
3.5.1 Generator communication cables installation:
Description
LED color
LED status
SYN 200-XH-US status
Grid indicator
Green
Solid
Connect to the grid
Communication indicator
Green
Solid
Communication with the inverter is normal
Status indicator
Green
Solid
On-grid works normally
1S on and 1S off
Off-grid works normally
3S on and 3S off
The generator works normally
Fault indicator
Red
Solid
Fault
1S on and 1S off
Overload
Connec tion to the G enerato r
Genera tor
COM
CN13
GEN
Commun ication c onnecti on b etween SY N 200 XH US and Generator - -
1.Pass the shielded communication wire through the COM conduit,
One end of the communication cable is connected to the 3-pin
connector of SYN 200-XH-US, and the other end is connected to the
remote control port of the generator.
1.The CO M/NC signal of CN13 is the remote control switc h signal of the
genera tor.
2.The ab ove only shows the wiring method of the generator with 2-wire start
mode. Fo r other types of generators, please refer to th e generator wiring guide.
3.5.2 Generator input power cable installation:
1.Install a conduit of the required diameter into the generator
conduit entry. Use the conduit holder to support the conduit.
2.Pass the cable through the generator conduit.
3.Connect the ground cable to the ground terminal, Tighten the
terminal screws with a torque of 141 in*lbs / 16 N*m.
4.Connect the L1 and L2 terminal of the generator to the GEN L1
and GEN L2 terminal of SYN 200-XH-US. Tighten the terminal
screws with a torque of 310 in*lbs / 16 N*m.
5.Connect the neutral wires to the neutral terminals. Tighten the
terminal screws with a torque of 310in*lbs / 35N*m.
Note:If the four indicator lights flash at the same time, it means that the SYN 200-XH-US is upgrading the firmware.
5
5
5
55.
.
.
..
System startup and shutdown operations
5 1. System power-on operation, please follow the steps below:
1.Close the DC switch of the ARO battery. Then close the DC switch of the inverter. The
battery cannot be woken up if there is no PV input, you need press and hold the battery
switch until the indicator light flashes. Please refer to the ARO battery installation manual.
2.Close the inverter input breaker of the SYN 200-XH-US, as shown in Figure 1.
3.Push the grid input circuit breaker to the "ON" position, indicating that the grid input
breaker is closed, as shown in Figure 2. ( For versions with circuit breaker).
4.Download our APP and set the inverter off-grid output through the APP. For details, please
refer to the off-grid enable function setting of the TL-XH-US inverter.
5.If the grid indicator, communication indicator, and status indicator of the SYN 200-XH-US
are all green and the fault indicator is off, it means that the SYN 200-XH-US is working
normally. System indicator, please refer to section 4.
6.If the preceding steps fail to power on the device, check the operation methods carefully or
contact us.
1.Disconnect the miniature circuit INV_breaker on the SYN 200-XH-US.
2.Disconnect the DC switch of the inverter.Press and hold the battery switch button until the indicator light goes out. Then turn off the DC
switch of the ARO battery. Please refer to the ARO battery installation manual.
3.Pull down the Grid breaker switch until the word OFF is displayed, indicating that the circuit breaker is off.
4.Wait and observe that the inverter, battery, SYN 200-XH-US and other indicators are all off, indicating that the system is completely
powered off.
5 2. System power-off operation, Please follow the steps below:
6
6
6
66.
.
.
..
Manual bypass operation
In case of , it cannot be switched to the SYN 200-XH-US is failure
the bypass state.In order to ensure household electricity, you can
manually switch to the mains bypass state by performing the
following operations.
1.Shutdown the entire system,please refer to section 5.2.
2.Insert the 3-pin terminal with the short wire into the 3-pin
interface of the SYN 200-XH-US,as shown in the right figure1.
3.Make sure that the AC circuit breaker of the grid is disconnected,
and manually rotate the white switch counterclockwise to the "ON"
position, as shown in the right figure2.
4.Power up the entire system,please refer to section 5.1.
ON
ON
ON
ONON
OFF
OFF
OFF
OFFOFF
GR-UM-252-A1-00
Download
Manual
Growatt New Energy
7
7
7
77.
.
.
..
Service and contact
Note: Where Electrical Inspection
Authorities require the neutral
assembly to be disconnected from
the enclosure, we need to remove
the bonding jumper shown in the
picture on the right.
Figure1
Figure 2
ON
OFF
Growatt USA,Inc
9227 Reseda Blvd,#435 Northridge,CA 91324,USA.
866 686 0298- -
www.growatt-america.com
T
E usaservice@ginverter.com
W
Figure2
!
ON
OFF
1.Insert the conduit into the left side COM drill guide that was opened .
2. Insert the cable through the conduit to the inverter wiring box .
3. Remove the cable's external insulation using a crimping tool or cable cutter.
4. Insert the cable into MIN TL-XH-US inverter RS485 connector(3 pin) and power connector(2 pin) ,as described in follow figures.
5. Insert the cable into SYN 200-XH-US RS485 connector(CN8) and power connector(CN9) ,as described in follow figures.
6. Connect the cable from MIN TL-XH-US inverter to SYN 200-XH-US.
8mm8mm
N
L1
L2
L1
L2
Power cable connection between SYN 200 XH US and Inverter - -
CN 9
L1
L2
N
PE
Genera tor
3.4.1 Installation of communication cables:
!
Note:
CN 8
NC
ON
PE
ON
ON
ON
Figure1
ON

Produkt Specifikationer

Mærke: Growatt
Kategori: Solpanel
Model: SYN 200-XH-US

Har du brug for hjælp?

Hvis du har brug for hjælp til Growatt SYN 200-XH-US stil et spørgsmål nedenfor, og andre brugere vil svare dig


Solpanel Growatt Manualer

Growatt

Growatt SYN 200-XH-US Manual

24 August 2025
Growatt

Growatt MID 11-30KTL3-XH Manual

23 August 2025
Growatt

Growatt MIN 7000-10000TL-X Manual

22 August 2025
Growatt

Growatt Shine 4G-X Manual

22 August 2025
Growatt

Growatt MIN 2500-6000TL-XH Manual

22 August 2025
Growatt

Growatt SPH 10000TL-HU-US Manual

21 August 2025
Growatt

Growatt SPA 3KTL BL-UP Manual

21 August 2025
Growatt

Growatt SC 4860 Manual

20 August 2025
Growatt

Growatt SC 48120-MPV Manual

20 August 2025
Growatt

Growatt SC 4860-48120 MPV Manual

19 August 2025

Solpanel Manualer

Nyeste Solpanel Manualer

Deye

Deye SUN-10K-G03-LV Manual

24 August 2025
Deye

Deye SUN-35K-G02-LV Manual

24 August 2025
Deye

Deye SUN-45K-G04 Manual

24 August 2025
Deye

Deye SUN500G3-EU-230 Manual

24 August 2025
Deye

Deye SUN600G2-US-220 Manual

24 August 2025
Deye

Deye SUN500G-230-EU Manual

24 August 2025
Deye

Deye SUN-5K-SG01LP1-US Manual

23 August 2025
Deye

Deye SUN-9K-G Manual

23 August 2025
Dokio

Dokio DSP-150M Manual

23 August 2025
Deye

Deye SUN-7K-G03-P Manual

23 August 2025
