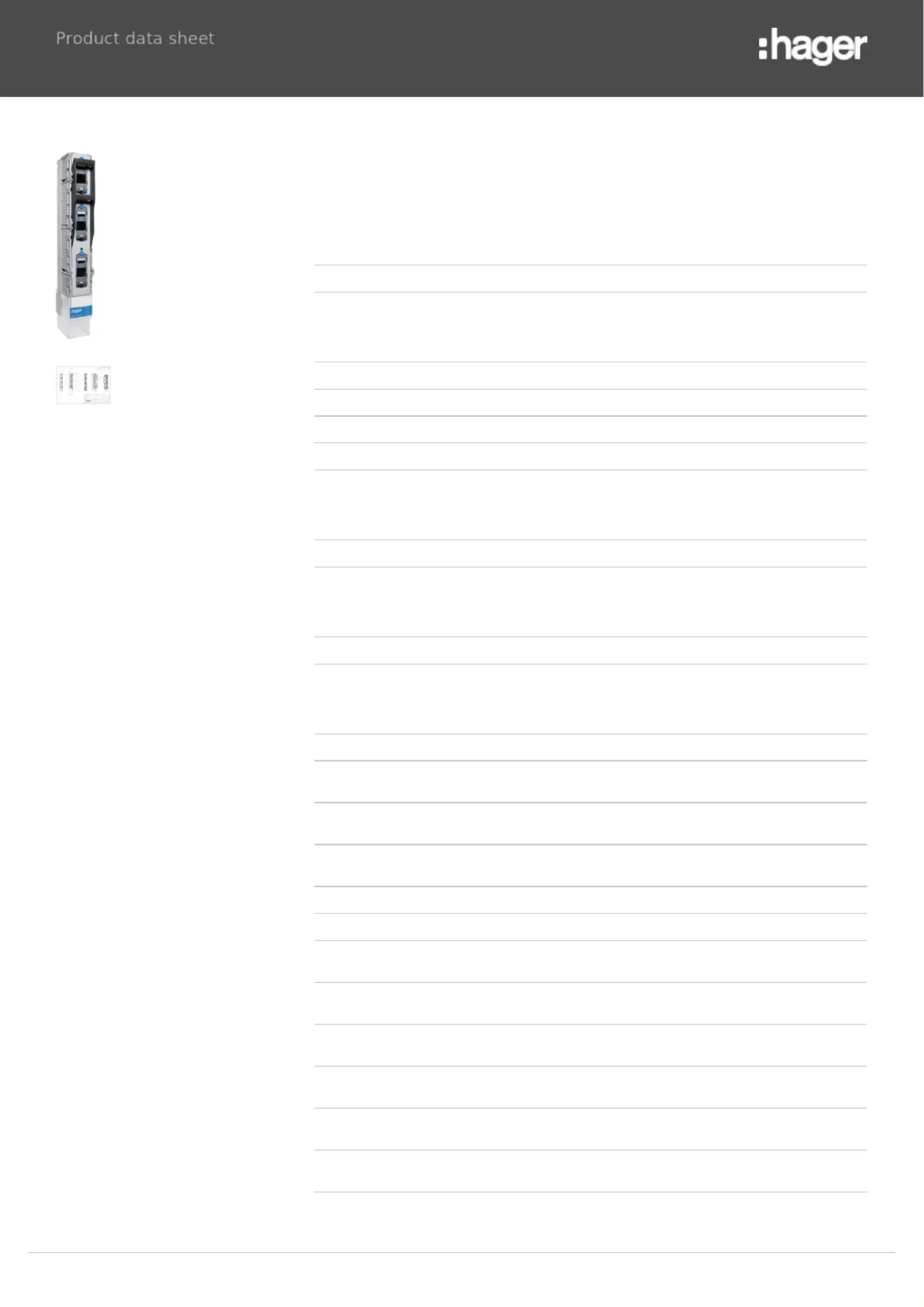

LVSG1CPX

NH-Fuse-switch vertical design LV size 1 185mm 3pole M12

Technical properties

Architecture

Number of poles 3 P

Type of pole 3 P

Configuration

Distance between rail centre, 40 mm No

Distance between rail centre, 50 mm No

Distance between rail centre, 60 mm No

Distance between rail centre, 100 mm No

Distance between rail centre, 185 mm Yes

Main electrical features

Rated operational voltage Ue 690 V

Frequency 50/60 Hz

Voltage

Rated insulation voltage 1000 V

Rated impulse withstand voltage 12 kV

Electric current

Cut off current 120 kA

Rated current for Ue=400V AC according to

IEC 61439-1 5.3.2 250 A

Rated current for Ue=500V AC according to

IEC 61439-1 5.3.2 250 A

Rated current for Ue=690V AC according to

IEC 61439-1 5.3.2 250 A

Rated current 250 A

Rated short-time withstand current 1s 10 kA

Rated conditional short-circuit current for

Ue=400V IEC 61439-1 3.8.10.4 120 kA

Rated conditional short-circuit current for

Ue=690V IEC 61439-1 3.8.10.4 100 kA

Fuse-links test rated cond. short-circuit

current Ue=400V IEC 61439-1 3.8.10.4 250 A

Fuse-links test rated cond. short-circuit

current Ue=500V IEC 61439-1 3.8.10.4 250 A

Fuse-links test rated cond. short-circuit

current Ue=690V IEC 61439-1 3.8.10.4 200 A

Conventional free air thermal current with

Trennmesser and std. cross section 320 A

Conv. free air therm.current w/fuse-links

and std.cross sect. IEC60947-1 4.3.2.1 250 A

Subject to technical modifications

Acceptable current rating with AC22

category B 250 A

Acceptable current rating with AC23

category B 250 A

Rated conditional short-circuit current for

Ue=500V IEC 61439-1 3.8.10.4 120 kA

Electric current / temperature

Rating current 40°C 250 A

Rating current 45°C 237.5 A

Rating current 50°C 225 A

Rating current 55°C 212.5 A

Rating current 60°C 200 A

Rating current 65°C 187.5 A

Rating current 70°C 175 A

Fuse

Fuse Size NH1

Dimensions

Depth of installed product 190 mm

Height of installed product 671 mm

Length 671 mm

Width of installed product 100 mm

Width of the busbars 5 / 10 mm

Busbar distance 185 mm

Power

Total power loss under IN 27 W

Loss power at full load 96 W

Maximum Power loss of the Fuse-Link

installed in device 23 W

Dissipated energy in cable 50.44 W

Endurance

Electric endurance in number of cycles 200

Number of mechanical operations 1400

Total service life (mechanical and electrical

endurance) IEC 60947-3 Table 4 1600

Materials

Copper weight of the product 1699 g

Silver weight of the product 2.18 g

Material Plastic/metal

Installation, mounting

Tightening torque 32Nm

Torque at mounting on busbar 32 Nm

Connection

Connection cross-sect. flexible conductor 35 - 300mm²

Connection cross-sect. rigid cable 35 - 300mm²

Subject to technical modifications

Produkt Specifikationer

Mærke:	Hager
Kategori:	Strømafbryder
Model:	LVSG1CPX
Bredde:	100 mm
Dybde:	190 mm
Højde:	125 mm
Vægt:	4510 g
