Side 1/4

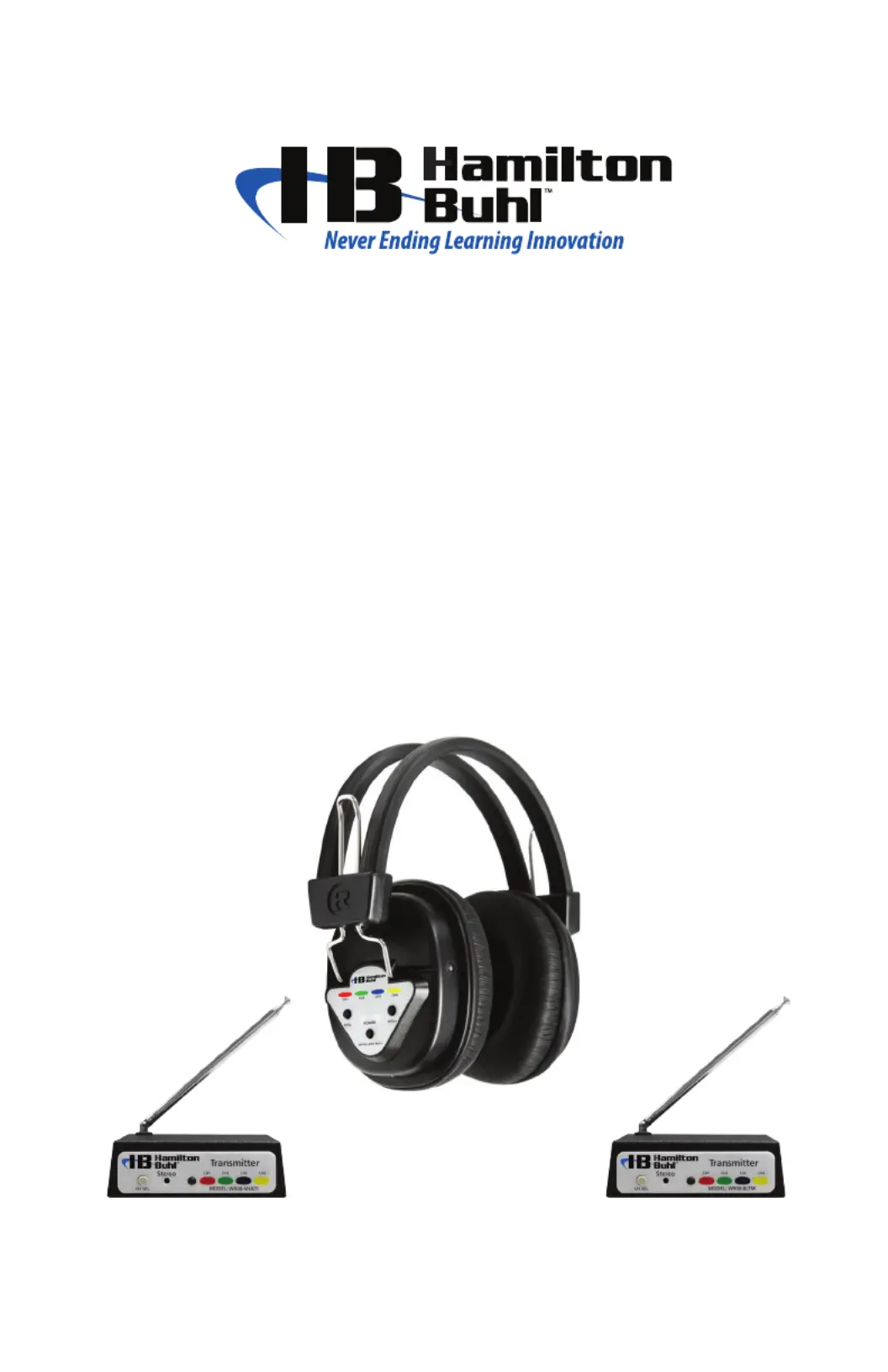

WIRELESS HEADPHONE SYSTEM
(For W900-MULTI, W900-BLTM, W901-MULTI)
INSTRUCTION MANUAL
2
Wireless Headphone System
W900-BLTM Bluetooth Transmitter Setup
1. Extend the antenna vertically to full height.
2. Plug the 12V/1A power adapter into “DC12V” socket on the rear of transmitter. Insert power
adapter into power outlet.
internal rechargeable battery. Adjust to “OFF” to turn off the unit.
4. Plug the adapter into the “DC12V” jack to charge the battery. The “CHARGE LED” will be lit. When
fully charged, LED will turn off.
5. “PAIR” button is used to pair with Bluetooth devices. The device ID is “V001”. Push the “SW”
button when pairing and the blue color LED with ash when pairing is successful.
6. To select channel, press “CH SEL” on the front panel of transmitter (bottom left side). Press again
for the next channel.
7. The LED color indicates the selected channel color.
8. “Stereo” LED indicates Mono or Stereo mode. ON means stereo mode and OFF means mono.
Press and hold “CH SEL” push button for 3 seconds to toggle mode and the LED will change state.
9. Connect the 3.5mm stereo plug into any stereo mini jack sources of your choice to transmit
contents wirelessly to W901-MULTI.
10. Adjust volume control on the sound source to the desired output level.
11. Use microphone: Connect mono-type mic jack into marked mic socket on the rear panel of
transmitter. (microphone not included)
12. IMPORTANT: When not using the microphone, remove the microphone plug from the back of the
transmitter to resume normal operation.
13. When battery is low, the “Stereo” LED will ash red and stop all other
functions. Please plug power adapter and charge the battery immediately.
AC12V
BATT
ON
OFF
SW LED
PAIR
CHARGE
LED
LINE IN
Stereo
CH SEL
Transmitter
CH1 CH2 CH3 CH4
MODEL: W900-BLTM
W900-MULTI Transmitter Setup
1. Extend the antenna vertically to full height.
2. Plug the 12V/1A power adapter into “DC12V’ socket on the rear of transmitter. Insert power adapt-
er into power outlet.
3. Select the desired channel by pushing the “CH SEL” button on the front panel of the transmitter.
Continue to press the channel selector until the desired channel color is lit.
4. “Stereo” red LED shows the transmission is in “Mono” or “Stereo”. On means Stereo mode; OFF
means mono. Press and hold
“CH SEL” push button for 3 seconds will toggle mode and the LED will change state.
5. Connect the 3.5mm stereo plug into any stereo mini jack sources of your choice to transmit con-
tents wirelessly to W901-MULTI.
6. Adjust volume control on the sound source to the desired output level.
7. Use microphone: Connect mono type mic jack into marked mic socket on the rear panel of trans-
mitter. (microphone not included)
8. IMPORTANT: When not using the microphone, remove the microphone plug from the back of the
transmitter to resume normal operation.
AC12V
LINE IN
Stereo
CH SEL
Transmitter
CH1 CH2 CH3 CH4
MODEL: W900-MULTI
