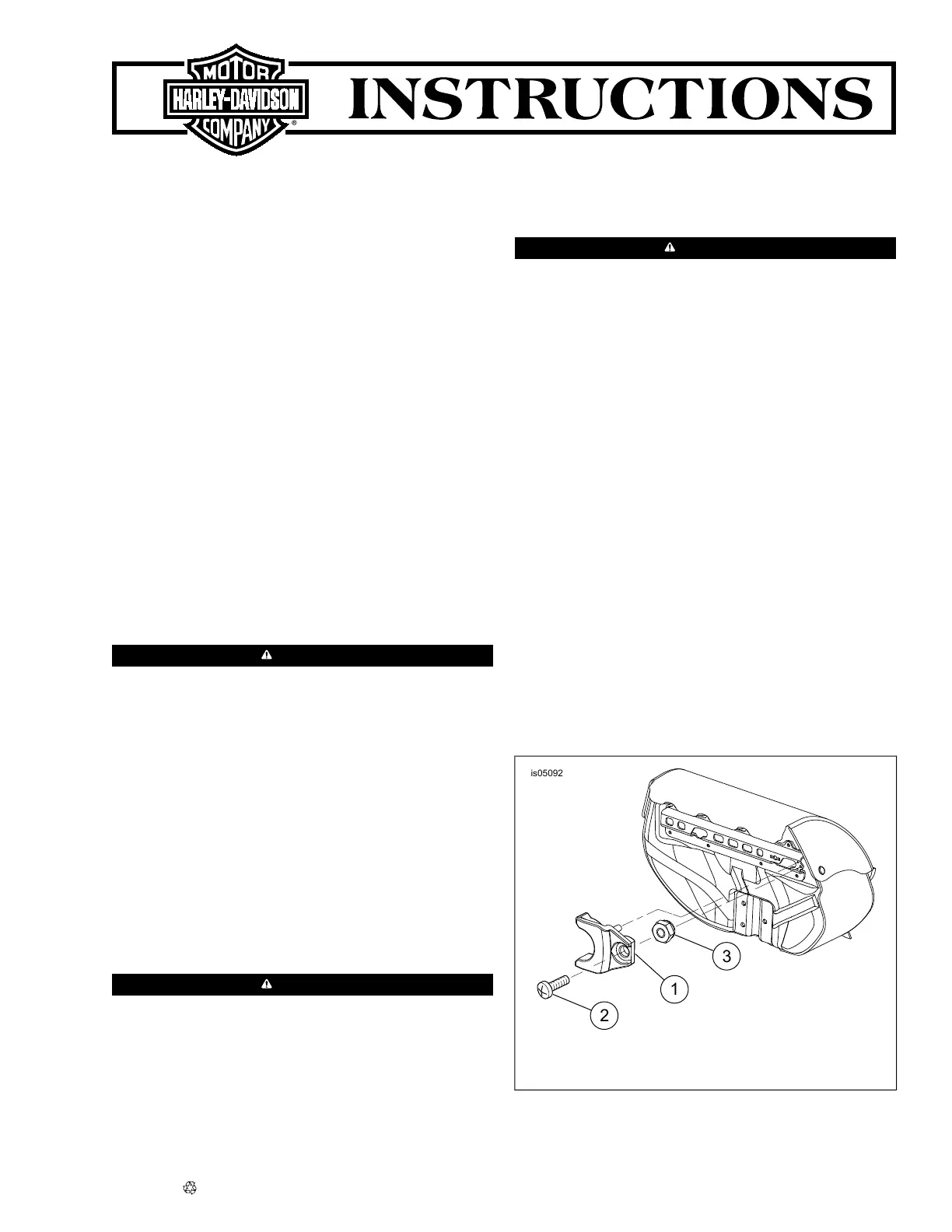

Side 1/6

-J04409 2011-10-20

FAT BOY DETACHABLE SADDLEBAGS

GENERAL

Kit Number

88306-07A, 90200616A

Models

For model fitment information, see the P&A Retail Catalog or

the Parts and Accessories section of www.harley-davidson.com

(English only).

Additional Parts Required

All models require separate purchase of Rear Directional

Relocation Kit P/N 69929-07.

Models equipped with Detachable Accessories require separate

purchase of Docking Hardware Kit P/N 88256-07.

Models without Detachable Accessories require separate

purchase of Docking Hardware Kit P/N 53932-03.

Models equipped with Rigid Accessories require separate

purchase of Docking Hardware Kit P/N 88298-07.

Loctite® 243 (Blue) Threadlocker and Sealant P/N 99642-97.

WARNING

The rider's safety depends upon the correct installation of

this kit. Use the appropriate service manual procedures.

If the procedure is not within your capabilities or you do

not have the correct tools, have a Harley-Davidson dealer

perform the installation. Improper installation of this kit

could result in death or serious injury. (00333a)

NOTE

This instruction sheet references service manual information.

A service manual for your model motorcycle is required for this

installation and is available from a Harley-Davidson Dealer.

Kit Contents

See Figure 8 and Table 1.

NOTE

Maximum saddlebag weight capacity is 10 pounds (4.5 Kg.).

WARNING

Federal Motor Vehicle Safety Standard (FMVSS) 108

requires motorcycles to be equipped with rear and side

reflectors. Be sure rear and side reflectors are properly

mounted. Poor visibility of rider to other motorists can

result in death or serious injury. (00336b)

WARNING

The rider's safety depends upon the correct installation of

this kit. Use the appropriate service manual procedures.

If the procedure is not within your capabilities or you do

not have the correct tools, have a Harley-Davidson dealer

perform the installation. Improper installation of this kit

could result in death or serious injury. (00333a)

INSTALLATION

Install Turn Signal Relocation Kit

1. Install the turn signal relocation kit using the instruction

sheet provided in that kit.

Docking Point Installation

1. Refer to the instructions included with the Docking

Hardware Kit.

Install Rear Docking Adapter

NOTE

This procedure only applies to models equipped withnot

detachable accessories.

1. See Figure 1. Insert rear docking adapter (1) into holes in

saddlebag bracket and hold into place.

2. Install rear docking adapter using screw (2) and nut (3).

Tighten snugly.

3. Repeat for other saddlebag.

is05092

Rear docking adapter1.

Screw2.

Nut3.

Figure 1. Install Rear Docking Adapter

1 / 6

Many Harley-Davidson® Parts & Accessories are made of plastics and metals which can be recycled.

-J04409

Please dispose of materials responsibly.

is05090b

Acorn nut1.

Lockwasher2.

Forward docking point (right side)3.

Spacer (thick)4.

TORX socket screw, 5/16-18 x 1-5/8 inch5.

Lower right support bracket6.

TORX socket screw, 5/16-18 x 1-3/8 inch7.

Lockwasher8.

Lower docking point (left side)9.

Spacer (thin)10.

Lower left support bracket11.

Figure 2. Support Bracket Assemblies (2007 model year)

Assemble Saddlebag Right Lower Support

Bracket - 2007 Models

1. See Figure 2. Install the 1-5/8 inch hex socket screw (5)

through backside of right lower bracket (6) and stack the

following parts in order from the bracket out; spacer (4),

forward docking point (3), lockwasher (2) and acorn nut

(1).

2. Apply two or three drops of Loctite to screw threads.

3. Tighten screw to 16.3–24.4 N·m(12–18 ft-lbs).

Assemble Saddlebag Left Lower Support

Bracket - 2007 Models

1. See Figure 2. Using the 1-3/8 inch TORX® socket screw

(7) stack the following parts in order; lockwasher (8), lower

docking point (9), spacer (10) and assemble to bracket

(11).

2. Apply two or three drops of Loctite to screw threads.

3. Tighten screw to 16.3–24.4 N·m(12–18 ft-lbs).

is05091b

Acorn nut1.

Lockwasher2.

Forward docking point (right side)3.

TORX socket screw, 5/16-18 x 1-1/2 inch4.

Lower right support bracket5.

TORX socket screw, 5/16-18 x 1-3/8 inch6.

Lockwasher7.

Lower docking point (left side)8.

Lower left support bracket9.

Figure 3. Support Bracket Assemblies (2008 model year)

Assemble Saddlebag Right Lower Support

Bracket - 2008 and Later Models

NOTE

2008 models do not use the spacers provided.

1. See Figure 3. Using the 1-1/2 inch TORX socket screw (4)

stack the following parts in order; through backside of right

lower bracket (5), docking point (3), lockwasher (2) and

acorn nut (1).

2. Apply two or three drops of Loctite to screw threads.

3. Tighten screw to 16.3–24.4 N·m(12–18 ft-lbs).

Assemble Saddlebag Left Lower Support

Bracket - 2008 and Later Models

1. See Figure 3. Using the 1-3/8 inch TORX socket screw (6)

stack the following parts in order; lockwasher (7), lower

docking point (8), and assemble to bracket (9).

2. Apply two or three drops of Loctite to screw threads.

3. Tighten screw to 16.3–24.4 N·m(12–18 ft-lbs).

2 / 6 -J04409
