READ ALL INSTRUCTIONS
BEFORE STARTING INSTALLATION
❖
❖
❖
❖❖ General Information
The model pump is a completely self-contained unit HARTELL LTA-1
designed to remove wastewater from sinks when a traditional gravity drain
line is not available. Popular applications include; wet bar sinks, kitchenettes,
Lightweight and compact, the pump mounts directly to the drain LTA
tailpiece of your sink, eliminating all traps and inlet piping.
The LTA design any connection to the main stack ventdoes not require
1
which is common with other types of drain pump systems.
The LTA pump’s rugged construction, automatic operation, and ease of
installation provides the best value in a drain pump that will provide many
years of trouble free service.
Proper installation practices will ensure virtually maintenance free operation
and extend the life of your pump.
Installation Note: All pumping and piping systems will fail at some point due
to a variety of reasons including power failures, foreign objects, neglect, or
“old age”. Proper safeguards, and precautions such as alarms, safety
switches, drain pans, etc. should be installed with any system when system
failure will result in damages to nished living spaces. It is the responsibility
of the installer to make appropriate provisions for system failure consistent
with each specic installation.
Risk of electrical shock. This pump is supplied with a
grounding type cord and plug. Do not modify cord or plug. Plug pump
into a properly grounded, grounding type, GFCI receptacle, following
all local codes.
Risk of electrical shock. Do not handle pump, cord, or plug
with wet hands, or when standing in water or on a damp surface, when pump
is plugged in. Unplug pump before servicing or performing any maintenance.
Do not work with energized electrical equipment in a wet area. Reasonable
care and safe practices should be exercised during installation and
maintenance.
1
National Standard Plumbing Code Section 11.7.9
! WARNING
! WARNING
❖
❖
❖
❖❖ Troubleshooting
Condition Probable Cause
Pump does not run when water is added to
the sink.
-Check that pump is plugged in.
-Check power to outlet or circuit.
-Pump plugged into a switched outlet.
-Fuse/breaker blown or trippe d.
-Foreign object lodged in pump chamber.
Pump runs but does not empty sink.
-Sink drain screen clogged.
-Sink stopper inserted in drain.
-Clogged check valve.
-Clogged discharge line.
-Shut-o (balancing) valve closed or not
adjusted properly.
-“System” lift too high or piping run too long.
Pump turns on and off (“cycles”) when no
water is in the sink.
-Check valve or back ow preventer not
installed in discharge line.
-Dirt in check valve is allowing water to ow
back into pump from drain line.
Pump turns on and off (“cycles”) rapidly
when sink is full or at maximum water ow.
-Balancing / shut-o valve not installed in drain
line.
-Balancing valve not adjusted properly.
❖
❖
❖
❖❖ Service and Maintenance
The pump is designed to be virtually maintenance free when used in LTA
accordance with the installation guidelines specied in these instructions.
Installation and preservation of an inlet screen will prevent excessive
accumulation of material in the pump chamber and possible obstruction of the
impeller by foreign objects such as stones, string, buttons, etc.
Before returning the unit for replacement, the pump housing should be
removed, and the impeller chamber checked for obs
To check impeller, unplug pump and remove from
sink. Remove fou r (4) ¼” hex head screws from
the “fins” of the housing as shown in figure 2.
Separate housing from motor base plate and
inspect for obstructions. After clearing any debris,
replace housing on the base plate making sure
that the rubber “o” ring is in place around the
“step” in the base plate. Re-install pump following all instructions.
❖
❖
❖
❖❖ Warranty
HARTELL products are warranted to be free from manufacturing defects, for a period of twelve (12)
months past the date of installation. Within the warranty period, HARTELL will replace or repair any
products determined to be defective by the Factory or an authorized Representative. Purchaser
must pay all labor and shipping charges necessary to replace product covered by this warranty.
HARTELL shall not be held liable for resultant damages, caused by products that have failed.
Installer must consider the safeguards necessary to protect the surrounding areas from possible
water damage should the pump or piping system fail. Warranty will be voided if product has been
subject to abuse, tampering, altering, negligence, improper installation, or mis-application.
Requests for service under this warranty shall be made by returning the product to the original
place of purchase along with dated sales receipt. Additional details of this warranty can be obtained
by contacting HARTELL.
HEX HEAD
HOUSING
SCREWS
FIGURE 2
(Pump will cycle with faucets partially on. This is normal and will not harm pump.)
MODEL LTA-1 (802210)
AUTOMATIC SINK DRAIN PUMP
INSTALLATION OPERATION MAINTENANCE
•
•
•
•• •
•
•
••
100 East Graham Place
Burbank, CA 91502
Web: www.hartell.com
Email: info@hartell.com
Literature # 900334 2019
Pipe dope and other thread sealing compounds
must not be used to aid in the sealing of inlet or
discharge threads. Pipe dope will cause cracking of
plastic parts. Use Teon tape to aid in thread
only
sealing. Use of pipe dope will void warranty.
❖
❖
❖
❖❖ Installation
1. Attach pump to sink drain tailpiece as follows:
Place ber gasket over drain threads. a)
b) Place rubber o-ring over drain.
c) Lift pump and engage inlet threads with the sink drain threads.
Exercise care so that threads are properly aligned. Mis-alignment will
damage threads and may cause leaks.
d) Rotate the pump until tray adapter ange on pump inlet contacts the
gasket. Once contact is made, rotate pump until it is rmly secured to
the drain and the discharge is in the correct position for your
installation.

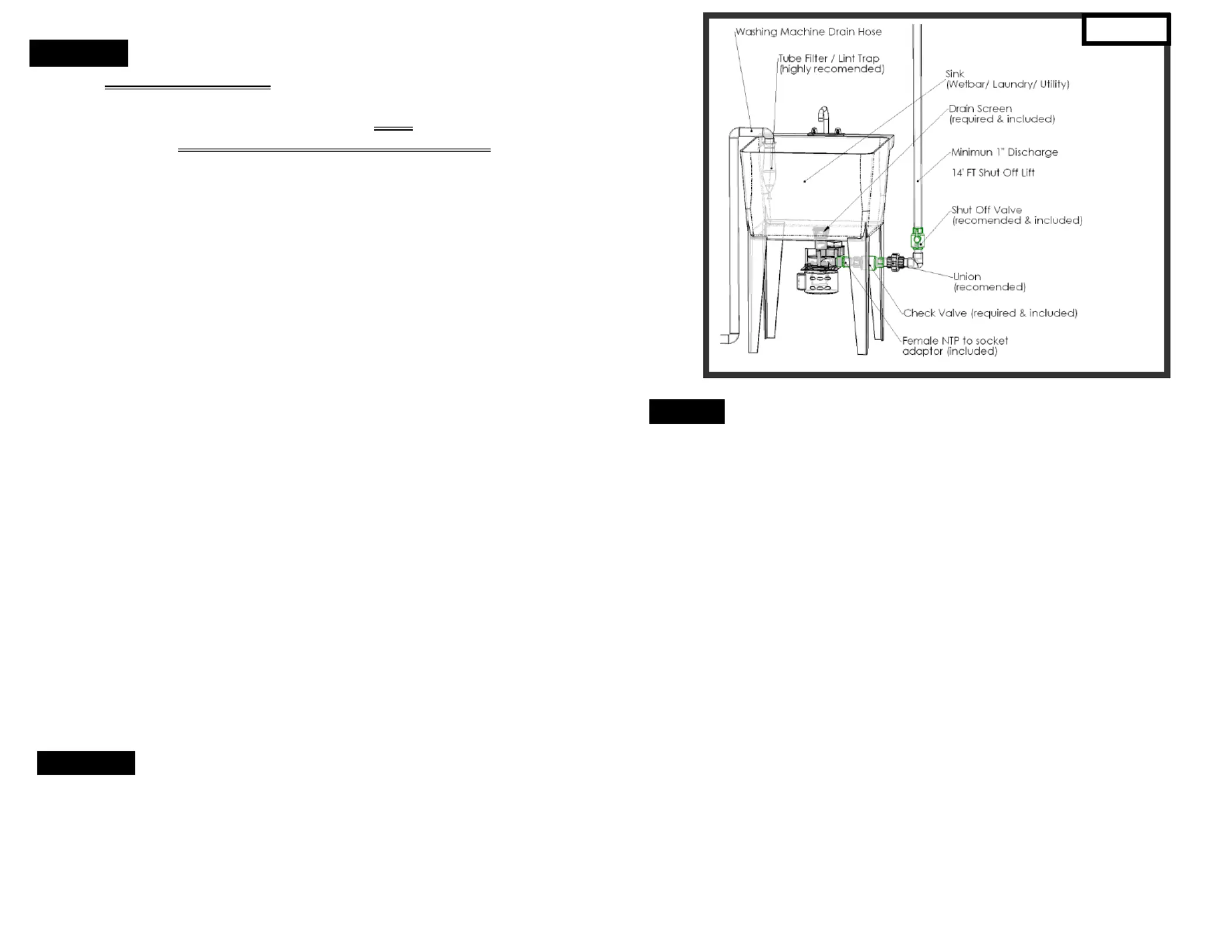

2. Install discharge piping as shown in Figure 1.
a) 1” piping and valves are recommended; however, 3/4” piping and
valves may be substituted in installations where lift requirements are
less than six (6) feet, or approximately one half of the pump’s
maximum lift.
b) A check valve or back ow preventer (included) is required to
ensure the proper operation of the pump. A soft-seat, swing check
valve is included; however, a ball or spring type check valve may be
used if the force required to open them is no more than 3 feet of lift,
or less than 1 psi. and does not aect the required pump ow.
c) A discharge line shut-o or balancing valve (included) is required
to regulate the discharge ow to match the sink drain ow. This will
minimize cycling of the pump and allow cleaning and servicing of the
check valve without draining the discharge line.
3. Plug pump into a properly grounded, grounding type
receptacle. Follow all local codes. GFIC is recommended.
A strainer must be installed in the sink drain to prevent
debris and foreign objects from entering and becoming
lodged in the pump chamber, preventing proper pump
operation. If used with a washing machine a lint trap or
tube lter should be used on the washing machine
discharge hose.
Sinks will only allow 5-6 gallons-per-minute (GPM) of water
to pass through the drain into the pump. When the pump is
lifting water to a height of 8 feet, the LTA pump will remove
23 GPM. This causes the pump to turn on and o frequently,
or “cycle”. The shut off or balancing valve acts to adjust or
“balance” the discharge flow to match the inlet flow being
let into the pump from the sink and reduces pump cycling.
Adjust pumps as follows to minimize cycling:
4. System check and final adjustment.
a) Turn on faucets or water supply. Pump will turn on
automatically as water collects in the pump. Once the pump has
started, check all piping and connections for leaks.
b) Adjust shut-off valve to minimize pump cycling. Place a
stopper in the sink and allow the water level to build up several
inches above the drain. With the shut o valve fully open
remove the stopper and allow the water to flow into the pump.
Close the shut o valve slowly until the pump runs continuously
while the sink is draining. Check this adjustment by running the
faucets. The pump will cycle at partial water ow but should run
continuously when the faucets are fully open, and the maximum
amount of water is draining from the sink.
c) If the water level in the sink increases with full faucet water
ow, open the balancing valve slightly. Note: Washing
machines will discharge more water than will drain from the sink.
Use faucet water flow to calibrate pump flow! only
! CAUTION
Figure 1
! CAUTION
! NOTE
