Literature # 900951 2019
P A B X
Light Commercial Condensate Removal Pumps
INTRODUCTION
HARTELL condensate pumps are designed to collect and automatically remove the water produced from an air
provide long, trouble free service and is of the highest quality workmanship and materials.
These pumps have been thoroughly inspected and tested, then carefully packaged to insure safe delivery and
operation. When you receive your pump, examine it carefully to determine that there are no damaged or
broken parts. If damage is detected, notify the distributor where the pump was purchased from. They will assist
with a repair or replacement. See the precautions listed below before continuing.
CAUTION: READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION
– Pump should only be used with liquids compatible with pump component materials. Do not use to pump
ammable or explosive uids. Do not use in explosive atmospheres.
– The pump is supplied with a grounding type plug. To reduce the risk of electrical shock be certain that it
is connected to a properly grounded, grounding receptacle.
– In any installation where property damage and/or personal injury might result from an inoperative or
leaking pump due to power outages, discharge line blockage, or any other reason, a backup system(s)
(aux. switch) and/or alarm should be used.
– Do not handle pump with wet hands or when standing on a wet or damp surface, or in water.
– Shut o the electrical power at the fuse box before making any connections. All wiring must comply with
local codes.
ONE YEAR LIMITED WARRANTY
HARTELL PABX condensate pumps are guaranteed to be free from defects in workmanship or materials
and to function satisfactorily, when properly installed, for a period of ONE (1) year from date of installation.
See our website for additional warranty information at www.hartell.com.
This guarantee does not apply if the product has been misapplied or mechanically damaged, HARTELL
assumes no liability for resultant damages of any kind arising out of the use of its products.
I N S T A L L A T I O N
O P E R A T I O N
M A I N T E N A N C E
100 East Graham Place
Burbank, CA 91502
Email: www.hartell.com
Web: info@hartell.com
Literature # 900951 2019
INSTALLATION
Carefully unpack the pump and select a mounting location on the wall, the case of the air conditioner, or oor. The
pump must be level and the inlet must be below the lowest drain, either coil or furnace. If wall or case mounting, use
the mounting tabs on either side of the reservoir to secure the pump.

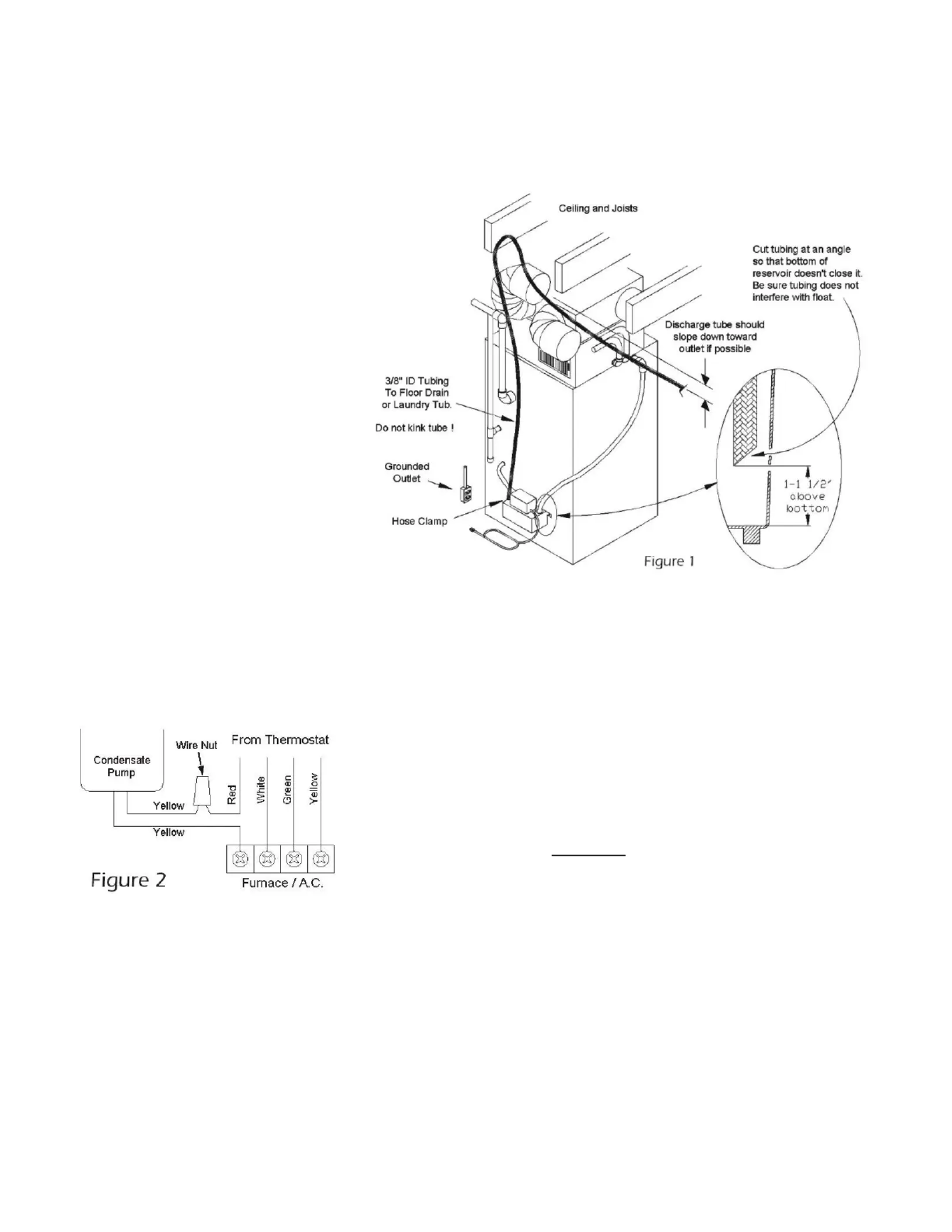

PIPING—Run exible tubing or pipe from
the evaporator and furnace to the pump.
Insert the pipe into the drain inlet hole.
Make sure the pipe does not interfere
with the oat. Cut an angle on the inlet
pipe so that it doesn’t close off against
the bottom of the pump. See Figure 1 –
exploded detail.
Connect 3/8” ID tubing to the barbed
check valve. Extend this tubing straight
up as high as necessary. (Do not extend
this tubing past the head/GPH of the
pump installed). Do not kink the tubing,
as this will block the ow. From this high
point, slope the discharge tubing
downward to a point above the drain,
then turn down and extend to a point
below or level with the bottom of the
condensate pump. If it is not possible to slope the discharge tubing downwards, make an inverted “U” trap directly
above the pump at the highest point. (Figure 1)
ELECTRICAL CONNECTIONS review precautions on previous page —
LINE VOLTAGE Connect power cord to the proper voltage as indicated on the motor nameplate. Connect only to a —
source of constant power, not an intermittent source such as a fan or limit
control circuit.
LOW VOLTAGE AUXILIARY SAFETY SWITCH Connect the leads of — –
auxiliary safety switch to the thermostat control circuit of the air
conditioner/furnace. This will disrupt the thermostat demand in a high-
water condition. (Figure 2) CAUTION Thermostat demand disruption –
should not be utilized if cooling or heating requirements are a necessity.
An alarm system should be used with the auxiliary switch instead.
OPERATION
After proper installation, the operation of the HARTELL condensate pump is automatic. Water is collected in the
reservoir and pumped out when the oat raises to a pre-set point. As the water level goes down the oat turns o
the motor at another pre-set point. Under most circumstances the pump requires little maintenance for ecient
operation. If a problem occurs, please refer to the maintenance instructions below.
