Side 1/2

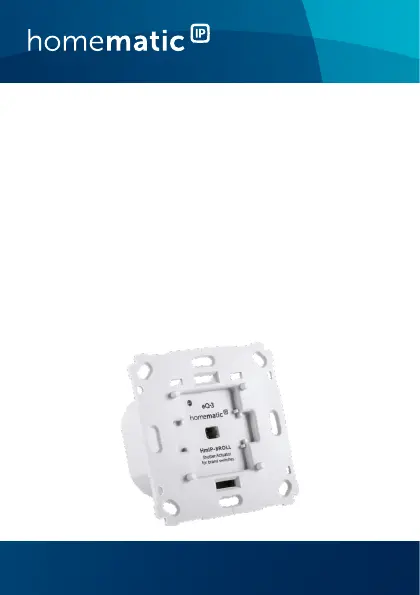

Shutter Actuator
for brand switches
HmIP-BROLL
The Homematic IP Shutter Actuator oers intelligent control of electrical
shutters. The invisible solution for flush-mounted installation can be easily
retrofitted. Thus, switch series that have already been installed can simply
continue to be used. Afterwards, shutters can be controlled easily via
smartphone, automatically using an individual time profile or – as used to –
via push-button.
SMART SHUTTER
CONTROL FOR
INCREASED COMFORT
AND SECURITY
Smart Living, Simply Exciting.
Homematic IP is a brand of eQ-3 AG Subject to modifications. www.homematic-ip.com Version 2.0 EN
PACKAGE CONTENTS
Homematic IP Shutter Actuator for brand switches
Screws 3.2 x 15 mm (2x)
Screws 3.2 x 25 mm (2x)
User manual
LOGISTICAL DATA
Product reference 151322A0
EAN code 4047976513222
Short description HmIP-BROLL
Packing unit 90
Packing dimensions 122 x 112 x 48 mm
Weight incl. packaging 135.2 g
TECHNICAL SPECIFICATIONS
Supply voltage 230 V/50 Hz
Standby power consumption 0.2 W
Max. switching capacity 500 VA
Load type motor load
Relay 1x NO contact,
1x changeover contact
Cable type and cross section rigid and flexible cable,
0.75-1.5 mm²
Installation
only in normal commercial switch
boxes (device boxes) in accord-
ance with DIN 49073-1
Degree of protection IP20
Ambient temperature 0 to 50 °C
Dimensions (W x H x D) 71 x 71 x 37 mm
Weight 58 g
Radio frequency band 868.0-868.6 MHz
869.4-869.65 MHz
Typ. open area RF range 220 m
SMART CONTROL AT ALL TIMES
Operate shutters the way you want: Adjustable time
profiles allow shutters or awnings to move up or down
automatically. Thus, they are adapted to the users’
daily routine or to the current weather conditions.
The device is controlled via smartphone, wireless
push-button or remote control, existing switches or
comfortably via voice command.
SHUTTER CONTROL DEPENDING ON THE SUN
POSITION
Wake up feeling relaxed in the morning or secure
your home in the evening: Shutters can be controlled
automatically in accordance with the sunrise and
sunset. Automatic shading oers smart insulation to
avoid rooms from overheating during summer.
INVISIBLE INSTALLATION INTO EXISTING DESIGNS
Can also be integrated into existing switches by making
use of existing frames and rockers. With the appropriate
adapter, the device can be integrated into the most
popular switch designs of leading manufacturers (an
overview of compatible manufacturers is available at
www.homematic-ip.com).
INCREASED SECURITY
Shutters are moved down when it is getting dark or if
you are absent – this secures windows and doors in
the house and suggests presence at the same time.
JUST GET STARTED
Easy to install with automatic calibration run via the
app. Compact design for installation into standard
flush-mounted boxes. Suitable for all standard tube
motors.
L
N
M
Shutter actuator for
brand switches
Flush-mounted box
with supply cable
Corresponding
adapter
Rocker & frame
To enable operation, the device has to be connected
with one of the following solutions:
Homematic IP Access Point with free smartphone
app and free cloud service
Central Control Unit CCU2/CCU3 with the local user
interface WebUI
Third-party solutions of partners
For installation, a neutral conductor is required.
