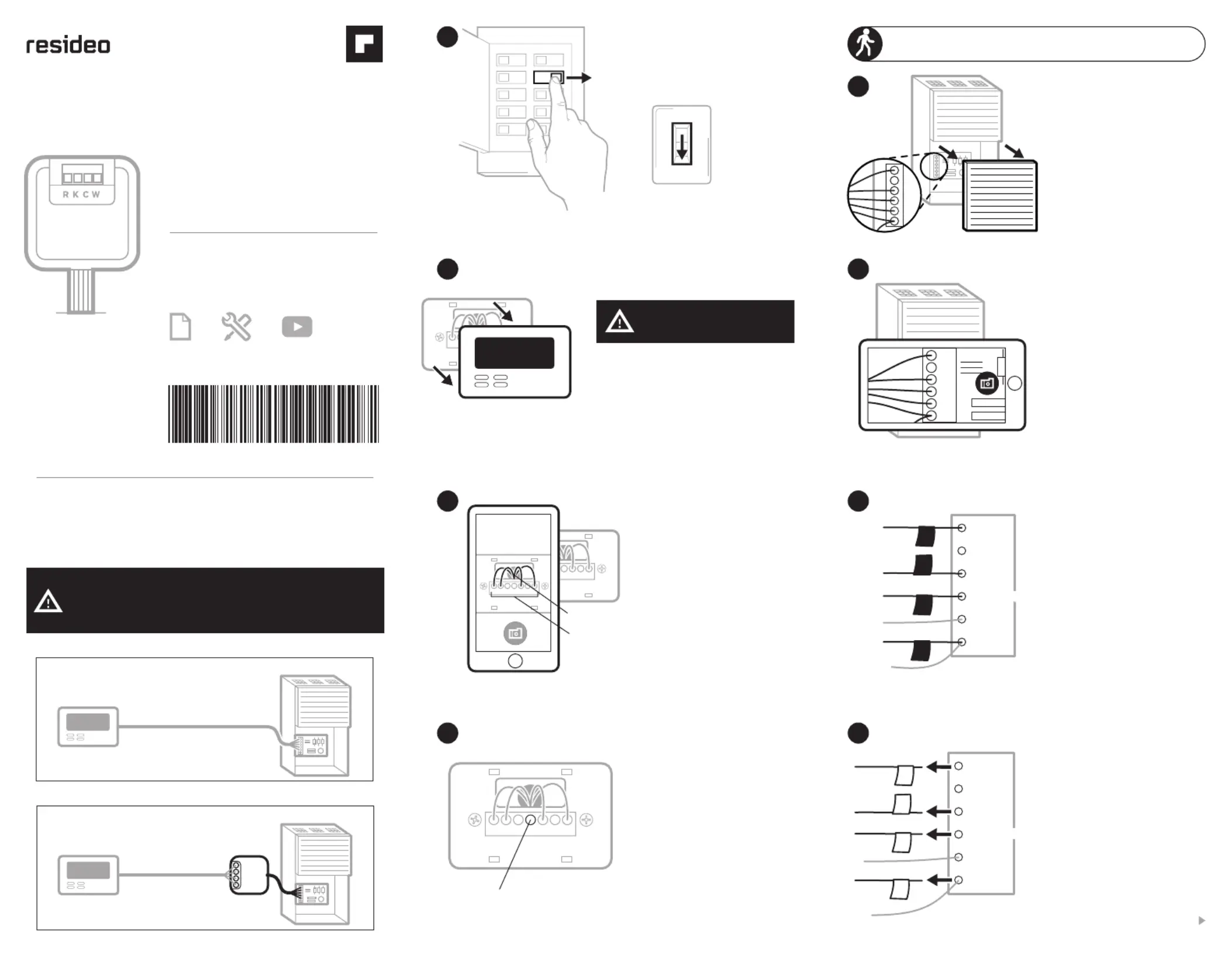

Installation Guide
resideo.com
C-WIRE ADAPTER
Online Guides and Support
Remove your old thermostat from
the wall plate.
This product provides a C wire (common wire) to power a
thermostat. Only install if you do not have a C wire available to
connect to your thermostat.
5
Open HVAC system’s cover
to reveal the control board.
6
Take a picture of the wires
on the control board.
Ensure the terminal labels
and wires are in the image.
You may need to reference
the picture later.
*
O or B terminal may also be used.
CONTINUE
7
Use stickers to label the
following connected wires:
8
Disconnect ONLY the wires
that you just labelled:
AFTER
Do not remove any wires
at this time!
ZONING CONTROL PANEL CHECK
For zoned systems, install the C Wire Adapter
between the thermostat and the zoning panel, NOT
between the zoning panel and HVAC equipment.
3
Take a picture of the wiring.
Ensure the terminal labels
and wires are in the image.
You may need to reference
the picture later.
Confirm that you do not have
a wire in the C terminal. If
you have a wire in the
C terminal, then you do not
need this product.
Look for an unused wire. If
you have an unused wire,
then you do not need this
product. Connect one end of
that wire to C terminal at the
HVAC and the other to C
terminal at new thermostat.
*
The C wire (common) might be
labeled as B rather than C on certain
thermostats.
Go to your HVAC system. It may be located in your
attic, crawl space or basement.
G
R Rcor
•
•
EXAMPLE
W W1or
Y Y1or
•
•
*
Not all systems will have a
W or W1-wire. On a heat pump
application, the wire coming from
O/B on the old thermostat would
match to either O or B at equipment
rather than W.
**
If multiple wires are connected
to a terminal, only label the the wire
running to your thermostat.
G
R Rcor
•
•
W W1or
Y Y1or
•
•
*
Do NOT disconnect wires that you
did not label.
**
If multiple wires are connected
to a terminal, only remove the the
wire running to your thermostat.
***
On a heat pump application,
the wire coming from O/B on the old
thermostat would match to either O
or B at equipment rather than W.
M38945
HVAC
Thermostat
M38946
HVAC
C-Wire
Adapter
Thermostat
M38947
OFF
Turn the power off at the
breaker box or control
switch for your HVAC*
system.
*Heating, ventilation, and air conditioning
OFF
ON
Breaker box
Switch
M38948
M38949
M38950
C2 R K Y
CW W2G R K Y
Terminal Labels
Wires
M38951
C
C terminal
*
M38952
M38953
G
C
R
W
W2
Y
*
M38954
**
*
C
Y or Y1
R or Rc
G
W2
R
G
W
Y
W or W1
EXAMPLE
M38955
*
R
C
W or W1
Y or Y1
R or Rc
G
G
Y
W
W2
**
***
33-00618-03
CAUTION: ELECTRONIC WASTE NOTICE
The product should not be disposed of with other
household waste. Check for the nearest authorized
collection centers or authorized recyclers. The
correct disposal of end-of-life equipment will help
prevent potential negative consequences for the
environment and human health.
15
16
13
14
Before mounting, check to
make sure surface is clean
enough to ensure good
adhesion.

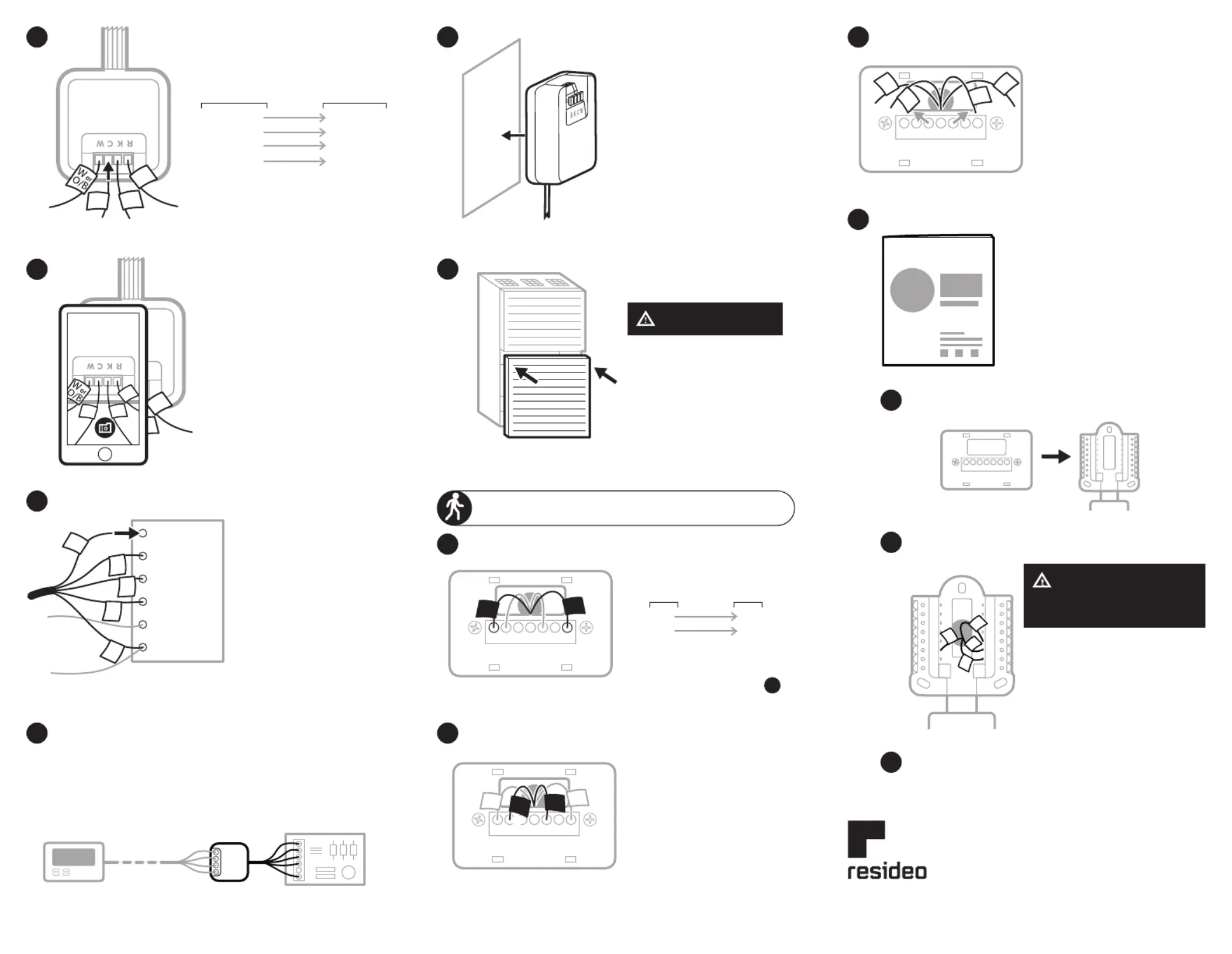

Attach the C-Wire Adapter to
the inside wall of the furnace
using the magnet on the back
of the C-Wire Adapter.
Note: Earlier versions of this
product had an adhesive pad
and mount rather than magnet.
11
Connect the wires from
the “Equipment”
labelled side of the
C-Wire Adapter to the
matching terminals on
the control board.
*
If there are separate wires to
W and O, leave the W and O wires
attached at HVAC and do not
connect them to the C-Wire
Adapter.
Label your now converted
wires as shown.
Close the HVAC system’s cover.
Leave the power off.
12
CHECKPOINT
Your C-Wire Adapter should now be installed between
your thermostat wiring and the control board.
G
Y
Wires
C
K
Labels
Label ALL of the remaining
wires according to their
terminals.
*
O/B terminal may also be used.
EXAMPLE
17
Confirm you have labelled
ALL of your wiring.
Disconnect the wires from
the old wall plate.
*
O/B terminal may also be used.
18
9
Insert the wires you just
disconnected into the
C-Wire Adapter terminals.
W or O/B
G
Y
R
Wires
W or O/B
C
K
R
Terminals
This will convert the G and
Y-wires into C and K-wires.
10
Take a picture of the wires
you inserted into the C-Wire
Adapter.
Ensure the terminal labels
and wires are in the image.
You may need to reference
the picture later.
EXAMPLE
Refer to your new thermostat’s
installation guide for detailed
instructions to complete the
following tasks below.
The wires you label C and K are
the wires you inserted into the
C and K-terminals in step .
9
NEXT STEPS
EXAMPLE
Go back to your thermostat.
A
Remove the old wall plate and mount the new one.
C
Complete your new thermostat’s installation by
attaching the thermostat to the wall plate,
restoring the power, and configuring the
thermostat.
B
Wire the new thermostat.
EXAMPLE
Refer to the labels you
applied when inserting
the wires.
When done wiring, you should
have wires in the C and
K-terminals.
You should not have wires in
the Y or G-terminals.
Resideo Technologies, Inc.
1985 Douglas Drive North, Golden Valley, MN 55422
1-800-468-1502
33-00618—03 M.S. Rev. 12-22 | Printed in United States
© 2022 Resideo Technologies, Inc. All rights reserved.
This product is manufactured by Resideo Technologies, Inc. and its affiliates.
ww w.resideo.com
M38956
R
Y
G
R
Y
M38957
Y
G
R
C
W, W1 , O, or B
*
Y or Y1
R
G
W2
W
R
Y
G
C
M38958
M38959
HVAC
Control Board
Thermostat
C-Wire
Adapter
M38961
M38962
G Y
K
C
M38963
GW R Y
K
C
R
W
*
M38964
K
C
R
W
*
M38965
M38966
M38967A
C
R
C
W
K
R
W
K
M39008
