Side 1/13

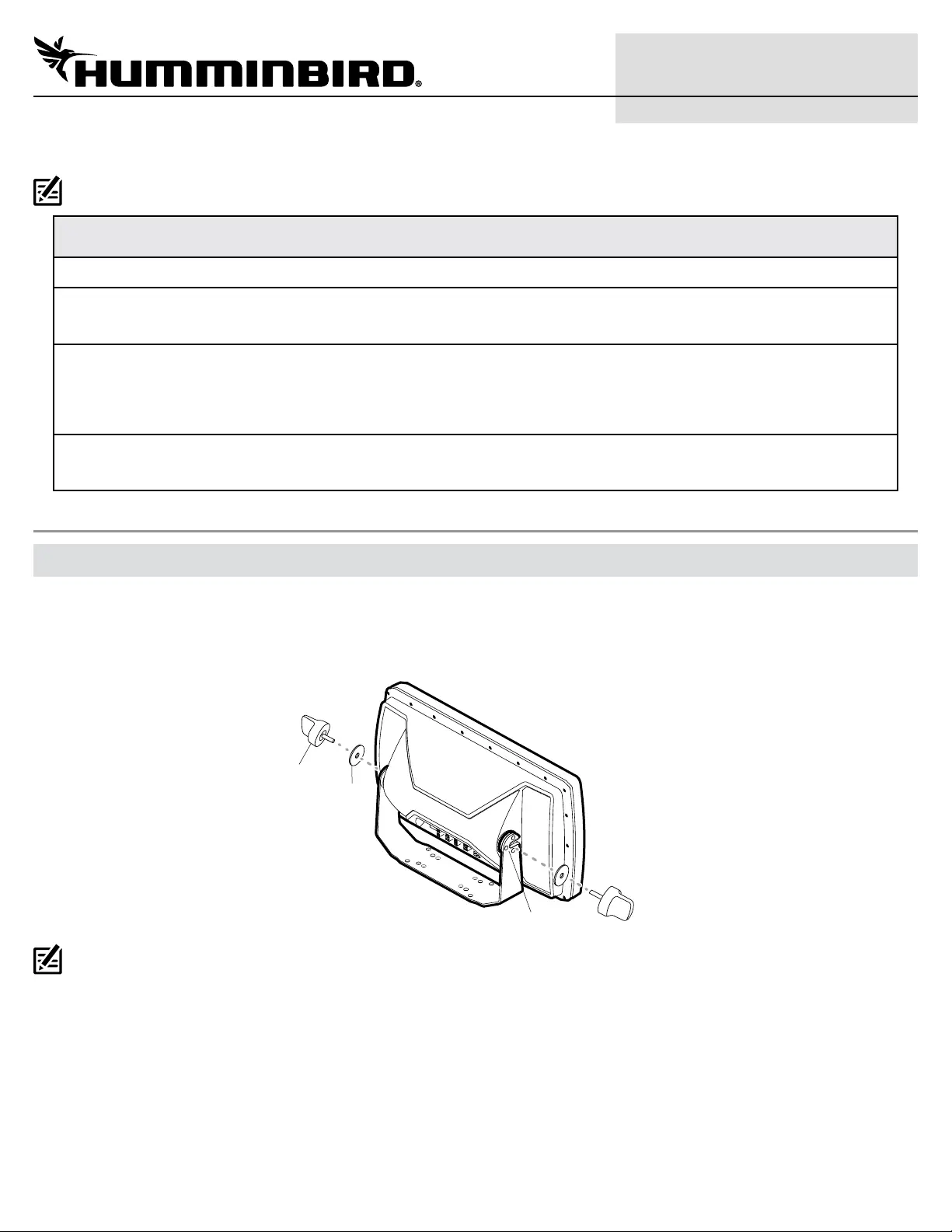

1
532405-6_B
HELIX® SERIES CONTROL HEAD Installation Guide
Follow the instructions in this installation guide to gimbal mount the control head.
NOTE: Your gimbal bracket may not look exactly like the gimbal bracket shown in the illustrations, but it will mount in exactly the same way.
Installation Preparation
Read the instructions in this transducer guide completely to understand the mounting guidelines before starting the installation.
Visit our Web site at humminbird.com for additional information and resources for transducer installations. Also, visit
youtube.com/humminbirdtv for informational videos.
Supplies: In addition to the hardware supplied with your control head, you will need a powered hand drill and various drill bits, Phillips
head screwdriver, flat head screwdriver, pencil, safety glasses and dust mask, marine-grade silicone sealant, dielectric grease
(optional), extension cables (optional), Ethernet cables (optional), and accessory cables (optional). Also, see Connect Power to
determine the type of connection, fuse size, and additional equipment you will need for the installation.
Accessories and Ethernet: Accessories and Ethernet equipment are available for purchase at humminbird.com. The installation
guides are available with the product, or they can be downloaded from our Web site.
Installation Overview
1
|
Plan the Mounting Location
1. Place 1 rubber washer onto each gimbal knob.
2. Install the gimbal knobs (with washers) into each side of the control head. Tighten the knobs just enough so you can slide the control
head into the gimbal bracket arms.
Assembling the Control Head and Bracket
gimbal
knob
bracket arm
rubber
washer
NOTE: If you prefer to mount the control head overhead, flip the bracket to the top of the control head. The opening in the gimbal bracket arms
must face the rear of the control head.
3. Place the assembled control head in various locations to determine the best mounting location with the following requirements:
∆ a stable, protected surface to protect the control head from excessive wave shock, vibration, and water
∆ sufficient space for the control head tilt range
∆ visibility during operation, as well as easy installation and removal
∆ access above and below the mounting surface to pass the cables through to the control head
∆ space for the 1" (25 mm) cable hole located 2" to 4" (50 to 100 mm) behind the chosen mounting location
4. Test route all cables (transducer, power, Ethernet, accessories) to the control head mounting location. Leave enough cable length for
installing the cable tray and for the control head tilt range.
5. After you have selected the mounting location, loosen the gimbal knobs and remove the control head from the gimbal bracket.

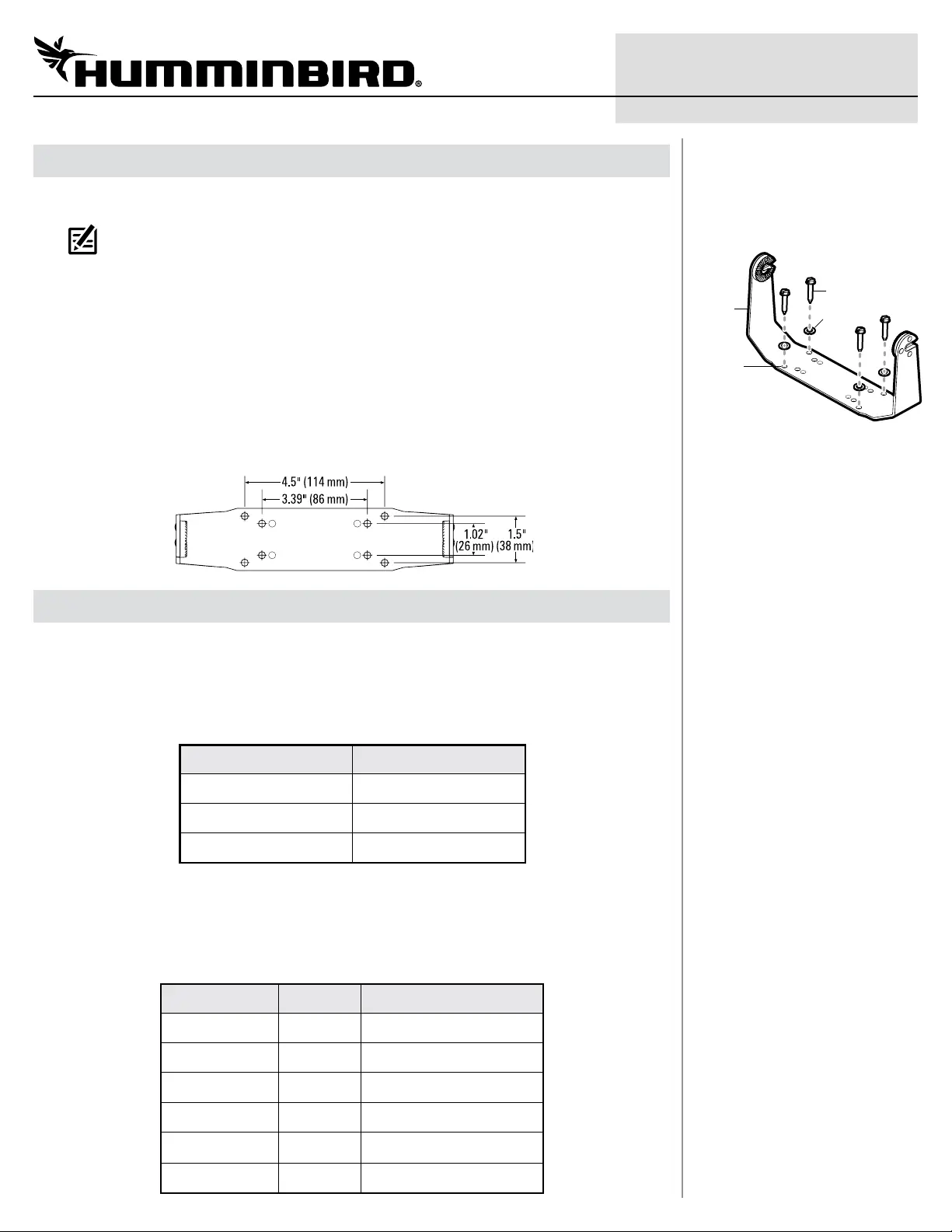

2
532405-6_B
HELIX® SERIES CONTROL HEAD Installation Guide
2
|
Install the Gimbal Bracket
1. Place the gimbal bracket in the chosen position on the mounting surface. Mark the four outer
mounting screw locations using a pencil or center punch.
NOTE: The outer set of mounting holes is recommended. You may use the inside set of
mounting holes if necessary. There may be additional, unused mounting holes on the gimbal
bracket.
2. Set the gimbal bracket aside. Drill the four mounting screw holes using a 5/32" (4 mm) drill bit.
3. Cable Hole: Mark and drill a 1" (25 mm) hole 2" to 4" (50 to 100 mm) behind the bracket. You
will use this hole for routing the cables to the control head in another section.
4. Place the bracket on the mounting surface aligned with the drilled holes. Fill the mounting
holes with marine-grade silicone sealant.
5. Place one flat washer onto each #10 x 1" wood screw. Insert the four screws with washers into
the mounting holes (see the illustration Installing the Gimbal Bracket). Hand tighten only!
Bracket Hole Pattern Measurements
3
|
Connect Power
It is important to review the following information before you start the power installation:
∆ Cable Length: A 6' (2 m) long power cable is included. You may shorten or lengthen the cable
using 18 gauge multi-stranded copper wire. See the Recommended Power Cable Extension
Information table for details.
Recommended Power Cable Extension Information
Extension Length Wire Gauge
1 to 6 ft 18 AWG
6 to 12 ft 14 AWG
12 to 24 ft 12 AWG
Please consult a U.S. Coast Guard ABYC-approved wire gauge
diagram or a certified NMEA Marine Electronics Installer.
∆ Power Supply: The control head must be connected to a 12 VDC power supply using the fuse
size shown in the Required Fuse Size table.
Required Fuse Size
Model Fuse Size Fuse Type
HELIX 7 3A slow-blow or MDL equivalent
HELIX 8 5A slow-blow or MDL equivalent
HELIX 9 5A slow-blow or MDL equivalent
HELIX 10 5A slow-blow or MDL equivalent
HELIX 12 5A slow-blow or MDL equivalent
HELIX 15 7.5A slow-blow or MDL equivalent
bracket
hole(s)
screw(s)
back
washer(s)
Installing the Gimbal Bracket
