ELECTRICAL SHOCK HAZARD
– Before
installing this unit, turn o power at
the main service panel by removing
the fuse or switching the appropriate
circuit breaker to the OFF position.
WARNING — SHOCK HAZARD — DO NOT OPEN;
ATTENTION – RISQUE DE CHOC – NE PAS OUVRIR
Device is intended to be connected only to panel connection. All
wiring must conform to national, state and local electrical codes.
14AWG wire or larger required. Product contains no serviceable parts.



 





For electrical panel:

For A/C disconnect:




Service Voltage:
Maximum Surge Current: 
Maximum Energy Dissipation: 
Installation Point:
Diagnostics: 
Enclosure:
AC Protection Modes:
Conduit Connection:
Dimensions:
Weight:
ICM517A








Limited lifetime product, up to a 3-year $25,000 connected
equipment warranty
MODE OF OPERATION
WIRING DIAGRAM (240 VAC)
WIRING DIAGRAM (120 VAC)
INSTRUCTIONS
SPECIFICATIONS
Indoor Installation
(120 VAC Shown)
Wire Nut
BLK
BLK
Neutral Bus
Field Installed BLK
Ground Bus
GRN
ICM
517A
WHT
Outdoor Installation
(120 VAC Shown)
F
U
S
E
F
U
S
E
B
B
R
B
G
Ground
ICM
517A
B
B
Field Installed BLK
Wire Nut
Indoor Installation
(240 VAC Shown)
BLK
Neutral Bus
Ground Bus
WHT
Outdoor Installation
(240 VAC Shown)
Ground
F
U
S
E
F
U
S
E
B
B
R
B
G
ICM
517A
ICM
517A
GRN
BLK
ATTENTION: No replaceable or
repairable parts;
ATTENTION: Aucune pièce
remplaçable ou reparable

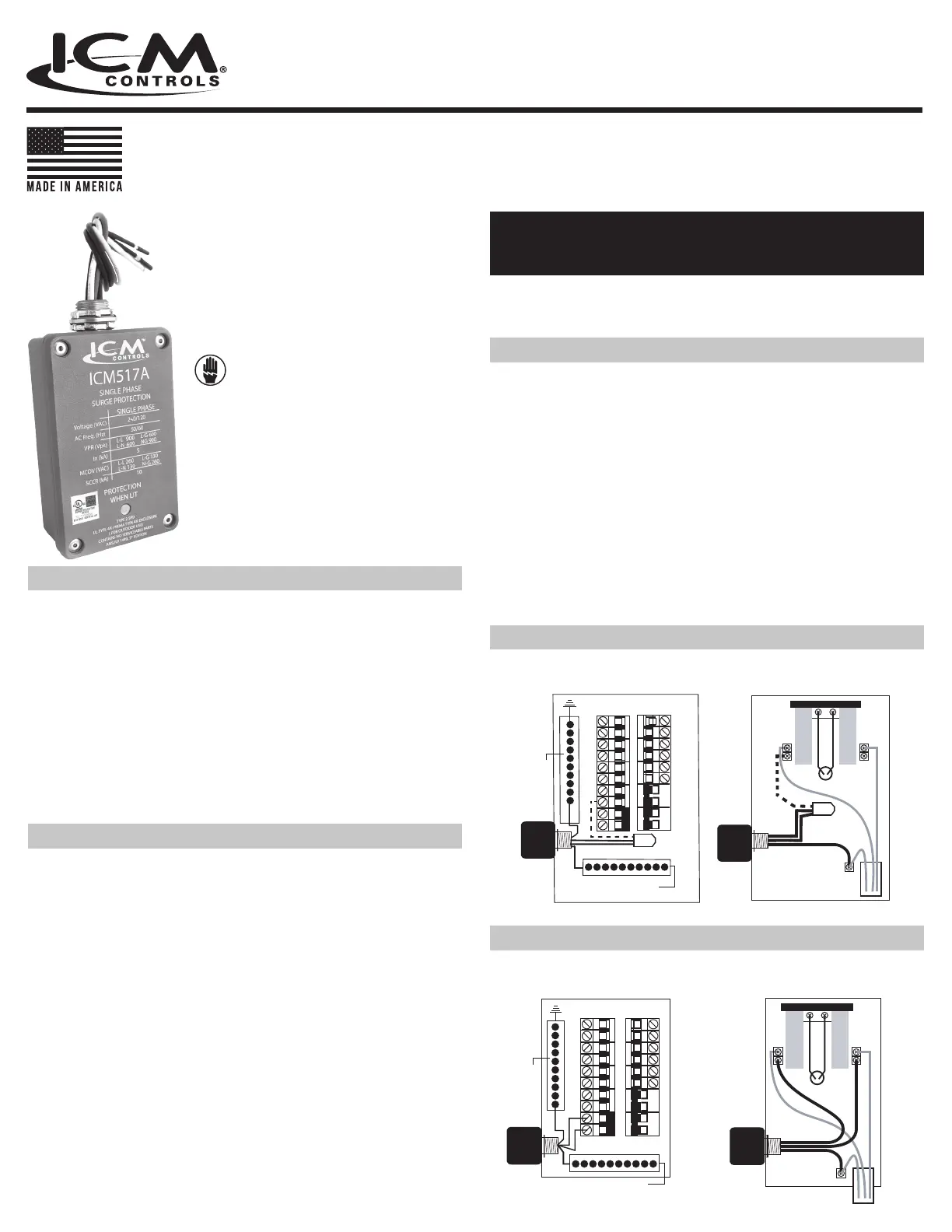

INSTALLATION, OPERATION & APPLICATION GUIDE

www.icmcontrols.com
ICM517A
Surge Protective Device
