INSTRUCTION MANUAL
iM501EURO
VHF MARINE TRANSCEIVER
If your vessel requires assistance, contact other vessels and
the Coast Guard by sending a distress call on channel 16.
Or, transmit your distress call using digital selective calling on
channel 70 (the optional DS-100 must be installed).
USING DIGITAL SELECTIVE CALLING (ch 70)
(DS-100 DSC CONTROLLER is required)
DISTRESS CALL PROCEDURE
1. Push and hold [DISTRESS] on the DS-100
for 5 sec. until you hear 5 short beeps
change to one long beep.
2. Wait for an acknowledgment from a coast
station.
Channel 16 is automatically selected.
3. Push and hold [PTT], then transmit the
appropriate information as at left.
USING CHANNEL 16
DISTRESS CALL PROCEDURE
1. “MAYDAY MAYDAY MAYDAY.”
2. “THIS IS ...............” (name of vessel)
3. Your call sign or other indication of the
vessel (AND 9-digit DSC ID if you have one).
4. “LOCATED AT ...............” (your position)
5. The nature of the distress and assistance
required.
6. Any other information which might facilitate
the rescue.
IN CASE OF EMERGENCY
i
Versions of the IC-M501EURO which display the “CE” symbol on the serial number seal, comply with the es-
sential requirements of the European Radio and Telecommunication Terminal Directive 1999/5/EC. òThis
warning symbol indicates that this equipment operates in non-harmonised frequency bands and/or may be sub-
ject to licensing conditions in the country of use. Be sure to check that you have the correct version of this radio
or the correct programming of this radio, to comply with national licensing requirement.
ii
TABLE OF CONTENTS
INSTALLATION NOTES
The installation of this equipment should be
made in such a manner as to respect the EC
recommended electromagnetic field expo-
sure limits (1999/519/EC).
The maximum RF power available from this
device is 25 watts. The antenna should be
installed as high as possible for maximum ef-
ficiency and that this installation height
should be at least 5 meters above ground (or
accessible) level. In the case where an an-
tenna cannot be installed at a reasonable
height, then the transmitter should neither be
continuously operated for long periods if any
person is within 5 meters of the antenna, nor
operated at all if any person is touching the
antenna.
In all cases any possible risk depends on the
transmitter being activated for long periods.
(actual recommendation limits are specified
as an average of 6 minutes) Normally the
transmitter is not active for long periods of
time. Some radio licenses will require that a
timer circuit automatically cuts the transmit-
ter after 1–2 minutes etc.
Similarly some types of transmitter, SSB,
CW, AM, etc. have a lower ‘average output
power and the perceived risk is even lower.
1 OPERATING RULES .......................... 1
2 PANEL DESCRIPTION .................. 2 5
Panel description ............................. 2
Function display ............................... 4
Microphone ...................................... 5
3 BASIC OPERATION .................... 6 10
Channel selection ............................ 6
Receiving and transmitting .............. 8
Call channel programming ............... 9
Channel names ................................ 9
Optional voice scrambler operation
.. 10
4 DUALWATCH/TRI-WATCH ............... 11
Description ..................................... 11
Operation ....................................... 11
5 SCAN OPERATIONS ................. 12 13
Scan types ..................................... 12
Setting tag channels ...................... 13
Starting a scan ............................... 13
6 SET MODE ................................. 14 16
Set mode programming ................. 14
Set mode items .............................. 15
7 CONNECTIONS AND
MAINTENANCE ......................... 17 22
Unpacking ...................................... 17
Antenna ......................................... 17
Fuse replacement .......................... 17
Cleaning ......................................... 17
Connections ................................... 18
Mounting the transceiver ............... 19
Optional unit installation ................. 21
Dimensions ..................................... 20
8 TROUBLESHOOTING ...................... 23
9 CHANNEL LIST ................................ 24
10 SPECIFICATIONS AND OPTIONS ... 25
Specifications ................................. 25
Options .......................................... 25
MB-75 TEMPLATE
iii
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL This in-
struction manual contains important operating instructions for
the IC-M501EURO.
RWARNING! NEVER connect the transceiver to an AC
outlet. This may pose a fire hazard or result in an electric
shock.
NEVER connect the transceiver to a power source of more
than 16 V DC or using reverse polarity. This will ruin the trans-
ceiver.
NEVER cut the DC power cable between the DC plug and
fuse holder. If an incorrect connection is made after cutting,
the transceiver may be damaged.
NEVER place the transceiver where normal operation of the
vehicle may be hindered or where it could cause bodily injury.
KEEP the transceiver at least 3.3 ft (1 m) away from the
ship’s navigation compass.
DO NOT use or place the transceiver in areas with temper-
atures below –4°F (–20°C) or above +140°F (+60°C) or, in
areas subject to direct sunlight, such as the dashboard.
AVOID the use of chemical agents such as benzine or al-
cohol when cleaning, as they may damage the transceiver
surfaces.
BE CAREFUL! The transceiver rear panel will become
hot when operating continuously for long periods.
Place the transceiver in a secure place to avoid inadvertent
use by children.
After exposure to water including fresh water, clean the trans-
ceiver thoroughly with fresh water to avoid corrosion.
CAUTIONS
IMPORTANT
1
1
OPERATING RULES
PRIORITIES
Read all rules and regulations pertaining to priorities and
keep an up-to-date copy handy. Safety and distress calls
take priority over all others.
You must monitor channel 16 when you are not operating on
another channel.
False or fraudulent distress signals are prohibited and pun-
ishable by law.
PRIVACY
Information overheard but not intended for you cannot law-
fully be used in any way.
Indecent or profane language is prohibited.
RADIO LICENSES
(1) SHIP STATION LICENSE
You must have a current radio station license before using the
transceiver. It is unlawful to operate a ship station which is not
licensed.
Inquire through your dealer or the appropriate government
agency for a Ship-Radiotelephone license application. This
government-issued license states the call sign which is your
craft’s identification for radio purposes.
(2) OPERATOR’S LICENSE
A Restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a radio
is not required for safety purposes.
The Restricted Radiotelephone Operator Permit must be
posted or kept with the operator. Only a licensed radio opera-
tor may operate a transceiver.
However, non-licensed individuals may talk over a transceiver
if a licensed operator starts, supervises, ends the call and
makes the necessary log entries.
Keep a copy of the current government rules and regulations
handy.
PANEL DESCRIPTION
2
2

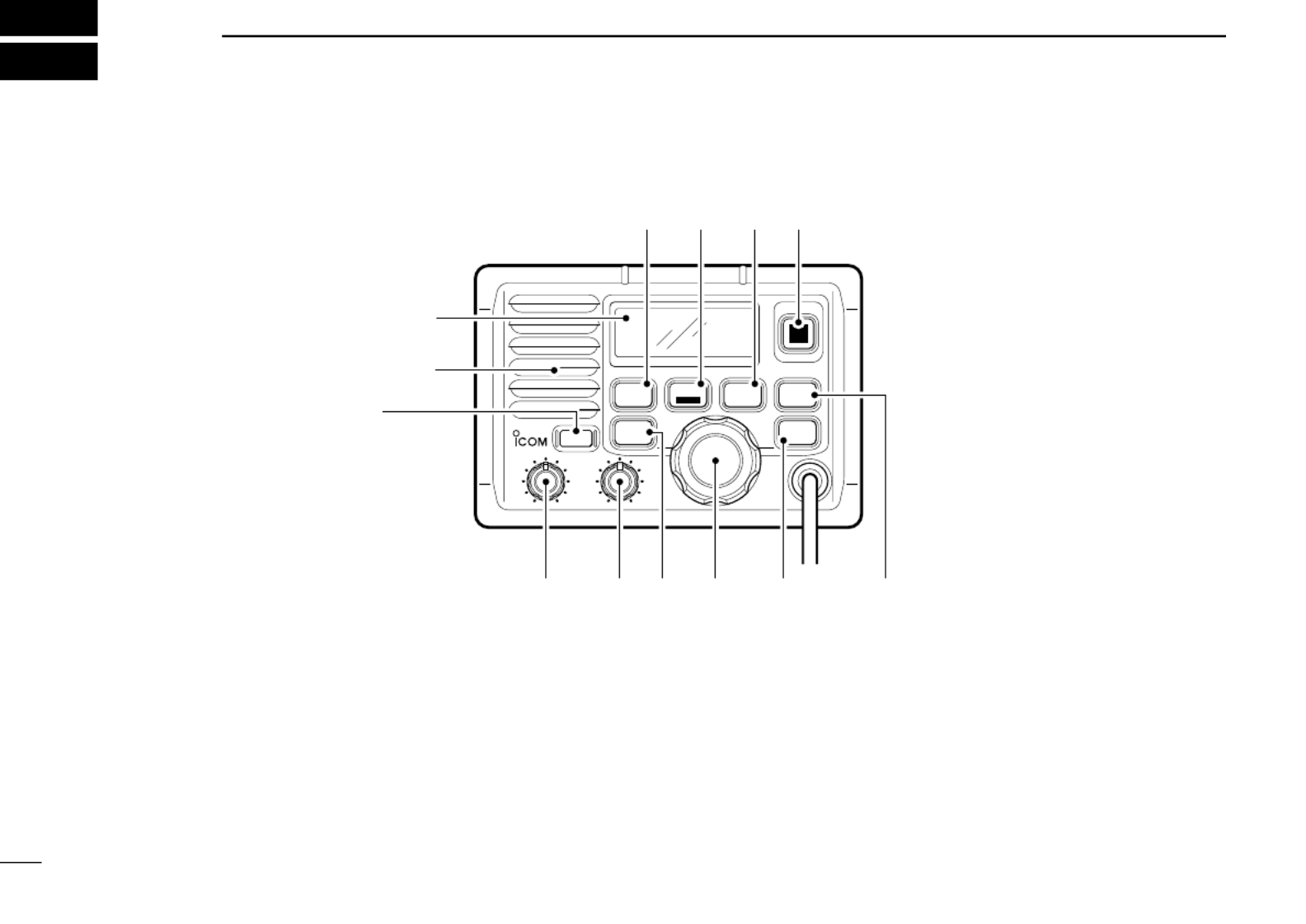

Panel description
CALLDUAL SCAN
WATER RESISTANT
TAG DIAL
DIMMER
HI/LO
POWER
VOL
iM501EURO
VHF MARINE
SQL
16
Speaker
Function
display
q
w e r t y u
io!0!1
qPOWER SWITCH [POWER]
Push to toggle the transceiver power ON and OFF.
wVOLUME CONTROL [VOL]
Adjusts the audio level. (p. 8)
eSQUELCH CONTROL [SQL]
Sets the squelch threshold level. (p. 8)
rTRANSMIT POWER SWITCH [HI/LO]
Toggles high and low power when pushed. (p. 8)
Some channels are set to low power only.
While pushing this switch, other switches perform sec-
ondary functions.
tCHANNEL SELECTOR [CHANNEL]
Rotate [CHANNEL] to select the operating channels, set
mode contents, etc. (p. 8)
yDIMMER SWITCH [DIMMER]
Push to select one of 8 backlighting (LCD and switches)
levels.
uCALL CHANNEL SWITCH [CALL]
Push to select the call channel. (p. 6)
Push for 3 sec. to enter call channel programming con-
dition. (p. 9)
While pushing [HI/LO], enters memory name program-
ming condition. (p. 9)
iCHANNEL 16 SWITCH [16]
Selects channel 16 when pushed. (p. 6)
Enters initial set mode when pushed while turning power
ON. (p. 14)
oDIAL SWITCH [DIAL]
Exits from channel 16 or call channel when pushed. (p.
6)
While pushing [HI/LO], selects channel group when
pushed. (pgs. 6, 7)
The European version has International channels only and
this function is not available.
!0 SCAN SWITCH [SCAN/TAG] (p. 13)
Starts and stops normal or priority scan when tag chan-
nels are programmed.
Push [SCAN/TAG] for 1 sec. to set the displayed chan-
nel as a tag (scanned) channel.
While pushing [HI/LO], push for 3 sec. to clear all tag
channels.
!1 DUALWATCH/TRI-WATCH SWITCH [DUAL] (p. 11)
Starts dualwatch or tri-watch when pushed.
Stops dualwatch/tri-watch when either is activated.
PANEL DESCRIPTION
3
2

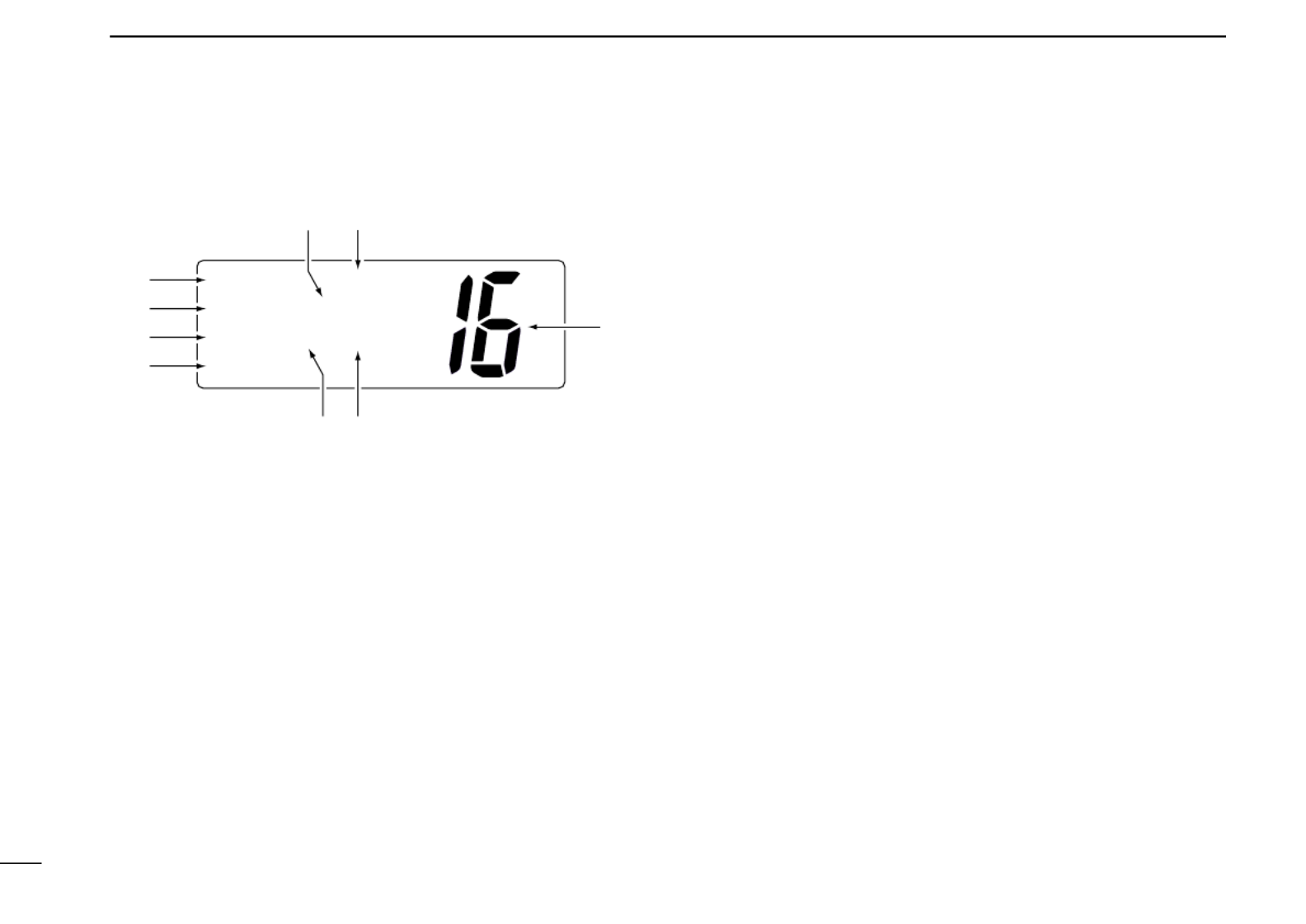

Function display
qBUSY/TRANSMIT INDICATOR (p. 8)
“ ”BUSY appears when receiving a signal or when the
squelch opens.
“ ”TX appears while transmitting.
wPOWER INDICATOR (p. 8)
“ ”25W appears when high power is selected.
“ ”1W appears when low power is selected.
eTAG CHANNEL INDICATOR (p. 13)
Appears when a tag channel is selected.
rCHANNEL NAME INDICATOR
Channel comment appears if programmed. (p. 9)
“ ”Low Battery appears when the battery voltage drops
to approx. 10 V DC or below.
“ ”DUAL appears during dualwatch; TRI appears dur-
ing tri-watch. (p. 11)
tSCRAMBLER INDICATOR (p. 11)
Appears when the optional voice scrambler is activated.
yDUPLEX INDICATOR
Appears when a duplex channel is selected.

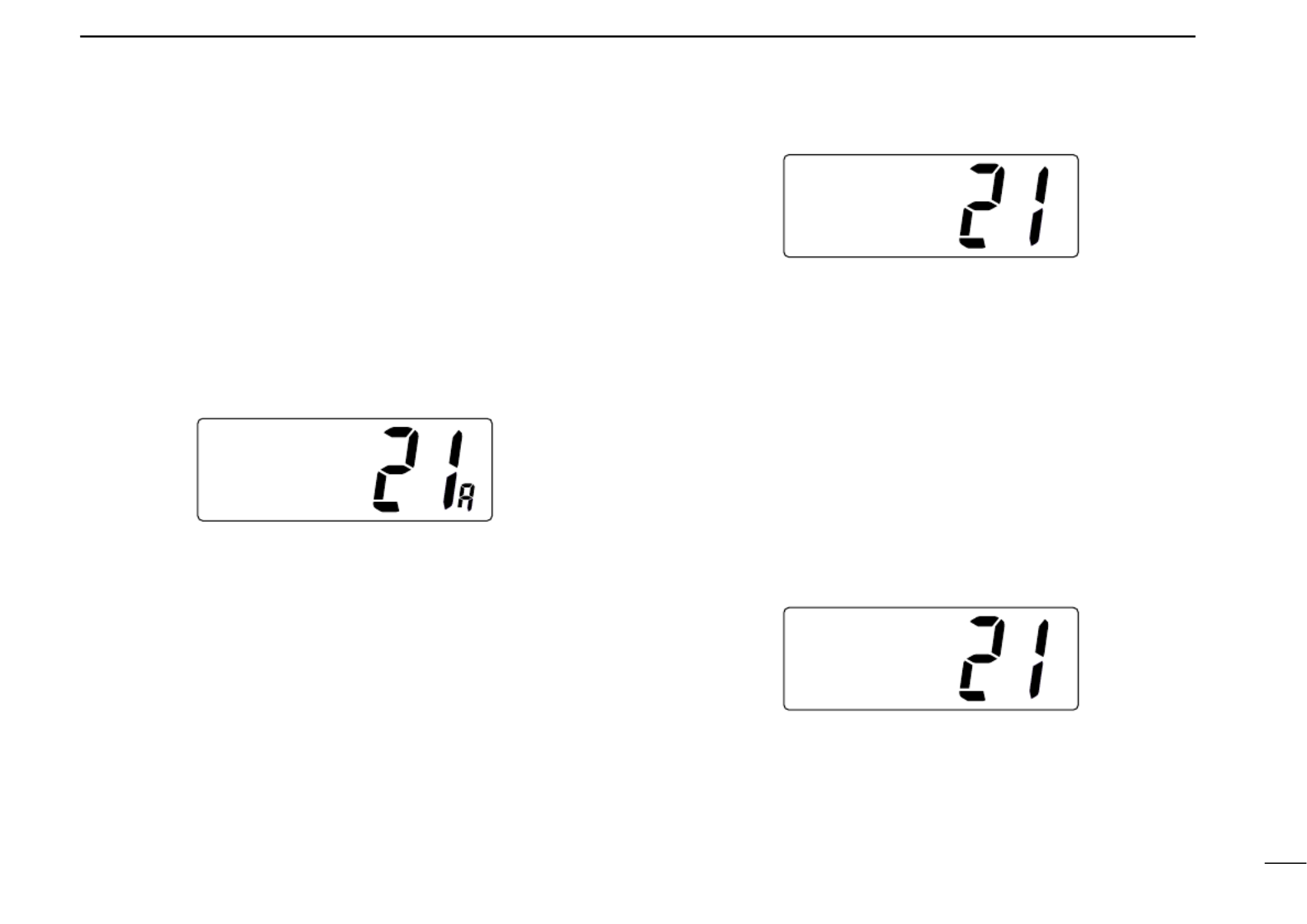

uCHANNEL NUMBER READOUT
Indicates the selected operating channel number. “ ”A
appears when a simplex channel is selected. (p. 6)
In set mode, indicates the selected condition. (p. 14)
iCHANNEL GROUP INDICATOR (p. 6)
Indicates whether an International, U.S.A., Holland, DSC
or ATIS channel is selected.
Available channel groups depend on version.
oCALL CHANNEL INDICATOR (pgs. 6, 9)
Appears when a call channel is selected.
INT
INT
INT
INTINT
CALL
CALL
CALL
CALLCALL
BUSY
BUSY
BUSY
BUSYBUSY
25W
25W
25W
25W25W
TAG
TAG
TAG
TAGTAG SC
SC
SC
SCSC DUP
DUP
DUP
DUPDUP
CALLING
CALLING
CALLING
CALLINGCALLING
w
q
e
r
t y
io
u
PANEL DESCRIPTION
4
2
5
2
PANEL DESCRIPTION

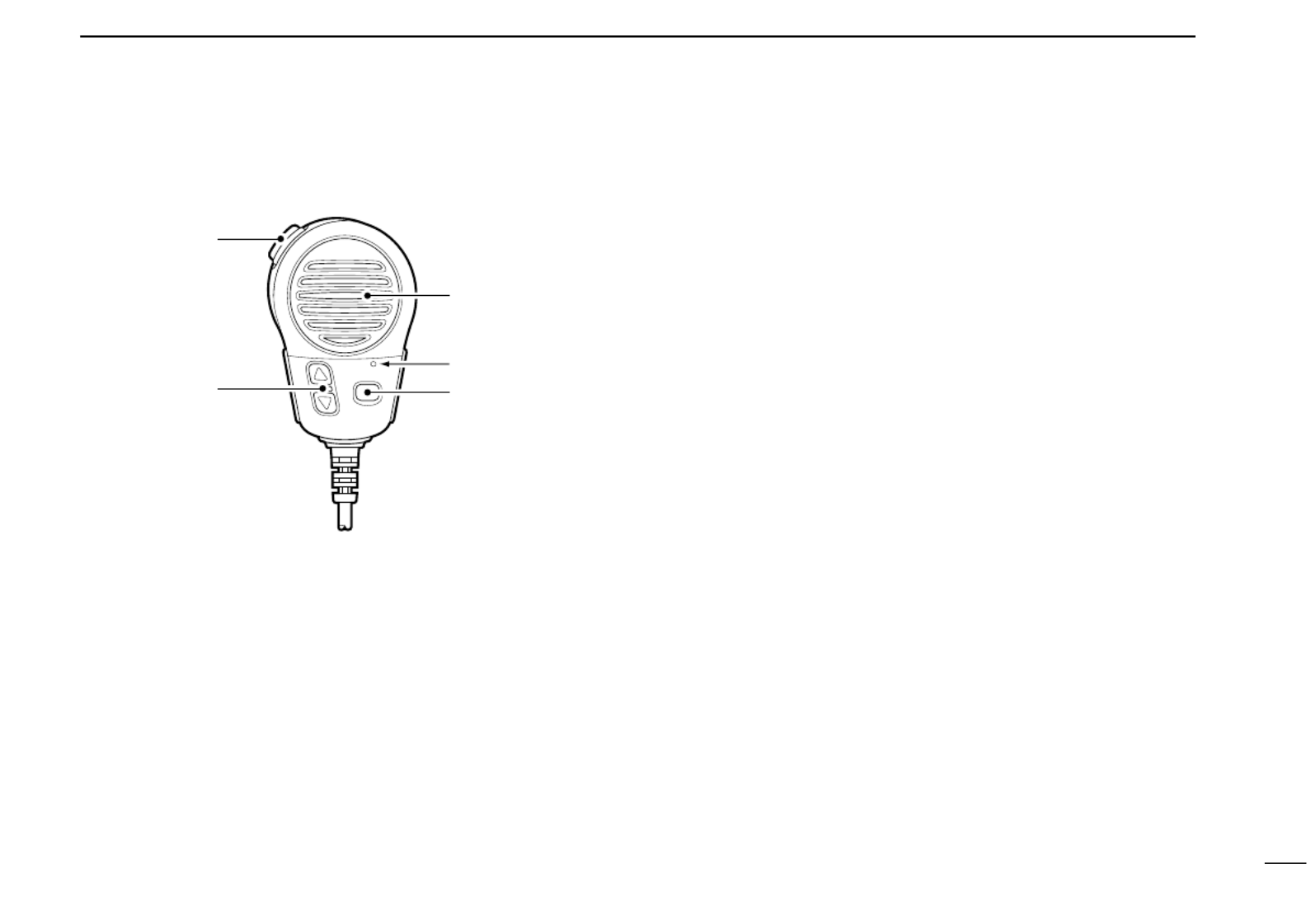

Microphone
qPTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 8)
wCHANNEL UP/DOWN SWITCHES [Y
Y
Y
Y
Y]/[Z
Z
Z
Z
Z]
Push either switch to change the operating memory chan-
nel, set mode contents, etc. (p. 8)
eTRANSMIT POWER SWITCH [HI/LO]
Same as the [HI/LO] switch on the front panel.
Toggles the [ ] and [HI/LO] switch functions ON andY Z]/[
OFF when pushed at power ON.
Speaker
Microphone
w
q
e
6
3BASIC OPERATION

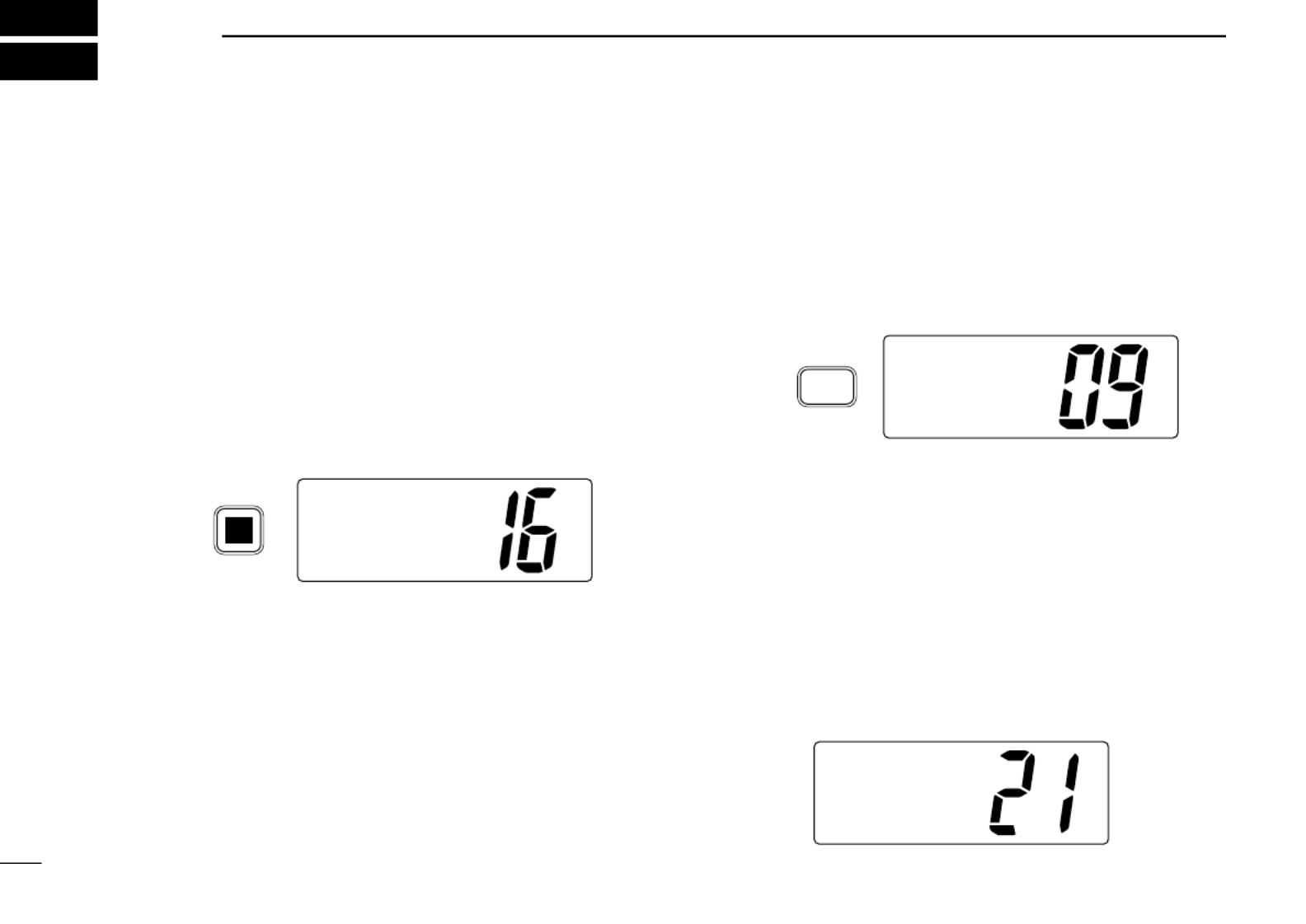

Channel selection
Channel 16
Channel 16 is the distress and safety channel. It is used for
establishing initial contact with another station and for emer-
gency communications. Channel 16 is monitored during both
dualwatch and tri-watch. While standing by, you must monitor
channel 16.
Push [16] to select channel 16.
Push [DIAL] to return to the condition before selecting
channel 16, or rotate [CHANNEL] to select operating chan-
nel.
Call channel
Each regular channel group has a separate leisure-use call
channel. The call channel is monitored during tri-watch. The
call channels can be programmed (p. 9) and are used to store
your most often used channels in each channel group for
quick recall.
Push [CALL] to select the call channel of the selected
channel group.
• “CALL and call channel number appear.
Each channel group may have an independent call channel after
changing a call channel. (U.K. version only)
Push [DIAL] to return to the condition before selecting call
channel, or rotate [CHANNEL] to select operating channel.
International channels
There are 55 International channels for the IC-M501EURO.
qPush [DIAL] to select a regular channel.
wPush [DIAL] while pushing [HI/LO] to change the channel
group, if necessary.
• “INT appears when International channels are selected.
eRotate the channel selector to select a channel.
• “DUP appears for duplex channels.
INT
INT
INT
INTINT
25W
25W
25W
25W25W
DUP
DUP
DUP
DUPDUP
TAG
TAG
TAG
TAGTAG
INTL
INTL
INTL
INTLINTL
Push CALL
INT
INT
INT
INTINT
25W
25W
25W
25W25W CALL
CALL
CALL
CALLCALL
TAG
TAG
TAG
TAGTAG
CALLING
CALLING
CALLING
CALLINGCALLING
INT
INT
INT
INTINT
25W
25W
25W
25W25W
TAG
TAG
TAG
TAGTAG
CALLING
CALLING
CALLING
CALLINGCALLING
Push 16
3
BASIC OPERATION
7
U.S.A. channels (U.K. version only)
For the U.K. versions, there are 61 U.S.A. channels in addi-
tion to 56 International channels.
qPush [DIAL] to select a regular channel.
wTo change the channel group, push [DIAL] while pushing
[HI/LO].
International and U.S.A. channels can be selected in sequence.
eRotate the channel selector to select a channel.
Channels are memorized separately for each channel group.
Holland channels (Holland version only)
For the holland versions, there are 57 Holland channels in ad-
dition to 56 International channels.
qPush [DIAL] to select a regular channel.
wTo change the channel group, push [DIAL] while pushing
[HI/LO].
International and Holland channels can be selected in sequence.
eRotate the channel selector to select a channel.
Channels are memorized separately for each channel group.
ATIS and DSC channels (FRG version only)
For the FRG versions, there are 55 ATIS and 52 DSC chan-
nels in addition to 57 International channels.
qPush [DIAL] to select a regular channel.
wTo change the channel group, push [DIAL] while pushing
[HI/LO].
International, ATIS and DSC channels can be selected in se-
quence.
eRotate the channel selector to select a channel.
Channels are memorized separately for each channel group.
ATIS
ATIS
ATIS
ATISATIS
25W
25W
25W
25W25W
DUP
DUP
DUP
DUPDUP
TAG
TAG
TAG
TAGTAG
INTL
INTL
INTL
INTLINTL
HOLLAND
HOLLAND
HOLLAND
HOLLANDHOLLAND
1W
1W
1W
1W1W
DUP
DUP
DUP
DUPDUP
INTL
INTL
INTL
INTLINTL
USA
USA
USA
USAUSA
25W
25W
25W
25W25W
TAG
TAG
TAG
TAGTAG
CCG
CCG
CCG
CCGCCG


Produkt Specifikationer

Mærke: Icom
Kategori: Modtager
Model: IC-M501

Har du brug for hjælp?

Hvis du har brug for hjælp til Icom IC-M501 stil et spørgsmål nedenfor, og andre brugere vil svare dig




Modtager Icom Manualer

Icom

Icom IC-M15 Manual

14 Oktober 2024
Icom

Icom IC-4008E Manual

5 Oktober 2024
Icom

Icom AT-140 Manual

5 Oktober 2024
Icom

Icom IC-25H Manual

5 Oktober 2024
Icom

Icom IC-T7H Manual

26 September 2024
Icom

Icom IC-M600E Manual

22 September 2024
Icom

Icom IC-PS25 Manual

20 September 2024
Icom

Icom IC-A22 Manual

19 September 2024
Icom

Icom IC-T81A Manual

16 September 2024
Icom

Icom IC-745 Manual

10 September 2024

Modtager Manualer

Nyeste Modtager Manualer
