Hinged Single-Pole Breaker Lockouts
• Hinged single-pole lockout
with locking post design,
locks lever in off position to
isolate and prevent breaker use
• Ideal where panel closure is preferred
Description Qty. Part No.
Hinged Single-Pole
Breaker Lockouts
3 44-810
100 44-1810
CIRCUIT BREAKERS | MISCELLANEOUS ELECTRICAL MISCELLANEOUS ELECTRICAL | SIGNS | TAGS | LOCKS
• Works with most major multi-
pole breakers with tie-bar type
switches from major brands including
GE, ITE Sylvania, Challenger, Bryant,
Westinghouse, SQUARE D (2/3 poles) and
General Switch Co.
• Easy to install — thumbscrew secures and
locks tie bar in place; no cable ties or tools
required
Multi-Pole Breaker Lockout
Description Qty. Part No.
Multi-Pole Breaker Lockout
1 44-783
Universal 120/277V Breaker
Lockouts
• Use thumbscrew to clamp lock-
out securely onto switch tongue,
then pull cover over thumbscrew
and lock in place to prevent clamp
from being loosened
• Blade design provides tighter
grip with less torque on thumbscrew
Description Qty. Part No.
Single-Breaker Lockouts
3 44-809
Cleat for Single-Pole Breaker
Lockouts
3 44-785
Single-Pole Breaker Lockouts 50 44-1809
Large Breaker Lockout
• Designed to lockout large
480/600V breaker switches
up to 2-1/2 in. wide and
7/8 in. thick
• Easy to install — no tools required
Description Qty. Part No.
Large Breaker Lockout
1 44-823
Oversized Circuit Breaker Lockout System
• Unique Lockout
system for over-
sized 480/600V
circuit breakers
• System can be
permanently installed
into an electrical panel putting all lockout
items at the point of need
• Easy installation of adhesive mounting rails –
no tools required
• Pegs in mounting rails mate with holes in
locking arms for security of arm when lock is
in place
• Red arms lock off, green arms lock on
Description Qty. Part No.
Oversized Circuit Breaker
System
1 44-822
Wall Switch Lockouts
• Universal Wall Switch Lockout
locks out both toggle and
Decora
®
wall switches
• Universal design assures switch
is locked on or off. Hinges open
for unobstructed normal
switch operation
• Standard wall switch lockout
fits most wall-mounted single
or three-way electrical switches
Description Qty. Part No.
Universal Wall Switch
1
44-772
Standard Wall Switch 44-789
Decora
®
is a registered trademark of Leviton
Manufacturing Co., Inc.
44-789
44-772
Circuit Breaker Lockout System
• Covers most
120V - 277V
including single-
and multi-pole
configurations
• Makes use of unique
lock rail system,
providing the
following benefits:
- Allows panel door to
be closed even when
lockouts are in place
- Accommodates multiple locks,
facilitating group lockout activity without
hasps
- Keeps weight off the breakers, protecting
delicate electrical components from
damage
- Positions locks and tags outside the panel,
making sure lockout activity is clearly
visible to anyone in the area
• Cables are 2 ft. in length
• Lockout devices constructed of high-impact
Isoplast
®
polymers
• Lock rails made of durable Isoplast
®
polymers with acrylic adhesive backing
• Snap-on – For use on Square D NQO and
other breakers that have a hole in the
switch tongue. Align pins with hole and
snap closed. Pins prevent switch from
being thrown.
• Clamp-on – For use on breakers that do not
have a hole in the switch tongue, including
multiple breakers with tie bars. Turn thumb-
screw to clamp lockout securely onto switch,
then snap the cover closed to prevent thumb
wheel from being loosened.
Description Qty. Part No.
Clamp-on lockout for
breakers without hole in the
switch tongue, including
multi-pole breakers with
tie bars
1
44-764
Snap-on lockout for Square
D NQO and other breakers
with a hole in the switch
tongue
44-768
4 in. Lock Rail with seven
lock loops
44-769
Isoplast
®
is a registered trademark of Lubrizol
Advanced Materials, Inc.
44-764
Clamp-on
44-768
Snap-on
Plug Lockouts
• Accommodates a variety
of electrical plug and cord
sizes to prevent accidental
connection or disconnection
• Durable plastic body resists wear,
chemicals, and job-site abuse
• Accommodates cable ties or padlocks
(with up to 3/8 in. shackles)
Description Size (in.) Part No.
100V 2 x 2 x 3-1/2 44-818
220/550V 3-1/4 x 3-1/4 x 7 44-819
44-819
Adjustable Cable Lockout
• Infinitely adjustable safety
hasp and cable
• Ideal for multiple
circuit breaker panels and
side-by-side gate valve lockouts
• Feed the cable end through the points to
be locked out, then back through the
lockout body. Cinch it tight to remove any
slack with the patented locking feature.
• Tough, flexible multi-stranded 6 ft., 1/4 in.
diameter. steel cable is insulated with a
clear vinyl coating
• Tough, lightweight, dielectric thermoplastic
body withstands chemicals; performs
effectively in extreme conditions
• Up to four workers can apply their personal
safety locks
• Complete with high-visibility, reusable,
write-on safety labels (English, French
& Spanish). Identify the responsible person,
then erase for the next job.
Description Part No.
Adjustable Cable Lockout 44-808
Steel Padlocks
• Rustproofed, steel case with nickel-
plated shackle withstands abuse
and environmental hazards
• Includes two keys
• 1-1/2 in. wide lock with 9/32 in.
shackle diameter
• Keyed-alike and Master Lock
®
Keyed
locks available by special order
Bumper
Color
3/4 In. Shackle
Part No.
2 In. Shackle
Part No.
Blue 44-900 44-901
Red 44-906 44-907
Master Lock
®
is a registered trademark of Master
Lock Company LLC.
480/600V Single/Multi-Pole Breaker
Lockouts
• Use thumbscrew to clamp lock-
out securely onto switch tongue,
then pull cover over thumb-screw
and lock in place to prevent clamp
from being loosened
• Blade design provides tighter
grip with less torque on thumbscrew
Description Qty. Part No.
480/600V Single/ Multi-Pole
Lockout
1 44-807
480/600V Single/Multi-Pole
Lockouts
50 44-1807
Cleat for 480/600V
Single/Multi-Pole Lockouts
2 44-786
Circuit Breaker Lockouts
• Attaches securely to breaker with simple
thumb turn and clamping handle
• 44-956 is designed for breakers with wide
or tall toggles
• 44-957 fits standard height and tie-bar
toggles
• The narrow profile permits side-by-side
breaker lockout
Description Part No.
Circuit Breaker Lockout
44-956
44-957
44-957
44-956
Plug Lockouts
• Plug lockout, 44-792 works with
high and low voltage plugs up
to 3 in. in diameter and
5-1/2 in. in length, up
to 1-1/4 in. cord diameter
• Plug lockout, 44-973 works
with 110V/220V plugs up to 1-3/4 in. in
diameter and 2-1/2 in. in length, up to a
1/2 in. cord diameter
Description Part No.
Plug Lockout 44-792
Plug Lockout 44-793
Electric Plug Lockout
• Slides over cord prongs and locks in
place to prevent cord from
being plugged into an
outlet
• Cannot be removed without key
• Works on any 2- or 3-prong plug
Description Part No.
Electric Plug Lockout 44-782
Cable Lockout
Description Part No.
Cable Lockout, 6 ft. cable 44-829
• Unique hasp lockout
device accepts up to
six 9/32 in. padlocks and
comes with a 6 ft. plastic-coated steel cable
Ball Valve Lockout Devices
• Best available method
for locking out ball valves
• Patented design fits most
major brand ball valves
• Designed to lock in off position only
• Complies with OSHA lockout standard
44-847
Valve Size
(in.)
Max.
Shackle
Length
Material Part No.
1/2 to 1-1/4
— Polypropylene
44-846
1-1/4 to 3 44-847
1/4 to 1
9/32 in.
Nylon 44-820
1-1/4 to 3 Heavy Steel 44-821

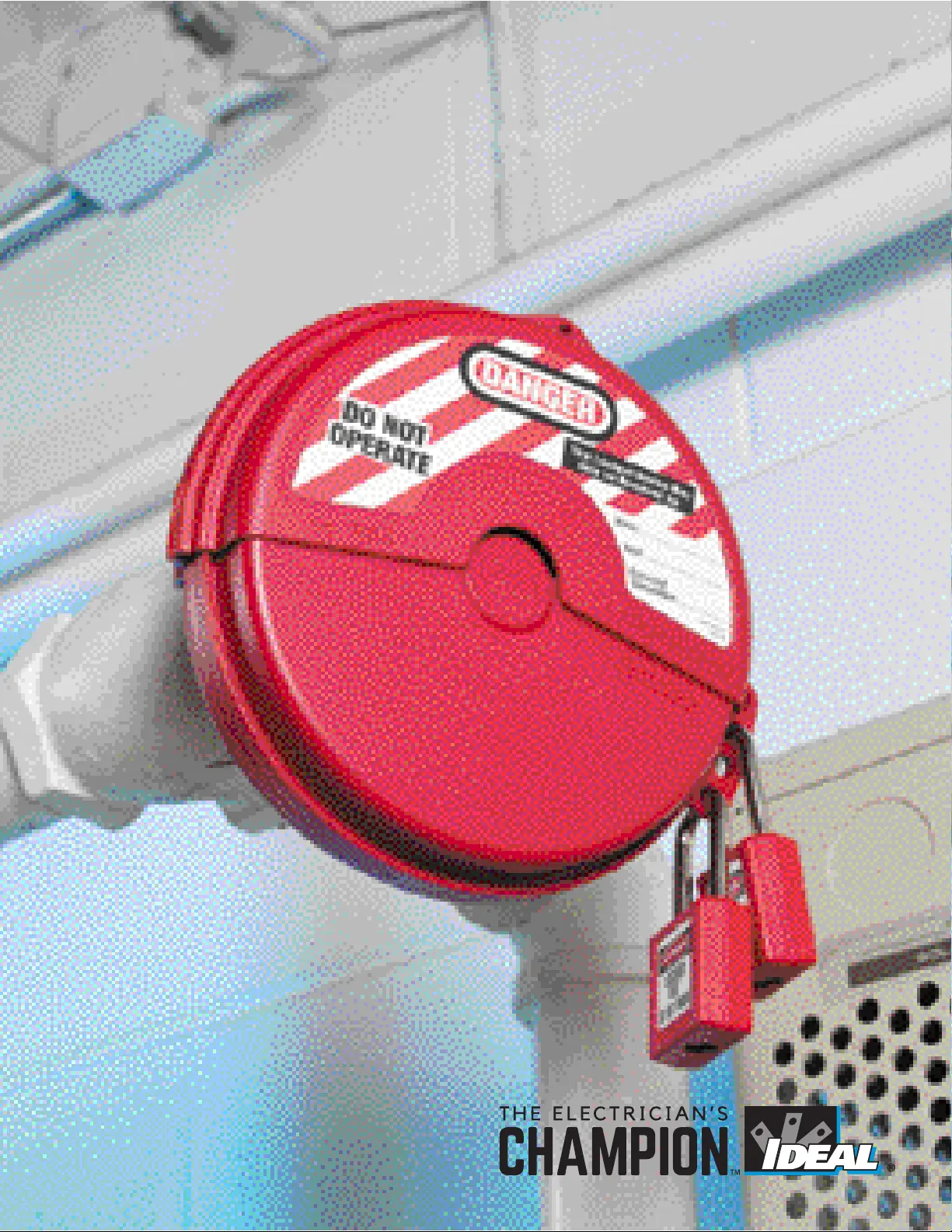

Gate Valve Lockouts
Valve Size Qty. Part No.
1 in. to 3 in.
1
44-824
2 in. to 5 in. 44-825
Set of 5 sizes (1 in. to 13 in.) 44-817
• Unique rotating design allows for easy
installation in confined space applications
• Each size rotates into itself and nests within
the next larger size to save space
• Up to four workers can apply their personal
safety locks
• High-visibility permanent safety labels
(English, French & Spanish) that can
be written on then erased for the next job
• Tough, lightweight, dielectric thermoplastic
bodies withstand chemicals and perform
effectively in extreme conditions,
• Temperature range:
-50°F (-46°C) to +350°F (177°C)
44-824 44-825 44-817
Safety Lockout Padlocks w/Key
Retention
• Dedicated safety lockout
device reduces confusion
with other locks
• Complies with OSHA’s “1-key,
1-lock”
• Non-conductive, lightweight body; four
colors for easy identification
• Key retention ensures keys do not get lost
while not in use
• 1-1/2 in. shackle clearance; 1-1/2 in. wide
lock with 1/4 in. shackle
• Keyed-alike, Master Lock
®
Keyed locks,
2nd key, additional colors available by
special order
Bumper Color Part No.
Blue 44-912
Black 44-914
Red 44-916
Yellow 44-918
Master Lock
®
is a registered trademark of Master
Lock Company LLC.
Lock Labels
• Easy identification of
employee’s locks
• Write-on, vinyl labels
with peel-off adhesive backing
• Polyester over laminate protects label
Description Qty. Part No.
Lock Labels 8 labels 44-898
Safety Lockout Hasps
• Rustproofed, plated
and vinyl-coated
• Labeled hasps feature anodized
aluminum alloy construction for
long-term durability
Jaw Diameter Qty. Part No.
1 in. 3 44-800
1-1/2 in. 2 44-801
44-801
Labeled Safety Lockout Hasps
• Allow up to six workers to lock
out a single energy source
• Permanent “Do Not Operate”
labels accept pens, pencils,
and permanent markers
Description Color Qty. Part No.
Do Not Operate
Blue 1 44-790
Red 1 44-791
Red 50 44-1791
44-790
Heavy-Duty Lockout Tags
• High-visibility lettering
• Laminated plastic tags have non-fade
legends, resist corrosive and harsh
environmental conditions
• Vinyl tags are silk screened with a 7/8 in.
metal grommet; fastener included
• Exceeds OSHA’s 50-lb. pullout requirement
• Matte finish for easy writing surface
Description
Qty.
Part No.
Do Not Operate
5/card 44-830
100/box 44-1830
Do Not Operate -
Electricians at Work
5/card 44-832
Do Not Operate -
(red striped
background)
5/card 44-833
100/box 44-1833
Description
Qty.
Part No.
Do Not Operate 25/bag 44-848
Do Not Operate -
Electricians at Work
25/bag 44-843
Do Not Operate - (red
striped background)
25/bag 44-849
Heavy-Duty Laminated
Economy Vinyl
