Side 1/72

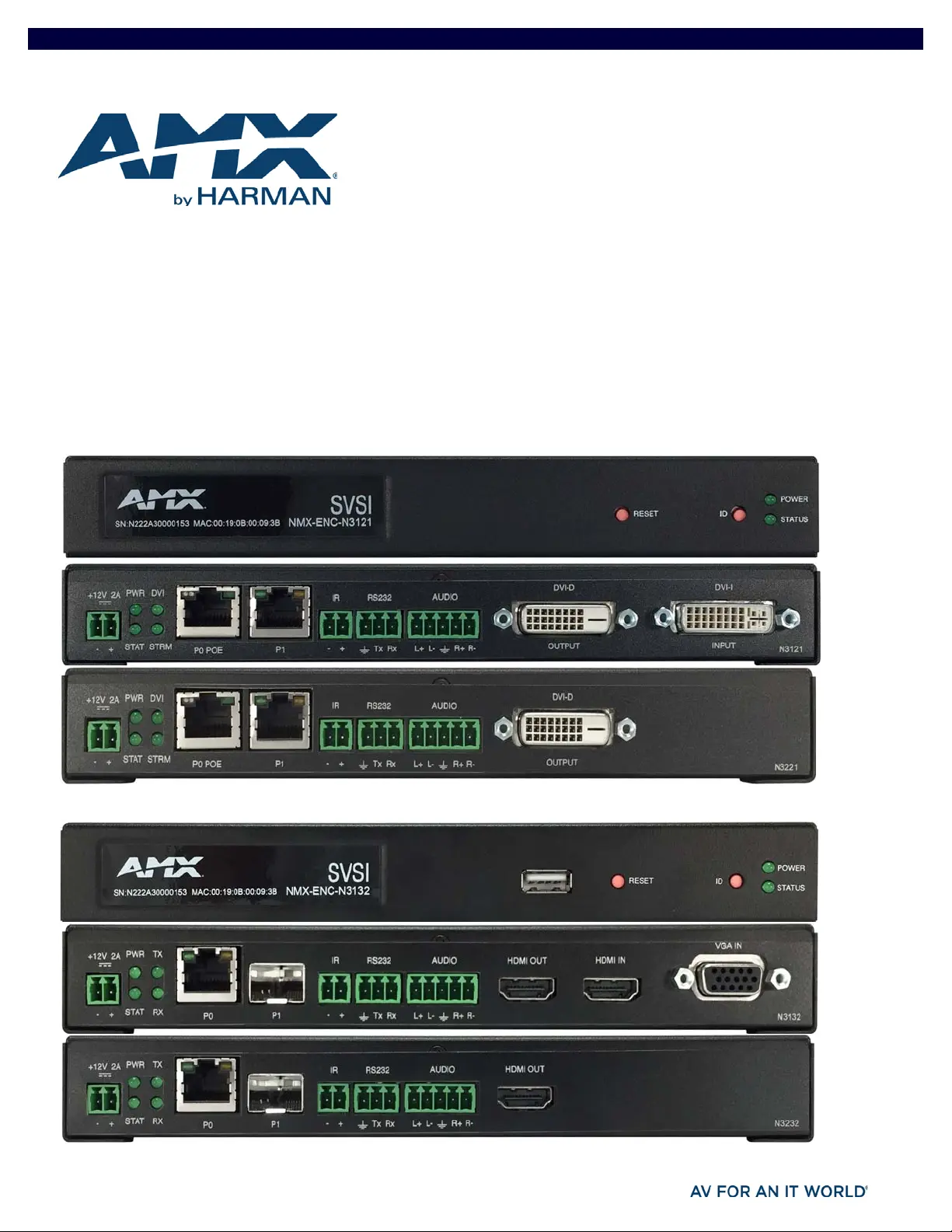

INSTRUCTION MANUAL

SVSI N3000 SERIES ENCODERS/DECODERS

WAN H.264 VIDEO OVER IP

DIGITAL MEDIA DISTRIBUTION & SWITCHING SOLUTION

NMX-ENC-N3121, NMX-DEC-N3221, NMX-ENC-N3132, AND NMX-DEC-N3232

IMPORTANT SAFETY INSTRUCTIONS

means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AMX. Copyright protection claimed

extends to AMX hardware and software and includes all forms and matters copyrightable material and information now allowed by statutory or judicial

law or herein after granted, including without limitation, material generated from the software programs which are displayed on the screen such as

icons, screen display looks, etc. Reproduction or disassembly of embodied computer programs or algorithms is expressly prohibited.

LIABILITY NOTICE

No patent liability is assumed with respect to the use of information contained herein. While every precaution has been taken in the preparation of this

publication, AMX assumes no responsibility for error or omissions. No liability is assumed for damages resulting from the use of the information

contained herein. Further, this publication and features described herein are subject to change without notice.

AMX WARRANTY AND RETURN POLICY

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that

produce heat.

9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the

other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your

safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

11. ONLY USE attachments/accessories specified by the manufacturer.

12. UNPLUG this apparatus during lightning storms or when unused for long periods of time.

13. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

14. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on

the apparatus.

15. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.

16. Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

17. DO NOT overload wall outlets or extension cords beyond their rated capacity as this can cause electric shock or fire.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous

voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

ESD Warning: The icon to the left indicates text regarding potential danger associated with the discharge of static electricity from an outside

source (such as human hands) into an integrated circuit, often resulting in damage to the circuit.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources - such as candles - should be placed on the product.

WARNING: Equipment shall be connected to a MAINS socket outlet with a protective earthing connection.

WARNING: To reduce the risk of electric shock, grounding of the center pin of this plug must be maintained.

Produkt Specifikationer

Mærke:	AMX
Kategori:	Digital dekoder
Model:	NMX-DEC-N3232-C
Bredde:	200.4 mm
Dybde:	127 mm
Højde:	26.7 mm
Vægt:	700 g
Produktfarve:	Black, Green
Understøttede videotilstande:	480p, 576p, 720p, 768p, 1080i, 1080p
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	1
Understøttede videoformater:	H.264
Driftstemperatur (T-T):	0 - 40 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Understøttede grafikopløsninger:	640 x 480 (VGA),720 x 480,720 x 576,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Certificering:	FCC, CE, NTRL
Kabelteknologi:	10/100/1000BaseE-T(X)
DC-in-stik:	Ja
LED-indikatorer:	Power, Reset, Status
Maksimal videoopløsning:	1920 x 1080 pixel
Maksimum billedhastighed:	60 fps
Ethernet-grænsefladetype:	Gigabit Ethernet
Antal kanaler:	2 kanaler
Antal HDMI-udgange:	1
Stativ-montering:	Ja
RS-232-porte:	1
Rackkapacitet:	2U
