Side 1/1

INP UT

GAI N

Bas s

0dB

6dB 12dB

18dB

10. Balanced 4.4mm analogue input

This is a balanced analogue input.

11. Single-ended 3.5mm input

For connecting single-ended 3.5mm input.

12. RCA analogue input

This is an analogue input.

13. Balanced 4.4mm analogue output

This i s an analog ue ou tput v ia 4.4mm > XLR or other ba lanced

inte rconn ec ts. You cou ld us e this fo r an active speaker.

Tip: As ZEN CAN is balanced, this is the recommended output.

14. DC 5V power

Please connect ZEN CAN to the enclosed power supply,

ZEN CAN must ONLY be powered by 5 volts.

Tip: For best performance upgrade the enclosed power supply to a super-low

noise power adapter such as iFi iPower or iPower X.

Specifications

Input voltage: DC 5V/2.5A

AC 100 -240V, 50/60Hz (Power supply included)

Max Output:

Balanced: >15.1V/385 mW (@ 600 Ohm)

>11.0V/1890 mW (@ 64 Ohm)

>6.2V/1200 mW (@ 32 Ohm)

S-E: >7.6V/98 mW (@ 600 Ohm)

>7.4V/870 mW (@ 64 Ohm)

>7.2V/1600 mW (@ 32 Ohm)

THD & N:

Balanced: <0.006% (@ 360 mW/2.4V 16 Ohm)

S-E: <0.005% (@ 100 mW/1.27V 16 Ohm)

SNR:

Balanced: >120dBA (@ 15.2V)

S-E: >118dBA (@ 7.6V)

Max. Input:

Balanced: 7.4V RMS

RCA: 3.8V RMS

3.5mm: 1.92V RMS

Gain: 0dB, 6dB, 12dB and 18dB

Frequency Response: 10Hz - 200kHz (-3dB)

Power consumption: No Signal ~5W

Max Signal ~13W

Dimensions: 158 x 117 x 35 mm

6.2" x 4.6" x 1.4"

Net weight: 515 g (1.14 I bs)

Warranty period: 12 months

Specications are subject to change without notice.

2 4 6

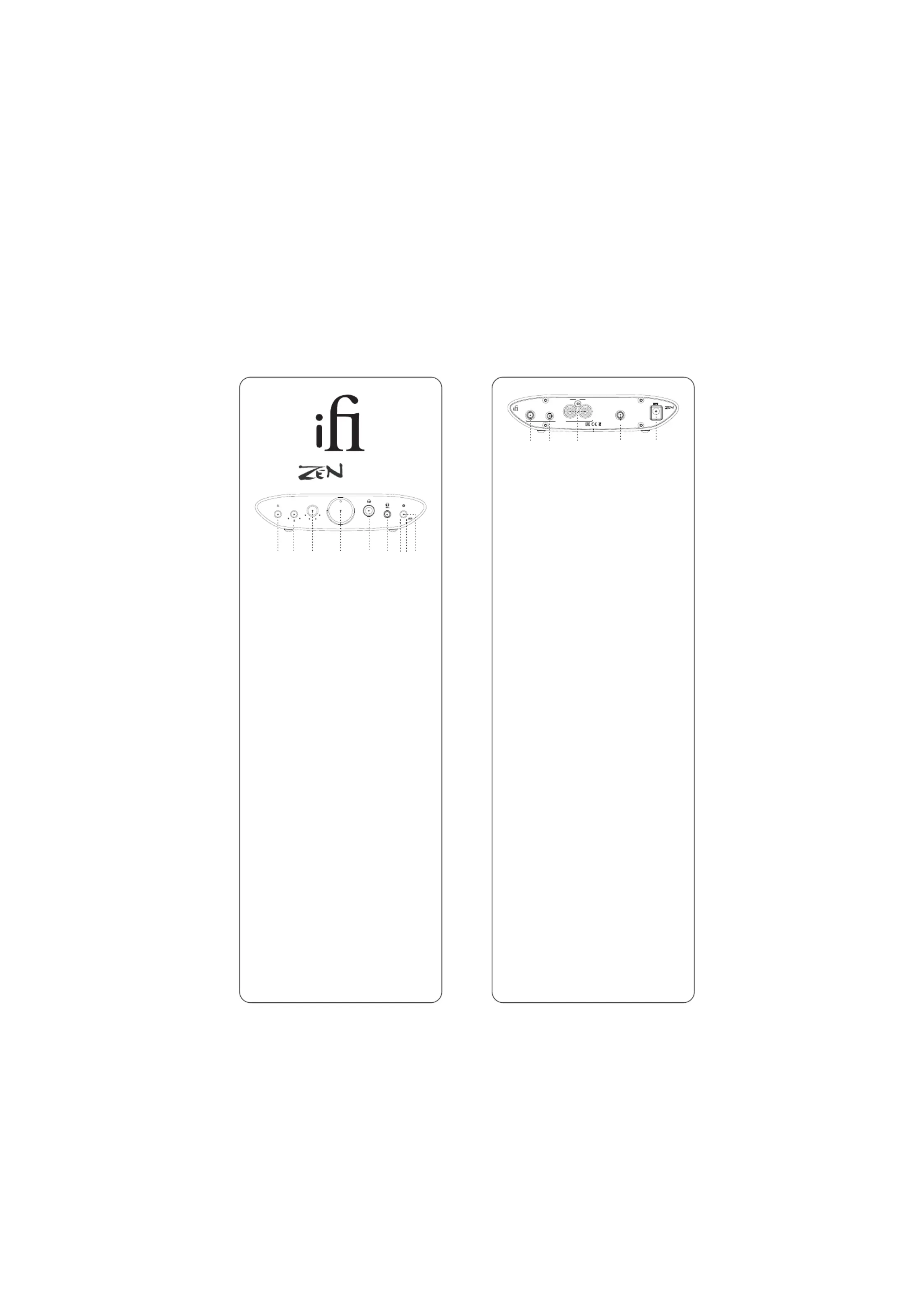

Thank you for purchasing the CAN from ZEN series. The CA N is a

balanced audio amplifier.

1. Power switch

Press and hold button for two seconds to turn on.

2. Input channel switch

Use the button to choose between the following input options:

Input 1: RCA

Input 2: Single -ended 3.5mm

Input 3: Balanced 4.4mm

3. Gain selection: 0dB/6dB/12dB/18dB

Always start from 0dB and then increase the gain level to attain an

enjoyable and comfortable level of volume from the headphones.

Warning: at the outset do not use excessive gain, otherwise damage to hearing

or connected headphones may ensue. A MR/iFi audio is not responsible for any

damage/injury from misuse.

4. Analogue Volume Control

At normal listening levels, the volume control should be around the 12

o'clock position. Increase the gain level to enjoy a higher listening level.

5. Single-ended 6.3mm output

For connecting single-ended 6.3mm headphones. With single-ended

3.5mm headphones, connect with a 3.5mm to 6.3mm adapter.

6. Balanced 4.4mm analogue output

For connecting balanced 4.4mm headphones.

Tip: As ZEN C AN is balanced, we recommend the 4.4mm output.

7. XBass® LED

XBass® (On/Off ) was uniquely designed to extend bass response

to suit different headphones. It is a pure analogue signal circuit.

8. 3D® Matrix LED

The 3D® Matrix (on/off ) recreates a holographic sound field.

It is a pure analogue signal processing circuit designed for

listening to headphones as if one was listening to speakers. This

addresses the 'music inside the head' sensation, which makes

for unsettling listening.

Tip: Sonically-hindering DSP is NOT used for XBass® nor 3D® Matrix systems. They

use the highest-quality discrete components and operate purely in the analogue

domain. Hence all the clarity and resolution of the original music is retained.

Ver1.3

ifi-audio.com

1 9

DC 5V

BAL ANCED

Technolo gy lic ensed f rom AMR- Audio, UK A ssem bled in C hina

CAN

BAL ANCED

Out put

Inp uts

SIN GLE

END ED

10 11 12 13 14

53 7 8

9. Settings

This button chooses between:

- Off

- 3D®

- XBass®

CAN
