Side 1/76

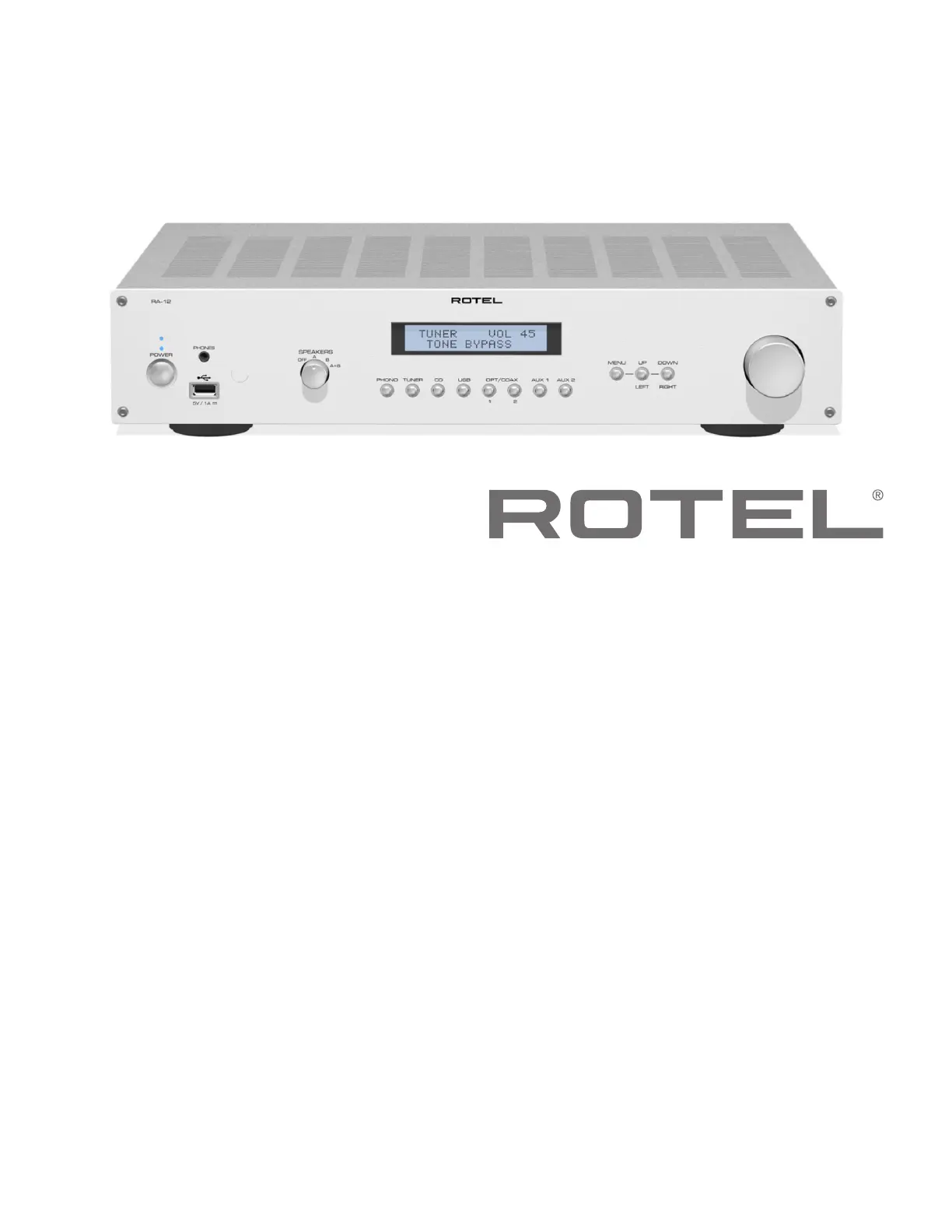

RA-12, RA-11

Stereo Integrated Amplier

Amplicateur Stéréo Intégré

Stereo-Vollverstärker

Amplicador Integrado Estereofónico

Geïntegreerde stereoversterker

Amplicatore integrato stereo

Integrerad stereoförstärkare

Интегрированный стерео усилитель

Owner’s Manual

Manuel de l’utilisateur

Bedienungsanleitung

Manual de Instrucciones

Gebruikershandleiding

Manuale di istruzioni

Instruktionsbok

Инструкция пользователя

RA-12, RA-11 Stereo Integrated Amplifier

WARNING: The rear panel power cord connector is the mains power

disconnect device. The device must be located in an open area that

allows access to the cord connector.

The unit must be connected to a power supply only of the type and

voltage specified on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz)

Connect the component to the power outlet only with the supplied

power supply cable or an exact equivalent. Do not modify the

supplied cable. A polarized plug has two blades, with one wider than

the other. A grounding plug has two blades plus a third grounding

prong. These are provided for your safety. Do not defeat grounding

and/or polarization safety provisions. If the supplied plug does not

fit your outlet, please consult an electrician for replacement of the

obsolete outlet. Do not use extension cords.

The main plug of the power cordset is a disconnect device of the

apparatus. In order to completely disconnect the apparatus from the

supply mains, the main plug of the power cordset should be unplugged

from the mains (AC) outlet.The stand-by LED indicator will not be lit

up to show the power cord is unplugged. The disconnect device shall

remain readily operable.

Do not route the power cord where it will be crushed, pinched, bent,

exposed to heat, or damaged in any way. Pay particular attention to the

power cord at the plug and where the cord exits the back of the unit.

The power cord should be unplugged from the wall outlet during a

lightning storm or if the unit is to be left unused for a long period of time.

Use only accessories specified by the manufacturer.

Use only with a cart, stand, rack, bracket or shelf

system recommended by Rotel. Use caution when

moving the unit in a stand or rack to avoid injury

from a tip-over.

Use Class 2 wiring for speaker connections to ensure proper installation

and minimize the risk of electrical shock.

Immediately stop using the component and have it inspected and/

or serviced by a qualified service agency if:

• The power supply cord or plug has been damaged.

• Objects have fallen or liquid has been spilled into the unit.

• The unit has been exposed to rain.

• The unit shows signs of improper operation.

• The unit has been dropped or damaged in any way.

The batteries in the remote control should not be exposed to excessive

temperature such as sunshine, fire or other heat sources.

Notice

The RS232 connection should be handled by authorized persons only.

WARNING: There are no user serviceable parts inside. Refer all

servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose

the unit to moisture or water. Do not expose the unit to dripping or

splashing. Do not place objects filled with liquids, such as vases, on

the unit. Do not allow foreign objects to get into the enclosure. If the

unit is exposed to moisture, or a foreign object gets into the enclosure,

immediately disconnect the power cord from the wall. Take the unit

to a qualified service person for inspection and necessary repairs.

Read all the instructions before connecting or operating the component.

Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and

on the product itself. Follow all operating instructions.

Clean the enclosure only with a dry cloth or a vacuum cleaner.

Do not use this unit near water.

You must allow a minimum 10 cm or 4 inches of unobstructed

clearance around the unit.

Do not place the unit on a bed, sofa, rug, or similar surface that could

block the ventilation openings. If the unit is placed in a bookcase or

cabinet, there must be ventilation of the cabinet to allow proper cooling.

Keep the component away from radiators, heat registers, stoves, or

any other appliance that produces heat.

Rotel products are designed to comply with international

directives on the Restriction of Hazardous Substances

(RoHS) in electrical and electronic equipment and

the disposal of Waste Electrical and Electronic

Equipment (WEEE). The crossed wheelie bin symbol

indicates compliance and that the products must be

appropriately recycled or processed in accordance

with these directives.

Important Safety Instructions

RA-12

POWER

PHONES

MENU DOWNUP

RIGHTLEFT

OFF B

A+B

SPEAKERS

PHONO TUNER CD USB

1 2

AUX 1 AUX 2OPT/COAX

This symbol means that this unit is double insulated.

An earth connection is not required.

Produkt Specifikationer

Mærke:	Rotel
Kategori:	Modtager
Model:	RA-11
Vekselstrømsindgangsspænding:	120-230 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	430 mm
Dybde:	342 mm
Højde:	72 mm
Vægt:	6390 g
Produktfarve:	Sølv
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	220 W
Frekvensområde:	10 - 95000 Hz
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	- kanaler
Formål:	Hjem
klirfaktor (THD):	0.03 %
Signal/støjforhold:	100 dB
Spidseffekt pr. kanal:	40 W
