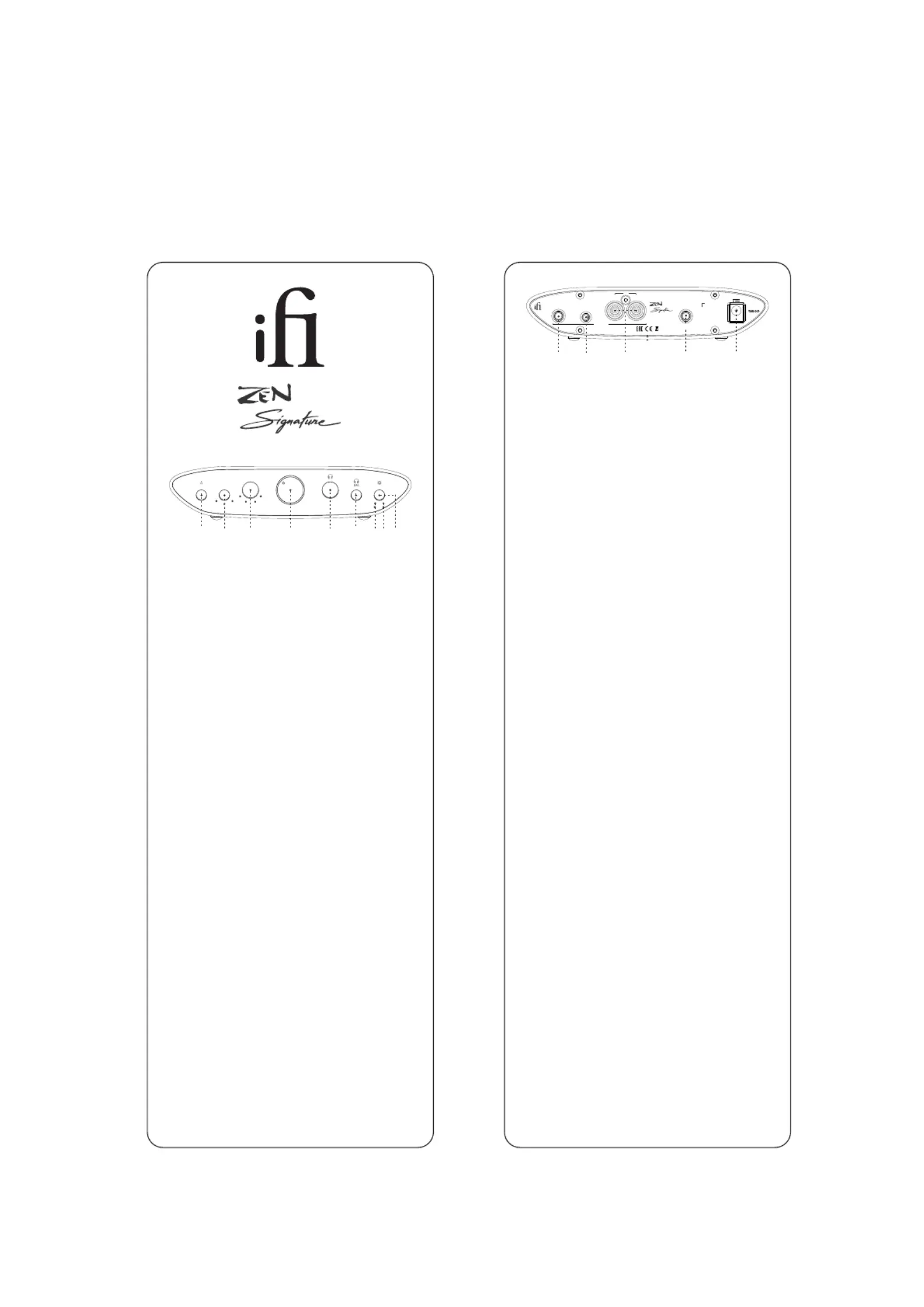

Side 1/1

Ver1.1

ifi-audio.com

CAN

6XX

2 4 61 953 7 8

INP UT

Powe rMatc h

0dB

6dB 12dB

18dB

DC 5V

BAL ANCED

Technolo gy lic ensed f rom AMR- Audio, UK A ssem bled in C hina

BAL ANCED

Out put

Inp uts

SIN GLE

END ED

10 11 12 13 14

Des igned

for

CAN

6XX

10. Balanced 4.4mm analogue input

This is a balanced analogue input.

11. Single-ended 3.5mm analogue input

For connecting single -ended 3.5mm input.

12. RCA analogue input

This is an analogue input.

13. Balanced 4.4mm analogue output

This is an analogue output via 4.4mm > XLR or other balanced

interconnects. You could use this for an active speaker.

Tip: As the ZEN CAN 6XX is balanced, this is the recommended output.Signature

14. DC 5V power

Please conne ct the ZEN CAN 6XX to the enclose d Signature

power supply, the super-si len t iPower X. The ZEN C AN

Signature 6XX mus t ONLY be powered by 5 volts.

Specifications

Input voltage: DC 5V/2.5A

AC 100 -240V, 50/60Hz (iFi iPower X included)

Max Output:

Balanced: >15.1V/385 mW (@ 600 Ohm)

>11.0V/1890 mW (@ 64 Ohm)

>6.2V/1200 mW (@ 32 Ohm)

S-E: >7.6V/98 mW (@ 600 Ohm)

>7.4V/870 mW (@ 64 Ohm)

>7.2V/1600 mW (@ 32Ohm)

THD & N:

Balanced: <0.006% (@ 360 mW/2.4V 16 Ohm)

S-E: <0.005% (@ 100 mW/1.27V 16 Ohm)

SNR:

Balanced: >121dBA (@ 15.2V )

S-E: >120dBA (@ 7.6V)

Max. Input:

Balanced: 7.4V RMS

RCA: 3.8V RMS

3.5mm: 1.92V RMS

Gain: 0dB, 6dB, 12dB and 18dB

Frequency Response: 10Hz - 200kHz (-3dB)

Power consumption: No Signal ~5W

Max Signal ~12W

Dimensions: 158 x 117 x 35 mm

6.2" x 4.6" x 1.4"

Net weight: 550 g (1.21 Ibs)

Warranty period: 12 months

Specications are subject to change without notice.

9. Settings

This button chooses between:

- Off

- HD 6XX

- XSpace®

HD6XX

XSpace

Thank you for purchasing the CAN Signature 6XX from ZEN

series. The CAN Signature 6XX is a balanced headphone

amplifier optimized for Sennheiser HD 6XX headphones.

1. Power switch

2. Input channel switch

Input 1: R CA

Input 2: Single-ended 3.5mm

Input 3: Balanced 4.4mm

3. PowerMatch selection: 0dB/6dB/12dB/18dB

We recommend to star t from 0d B and then increase the

switchable gain level to attain an enjoyable and comfortable

level of volume from the headphones.

Warning: at the outset do not use excessive gain, otherwise damage to hearing

or connected headphones may ensue. AMR/iFi audio is not responsible for any

damage/injury from misuse.

4. Analogue Volume Control

At normal listening levels, the volume control should be around the 12

o'clock position. Increase the gain level to enjoy a higher listening level.

5. Single-ended 6.3mm output

For connecting single-ended 6.3mm headphones. With single-ended

3.5mm headphones, connect with a 3.5mm to 6.3mm adapter.

6. Balanced 4.4mm analogue output

For connecting balanced 4.4mm headphones.

Tip: As the Sennheiser HD 6XX headphones use balanced design, we recommend

the 4.4mm balanced output.

7. HD 6XX LED

Headphone corrections optimized for Sennheiser HD 6XX headphones.

8. XSpace® Matrix LED

The XSpace® Matrix(on/off ) recreates a holographic sound

field. It is a pure analogue signal processing circuit designed for

listening to headphones as if one was listening to speakers. This

addresses the 'music inside the head' sensation, which makes

for unsettling listening.

Tip: Sonically-hindering DSP is NOT used for HD 6XX nor XSpace® Matrix systems.

They use the highest-quality discrete components and operate purely in the analogue

domain. Hence all the clarity and resolution of the original music is retained.
