Installation instruction
ecolink / ecolink fast connect
1© ifm electronic gmbh 11626740 / 01 11 / 2025
ecolink connector

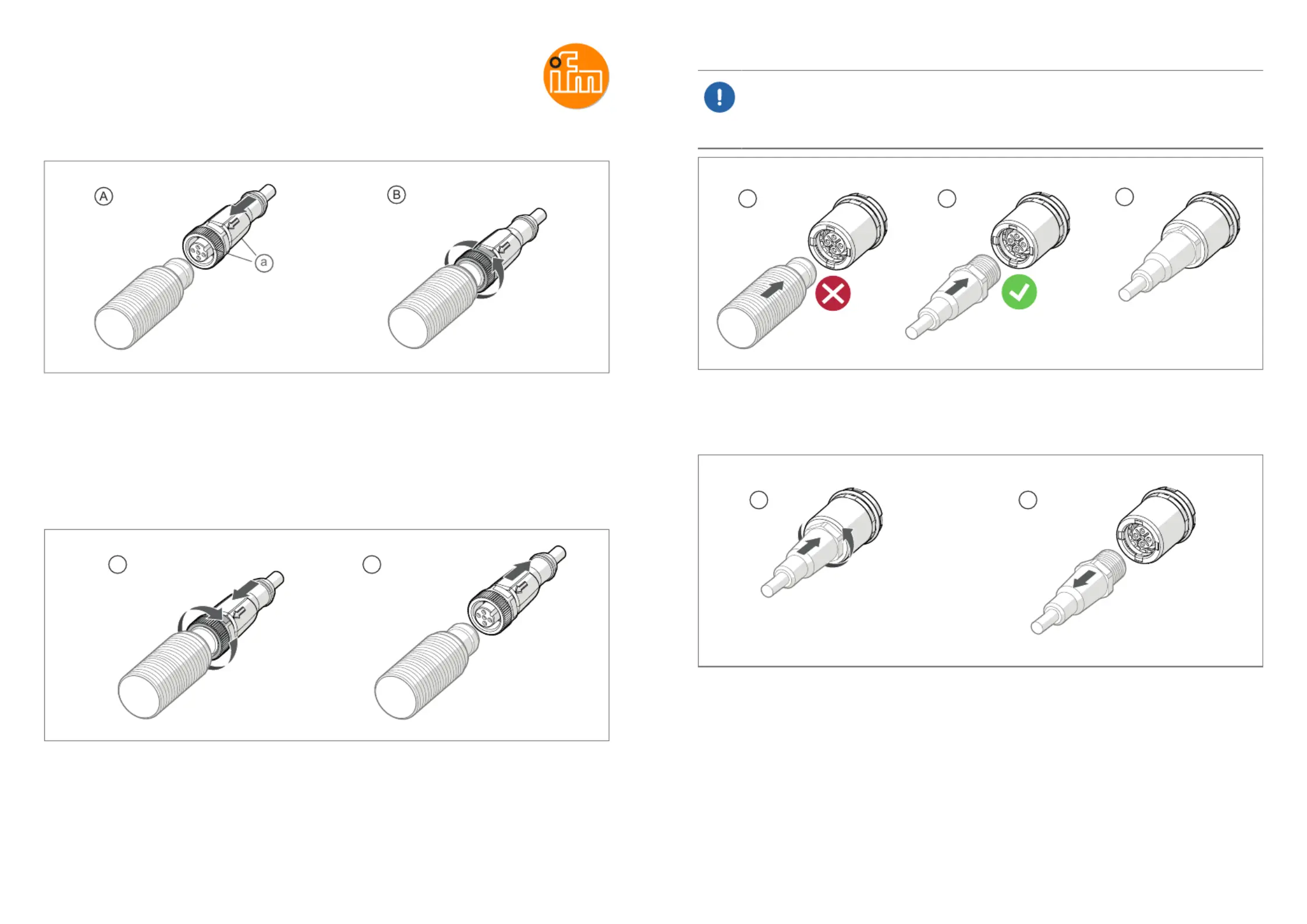

Fig.1: ecolink connector installation
Connect the connector with the device (A).
When doing so, ensure that the coding is positioned correctly.
For M12 connectors, the arrow indicates the position of the keyway (a).
(Optional) For use in harsh environments and with increased shock and vibration resistance:
Tighten the coupling nut one notch further using a spanner. When doing so, do not exceed the maxi-
mum tightening torque (
data sheet) of the counterpart.
B
A
Fig.2: Demounting of the ecolink connector
Press the connector against the unit and simultaneously loosen the coupling nut (A).
Disconnect the connector from the device (B).
ecolink fast connect
ATTENTION
Only use connectors with threaded sleeves.
Using unsuitable connectors may damage the terminals.
Click
B
A
C
Fig.3: ecolink Fast Connect installation
Do not use unsuitable connectors (A).
Press the threaded sleeve of the connector into the device (B).
Push past the spring resistance until the end position is reached (C).
B
A
Fig.4: Demouting of the ecolink fast connect
Press the connector against the unit and simultaneously loosen the coupling nut (A).
Disconnect the connector from the device (B).
