Thank you for purchasing an Infinity Beta Eight
8" Subwoofer. You’ve selected a premium product
that offers superior performance and advanced
materials, resulting from over 25 years of loud-
speaker design. This Infinity product is made with
our ongoing dedication to create the best consumer
audio products possible. As a result, you can expect
your new Beta Subwoofer to provide you with many
years of listening enjoyment.
We have included three enclosure types — sealed,
vented, and single-reflex bandpass —with three dif-
ferent alignments (i.e., tuning preferences) for each
box. Please refer to the discussion in Subwoofer
Enclosure Trade-Offs and associated performance
graphs (on the inside pages) to select a desired
enclosure type and alignment.
Each Infinity Beta Eight 8" Subwoofer is covered by
our full three-year parts and labor warranty (see
back page). Keep your original dated bill of sale in
IMPORTANT: Installation of automotive stereo
components can require extensive experience in
dealing with a variety of electrical, and
mechanical procedures, including subwoofer
box building. Although these instructions
explain how to install a Beta Subwoofer in a
general sense, they do not show the exact instal-
lation methods for your particular vehicle. If
you do not have the experience, do not attempt
the installation yourself; instead ask your
Authorized Infinity Car Audio Dealer about
professional installation options.
PRECAUTIONS
• Always wear protective eyewear when using tools.
• Turn off all audio systems and other electrical
devices before starting the installation.
• Disconnect the (–) negative lead from your vehi-
cle’s battery.
E i g h t 8 " S u b w o o f e r
I N S T R U C T I O N S
• Locate and note all fuel lines, hydraulic brake
lines, and electrical wiring. Use extreme caution
when cutting or drilling in and around these areas.
• Check clearances on both sides of a planned
mounting surface before drilling any holes or
installing any screws.
T PHIELE-SMALL ARAMETERS
F
REE
-A
IR
R
ESONANCE
: F
S
(H
Z
) 26.00
C
OMPLIANCE
V
OLUME
: V
AS
(
FT
3
) 1.50
V
AS
(
LITERS
) 42.00
M
ECHANICAL
Q: Q
MS
7.69
E
LECTRICAL
Q: Q
ES
0.26
T
OTAL
Q: Q
TS
0.25
M
AXIMUM
E
XCURSION
: X
MAX
(
IN
) 0.37
X
MAX
(
MM
) 9.50
V
OICE
C
OIL
D
C
R
ESISTANCE
: R
E
(
OHMS
) 3.00
SPECIFICATIONS
D
IAMETER
: 8" (203.2
MM
)
S
ENSITIVITY
(2.83 V @ 1
M
): 90 dB
P
OWER
H
ANDLING
: 200 W
RMS
F
REQUENCY
R
ESPONSE
: 20 ~ 600 H
Z
N
OMINAL
I
MPEDANCE
: 4
OHMS
D
IMENSIONS
:
LIMITED WARRANTY
THREE YEARS
Beta Series Automotive Speakers, Electronics
HOW LONG IS THIS WARRANTY?
This warranty remains in effect for three years from date of purchase.
WHO IS PROTECTED BY THIS WARRANTY?
This warranty protects the original owner and is not transferable, providing that the product has been pur-
chased in the United States. The original dated bill of sale from an authorized Infinity dealer must be present-
ed whenever warranty service is required. For warranty service outside the United States, contact the Infinity
distributor in the country where the product was purchased.
WHAT IS COVERED BY THIS WARRANTY?
Except as specified below, this warranty covers all defects in materials and workmanship. The following are
not covered: damage caused by accident, misuse, abuse, product modification or neglect, damage occurring
during shipment, damage from failure to follow instructions contained in the instruction manual, damage
resulting from the performance of repairs by someone not authorized by Infinity, or any claims based on mis-
representations by the seller. This warranty does not cover incidental or consequential damages. It does not
cover the cost of removing or reinstalling the unit.
You are responsible for transporting your product for repair. However, Infinity will pay return charges if the
repair is covered under warranty. Outside the United States, please contact your local distributor.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts, so the above may not apply to you.
PLEASE MAKE NOTE OF THE FOLLOWING
INFORMATION AND RETAIN FOR YOUR RECORDS:
Product Name: __________________________________ Model Number:_____________________________________
Store Name And Phone: _______________________________________________________________________________
Date of Purchase: _____________________________________________________________________________________
®
Infinity Systems, Inc.
•
20630 Nordhoff Street
Chatsworth, CA 91311, USA
•
VOICE (818) 407- 0228 • FAX (818) 709 -9486
®
Infinity Systems, Inc.
•
20630 Nordhoff Street
Chatsworth, CA 91311, USA
•
VOICE (818) 407- 0228 • FAX (818) 709 -9486

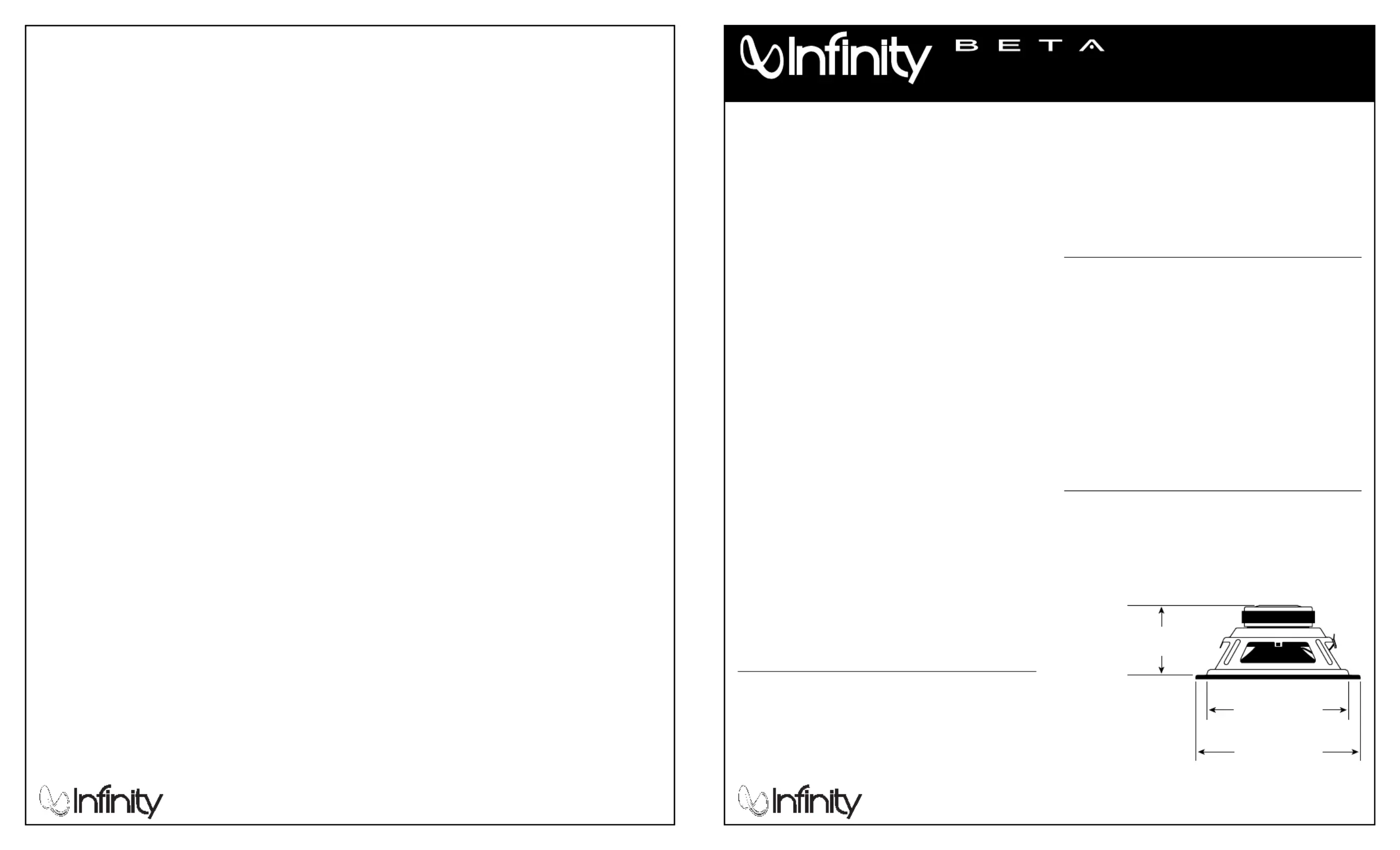

mounting depth
3.625" (92.08 mm)
cutout diameter
7.28" (184.91 mm)
outer diameter
8.78" (223.01 mm)
Printed In Japan
BETA IGHTE VENTED NCLOSUREEBETA IGHTE SEALED NCLOSUREE
V
BOX
=
Box Volume
(see responses below)
Beta Eight
(side view)
Port
D = diameter
(see responses
below)
L = length
(see responses
below)
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Vented Enclosure – Flat Response
10
-30
-20
-10
0
Free-Field
V
BOX
*= 0.50 ft
3
L = 7.10"
D = 2.00 "
Close-Field
(
In Car
)
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Vented Enclosure – Enhanced Response
10
-30
-20
-10
0
Free-Field
Close-Field
(
In Car
)
V
BOX
*= 0.75 ft
3
L = 2.90 "
D = 2.00 "
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Vented Enclosure – Extended Response
10
-30
-20
-10
0
NOT RECOMMENDED
V
BOX
=
Box Volume
(see responses below)
Beta Eight
(side view)
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Sealed Enclosure – Flat Response
10
-30
-20
-10
0
Free-Field
Close-Field
(
In Car
)
V
BOX
*= 0.25 ft
3
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Sealed Enclosure – Enhanced Response
10
-30
-20
-10
0
NOT RECOMMENDED
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Sealed Enclosure – Extended Response
10
-30
-20
-10
0
Free-Field
Close-Field
(
In Car
)
V
BOX
*= 0.40 ft
3
BETA IGHTE SINGLE EFLEX ANDR B -PASS NCLOSUREE
V
BOXR
=
Box Volume Rear
(see responses below)
V
BOXF
=
Box Vol. Front
(see below)
Beta Eight
(side view)
Port
D = diameter
(see responses
below)
L= length
(see
responses
below)
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Band-Pass Enclosure – Flat Response
10
-30
-20
-10
0
Free-Field
Close-Field
(
In Car
)
V
BOXF
*= 0.32 ft
3
V
BOXR
*= 0.40 ft
3
L = 4.40"
D = 2.00 "
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Band-Pass Enclosure – Enhanced Response
10
-30
-20
-10
0
NOT RECOMMENDED
dB (Normalized)
Freq.
(Hz)
100 50050 1k
Beta Eight Band-Pass Enclosure – Extended Response
10
-30
-20
-10
0
Free-Field
Close-Field
(
In Car
)
V
BOXF
*= 0.35 ft
3
V
BOXR
*= 0.60 ft
3
L = 4.50"
D = 2.00 "

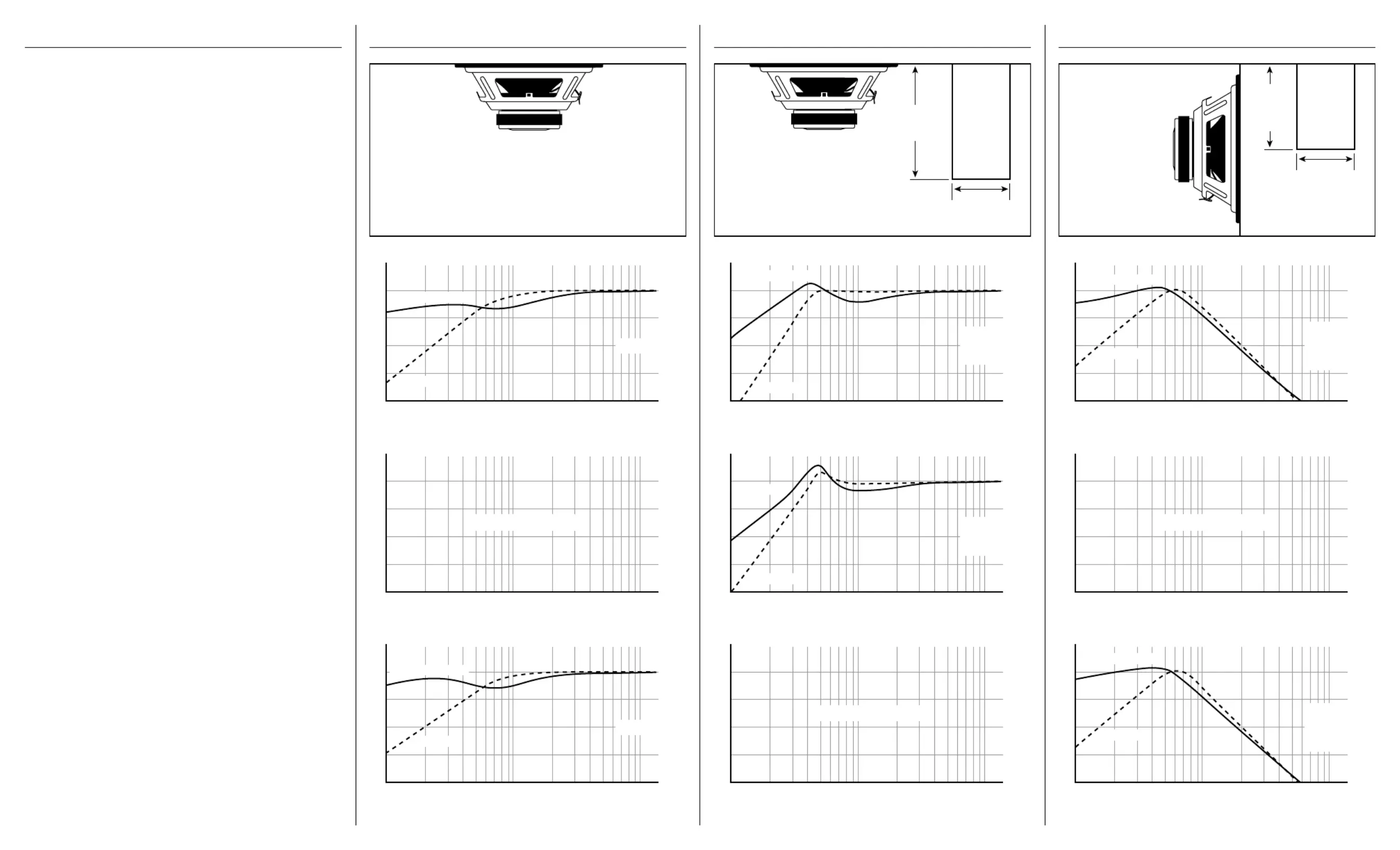

S E TUBWOOFER NCLOSURE RADE OFFS-
Subwoofer enclosures are classified as sealed (acoustic
suspension) or ported (bass-reflex), and can be built in
many configurations. Here we discuss three popular box
types and encourage you to compare their response
curves, noting the differences in Beta Eight output level
and frequency response versus volume in sealed, vent-
ed, and single-reflex band-pass enclosures.
A sealed enclosure is the smallest and simplest to build,
with high power handling, good phase coherence, and
the most predictable response, at the expense of some-
what diminished sound output. If amplifier power is not
a concern, this is the best choice for most systems, pro-
viding the highest output at the lowest frequencies.
A vented enclosure adds a port (or vent) tuned to the
speaker’s resonance in the box to help boost sound out-
put by “tuning” the rear sound waves so they add to the
front ones. It is more efficient than a sealed box above
the tuned frequency, but more difficult to build properly.
For frequencies below the tuned range, output is less-
ened due to sound cancellation, and there is a 180-
degree phase shift at the tuned frequency. Other draw-
backs are the increased box size for the added port and
diminished power handling due to woofer over-excur-
sion at frequencies below the tuned frequency.
A single-reflex band-pass enclosure counteracts the
sound cancellation properties in vented designs by iso-
lating the subwoofer from the port within its own enclo-
sure. It offers higher power handling, and an automatic
band-pass response to help roll off higher frequencies.
However, it has a 180-degree phase shift at the tuned
frequency. Also, complexity and size are increased, due to
separate front and rear chambers, and it requires
adding substantial midbass drivers elsewhere in the car.
We recommend a sealed enclosure for the Beta Eight.
Depending on your taste in music, you can select a box
volume for a flat, enhanced, or extended bass response
(see graphs on right). The flat response is optimum for
all enclosures and types of music. The enhanced sealed
box provides a “tighter” bass, great for rock and rap. An
enhanced vented box has increased output, but with
diminished transient response and power handling. The
extended sealed box is more efficient at the lowest fre-
quencies, providing added bass boost for jazz and classi-
cal music, but with diminished power handling. The
extended response curve provides the best power han-
dling for vented enclosures.
For more help, please call Infinity technical support at:
(800) 553-3332
*If filling is desired, reduce box volume by 20%. *If filling is desired, reduce box volume by 20%. *If filling is desired, reduce box volume by 20%.

Produkt Specifikationer

Mærke: Infinity
Kategori: Subwoofer
Model: Beta 8

Har du brug for hjælp?

Hvis du har brug for hjælp til Infinity Beta 8 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Subwoofer Infinity Manualer

Infinity

Infinity SW-10 Manual

23 Juli 2025
Infinity

Infinity Beta 15 Manual

22 Juli 2025
Infinity

Infinity BU-1 Manual

22 Juli 2025
Infinity

Infinity BU-80E Manual

22 Juli 2025
Infinity

Infinity Beta 10DVC Manual

22 Juli 2025
Infinity

Infinity Kappa 100W.BR Manual

21 Juli 2025
Infinity

Infinity Reference 800W.BR Manual

21 Juli 2025
Infinity

Infinity Kappa Perfect 12VQ Manual

21 Juni 2025
Infinity

Infinity Kappa 1010M Manual

21 Juni 2025
Infinity

Infinity Kappa 1050M Manual

21 Juni 2025

Subwoofer Manualer

Nyeste Subwoofer Manualer

Klipsch

Klipsch ProMedia SWS Manual

12 August 2025
RCF

RCF FLB60673 Manual

12 August 2025
Black Hydra

Black Hydra Delta 10S Manual

12 August 2025
RCF

RCF CMR-S 60T Manual

12 August 2025
RCF

RCF FLB60676 Manual

12 August 2025
RCF

RCF SUB 15-AS Manual

12 August 2025
RCF

RCF SUB 18-AS Manual

12 August 2025
Yamaha

Yamaha VXC8SB Manual

9 August 2025
PreSonus

PreSonus Eris Pro 10 Manual

6 August 2025
Ground Zero

Ground Zero GZRB 20SPL-ACT Manual

6 August 2025
