Side 1/4

reference series

4012i,5012i,6012i,6012si,9612i,

9613i,3012cf,6412cf,6412cfp,6812cf

reference series

THANK YOU for purchasing Infinity’s Reference

Series multielement automotive loudspeakers.

We’ve organized this manual to make their

installation as simple and trouble-free as possible.

Please read it thoroughly before proceeding.

Remember to keep your sales receipt with this

manual in a safe place so both are available for

future reference.

IMPORTANT: Installation of automotive stereo

components can require extensive experience

with a variety of mechanical and electrical

procedures. Although these instructions

explain how to install Reference Series speakers

in a general sense, they do not show the exact

installation methods for your particular vehicle.

If you do not feel you have the experience, do

not attempt the installation yourself; instead, ask

your authorized Infinity car audio dealer about

professional installation options.

WARNING: Playing loud music in an automobile

can permanently damage your hearing, as well as

hinder your ability to hear traffic. The maximum

volume levels achievable with Infinity speakers,

combined with high power amplification, may

exceed safe levels for extended listening. We

recommend using low volume levels when

driving. Infinity accepts no liability for hearing

loss, bodily injury, or property damage as a result

of use or misuse of this product.

INSTALLATION WARNINGS AND TIPS

• Always wear protective eyewear when using

any tools.

• Turn off all audio components and other

electrical devices before you start. Disconnect

the (–) negative lead from your vehicle’s battery.

• Keep speakers in their package until final

installation. When moving a speaker, always

rest it with the cone or dome facing up. Never

use force to install any speaker.

• Check clearances on both sides of a planned

mounting surface before drilling any holes or

installing any screws. Remember that the

screws can extend behind the surface.

• At the installation sites, locate and make a

note of all fuel lines, hydraulic brake lines,

vacuum lines and electrical wiring. Use

extreme caution when cut

ting or drilling in

and around these areas.

CAUTION: In some cars, fuel tanks may be

located directly beneath the rear deck. Check

for adequate speaker basket clearance before

considering this location!

• Before drilling or cutting holes, use a utility

knife to remove unwanted fabric or vinyl,

to keep material from snagging in a drill bit

or saw.

• For door installations, check the clearance

with the windows throughout the range of the

window’s travel, and verify that a mounted

speaker will not interfere with the window

crank or power window mechanism.

• If mounting speakers elsewhere, check for

clearance around rear deck torsion bars, glove

box or other structural elements.

• Do not mount speakers where they will get wet.

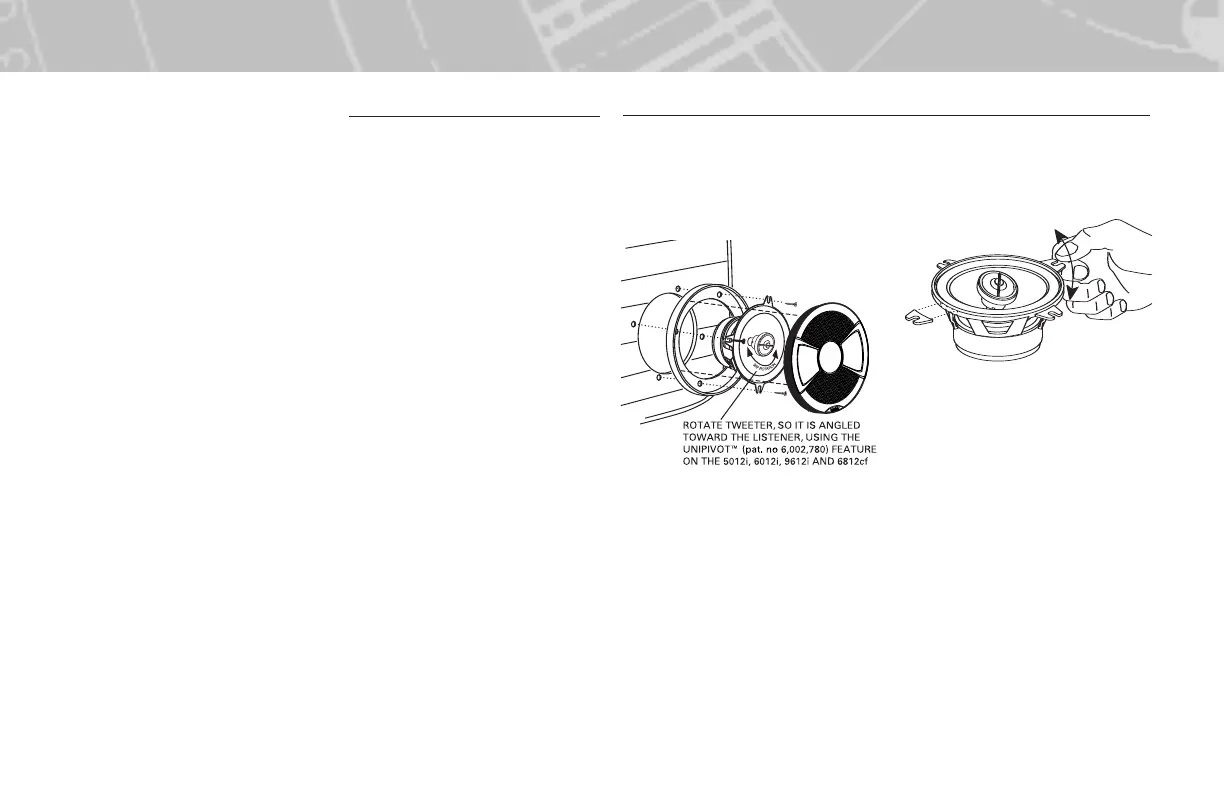

Figure 1. Mounting the Reference Series speakers

using supplied grille.

Note:The 3012cf, 6412cf, 6412cfp and 6812cf

speakers are designed to be installed under

factory grilles. Consequently, no grilles are

packaged with these models.

Note:The 6812cf is intended to replace 5" x 7"

and 6" x 8" speakers.

INSTALLATION

Figure 2. Modifying the 4012i to be installed in

locations requiring fewer than 4 mounting “ears”.

Note: Bend tab back and forth to detach it from

the speaker.
