Side 1/2
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MA RC H 13, 2018 8:49 AM
1

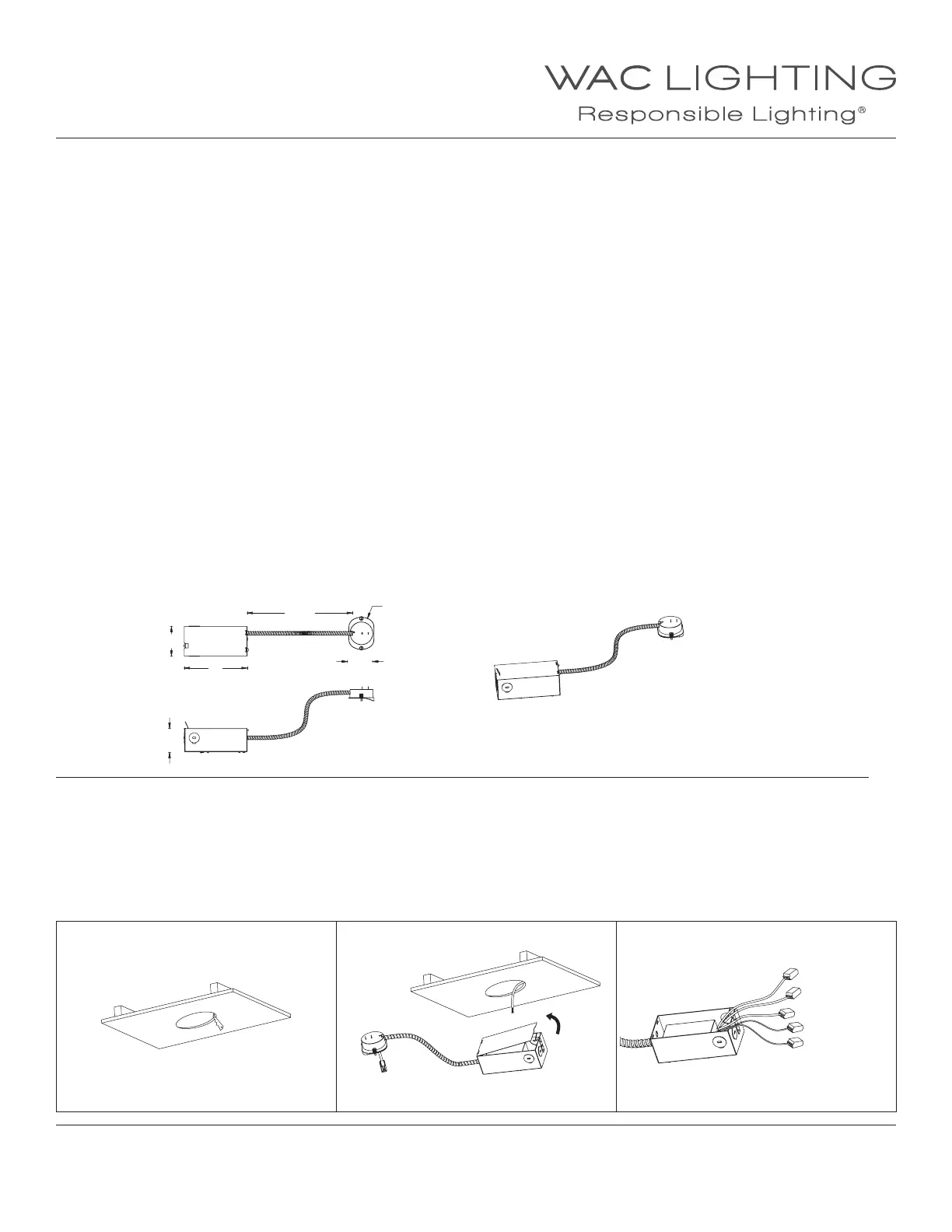

INSTALLATION INSTRUCTION
Aether Function Remodel
HR-3LED-R20
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
• Place the wall switch in the “OFF” position.
• Go to the main fuse box, or circuit breaker. Unscrew the fuse(s) or switch ”OFF” the circuit breaker switch(es) that control the power to
the space that you are working on.
CAUTION:
All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts
that are worn out or broken. Failure to follow this instruction could invalidate the ETL/cETL listing of this xture.
AVERTISSEMENT
IMPORTANT : COUPEZ L’ÉLECTRICITÉ AVANT TOUTE MANIPULATION.
• Lisez toutes les instructions avant d’installer.
• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
• Placez l’interrupteur mural en position d’arrêt (« OFF »).
• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).
MISE EN GARDE
Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez
pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation
ETL/cETL du luminaire.
OVERVIEW:
The housing is remodel NON-IC rated, and requires a trim for functionality. Check catalog for various trim options.
The housing and trim are recommended to used with low voltage ELV dimmer.
* Recommended installation distance from the wall is 18 inches
INSTALLATION:
1. Cut out a hole 4 1/4” in the existing ceiling (Fig 1). Note: 1/2- 1 1/2 inch maximum ceiling thickness.
2. Pull the incoming building wires through the cutout hole (Fig.2).
3. Remove junction box cover and connect xture wires to the incoming building wires. Insert each incoming wire into appropriate junction
box connector. This xture features electronic low voltage (ELV) dimming capabilities. To utilize ELV dimming function, connect black wire
(line hot) and white (line neutral) in accordance to dimmer specications. Connect green xture wire to ground (as Fig.3). To utilize 0-10V
dimming, wire purple (dim+), gray (dim-), black (line hot), white (line neutral) and green (ground) in accordance to dimmer specications.
5½”
2½”
2⁄”
2¼”
2⁄”
24” max
FIG.1 FIG.2 FIG.3
Cut Out 4¼”
Black - Hot
Green - Ground
White - Neutral
Violet - Dim+
Gray - Dim-
