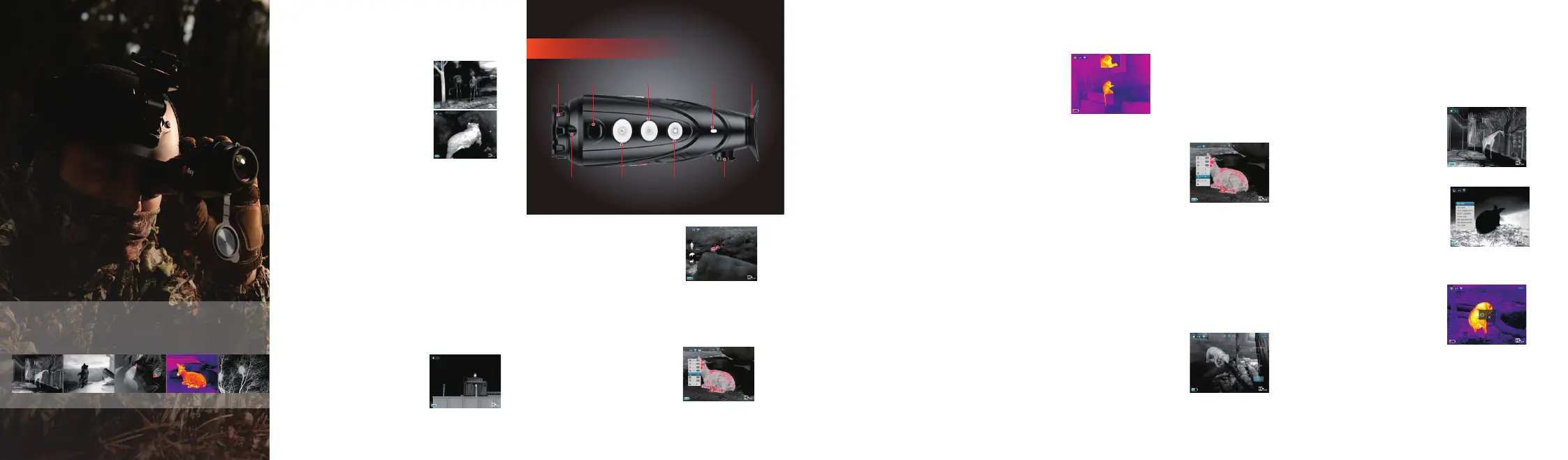

1. Switch On

Turn on the device by pressing the Power button 2s.

The infrared image comes on, stays on, and the LED

indicator is lighted on.

2.Switch Off

The camera will be switched off by long pressing

the Power button and release the button when the

count down timer change from 3 to 0.

3. Standby Mode

When the device is on, short press the Power button

to enter the standby mode with indicator light flickering.

Short press the Power button again to wake up the device

from the standby mode to the normal mode.

5. Switch the Image Mode

Short press the Image Mode button to switch the image mode

from white hot, black hot, red hot, pseudo color, target highlight

mode circularly.

White Hot Black Hot Red Ho t Pseudo Color Highlight

7. E-Zoom

Short press the E-zoom button for image

zooming from 1×-2×-4× circularly.

10. Hot Spot Tracking

Long press the Image Mode button and

Photo button simultaneously to start

hot spot tracking function and the hottest

objects on the screen can be tracked.

×2/×4

6.Laser Indicator

Long press the Image Mode button to call

out laser indicator, meanwhile the cursor

shows on the display screen indicating the

position of 50 meters away. Long press

the button again to turn off the laser

function, and the cursor is changed to the

user cursor. The user can adjust the cursor

position through the cursor calibration

function in the menu. Long press again to

close the user cursor.

8. Storage

In the normal display mode, short press the Photo button to take

photos and long-pressing for video recording. A video time

prompt box appears in the upper-right corner. Long press again

to quit and save the video.

4. Eyepiece Adjustment

The eyepiece adjustment can help user to get the clearest

image for different eye conditions.

9. Stadiametric Rangefinder

Long press the E-zoom and Image Mode button to turn the 

stadiametric rangefinder mode on/off. Then by short or long

pressing the Image Mode button or the Photo button to adjust

the selecting rang of the target. The

distance of human(1.7m target), wild

boar (0.9m target) and hare (0.2m target)

can be measured and displayed behind

the corresponding icon.

11. Setting Menu

Long press the E-zoom button to enter the main menu, then

short press the Image mode button or the Photo button to

toggle up and down. And short press the E-zoom button to

perform following settings: Ultraclear /

Wi-Fi / screen brightness / hue selection

/ calibration mode /analog video / PIP

and more.

When done, long press the E-zoom

button to exit the menu.

12. Ultraclear Mode

In this mode, the image contrast is enhanced, which is suitable

for cloudy, rainy, foggy and other harsh weather conditions.

13. WiFi Function

Turn on WiFi in the main menu, and connect the phone to the

WiFi signal that names Eye_xxxxx-xxxxxx, xxxxx-xxxxxx is the

SN code of the device, and the password is 12345678.

After the WiFi connection is successful, the APP installed on the

phone can be used for real-time operations, such as taking

photos and recording videos.

14. Hue Selection

There are two hues for selections: C (cool) hue and W (warm)

hue. Short press the menu button to switch between C and W.

But the switch between the warm and cool hues is not

applicable to the Color mode.

15. Calibration Mode

Image degradation can be improved by manual correction.

There are two mode available-B(background) and S(shutter),

which can be switched through the main menu.

Press and hold down the E-zoom and Photo button at the

same time to achieve the manual correction.

If the mode B is selected, the lens cover shall be closed during

the correction.

16. Video Out

Turn on the analog video in the main menu, and a video output

icon will appear on the lower right corner of the image. -

The analog video can be output to the monitor with the

specific video transmission cable via the MCX interface.

19. Digital Compass

Short press the E-zoom button to turn the digital compass

on/off.

When is on, the digital compass is displayed in the middle top of

the screen, indicating the current direction.

18. More

Short press the E-zoom button to

enter the secondary menu, including

functions of digital compass / motion

sensor / auto-standby / cursor

calibration / compass calibration /

system information / factory resets /

return to the main menu, etc.

21. Auto Standby

When the auto standby is on, the device will automatically enter

the standby state if there is no operation within 15 minutes, and

power off automatically after 15 minutes in the standby state.

22. Cursor Calibration

In the reticle calibration interface,

short press the E-zoom button to

toggle from all directions. Short press

the image mode button or Photo

button to adjust the reticle position.

When done, long press the E-zoom button to save and exit.

23. System Information

Short press the E-zoom button to

enter the system information interface,

under which user can check all

version information and product code.

24. Factory Resets

Short press the E-zoom button for factory reset. Select (Yes)√

or × (No) with a short press of the Image Mode button or Photo

button. Press the E-zoom button

briefly to confirm your selection.

If Yes is selected, the following

settings will be restored to the

factory state:

Image Mode - white hot mode,

Brightness - level 2, - ×1, - S, E-zoom Calibration Mode

Image Hue - warm, and the other functions are off.

Note: Restore factory settings will format memory, so please

save the date in advance.

COCO MP

MPMP ONE

ONE

ONEONE NT

NTNT S & CO

S & CO

S & COS & CO NTR

NTR

NTRNTR OL

OLOLS

Eyeshade

Eyepiece Adjustment

Indica to r


E zoom-

Image Mo de

Power

Laser

Lens

17. Picture in Picture (PIP)

When the PIP function is turned on, a

small window appears at the top

center of the screen, showing a

double zoom of the center area of

the target image.

20. Motion Sensor

Short press the E-zoom button to turn the motion sensor on/off.

The motion sensor will display on the right side of the screen

when it is on.

The horizontal represents the dip

angle, and the vertical represents the

pitch angle.

The values of the current dip angle

and pitch angle are displayed on the bottom of the scale plate.

Eye Ⅱ 单目热像望远镜

V3 .0

IRay Technology Co., Ltd.

Add: 11th Guiyang Street, YEDA, Yantai 264006, P.R. China

Tel: 0086-400-998-3088

Web: www.infirayoutdoor.com

Email: infirayoutdoor@infiray.com

1. The rated charging voltage of this product is 5V, please

charge timely when power is low, so as to avoid the service life

loss caused by battery over-discharge.

2. The thermal imager is not recommended to use in high-

temperature environment for a long time, if the temperature is

too high, the imager will enter the high-temperature protection

state, and automatically shut down.

3. The use of temperature is recommended at -10 C to +50 C ° °

4. Make sure that the USB/MCX port cover on the bottom of the

thermal imager is tightly plugged firstly when using in water

environment, such as rainy days.

5. Under any circumstances (whether on or off), do not expose

the thermal imager directly into the high-intensity radiation

sources (such as the sun, laser, etc.), to avoid irreversible

damage to the device.

6. The B correction mode will reduce the frequency of

automatic shutter correction after the condition of the device

become stable. If the image gets worse, please cover the lens

cover for manual background correction.

7. When the device is not used for a long time, it should be

charged at least 2 months during storage and stored in a dry

and ventilated environment.

8. Do not shine the laser pointer on human eyes.

9. The laser and cursor function depends on the legal

restrictions of different countries and region.

10. Do not be charged in an environment above 40 C.°

AAT

TTTENTION

TENTION

TENTIONTENTION

THERMAL MONOCUL

THERMAL MONOCULTHERMAL MONOCULAR

ARAR

2021.01

QUICK ST

QUICK STQUICK ST

ART GUIDE

ART GUIDEART GUIDE

★ The laser and cursor function may be disabled due to the legal

restrictions in your countries and regions.

★★ Actual operation time depends on the intensity of WiFi use and the

built-in video recorder.

★★★ Technical parameters of the device may be improved without prior

notice of the customer.

Eye Ⅱ Series

Model

E3Plus

V2.0

E3Max

V2.0

E6+

V2.0

E6Pro

V2.0

Detector

Resolution

384×288

640×480

Pixel Size, um

NETD, mk

≤50

Frame Rate, Hz

Objective Lens,

Field of View, °

10.5×7.9

7.5×5.7

12.5×10.0

8.8×7.0

Display

1280×960 LCOS

★

Laser , nm

650

Magnification,×

2 5~10.

3 5 14 0. ~ .

2 1 8 4. ~ .

3 0 12 0. ~ .

E zoom, ×-

2/4

Max Battery.

★★

Life , h

Weight, g

<450

<520

Dimension, mm

181×65×64

186×65×64

188×65×64

202×65×64

Detection

Range, m

(Target:1.7m×0.5m,

P(n)=99 )%

1298

1818

2597

Eye V2 0 SeriesⅡ.

WeChat Official Account

Official Website

EyeⅡ V2.0 Series

25. Charge

When the indicator light is flashing red, it means the battery is

less than 10%, please charge in time. At the same time, there

will be relevant text prompts on the screen.

Open the USB cover at the bottom, plug in the USB charging

cable, and connect with the power to charge, you can also

charge with the power adapter or any other power supply such

as portable power.

The indicator light is orange when charging and green when

full.

When the warning indication of power less than 3% appears on

the display screen, if the device is not charged in time, the

device will automatically shut down after 3s.

26. Data Catching

After connecting the device with the computer via USB cable,

the memory of the device can be read on the computer.
