Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS
• Analog to HDMI Converter
• Power adapter
• Quick Setup Guide
Attention: Your converter supports RCA INPUT only. It doesn't
support RCA OUTPUT.
Note: RCA and HDMI cable not included and required for use.
QUICK SETUP GUIDE
RCA to HDMI
Converter
NS-HZ330 / NS-HZ330-C
FEATURES
• Allows easy connection of devices with AV components to any TV or
display with an HDMI input.
• HDMI output with selectable 720p/1080p output works with most TVs
and displays with an HDMI input.
• Power adapter for constant use in any system.
• Supports NTSC/PAL TV formats.

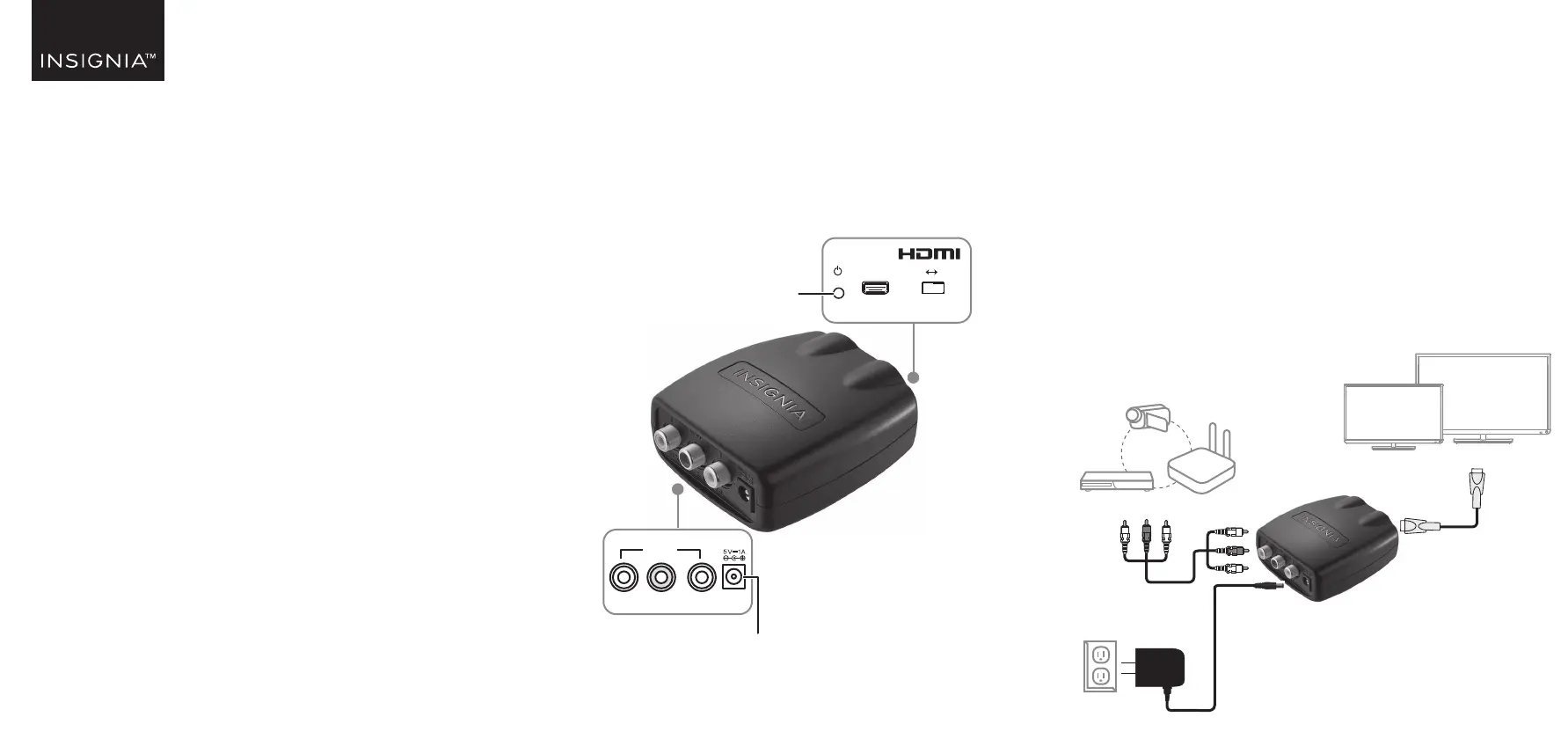

Top view
SETTING UP YOUR CONVERTER
Note: Before you install this device, turn o the audio/video device that you are
connecting.
1 Connect an AV cable (yellow, red, and white, not included) to the
input port on the converter, then connect it to the AV Out port on
your audio/video device.
2 Using an HDMI cable (not included), connect the converter’s HDMI
output to a display device such as TV / LCD / Monitor that has HDMI
input.
3 Connect the AC power adapter to the DC jack on the converter, then
plug the power adapter into a wall outlet.
4 Turn on the connected devices and begin playback. If you are not
getting audio or video, check the connections and settings to make
sure that they are all correct.
5 Select either 720p or 1080p output via the switch on the converter.
If you are not sure, select 720p for maximum compatibility.
OR
AV cable
(not included)
Display or TV
Blu-ray/DVD player
Set-top box
Power adapter
(included)
HD camera
HDMI cable
(not included)
INPUT
VIDEO R-AUDIO-L
DC jack
OUTPUT 720P 1080P
Power-on indicator (green)
NS-HZ330_-C_23-0501_QSG_V6_EN_Final.ai 1 6/27/2023 11:19:53 AM
SPECIFICATIONS
Dimensions (H×W×D): 1.25 × 2.85 × 3.2 in.
(3.18 × 7.23 × 8.3 cm)
HDMI version: V1.3
Input format: NTSC or PAL
IHDMI output connector: Type A 19 pin Female × 1
HDMI video output resolution: 720p@60Hz
1080p@60Hz
Power supply: 5V 1A
Power consumption: 3.8 Watts (max.)
Accessories: Power adapter with 5.9 ft (1.8 m)
length power cable
IMPORTANT SAFETY INFORMATION
• Indoor use only.
• There are no user serviceable parts. Do not open the housing.
• Do not use in a high humidity environment.
• Use included power adapter only.
frequency energy and, if not installed and used in accordance with the instructions, maybe
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-003 (B)/NMB-003 (B)
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and Canada)
www.insigniaproducts.com
The Adopted Trademarks HDMI, HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
INSIGNIA is a trademark of Best Buy and its aliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2023 Best Buy. All rights reserved.
TROUBLESHOOTING
If you have problems with your converter, try these suggestions before
calling Customer Service.
The power indicator is o:
• If the power on indicator is not on, make sure that the wall outlet that the
power adapter is plugged into is a live outlet and that it is turned on (if it
is switched).
No video and no audio:
• Check the connections and make sure that they are correct and secure.
• Make sure that the TV is set to the HDMI input, and the source device is
setup to output an RCA signal.
• Try the other position on the 720p/1080p switch on the converter box.
• Make sure that the RCA cable or HDMI cable is workable.
Has video, but no audio:
• Make sure that your TV or monitor is on the AV input.
• Make sure that the RCA Cable is workable.
• Make sure that the volume is turned up on your playback device.
Image quality is poor:
• Because of the limitations of the legacy analog composite video output,
the image quality will not be as good as a digital or HD source. There will
be softness to the image and the colors will not be as vivid. This is normal
operation and not a limitation of the converter box.
LEGAL NOTICES
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution
Changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
V6 ENGLISH 23-0501
