Flexible 24V INTEGRAL LED RGB Strip IP33

Installation Guide

IMPORTANT NOTICE

• This product should be installed according to the instructions in this guide and by a qualied electrical installer.

• All electrical work must be completed in accordance with the latest IET wiring regulations (formally IEE) for the UK or in accordance with all applicable

regulations and laws in the country in which it is being installed. This product falls under a low voltage Class circuit category.III

• Switch OFF power at the mains before installing the LED strip

• Strip must only be installed indoors, in a dry area

• Avoid looking directly at the strip when turned on, for a long period of time

• Observe the operating temperature of the LED strip: -25C to +60C

To avoid any damage to the LED strip or driver;

• Always disconnect or switch o the power supply before cutting or connecting an LED strip. Wait at least one minute before connecting to a recently

powered driver.

• Always handle the LED strip with care.

• Observe the correct polarity for 24V connections (g 1).

• Safely route and secure all wires so they cannot be pinched or damaged

• Do NOT power the strip whilst in its packaging reel

• Do NOT twist the LED strip or touch the LEDs on the strip surface

• To avoid damage or malfunction, Do NOT coat the LED strip with paint, varnish or similar.

INTRODUCTION

• This installation guide is for exible, IP33 constant voltage self-adhesive LED strips produced by Integral LED.

• Depending on your installation, you can purchase optional or additional accessories such as mounting clips and connectors.

A) CHOOSING A 24V LED DRIVER

• This LED strip operates with a 24V DC constant-voltage power supply known as a driver. Drivers are sold separately and are available in varying wattage

outputs.

• The specication of the driver required will depend on the total power requirement of the connected strip(s). The power output of the driver (wattage

rating) must be at least 20% higher than the total required wattage of the strip(s) being powered.

For example, if you are installing 5 LED strips of 1M each and the power requirement of each 1M strip is 3W/metre – the total power requirement is 15W.

The power rating of the driver should be a least 20% above 15W i.e. A minimum of 18W .

B) PRE-INSTALLATION GUIDE

LED strips make a great addition to any domestic or commercial environment. They can change the mood and look of a space instantly and are very energy

ecient. The possibilities are endless so the requirement for each lighting project will be dierent.

It is worth taking some time to plan your project for the desired eect before removing the backing tape on the LED strip. The specication, length, mounting

position and distance from an object determines the appearance of a lit LED strip. You will also need to consider the placement and concealment, of the 24V

LED driver, control unit and wires, and the power switch to turn the LED strip ON and OFF.

We recommend that you test the strip by temporarily holding the LED strip in place by using a suitable tape, such as masking tape. Safely connect the power

supply - you can then carefully move the strip to try dierent angles and positions to gain the desired illumination eect and position. Check for light spots,

reections and shadows.

Please consider the surface you are applying the LED strip to; the surface should be stable, clean and smooth. On removal of a xed LED strip - damage to

paint, wallpaper or other substrates may occur. Take care in measuring the length required before cutting the strip, take into account the space required for the

connector. You may also consider using a spirit level, plumb line or other guide if required.

In the bag

1 X 5M ±5cm IP33 INTEGRAL LED RGB STRIP on reel pre-tted with an appropriate

connector to connect to a suitable control unit and power supply.

Accessories For IP33

1 X Clip-on strip connector

If you cut the strip into two pieces, you can use this connector to power the remaining

portion of the strip.

IP33

ILSTRGBA_24V_V2

WARNING

DO NOT CONNECT THE LED STRIP DIRECTLY TO A MAINS SUPPLY.

THE LED STRIP MUST ONLY BE CONNECTED TO A SUITABLE 24V LED DRIVER.

C) POWER SUPPLY CONFIGURATIONS AND WIRING

1) POWERING THE STRIP

The LED strip is powered by a suitable 24V LED driver. Ensure the power is OFF and that the correct

polarity is observed when wiring the LED driver. (g 1)

2) VOLTAGE DROP

If the total length of LED strips powered by a single LED driver is too long, you may nd that the LEDs

furthest away from the driver will be unlit or dimmed. To avoid this you will need to use additional

drivers. For instance if you are powering 2 X 5M strips from one driver – you will need to split the run

into separate 5M runs each powered by its own driver.

D) PRECAUTIONS FOR INSTALLING THE INTEGRAL LED STRIP

1. Please check the bag contents before installation.

2. Do not remove the strip from the packaging until ready for installation.

3. Do NOT touch or press the LEDs or other components during installation (g 4).

4. Do not power the strip before completely releasing it from the reel.

5. Do not twist the LED strip (g 5).

6. Do not install the product in an environment, which exposes it to direct sunlight, rain, water,

moisture or other particles.

7. If the product needs to be cut to length; please measure carefully and cut squarely at the

appropriate cut marks only using a sharp pair of scissors (g 6).

8. To x the LED strip to a smooth surface; the strip is pre-tted with 3M adhesive backing tape.

Ensure that the mounting surface is clean, dry and free from any oils, grease or wax.

9. The Integral LED strip has excellent exibility but requires the bending diameter to be no

smaller than 50 mm (g 7).

10. The strip is pre-tted with V+/R/G/B connection wires at one end. Check the supply voltage

and wire connections to control unit and LED driver before switching the power on.

CAUTION – Twisting, pressing on LEDs, over-bending the strip, cutting at non-cut points,

incorrectly powering the strip or exposing a standard strip (IP33) to water, particles or direct sunlight

will invalidate the warranty (your statutory rights remain unaected).

E) INSTALLATION INSTRUCTIONS

1. To ensure a successful installation - please read the precautions and pre-installation

recommendations above.

2. The mounting surface must be clean, dry and free from dust or grease.

3. Release the LED strip from the package and unreel.

4. Measure and cut the LED strip to the required length (only cut at the cut marks with power

OFF).

5. Remove the 3M self-adhesive backing tape from the strip gradually during installation.

Do not remove it all at once to avoid the strip becoming entangled and sticking to itself (gs

8 and 9).

6. Stick the LED strip to the mounting surface by pressing on the strip in between components

only. Do NOT press on the LEDs or other components on the strip.

7. You can use optional mounting clips (purchased separetely) to secure the strip at intervals

(g 10). The mounting clips are supplied without screws and it is the responsibility of the

installer to select the correct type of screw depending on mounting substrate.

8. Once the strip is axed, it is then ready to be wired. Please see section C1.

F) JOINING TWO STRIPS TOGETHER WITH ADDITIONAL ACCESSORIES

1) Integral LED is keen to make the installation easier and less labour intensive. If you are

joining two IP33 strips together, our press-on connectors should be used which are available

for purchase.

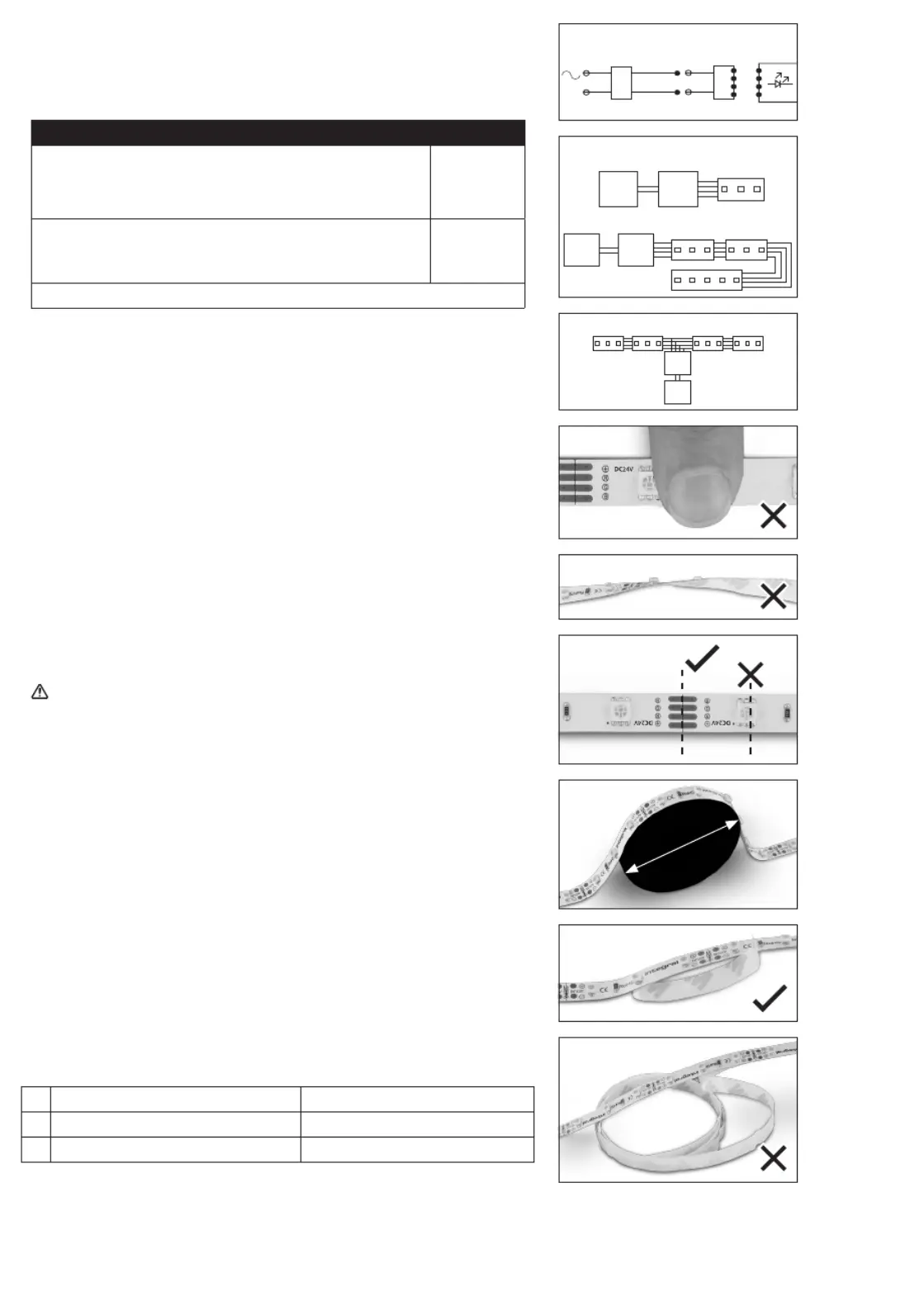

Typical installation conguration

Straight run

An LED driver powers the control unit and the rst LED strip. Additional strips

can be connected in series. The installer will need to consider voltage drop

(see 2).

g 2

Powered from the centre

Power one or two equal lengths of LED strip from the centre.

This conguration will give the best results.

g 3

Additional accessories (sold separately) may be required for complex congurations.

a. To connect strips inline ILSRGBCONN-BLOCK5PC

b. To connect Strips not inline or spaced ILSRGBCONN-2WAY5PC

c. To connect power to a cut strip ILSRGBCONN-POWER5PC

MAX RUN = 5 Metres

2 0 0 - 24 0 V A C D C + 24 v DC

D C - D C -

D C + V +

L E D 1

D R

L E D 1

C) 1 (g 1) D = Driver, R = Receiver

C) 1 (g 2) D = Driver, R = Receiver

C) 1 (g 3) D = Driver, R = Receiver

D) 3 (g 4)

D) 5 (g 5)

D) 7 (g 6)

D) 9 (g 7)

E) 5 (g 9)

E) 5 (g 8)



>=50mm
