Important: Read before use. • Importante: Leer antes de usar.

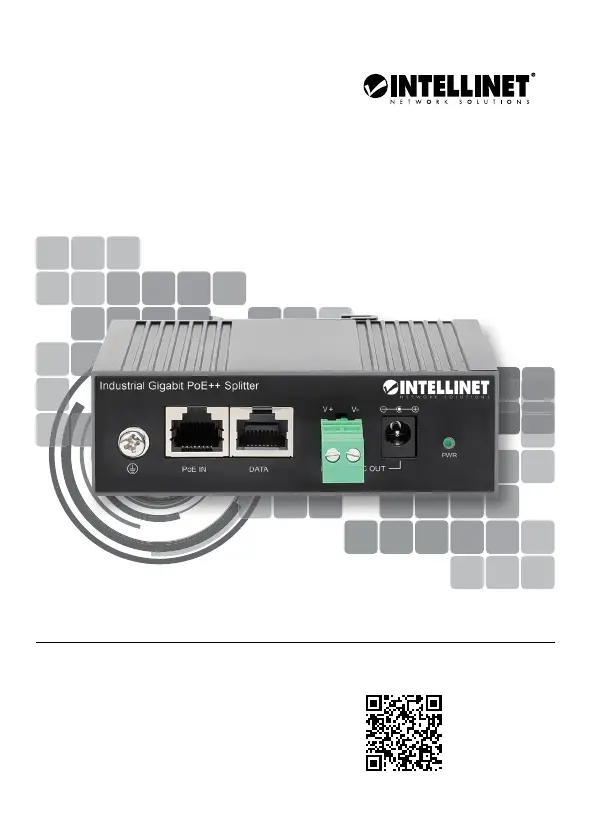

Industrial Gigabit

PoE++ Splitter

Instructions

Model 508940

(

IPIK-60G

)

For additional benets:

or go to: register.intellinet-network.com/r/508940

Scan to

register your

product warranty

2

This guide presents the basic steps to set up and operate this device.

For specifications, visit intellinetnetwork.com. Register your product at

register.intellinet-network.com/r/508940 or scan the QR code on the cover.

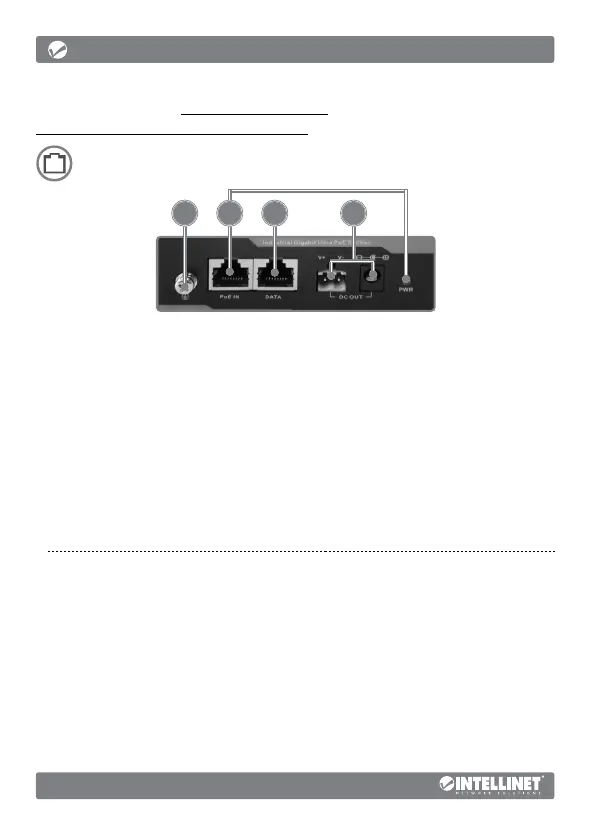

Connections

1 Wire the grounding terminal to an earth grounding object

to protect equipment from external electrical surges.

2 Connect Ethernet cable (min. Cat5e) from a PSE port on a PoE source (up

to 60 W input; IEEE 802.3bt/at/af-compliant) to the PoE IN port on the

splitter. The PWR LED lights to indicate a powered connection to PSE.

3 Connect Ethernet cable (min. Cat5e) from the DATA port

on the splitter to an RJ45 port on a network device.

4 Connect an appropriate cable from one of the DC OUT ports (either the

terminal block or the power jack; output up to 12 V / 4.25 A / 51 W) on

the splitter to the network device or other device you wish to power.

Terminal Block Installation

Note: Ensure all power is off/disconnected before beginning! The wire

gauge for the terminal block should be in the range between 12 – 24 AWG.

4-1 Loosen appropriate screws. Insert bare power-supply

wires into appropriate terminal slots (positive wire into

positive slot; negative wire into negative slot, etc.).

4-2 Tighten appropriate screws to secure wires.

4-3 Install block into the device.

1 2 3 4

English

Instructions
