Industrial Gigabit

PoE++ Extender

Instructions

Model 508957

(

IPIE-80G

)

This guide presents the basic steps to set up and operate this device.

For specifications, visit . Register your product at intellinetnetwork.com

Connections

1 Wire the grounding terminal

to an earth grounding object

to protect equipment from

external electrical surges.

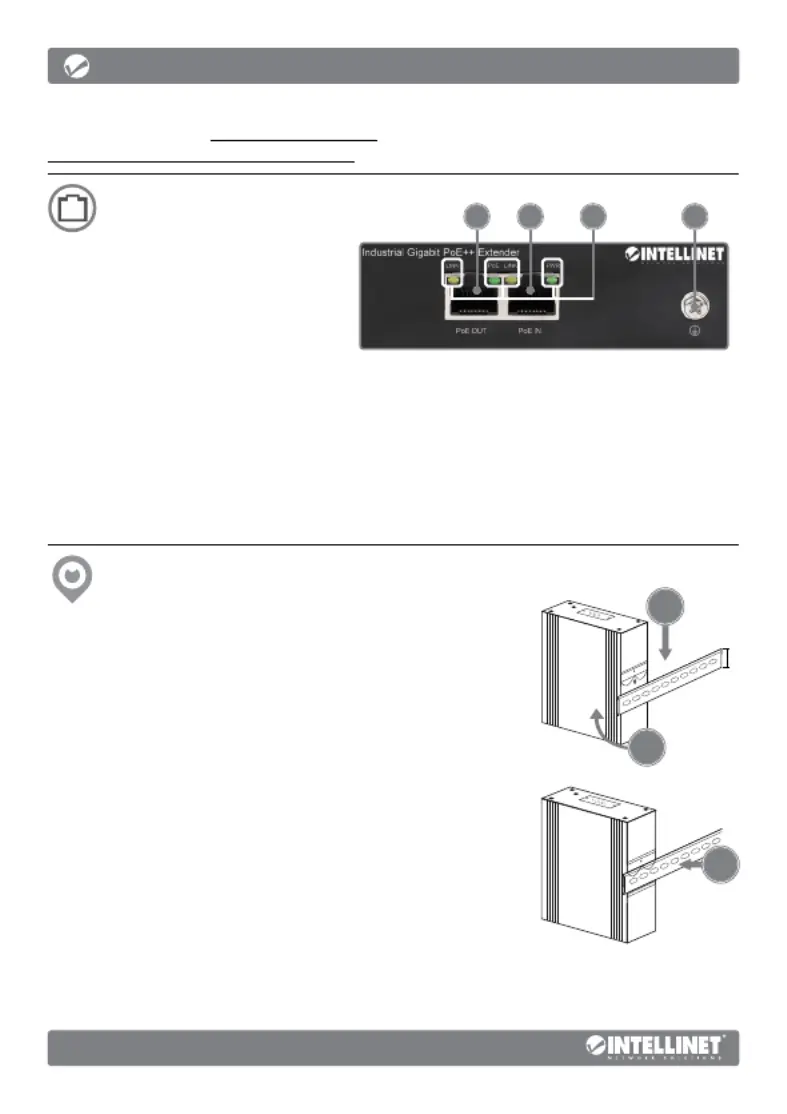

2 Plug a Cat5e/6 Ethernet cable — up

to 100 m (330 ft.) long — from your

powered source device (for example, a PoE

injector or switch; up to 90.0 W, 50.0 - 57.0

VDC; IEEE 802.3bt/at/af compliant) into

the connector on the extender.PoE IN

3 Plug a second Cat5e/6 Ethernet cable —

also up to 100 m long (330 ft.) — from

the device you want to transmit power

(up to 80 W) and data to (for example,

a PoE network camera) into the PoE

OUT connector on the extender.

4 LEDs (lit): PWR — Extender is powered

on; LINK —

Valid port connection;

PoE — Extender is delivering power.

Placement

Desktop Installation

Prior to use, place/position the device:

• on a level surface that can support its weight and has at

least 25 mm (approx. 1”) of clearance for ventilation;

• away from sources of electrical noise: radios,

transmitters, broadband amplifiers, etc.;

• within 100 m (approx. 328’) of network

devices it’s to be connected to.

DIN-Rail Installation

1 Angle spring of mounting clip over top lip of DIN rail.

2 Push device down till clip clicks onto rail.

3 Ensure installation is stable.

3 2 14

35 mm

English

Instructions
