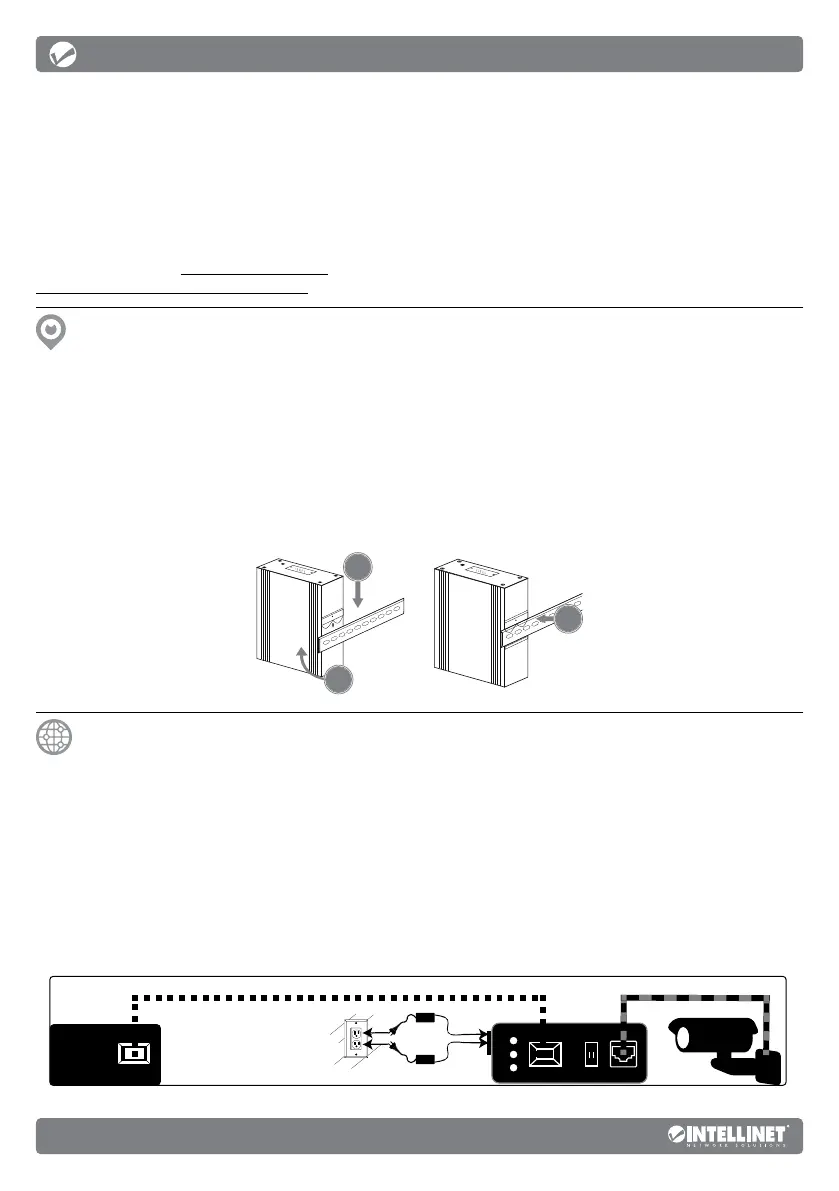

Industrial

Gigabit Media

Converter

and PoE+

Injector Instructions

Model 508988

(

IMCI-SFPG-30W

)

or go to: register.intellinet-network.com/r/508988

Important: Read before use. • Importante: Leer antes de usar.

For additional benets:

Scan to

product warranty

Media converters connect two Ethernet networks over a longer distance using fiber optic cable.

Features

• One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)

• One SFP port for 1000Base-X optical transceiver modules and distances up to 120 km (75 mi.)

• Power over Ethernet injector function with output up to 30 watts

• IP40 slim-type metal housing to withstand harsh industrial conditions

• Option for DIN-rail installation

• Two redundant DC inputs (48 - 56 V) with terminal block

For specifications, visit intellinetnetwork.com. Register your product at

Placement

Desktop Installation

Prior to use, place/position the device:

• on a level surface that can support the device with at least 25 mm (approx. 1”) of clearance for ventilation;

• away from sources of electrical noise: radios, transmitters, broadband amplifiers;

• within 100 m (approx. 328’) of network devices it’s to be connected to.

DIN-Rail Installation

1 Angle spring of mounting clip over top lip of DIN rail.

2 Push device down till clip clicks onto rail.

3 Ensure installation is stable.

Connections

This product requires an SFP transceiver module that provides fiber optic connections.

1 Insert the transceiver into the media converter and route the fiber optic cable into the transceiver.

2 Route the other end of the fiber optic cable into a suitable port in your fiber optic network.

Maximum length and fiber cable specification depend on the model.

RJ45 & PoE

Connect the UTP port of the media converter to powered RJ45 device; e.g., to a network camera. Cat5e or better

cabling is recommended. The Intellinet Industrial Gigabit Media Converter and PoE+ Injector complies with IEEE

802.3at / 802.3af standards. The device can supply up to 30 watts of power to a PoE-compliant powered device.

Example

TX RX

Fiber

Network

Gb Fiber (120 km/74.5 mi.) Gb RJ45/PoE (100 m/300 ft.)

TX RX

48 V – 56 V

Instructions

English
