16-Port Gigabit Ethernet

Switch

Instructions

Model 561815 (IES-16GDB)

For additional benets:

or go to: register.intellinet-network.com/r/561815

Scan to

product warranty

2English

Instructions

The Intellinet Network Solutions 16-Port Gigabit Ethernet Switch offers an array of time-saving,

cost-effective features while providing superior network throughput. No configuration is required

and installation is plug and play. Thanks to its optional desktop and 19” rackmount design, superior

performance and value, the switch is the perfect choice for your small office or home network. With

a backplane speed of 32 Gbps, plenty of performance is available for your computers, servers and

other networking devices. Each of the ports automatically senses the link speed of the connected

network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance.

For specifications, visit . Register your product at intellinetnetwork.com

Green Ethernet Technology

More often than not, a network switch does not utilize all its ports at all times. Normally, when a

computer, notebook, network printer or other network-connected device is powered down, the

switch continues to consume the same amount of power as if the port were still active. Now, thanks

to the new, energy efficient IEEE 802.3az technology, this Intellinet Network Solutions switch detects

link status to all connected devices and reduces the power usage of ports not in use. In addition, the

switch can adjust the level of power output based on the length of the network cable connected to a

particular port. This feature allows for the enjoyment of maximum network performance, and when

things slow down, it automatically scales back power usage to conserve energy and save money.

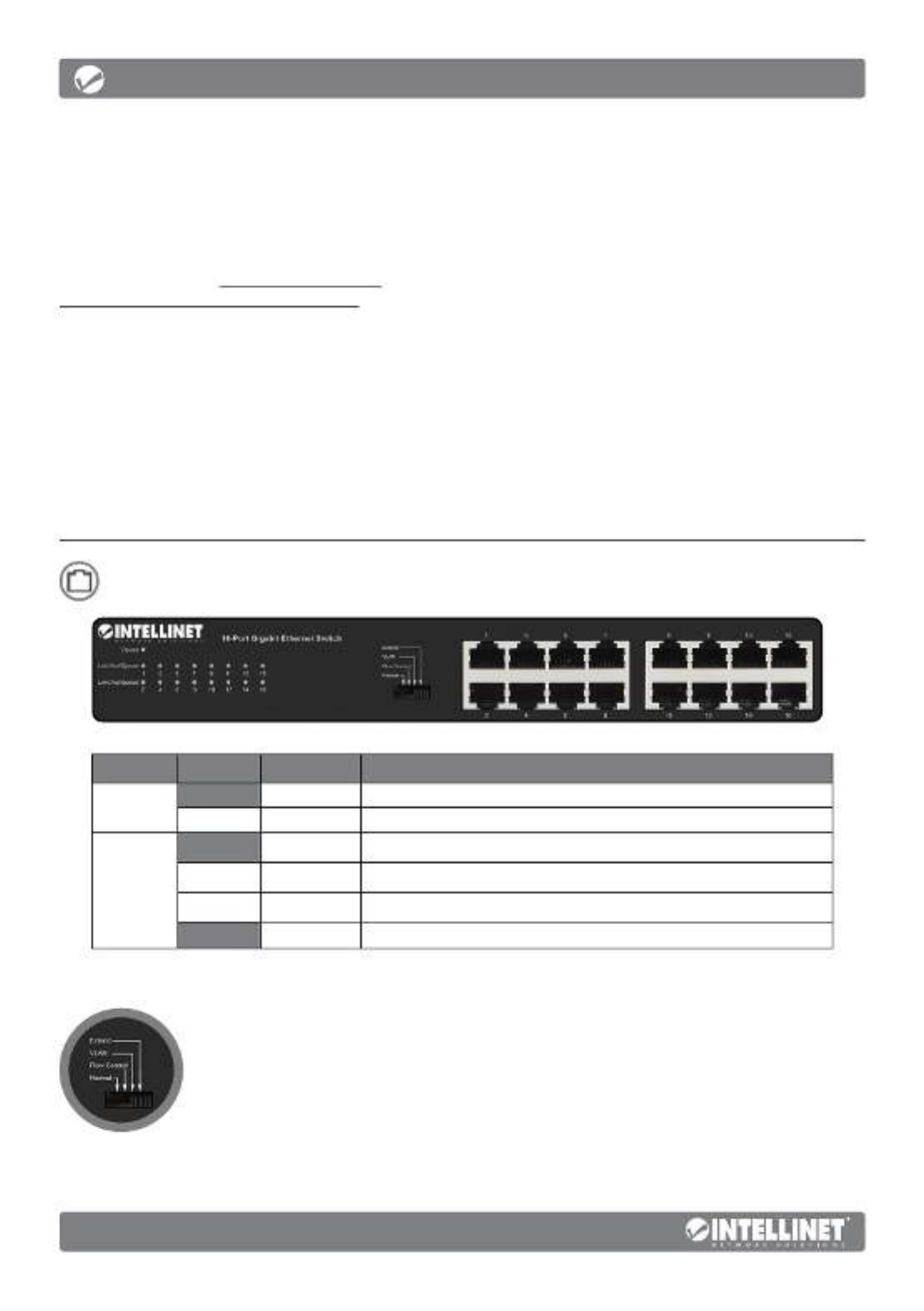

LED COLOR STATUS STATUS DESCRIPTION

Power Off Power Off.

Green On Power On.

Link/Act/

Speed

Off No device is connected to the port.

Orange On A device is connected to the port at 10/100 Mbps speeds.

Green On A device is connected to the port at 1000 Mbps speeds.

Flashing Sending or receiving data.

Slide Switch

• : default mode; allows normal communication between ports 1 – 16.Normal

• Flow Control: disables the switch’s flow-control function.

• : isolates ports 1 – 14 from each other while allowing them to connect to VLAN

ports 15 and 16; increases the forwarding rate when broadcast storms occur.

• : allows ports 1 – 8 to achieve transmission distances Extend

up to 250 m (820 ft.) at a reduced speed of 10 Mbps.

Front Panel

Produkt Specifikationer

Mærke:	Intellinet
Kategori:	Ikke kategoriseret
Model:	561815
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	280 mm
Dybde:	126 mm
Højde:	44 mm
Vægt:	1100 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	1600 g
Opbevaringstemperatur (T-T):	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H):	5 - 90 %
Strømforbrug (typisk):	10.1 W
Driftstemperatur (T-T):	0 - 40 °C
Kabler inkluderet:	Vekselstrøm
Strømkilde:	Vekselstrøm
Certificering:	FCC Class A, CE, UKCA, NDAA
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
LED-indikatorer:	Ja
Strøm over Ethernet (PoE):	Ingen
10G understøttelse:	Ingen
VLAN understøttelse:	Ja
Flowkontrol support:	Ja
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-TX, 1000BASE-T
Basis omskiftning RJ-45 Ethernet porte, antal:	16
Basis omskiftning RJ-45 Ethernet porttype:	Gigabit Ethernet (10/100/1000)
Opbevar-og-frem:	Ja
MAC adresselabel:	8192 entries
Jumbo Frames support:	Ja
Stativ-montering:	Ja
Strømforsyning inkluderet:	Ja
Rack monteringskit:	Ja
Understøttede kabeltyper:	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a
Pakke videresendelsesrate (1 Gbps):	1488000 pps
Pakke videresendelsesrate (100 Mbps):	148800 pps
Pakke videresendelsesrate (10 Mbps):	14880 pps
